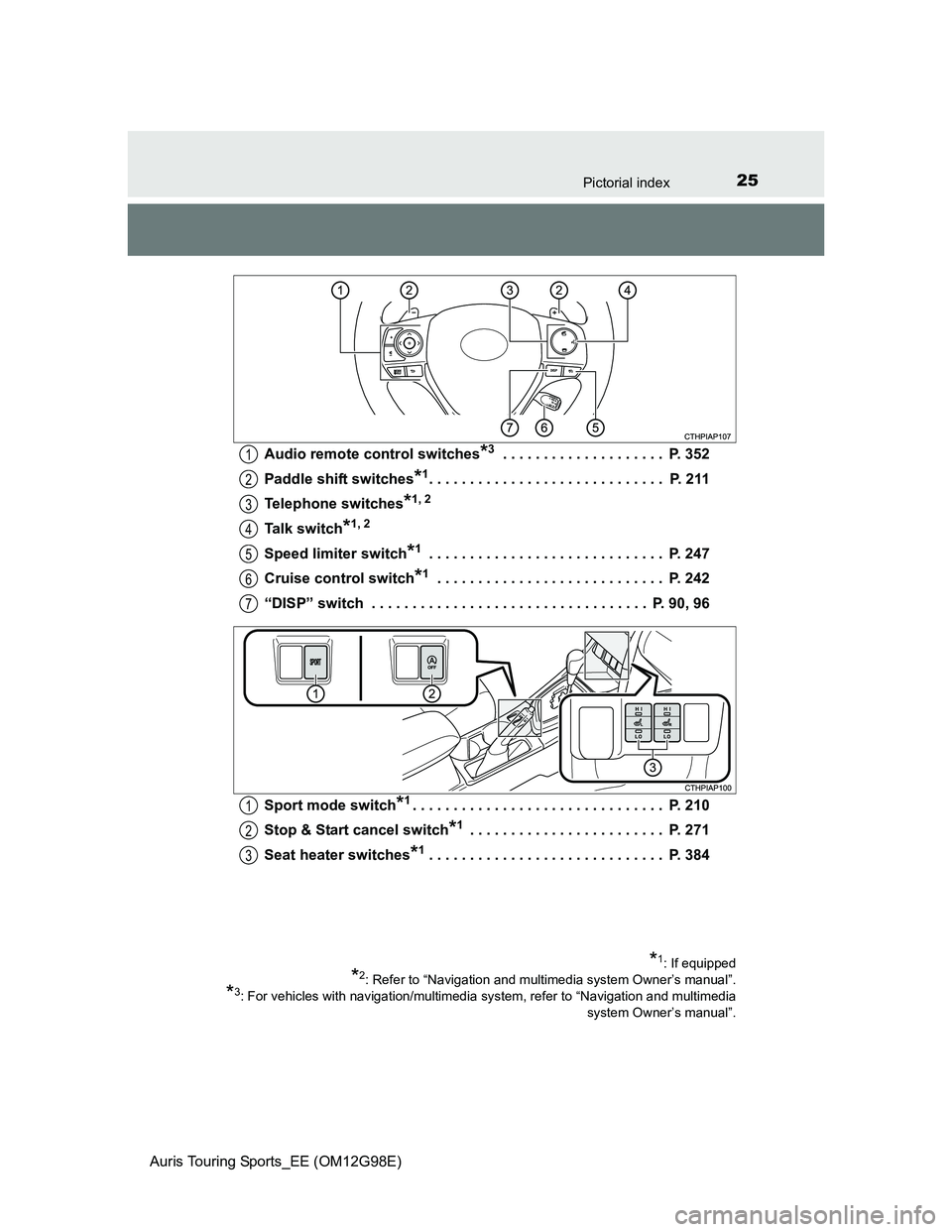

25Pictorial index
Auris Touring Sports_EE (OM12G98E)Audio remote control switches
*3 . . . . . . . . . . . . . . . . . . . . P. 352
Paddle shift switches
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 211
Telephone switches
*1, 2
Talk switch*1, 2
Speed limiter switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Cruise control switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 242
“DISP” switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 90, 96
Sport mode switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210
Stop & Start cancel switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . P. 271
Seat heater switches
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 384
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.
*3: For vehicles with navigation/multimedia system, refer to “Navigation and multimedia
system Owner’s manual”.
1
2
3
4
5
6
7
1
2
3

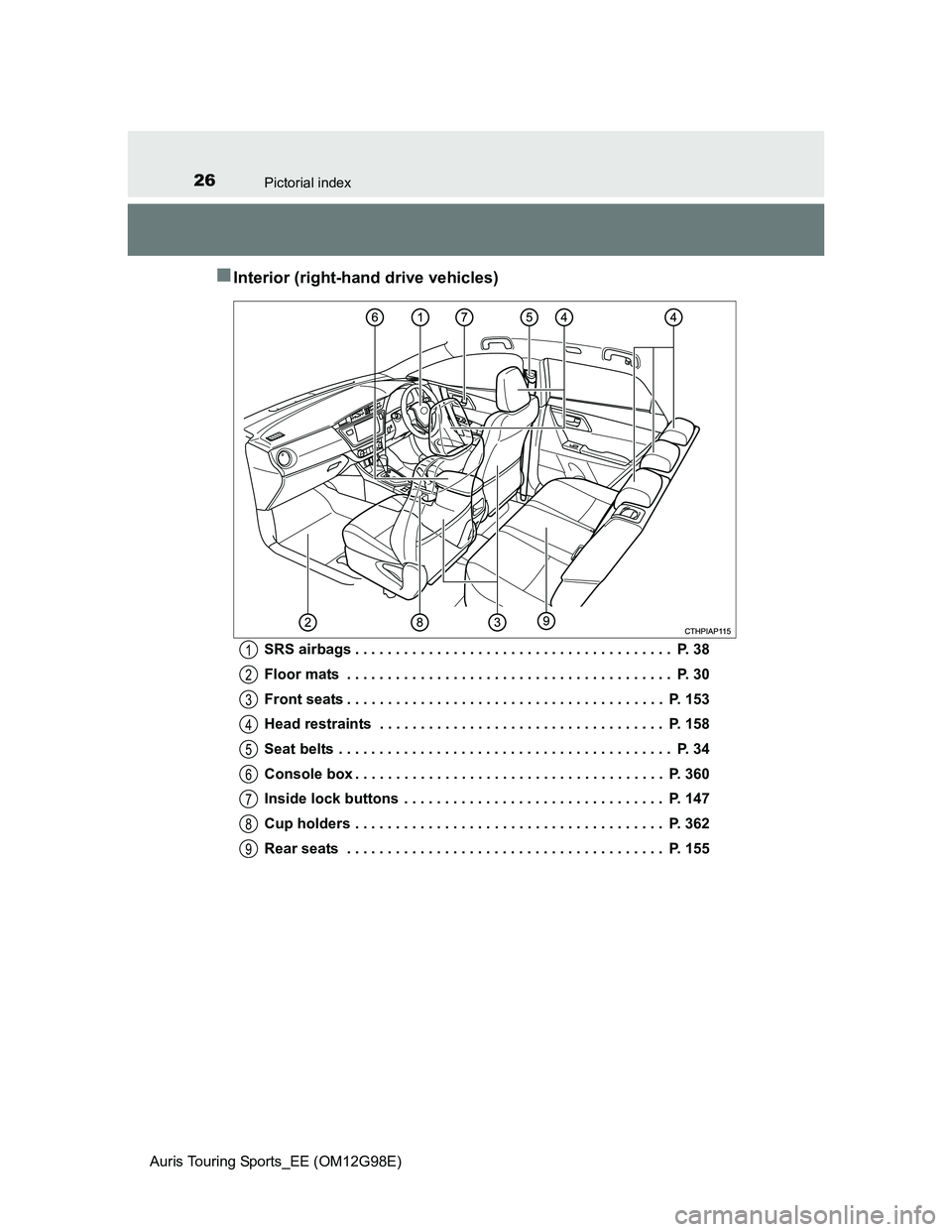

26Pictorial index
Auris Touring Sports_EE (OM12G98E)
Interior (right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 153
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 34
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 360
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 147
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 362
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 1551
2
3
4
5
6
7
8
9

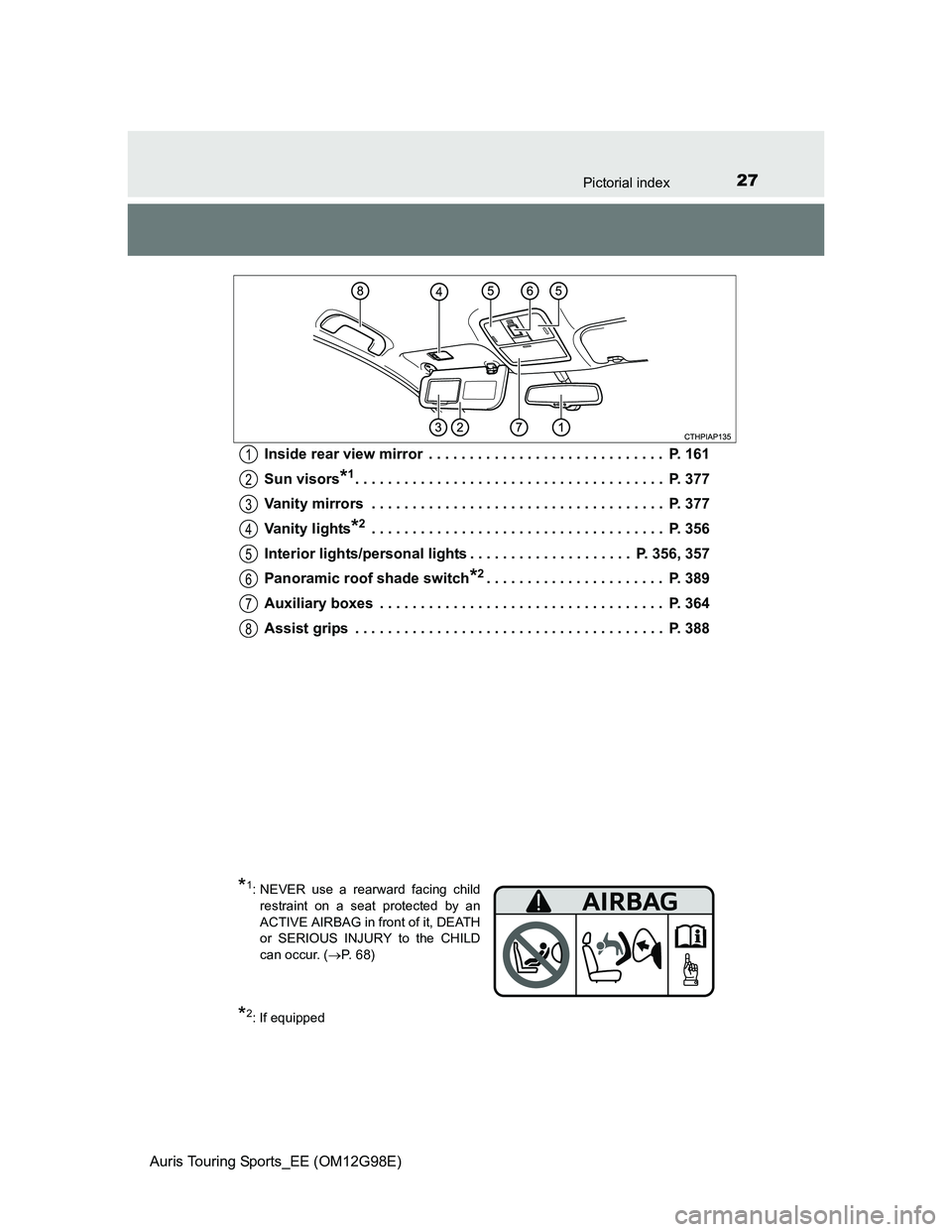

27Pictorial index
Auris Touring Sports_EE (OM12G98E)Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 161
Sun visors
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 377
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 377
Vanity lights
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . P. 356, 357
Panoramic roof shade switch
*2. . . . . . . . . . . . . . . . . . . . . . P. 389
Auxiliary boxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 364
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 388
1
2
3
4
5
6
7
8
*1: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. (P. 6 8 )
*2: If equipped

28Pictorial index
Auris Touring Sports_EE (OM12G98E)

29

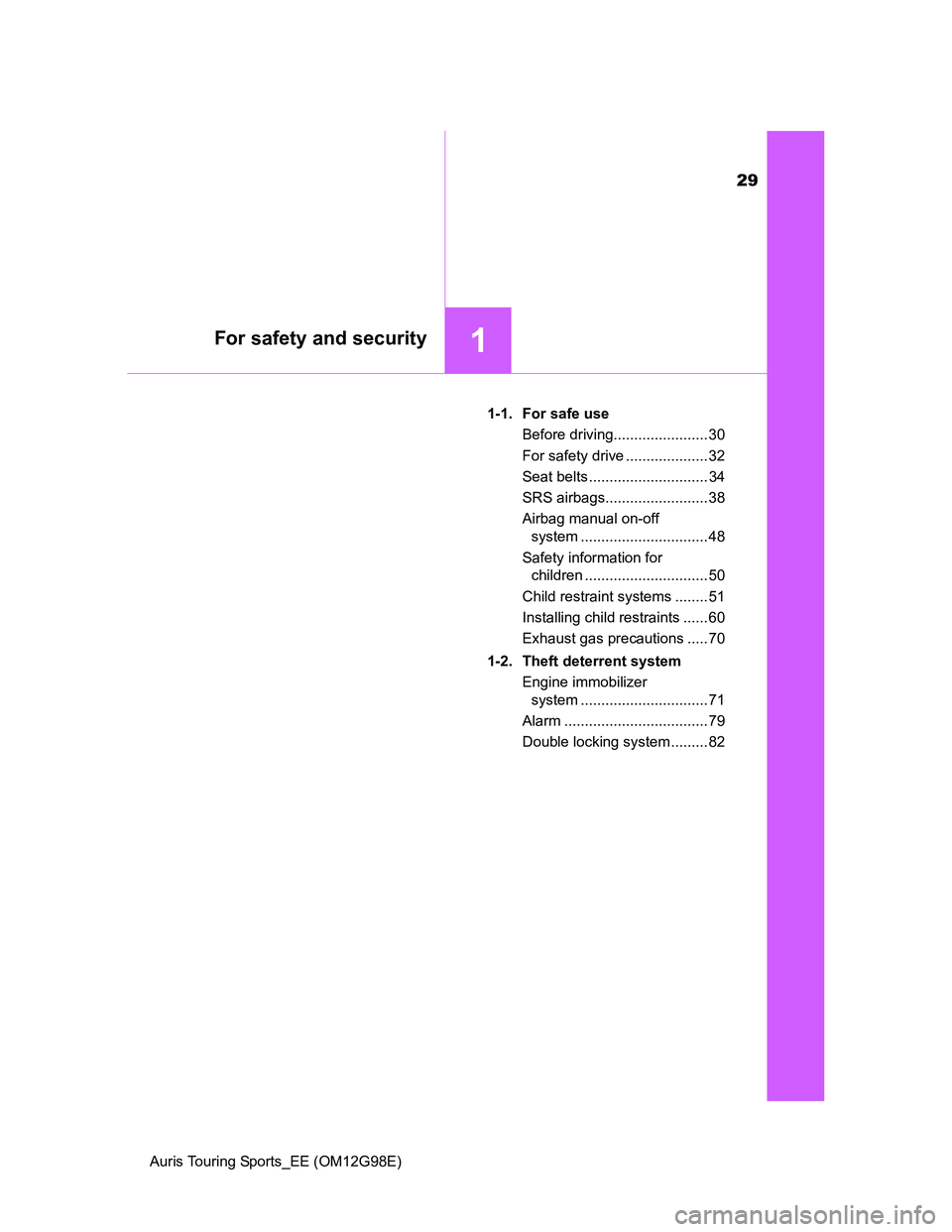

1For safety and security
Auris Touring Sports_EE (OM12G98E)1-1. For safe use
Before driving....................... 30
For safety drive .................... 32
Seat belts ............................. 34
SRS airbags......................... 38
Airbag manual on-off
system ............................... 48
Safety information for
children .............................. 50
Child restraint systems ........ 51
Installing child restraints ...... 60
Exhaust gas precautions ..... 70
1-2. Theft deterrent system
Engine immobilizer
system ............................... 71
Alarm ................................... 79
Double locking system ......... 82

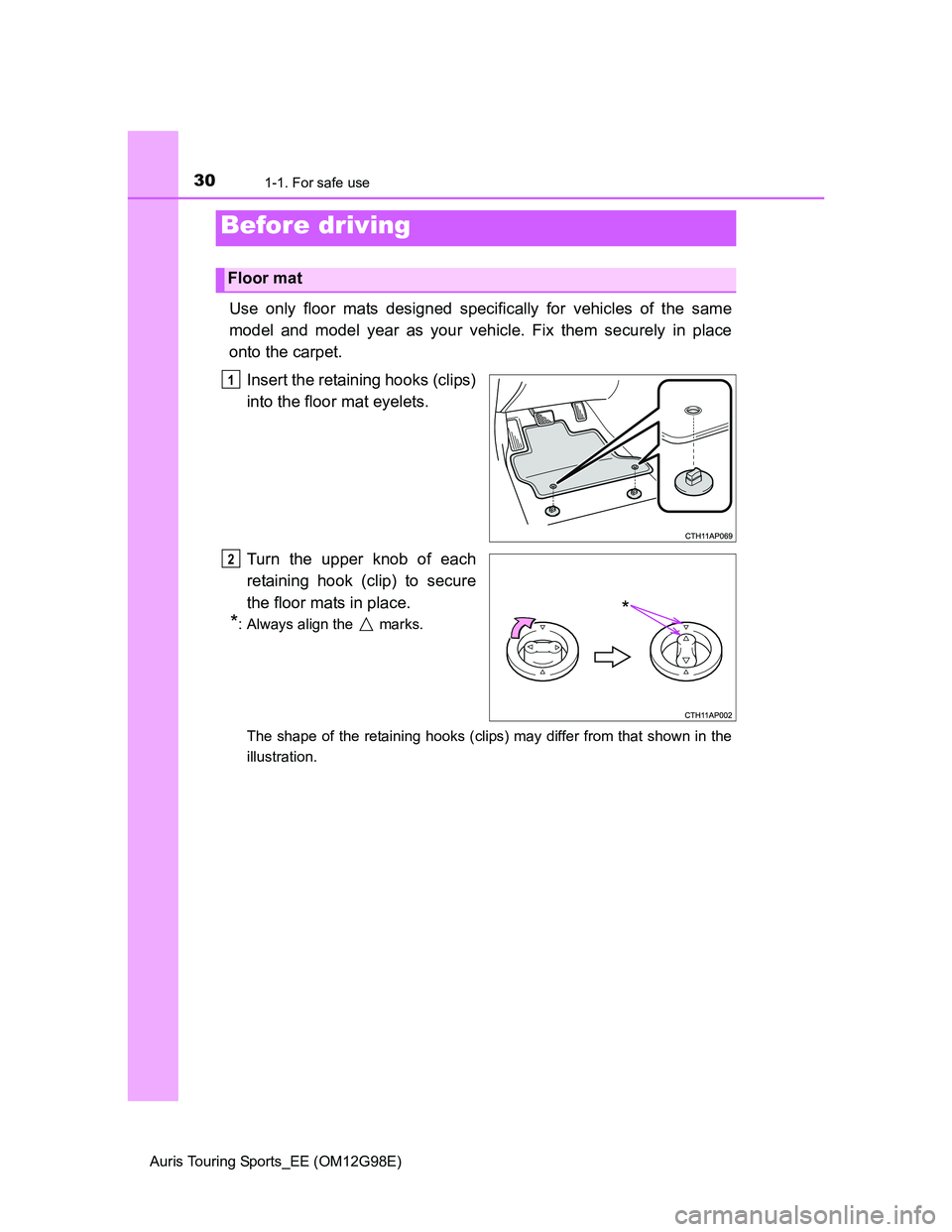

30
Auris Touring Sports_EE (OM12G98E)
1-1. For safe use
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Before driving
Floor mat
1
*
2

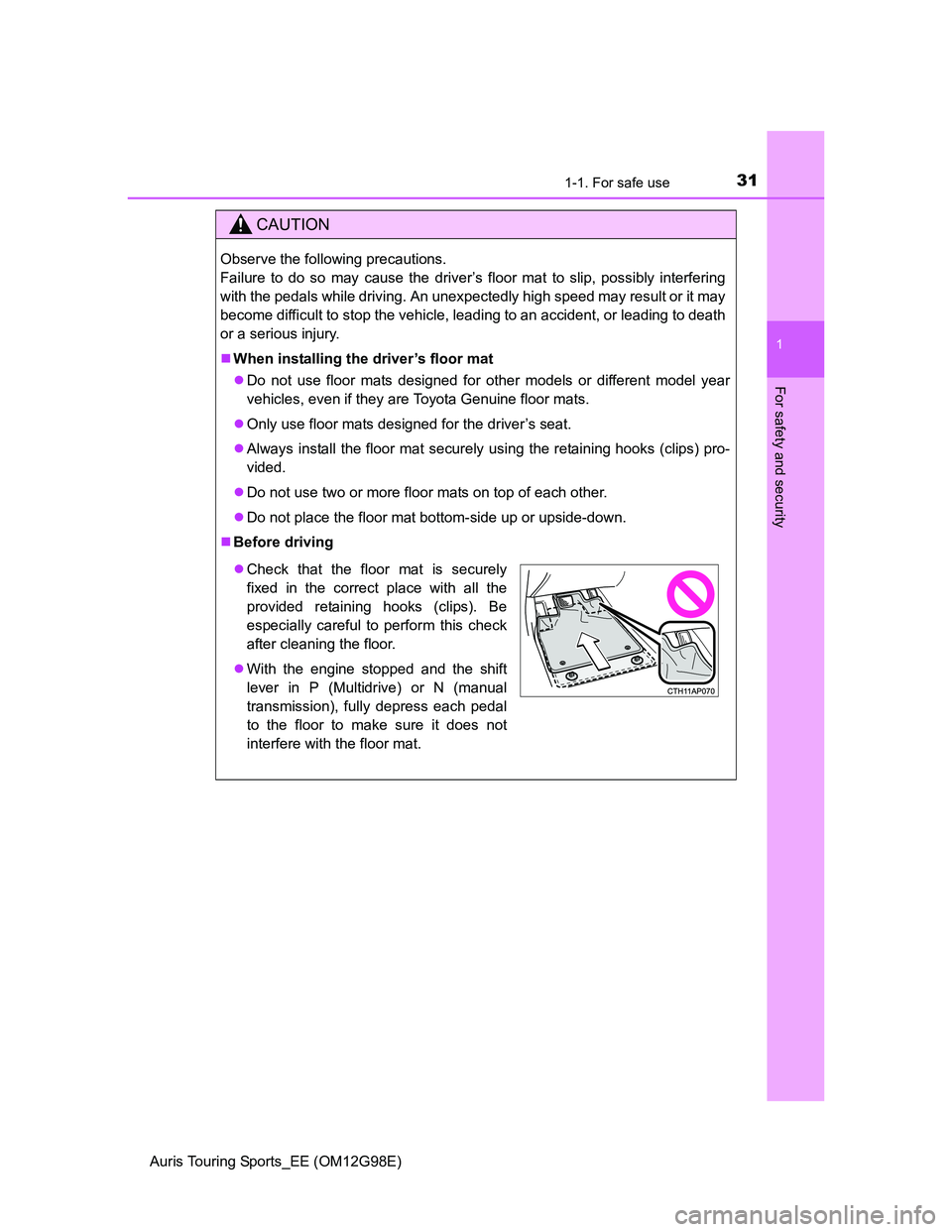

311-1. For safe use
1
For safety and security
Auris Touring Sports_EE (OM12G98E)
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to an accident, or leading to death
or a serious injury.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine stopped and the shift
lever in P (Multidrive) or N (manual
transmission), fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.

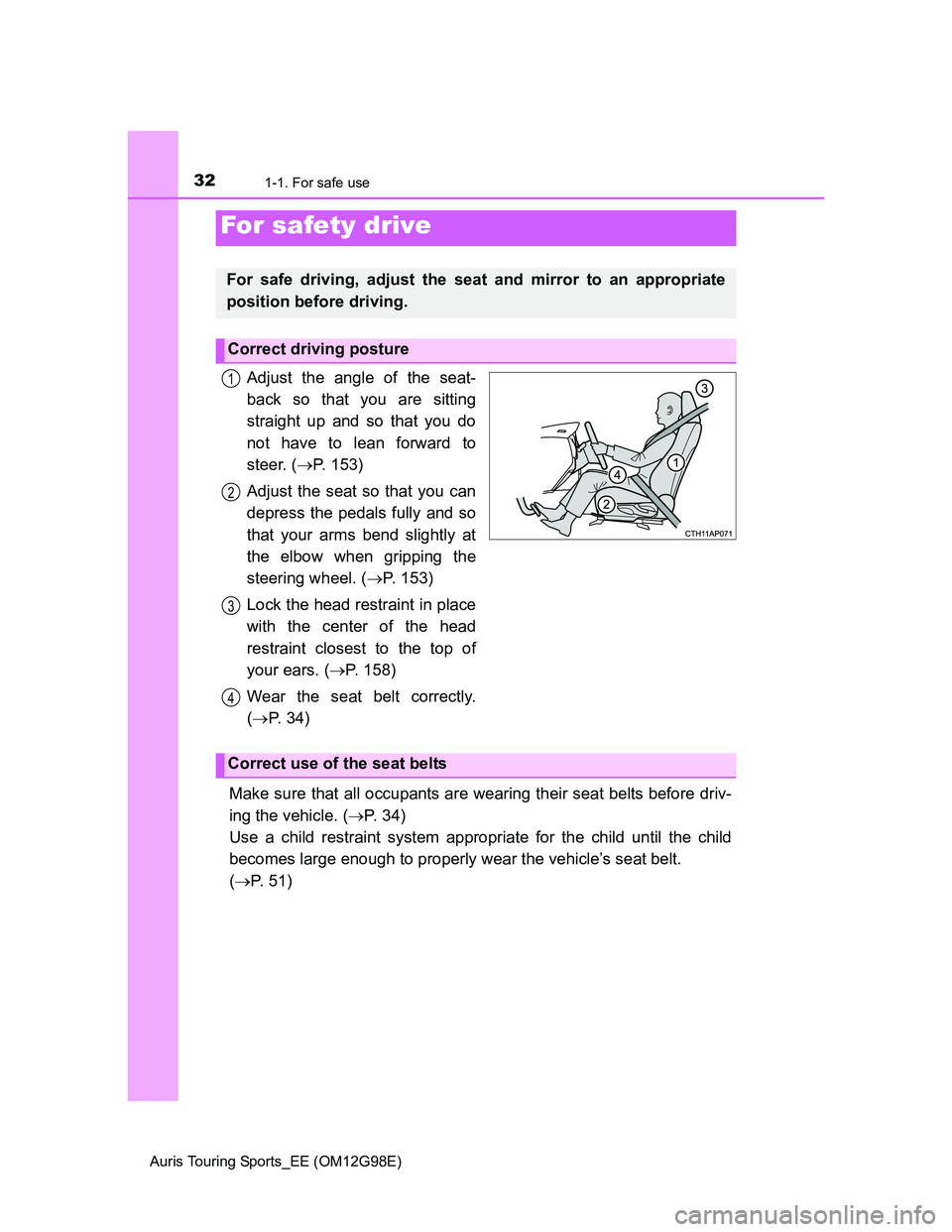

321-1. For safe use
Auris Touring Sports_EE (OM12G98E)
Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 153)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. (P. 153)
Lock the head restraint in place
with the center of the head
restraint closest to the top of
your ears. (P. 158)
Wear the seat belt correctly.
(P. 34)
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. (P. 3 4 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(P. 51)
For safety drive
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
3
4
Correct use of the seat belts
