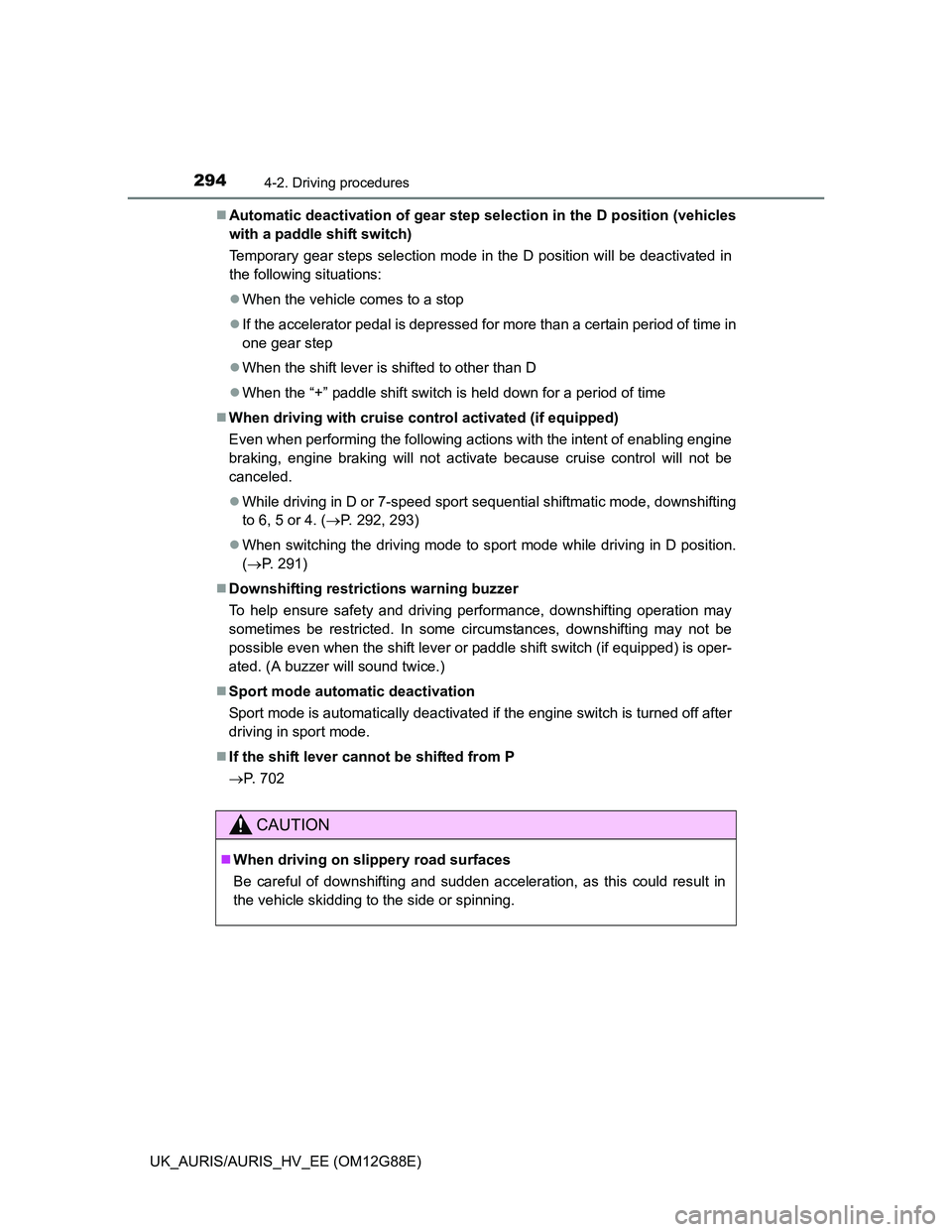

2944-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12G88E)Automatic deactivation of gear step selection in the D position (vehicles
with a paddle shift switch)
Temporary gear steps selection mode in the D position will be deactivated in
the following situations:
When the vehicle comes to a stop
If the accelerator pedal is depressed for more than a certain period of time in
one gear step
When the shift lever is shifted to other than D
When the “+” paddle shift switch is held down for a period of time
When driving with cruise control activated (if equipped)
Even when performing the following actions with the intent of enabling engine
braking, engine braking will not activate because cruise control will not be
canceled.
While driving in D or 7-speed sport sequential shiftmatic mode, downshifting
to 6, 5 or 4. (P. 292, 293)
When switching the driving mode to sport mode while driving in D position.
(P. 291)
Downshifting restrictions warning buzzer
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever or paddle shift switch (if equipped) is oper-
ated. (A buzzer will sound twice.)
Sport mode automatic deactivation
Sport mode is automatically deactivated if the engine switch is turned off after
driving in sport mode.
If the shift lever cannot be shifted from P
P. 702
CAUTION
When driving on slippery road surfaces
Be careful of downshifting and sudden acceleration, as this could result in
the vehicle skidding to the side or spinning.

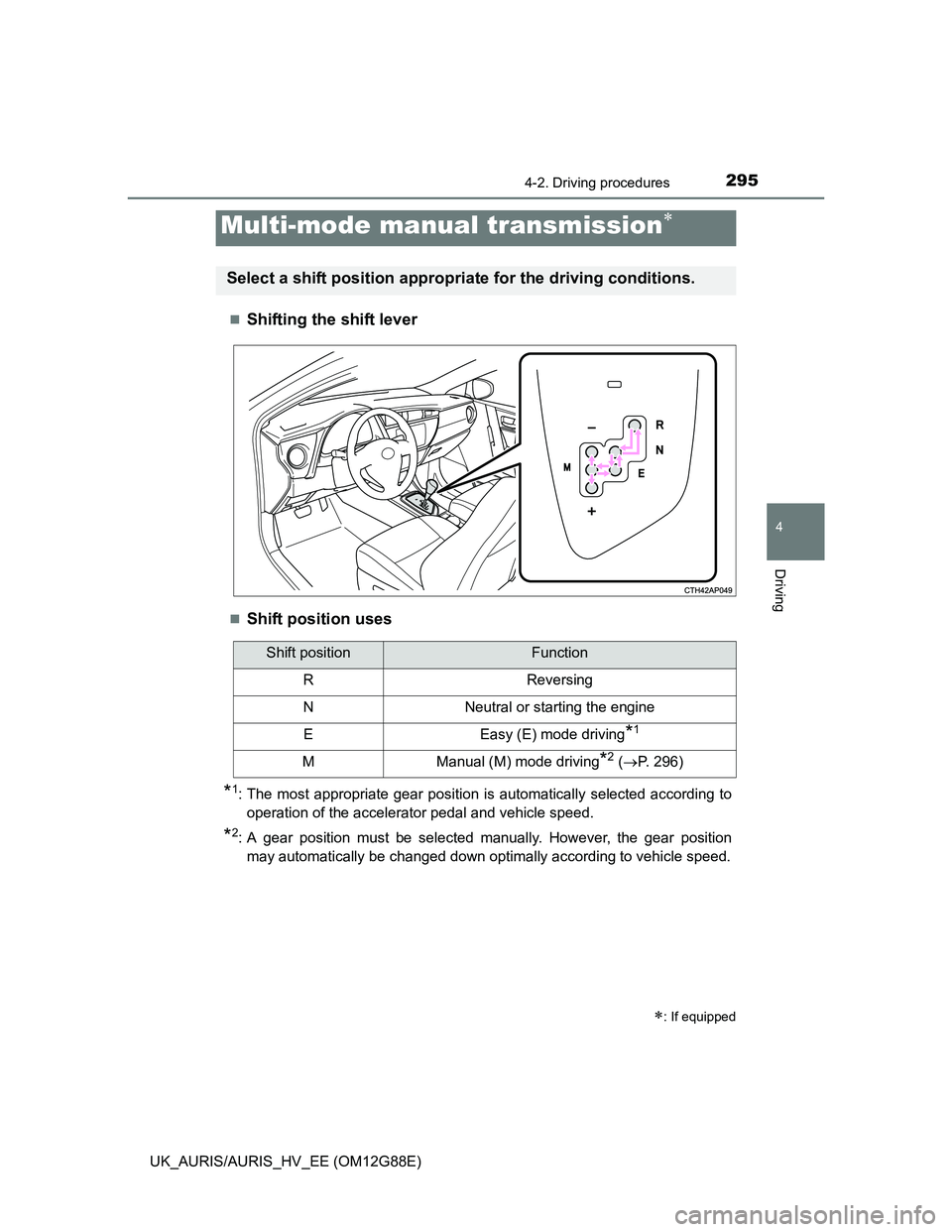

2954-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12G88E)
4
Driving
Shifting the shift lever
Shift position uses
*1: The most appropriate gear position is automatically selected according to
operation of the accelerator pedal and vehicle speed.
*2: A gear position must be selected manually. However, the gear position
may automatically be changed down optimally according to vehicle speed.
Multi-mode manual transmission
: If equipped
Select a shift position appropriate for the driving conditions.
Shift positionFunction
RReversing
NNeutral or starting the engine
EEasy (E) mode driving*1
MManual (M) mode driving*2 (P. 296)

2974-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12G88E)
4
Driving
When the shift position is in E or Es, the paddle shift switches can be
used to select a gear position temporarily. When a gear position is
selected, the gear position will be displayed.
Upshifting
Downshifting
*1: Vehicles without a multi-informa-
tion display
*2: Vehicles with a multi-information
display
Gear Shift Indicator is a guide to help the driver achieve improved fuel
economy and reduced exhaust emissions within limits of engine per-
formance.
Upshifting
Downshifting
Gear Shift Indicator operates only
M mode.
*1: Vehicles without a multi-informa-
tion display
*2: Vehicles with a multi-information
display
Changing gear positions in E or Es mode
*1*2
1
2
Gear Shift Indicator
*1*2
1
2

2984-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12G88E)
Maximum allowable speeds
Observe the following maximum allowable speeds in each gear when maxi-
mum acceleration is necessary.
km/h (mph)
Downshifting restrictions warning buzzer (in E mode [when the paddle
shift switch is operated] or M mode)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever or paddle shift switch is operated. (The
warning buzzer will sound twice.)
Reverse warning buzzer
When shifting into R, a buzzer will sound to inform the driver that the shift
lever is in R.
Es mode automatic deactivation
Es mode is automatically deactivated if the engine switch is turned off after
driving in Es mode.
If the shift lever cannot be shifted
With the shift lever in N
Depress the brake pedal to shift the shift lever. If the shift lever cannot be
shifted with your foot on the brake, there may be a problem with the shift
lock system.
With the shift lever in a position other than N
P. 703
If the driver's door is opened when the shift lever is in a position other
than N and the engine is running
A buzzer will sound. Close the driver's door.
Gear positionMaximum speed
142 (26)
279 (49)
3115 (71)
4156 (96)
5

2994-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12G88E)
4
Driving
If the parking brake is set when the shift lever is in a position other than
N with engine running
When the driver’s door is opened
A buzzer will sound and the gear position will automatically change to N in
10 seconds.
When the driver’s door is closed
A buzzer will sound and the gear position will automatically change to N in
90 seconds.
If the M indicator does not come on even after shifting the shift lever to M
This may indicate a malfunction in the multi-mode manual transmission sys-
tem. Have the vehicle inspected by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional immediately.
(In this situation, the vehicle will operate as if the shift lever is in E.)
If the N indicator is flashing
When shifting the shift lever:
Shift the shift lever to N. Wait a few seconds and shift the shift lever to the
desired position.
When the engine is turned off:
Vehicles without a smart entry & start system:
Turn the engine switch to the “ON” position and shift the shift lever to N, and
then to the desired position.
Vehicles with a smart entry & start system:
Turn the engine switch to IGNITION ON mode and shift the shift lever to N,
and then to the desired position.
If the indicator still blinks after the above operations, shift the shift lever to N
and start the engine. Then, shift the shift lever to the desired position.
If the N indicator is flashing and the warning buzzer is beeping
Shift the shift lever to N, and then to E, M or R.
CAUTION
Gear Shift Indicator display
For safety, the driver should not look only at the display. Refer to the display
when it is safe to do so while considering actual traffic and road conditions.
Failure to do so may lead to an accident.

3014-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12G88E)
4
Driving
Gear Shift Indicator is a guide to help the driver achieve improved fuel
economy and reduced exhaust emissions within limits of engine per-
formance.
Upshifting
Downshifting
*1: Vehicles without a multi-informa-
tion display
*2: Vehicles with a multi-information
display
Gear Shift Indicator display
Gear Shift Indicator may not be displayed when your foot is placed on the
clutch pedal.
Maximum allowable speeds
Observe the following maximum allowable speeds in each gear when maxi-
mum acceleration is necessary.
Gasoline engine
km/h (mph)
Gear Shift Indicator
*1*2
1
2
Shift positionMaximum speed
1NR-FE engine1ZR-FAE engine
144 (27)50 (31)
282 (50)94 (58)
3112 (69)137 (85)
4152 (94)185 (114)
5179 (111)

3024-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12G88E)
Diesel engine
km/h (mph)
Shift positionMaximum speed
1ND-TV engine1AD-FTV engine
142 (26)44 (27)
279 (49)88 (54)
3122 (75)139 (86)
4165 (102)197 (122)
5
CAUTION
Gear Shift Indicator display
For safety, the driver should not look only at the display. Refer to the display
when it is safe to do so while considering actual traffic and road conditions.
Failure to do so may lead to an accident.
NOTICE
To prevent damage to the transmission
Do not lift up the ring section except when shifting the lever to R.
Shift the shift lever to R only when the vehicle is stationary.
Do not shift the shift lever to R without
depressing the clutch pedal.

3044-2. Driving procedures
UK_AURIS/AURIS_HV_EE (OM12G88E)
The current shift position is illuminated.
When selecting a shift position, make sure that the shift position has
been changed to the desired position by checking the shift position
indicator provided on the instrument panel.
When a shift position other than D or B is selected, the arrow toward B
disappears from the shift position indicator.
Shift position purpose
*: For good fuel economy and noise reduction, the D position should usually
be used.
Shift positionFunction
PParking the vehicle or starting the hybrid system
RReversing
NNeutral
DNormal driving*
BApplying moderate engine braking when driving
down hills or on steep slopes
