2014 TOYOTA 4RUNNER maintenance reset

3486-2. Maintenance
4RUNNER (U)_(OM35A83U)■
Reset the maintenance data (U.S.A. only)
After the required maintenance is performed according to the maintenance
schedule, please reset the maintenance data.
To reset the data, follow the procedure described below:
Turn the engine switch off with the trip meter A reading shown. ( P. 83)
Vehicles without a smart key system:
While pressing the display change button ( P. 83), turn the engine switch
to the “ON” position (do not start the engine because reset mode will be
canceled).
Vehicles with a smart key system:
While pressing the display change button ( P. 83), turn the engine switch
to the IGNITION ON mode (do not start the engine because otherwise the
reset mode will be canceled).
Continue to press and hold the button until the trip meter displays “000000”.
■ Allow inspection and repairs to be performed by a Toyota dealer
●Toyota technicians are well-trained specialists and are kept up to date with
the latest service information. They are well informed about the operations
of all systems on your vehicle.
● Keep a copy of the repair order. It proves that the maintenance that has
been performed is under warranty cove rage. If any problem should arise
while your vehicle is under warranty, your Toyota dealer will promptly take
care of it.
CAUTION
■ If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and
possible death or serious injury.
■ Handling of the battery
● Engine exhaust, some of its constituents, and a wide variety of automobile
components contain or emit chemicals known to the State of California to
cause cancer and birth defects and other reproductive harm. Work in a
well ventilated area.
● Oils, fuels and fluids contained in vehicles as well as waste produced by
component wear contain or emit chemicals known to the State of Califor-
nia to cause cancer and birth defects or other reproductive harm. Avoid
exposure and wash any affected area immediately.
● Battery posts, terminals and related accessories contain lead and lead
compounds which are known to cause brain damage. Wash your hands
after handling. ( P. 367)
1
2
3

4287-2. Steps to take in an emergency
4RUNNER (U)_(OM35A83U)
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s ManualSupplement” for the maintenance interval applicable to your vehicle.

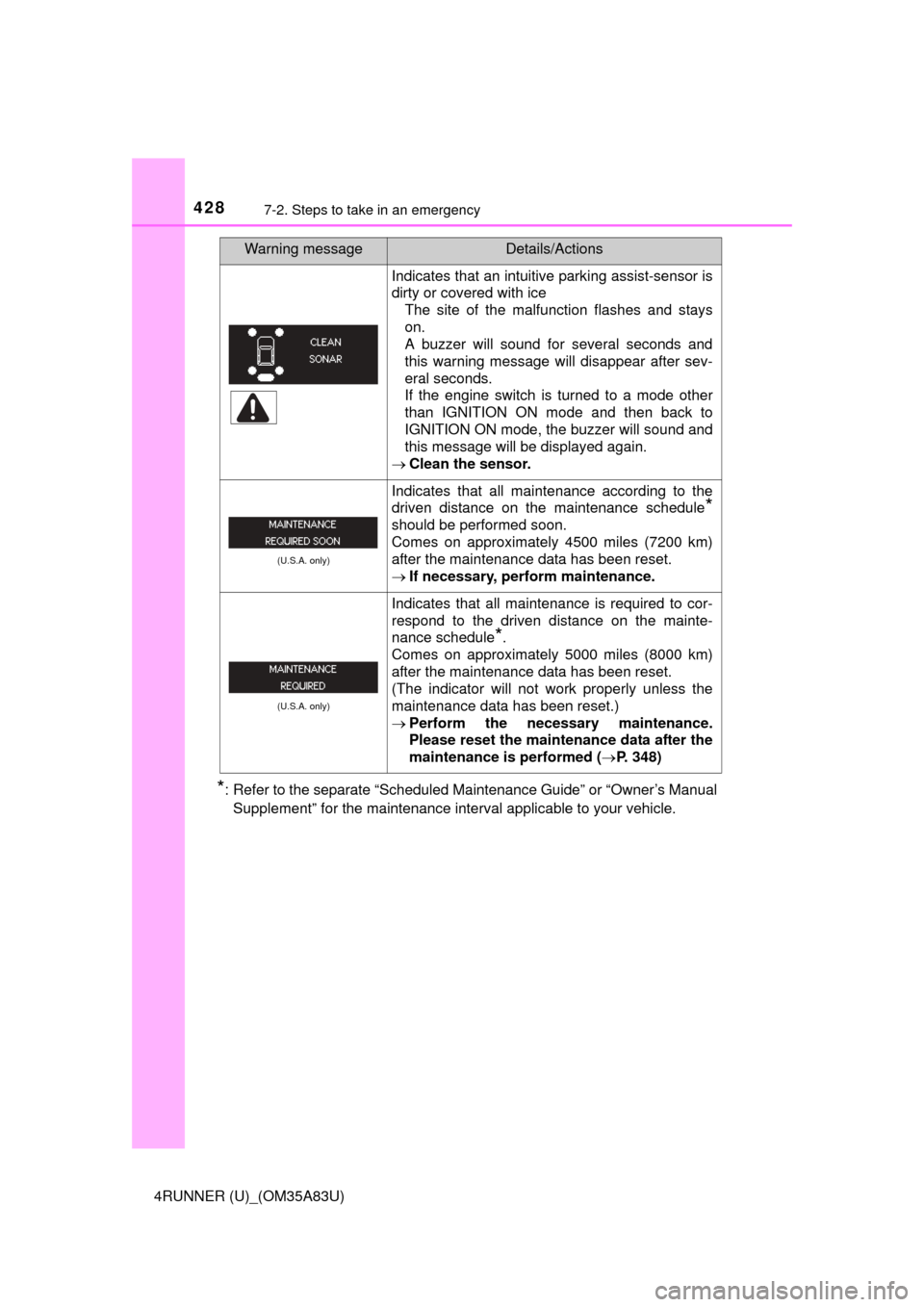

Indicates that an intuitive parking assist-sensor is
dirty or covered with ice The site of the malfunction flashes and stays
on.
A buzzer will sound for several seconds and
this warning message will disappear after sev-
eral seconds.
If the engine switch is turned to a mode other
than IGNITION ON mode and then back to
IGNITION ON mode, the buzzer will sound and
this message will be displayed again.
 Clean the sensor.
(U.S.A. only)
Indicates that all maintenance according to the
driven distance on the maintenance schedule
*
should be performed soon.
Comes on approximately 4500 miles (7200 km)
after the maintenance data has been reset.
If necessary, perform maintenance.
(U.S.A. only)
Indicates that all maintenance is required to cor-
respond to the driven distance on the mainte-
nance schedule
*.
Comes on approximately 5000 miles (8000 km)
after the maintenance data has been reset.
(The indicator will not work properly unless the
maintenance data has been reset.)
 Perform the necessary maintenance.
Please reset the maintenance data after the
maintenance is performed ( P. 348)
Warning messageDetails/Actions

521Alphabetical index
4RUNNER (U)_(OM35A83U)
MaintenanceDo-it-yourself maintenance ... 353
General maintenance ........... 349
Maintenance data ................. 460
Maintenance requirements ... 347
Reset the maintenance data .................................... 348
Malfunction indicator lamp ..... 418
Manual air conditioning system .................................... 280
Master warning light................ 426
Meter ........................................... 81 Accessory meter ..................... 89
Indicators ................................ 79
Instrument panel light control................................... 82
Meters ..................................... 81
Multi-information display ......... 83
Warning lights ......................... 77
Mirrors Inside rear view mirror .......... 144
Outside rear view mirror defoggers ................... 282, 288
Outside rear view mirrors...... 146
Vanity mirrors........................ 310
Moon roof ................................. 155
Jam protection function......... 156
Operation .............................. 155
Multi-information display .......... 83
Customizing vehicle features ................................ 86
Driving monitor........................ 84
Switching the display .............. 84
Trip information ....................... 83
Warning message ................. 426
Multi Terrain ABS .................... 260
Multi-terrain Select .................. 253 Navigation system*
Noise from under vehicle ........... 8
Odometer ................................... 81
Off-road precaution
s ............... 273
Oil Engine oil .............................. 359
Opener
Back door ............................. 118
Hood ..................................... 356
Outer foot lights ...................... 295
Outside rear view mirrors ....... 146
Adjusting and folding ............ 146
Outside rear view mirror defoggers ......... 282, 288
Outside temperature display.................................... 312
Overhead console ................... 302
Overheating, Engine ............... 455
MN
O
*: Refer to the “Navigation System Owner’s Manual”.

522Alphabetical index
4RUNNER (U)_(OM35A83U)
Parking brake ........................... 204Operation .............................. 204
Parking brake engaged warning buzzer ................... 418
Parking lights ........................... 205 Light switch ........................... 205
Replacing light bulbs............. 396
Wattage ................................ 469
Pen holder ................................ 303
Personal lights ......................... 296
Power back window ................ 151 Jam protection function......... 153
Operation .............................. 151
Power outlets ................... 314, 319
Power steering Fluid ...................................... 366
Warning light ......................... 420
Power windows........................ 148 Jam protection function......... 149
Operation .............................. 148
Window lock switch............... 148 Radiator .................................... 363
Rear differential lock
system.................................... 216
Rear seats
Adjustment............................ 125
Folding down ........ 127, 129, 131
Rear step bumper .................... 118
Rear turn signal lights ............ 203
Replacing light bulbs ............ 402
Turn signal lever ................... 203
Wattage ................................ 469
Rear view mirror Inside rear view mirror .......... 144
Outside rear view mirrors ..... 146
Rear view monitor system
*
Rear window ............................ 151
Rear window defoggers....................... 282, 288
Rear window wiper .................. 244
Refueling .................................. 219
Capacity................................ 462
Fuel types ............................. 462
Opening the fuel tank cap..... 221
Replacing Fuses .................................... 388
Key battery ........................... 385
Light bulbs ............................ 391
Tires...................................... 433
Reporting safety defects
for U.S. owners...................... 494
Reset the maintenance data ... 348
Roof luggage carrier ............... 170
PR
