2014 SUBARU BRZ odometer

187
2
When driving
2-2. Instrument cluster
Gauges and meters
Analog Speedometer
Displays the vehicle speed.
Tachometer
Displays the engine speed in revolutions per minute.
Digital Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Odometer, trip meter and multi-information display
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since the
meter was last reset. Trip meters A and B can be used to record and
display different distances independently.
Multi-information display: Presents the driver with a variety of driving-
related data. ( →P. 197)

189
2-2. Instrument cluster
2
When driving

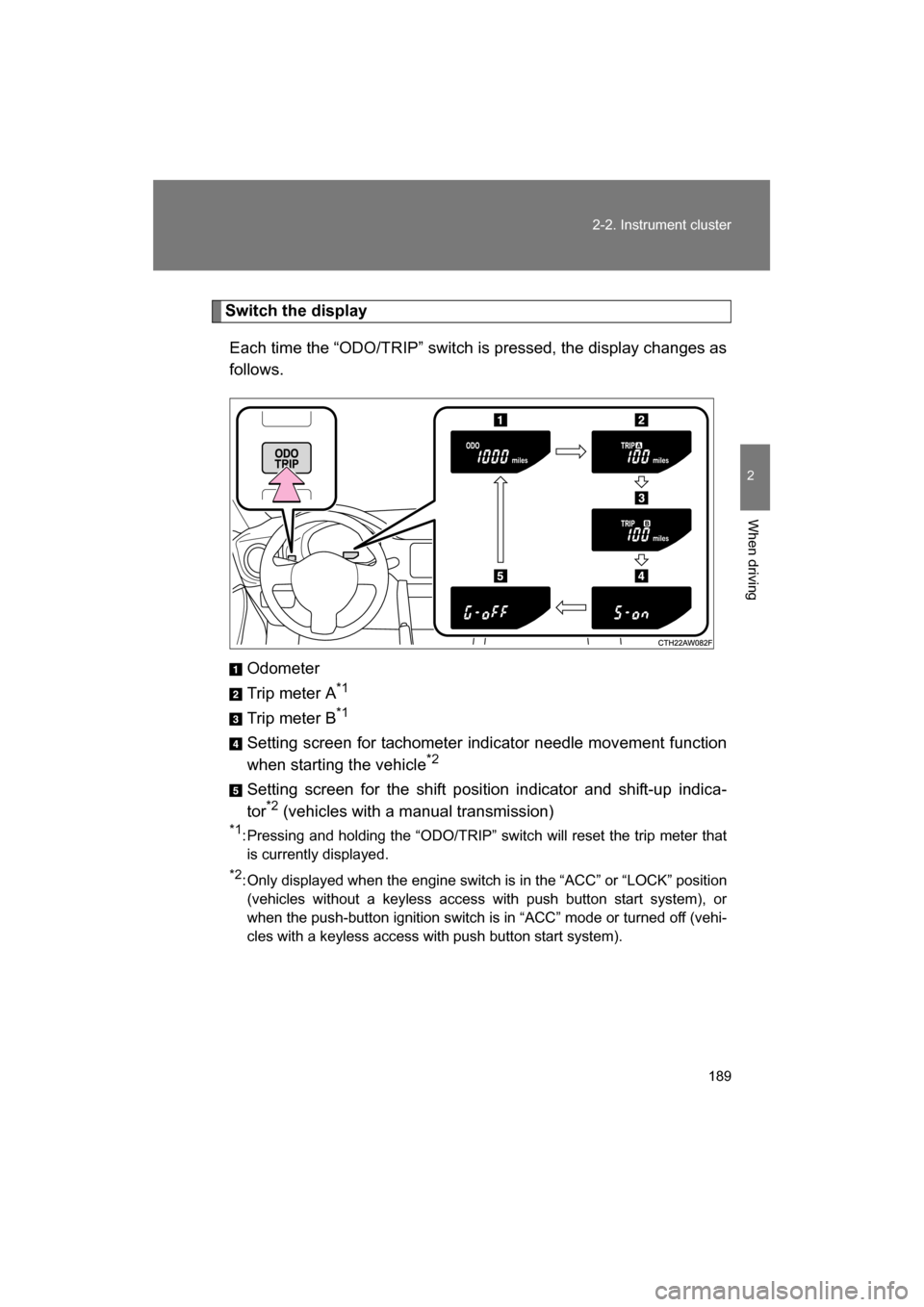

Switch the displayEach time the “ODO/TRIP” switch is pressed, the display changes as
follows.
Odometer
Trip meter A *1
Trip meter B *1
Setting screen for tachometer indicator needle movement function
when starting the vehicle *2
Setting screen for the shift position indicator and shift-up indica-
tor *2
(vehicles with a manual transmission)
*1 : Pressing and holding the “ODO/TRIP” switch will reset the trip meter that
is currently displayed.
*2 : Only displayed when the engine switch is in the “ACC” or “LOCK” position
(vehicles without a keyless access with push button start system), or
when the push-button ignition switch is in “ACC” mode or turned off (vehi-
cles with a keyless access with push button start system).

480
Alphabetical index
Odometer .................................. 187 OilEngine oil ..............................297
Opener
Engine hood .......................... 294
Fuel filler lid .............................74
Trunk lid ..................................45
Outside rear view mirrors
Adjusting and folding...............67
Outside temperature display .................................... 265
Overheating, Engine ................ 405
Parking brake ........................... 185
Parking lights
Switch.................................... 202
Power outlets ........................... 266
Power windows ..........................70 Radiator .................................... 302
Rear seats................................... 54
Rear side marker lights
Replacing light bulbs ............. 340
Switch ................................... 202
Wattage................................. 423
Rear turn signal lights
Replacing light bulbs ............. 340
Switch ................................... 184
Wattage................................. 423
Rear window defogger ............ 252
Replacing Fuses .................................... 332
Key battery............................ 328
Light bulbs............................. 340
Tires ...................................... 380
Reporting safety defects for U.S. owners ...................... 447
REV indicator ........................... 152O
P
R
