2014 SUBARU BRZ audio

TABLE OF CONTENTS
1
1Before drivingAdjusting and operating features such as door locks,
mirrors, and steering column.
2When driving
Driving, stopping and safe-driving information.
3Interior fea-
turesAir conditioning and audio systems, as well as other in-
terior features for a comf
ortable driving experience.
4Maintenance
and careCleaning and protecting your vehicle, performing do-it-
yourself maintenance, and maintenance information.
5When trouble
arisesWhat to do if the vehicle needs to be towed, gets a flat
tire, or is involved in an accident.
6Vehicle
specifications
Detailed vehicle information.
7For owners
Reporting safety defects for US owners, and seatbelt
and SRS airbag instructions for Canadian owners
IndexAlphabetical listing of information contained in this manual.

1
2
3
4
5
6
7
3
2-2. Instrument cluster
Gauges and meters ............ 187
Indicators and warning lights ................................. 192
Multi-information display ..... 197
2-3. Operating the lights and windshield wipers
Headlight switch .................. 202
Fog light switch ................... 208
Windshield wipers and washer .............................. 209
2-4. Using other driving systems
Cruise control ...................... 212
Driving assist systems ........ 217
2-5. Driving information Cargo and luggage ............. 224
Vehicle load limits ............... 228
Winter driving tips ............... 229
Trailer towing ...................... 233
Dinghy towing ..................... 234 3-1. Using the air conditioning
system and defogger
Manual air conditioning system .............................. 236
Automatic air conditioning
system .............................. 243
Rear window and outside rear view
mirror defoggers ............... 252
3-2. Using the audio system Using the AUX/USB port .... 254
3-3. Using the interior lights Interior lights list ................. 255

22
1-1. Key information
CAUTION
■To prevent key damage
Observe the following:
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatures for a long period of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
●Do not disassemble the keys.
●Do not attach a sticker or anything else to the surface of the key.
●Vehicles with a keyless access with push button start system: Do not place
the keys near objects that produce magnetic fields, such as TVs, audio
systems, glass top ranges, or medical electrical equipment, such as low-
frequency therapy equipment.
■Carrying the access key on your person (vehicles with a keyless
access with push button start system)
Carry the access key 3.9 in. (10 cm) or more away from electric appliances
that are turned on. Radio waves emitted from electric appliances within 3.9
in. (10 cm) of the access key may interfere with the key, causing the key to
not function properly.
■In case of a keyless access with push button start system malfunction
or other key-related problems (vehicles with a keyless access with
push button start system)
Take your vehicle with all the access keys provided with your vehicle to your
SUBARU dealer.
■When a vehicle key is lost
If the key remains lost, the risk of vehicle theft increases significantly. Visit
your SUBARU dealer immediately with al l remaining access keys that were
provided with your vehicle.

96
1-7. Safety information
■Driver’s SRS frontal airbag
The driver’s SRS frontal airbag uses a dual stage inflator. The inflator oper-
ates in different ways depending on the severity of impact.
Have the system inspected by your SUBARU dealer immediately if the SRS
airbag system warning light illuminates.
NOTE
The driver’s SRS side airbag and SRS curtain airbag are not controlled by
the SUBARU advanced frontal airbag system.
■Front passenger’s SRS frontal airbag
The front passenger’s SRS frontal ai rbag uses a dual stage inflator. The
inflator operates in different ways depending on the severity of impact.
The occupant detection system sensor is installed under the seat upholstery
and monitors the physique and posture of the front passenger. Using this
information, the occupant detection system determines whether the front
passenger’s SRS frontal airbag should be deployed or not.
The occupant detection system may not inflate the front passenger’s SRS
frontal airbag even when the driver’s SRS frontal airbag deploys. This is nor-
mal. In this case, although the front passenger’s SRS frontal airbag does not
operate, the front passenger’s seatbelt pretensioner operates with the
driver’s seatbelt pretensioner. For details about the seatbelt pretensioner,
refer to “Seatbelt pretensioners”. ( →P. 59)
Observe the following precautions. Failure to do so may prevent the
SUBARU advanced frontal airbag system from functioning correctly or
cause the system to fail.
●Do not apply any strong impact to the front passenger’s seat.
●Do not spill liquid on the front passenger’s seat. If liquid is spilled, wipe it
off immediately.
●Do not remove or disassemble the front passenger’s seat.
●Do not install any accessory (such as an audio amplifier) other than a
genuine SUBARU accessory under the front passenger’s seat.
●Do not place anything (shoes, umbrella, etc.) under the front passenger’s
seat.
●Do not place a magnet near the seatbelt buckle.

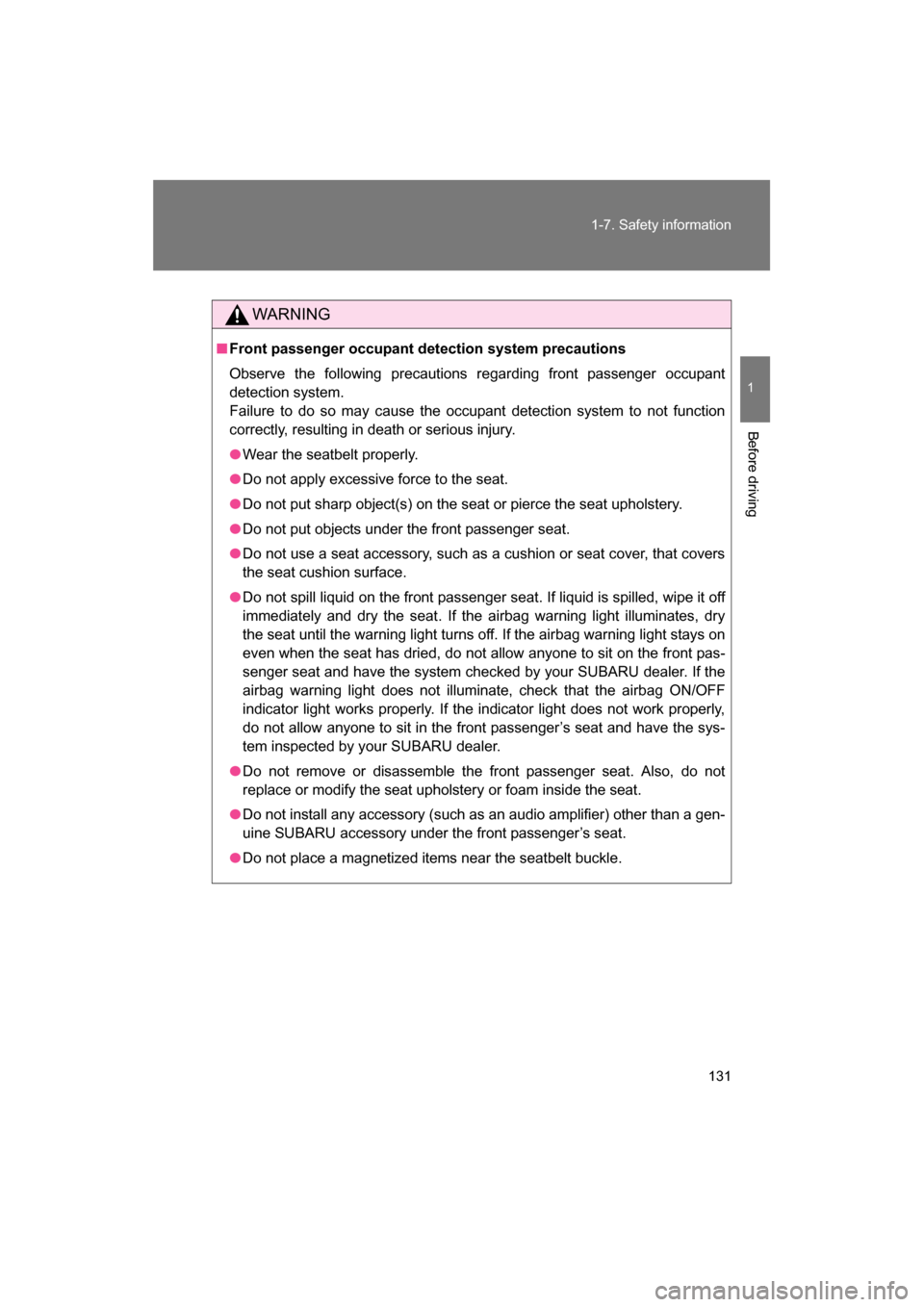

131
1-7. Safety information
1
Before driving
WARNING
■Front passenger occupant detection system precautions
Observe the following precautions regarding front passenger occupant
detection system.
Failure to do so may cause the occupant detection system to not function
correctly, resulting in death or serious injury.
●Wear the seatbelt properly.
●Do not apply excessive force to the seat.
●Do not put sharp object(s) on the seat or pierce the seat upholstery.
●Do not put objects under the front passenger seat.
●Do not use a seat accessory, such as a cushion or seat cover, that covers
the seat cushion surface.
●Do not spill liquid on the front passenger seat. If liquid is spilled, wipe it off
immediately and dry the seat. If the airbag warning light illuminates, dry
the seat until the warning light turns off. If the airbag warning light stays on
even when the seat has dried, do not allow anyone to sit on the front pas-
senger seat and have the system checked by your SUBARU dealer. If the
airbag warning light does not illuminate, check that the airbag ON/OFF
indicator light works properly. If the indicator light does not work properly,
do not allow anyone to sit in the front passenger’s seat and have the sys-
tem inspected by your SUBARU dealer.
●Do not remove or disassemble the front passenger seat. Also, do not
replace or modify the seat upholstery or foam inside the seat.
●Do not install any accessory (such as an audio amplifier) other than a gen-
uine SUBARU accessory under the front passenger’s seat.
●Do not place a magnetized items near the seatbelt buckle.

Interior features3
235
3-1. Using the air conditioning system and defogger
Manual air conditioning system ........................... 236
Automatic air conditioning system ........................... 243
Rear window and outside rear view
mirror defoggers ............ 252
3-2. Using the audio system Using the AUX/USB port................................. 254
3-3. Using the interior lights Interior lights list ............... 255

254
3-2. Using the audio system
Using the AUX/USB por t∗
■Operating portable audio devices connected to the audio system
The volume and sound quality can be adjusted using the vehicle’s audio
controls. All other adjustments must be made on the portable audio device
itself.
■When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the battery power source of the por-
table audio device to reduce noise.
∗
: If equipped
This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
　
For more information, please refer to the “Navigation System
Owner's Manual”.
Open the cover and connect
the portable audio device.

280
4-1. Maintenance and care
CAUTION
■Cleaning detergents
●Do not use organic substances such as benzene or gasoline, acidic or
alkaline solutions, dye, bleach or other detergent. Doing so may discolor
the vehicle interior or cause streaks or damage to painted surfaces.
●Do not use polish wax or polish cleaner. The instrument panel's or other
interior part’s painted surface may be damaged.
●Do not use a chemical agent containing silicone (highly-polymerized sili-
con compound) when cleaning any of the electrical appliances such as the
air conditioning, all switches and their surrounding areas.
If silicon (highly-polymerized silicon compound) contacts these compo-
nents, it may cause the electrical appliances to malfunction.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces.
●Remove any dust, dirt, sand, oil spots etc. on leather surfaces immedi-
ately.
●Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or that contain wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components under the floor of the vehicle, and
may also cause the body to rust.
