2014 SUBARU BRZ door lock

TABLE OF CONTENTS
1
1Before drivingAdjusting and operating features such as door locks,
mirrors, and steering column.
2When driving
Driving, stopping and safe-driving information.
3Interior fea-
turesAir conditioning and audio systems, as well as other in-
terior features for a comf
ortable driving experience.
4Maintenance
and careCleaning and protecting your vehicle, performing do-it-
yourself maintenance, and maintenance information.
5When trouble
arisesWhat to do if the vehicle needs to be towed, gets a flat
tire, or is involved in an accident.
6Vehicle
specifications
Detailed vehicle information.
7For owners
Reporting safety defects for US owners, and seatbelt
and SRS airbag instructions for Canadian owners
IndexAlphabetical listing of information contained in this manual.

TABLE OF CONTENTSIndex
2
1-1. Key information
Keys ..................................... 20
1-2. Opening, closing and locking the doors and
trunk lid
Keyless access with push button start system ............. 23
Remote keyless entry system ................................ 37
Doors.................................... 42
Trunk lid ............................... 45
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ........................... 51
Rear seats ............................ 54
Head restraints ..................... 56
Seatbelts .............................. 58
Steering wheel ..................... 65
Anti-glare inside rear view mirror.......................... 66
Outside rear view mirrors ..... 67
1-4. Opening and closing the windows
Power windows .................... 70
1-5. Refueling Opening the fuel tank cap .... 74 1-6. Security system
Engine immobilizer system ................................ 78
Theft prevention labels (U.S.A.) ............................... 81
Alarm .................................... 82
1-7. Safety information Correct driving posture ......... 86
SRS airbag (Supplemental Restraint System airbag) .... 88
Front passenger occupant detection system .............. 123
Child restraint systems ....... 133
Installing child restraints ..... 137
2-1. Driving procedures Driving the vehicle .............. 148
Push-button ignition switch ............................... 162
Engine (ignition) switch....... 171
Automatic transmission ...... 174
Manual Transmission ......... 181
Turn signal lever ................. 184
Parking brake ..................... 185
Horn .................................... 186
1Before driving
2When driving

9
B
AA
Anti-glare inside rear view mirror P. 66
Interior light P. 256
Vanity mirrors P. 263
Sun visors P. 262
∗: If equipped
*: Refer to “Navigation System Owner’s Manual”.
Lock levers P. 43
Outside rear view mirror switch
P. 67
Window lock switch P. 70
Power window switches
P. 70
Power door lock switch P. 43

Before driving1
19
1-1. Key informationKeys ................................... 20
1-2. Opening, closing and locking the doors and
trunk lid
Keyless access with push button start system .......... 23
Remote keyless entry system ............................. 37
Doors ................................. 42
Trunk lid ............................. 45
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ......................... 51
Rear seats.......................... 54
Head restraints................... 56
Seatbelts ............................ 58
Steering wheel ................... 65
Anti-glare inside rear view mirror ....................... 66
Outside rear view mirrors.............................. 67 1-4. Opening and closing the
windows
Power windows .................. 70
1-5. Refueling Opening the fuel tank cap ................................... 74
1-6. Security system Engine immobilizer system ............................. 78
Theft prevention labels (U.S.A.) ............................ 81
Alarm.................................. 82
1-7. Safety information Correct driving posture....... 86SRS airbag (Supplemental Restraint
System airbag) ................. 88
Front passenger occupant detection system ............ 123
Child restraint systems..... 133
Installing child restraints ........................ 137

23
1
Before driving
1-2. Opening, closing and locking the doors and trunk lid
Keyless access with push button start system∗
The following operations can be performed simply by carrying the
access key on your person, for example in your pocket.
(The driver should always carry the access key.)Unlocks and locks the doors ( →P. 2 4 )
Unlocks the trunk lid ( →P. 2 4 )
Starts the engine ( →P. 162)
Access key
Access key
Access key
∗: If equipped

24
1-2. Opening, closing and locking the doors and trunk lid
Unlocking and locking the doorsGrip the driver’s door handle to
unlock the door. Grip the passen-
ger’s door handle to unlock all
the doors.Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after the door is
locked.
Touch the lock sensor (the
indentation on the side of the
door handle) to lock the doors.
Unlocking the trunk lid
Press the button to unlock the
trunk lid.

25
1-2. Opening, closing and locking the doors and trunk lid
1
Before driving

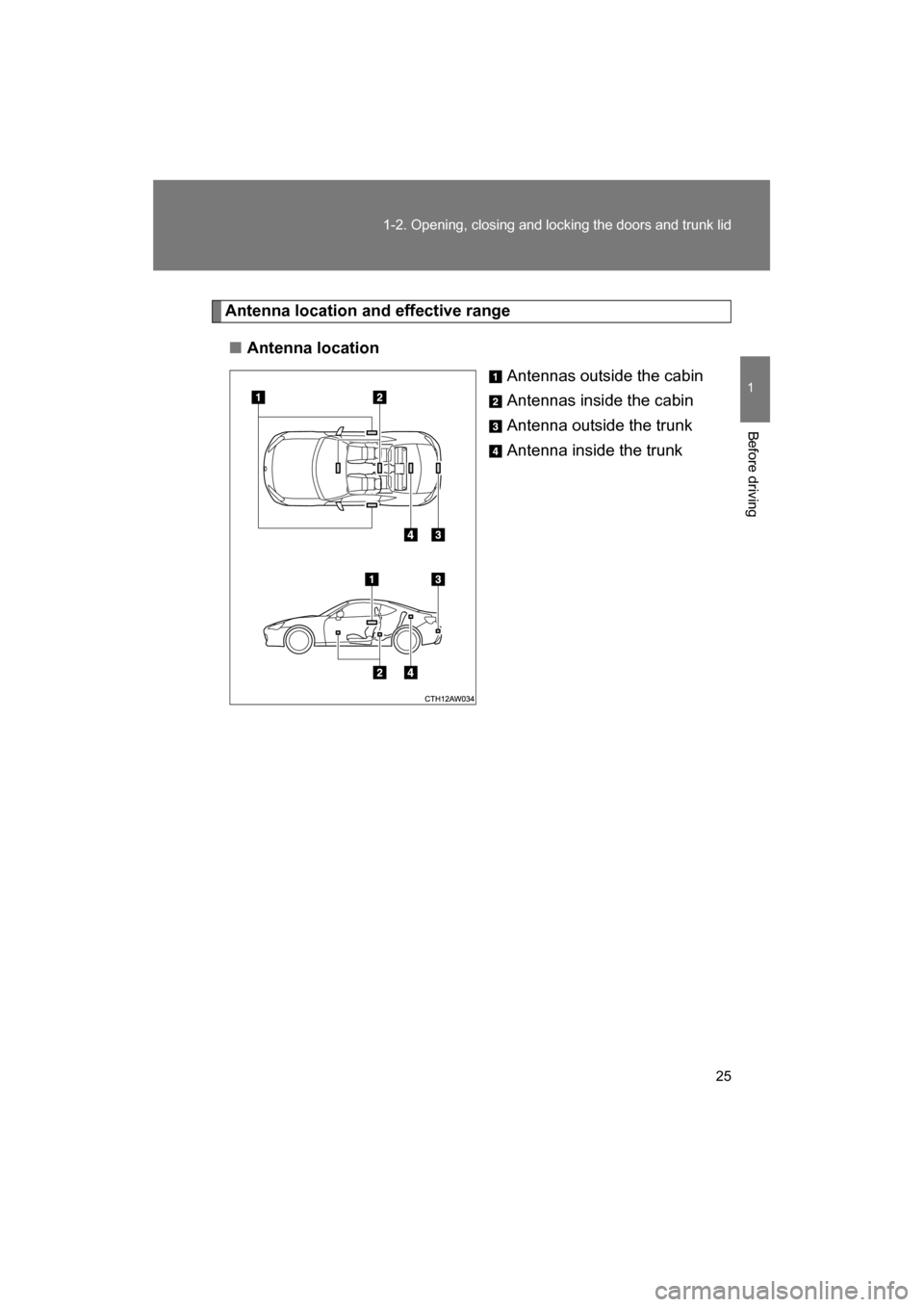

Antenna location and effective range
■Antenna locationAntennas outside the cabin
Antennas inside the cabin
Antenna outside the trunk
Antenna inside the trunk

26
1-2. Opening, closing and locking the doors and trunk lid

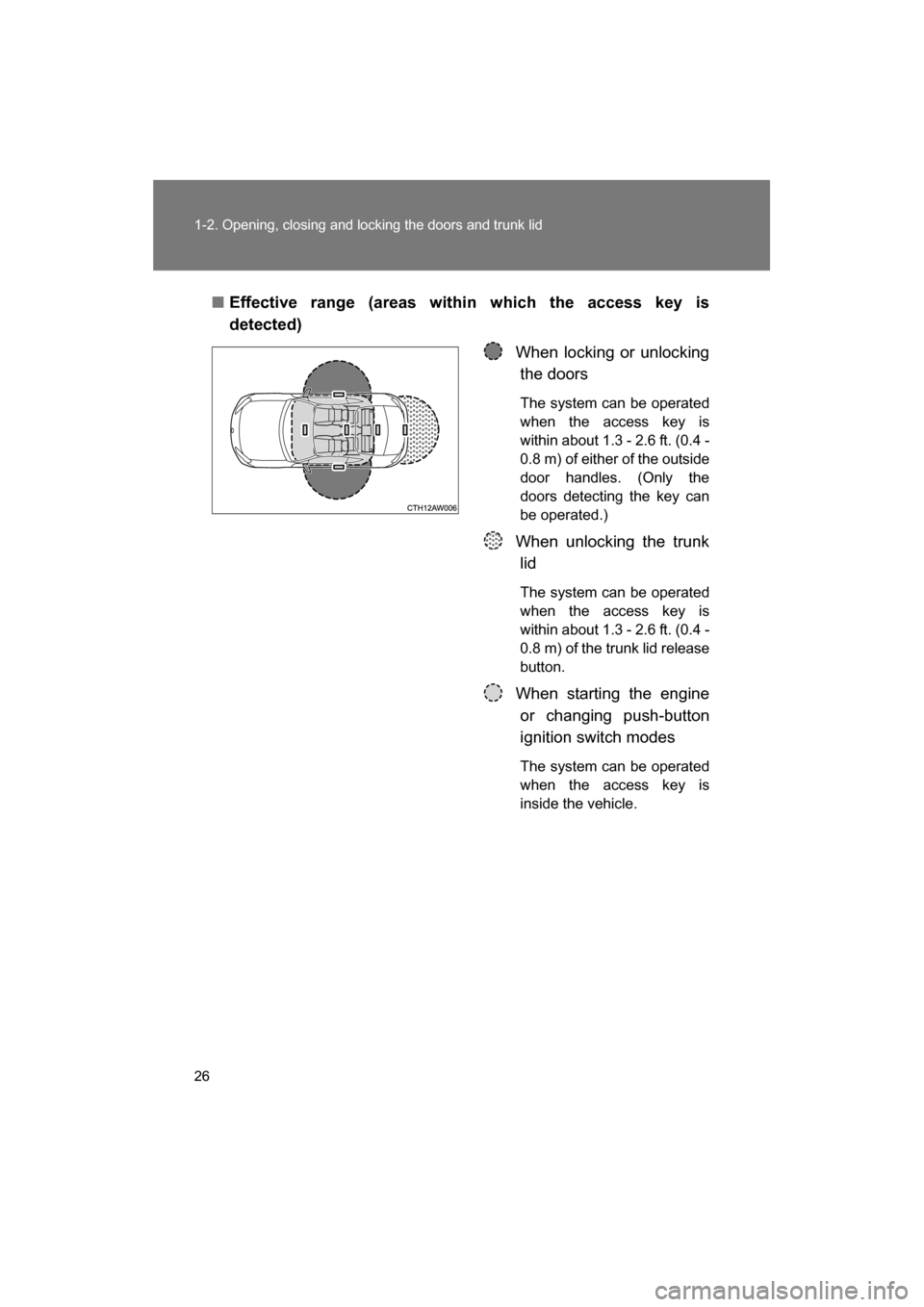

■Effective range (areas within which the access key is
detected)When locking or unlockingthe doors
The system can be operated
when the access key is
within about 1.3 - 2.6 ft. (0.4 -
0.8 m) of either of the outside
door handles. (Only the
doors detecting the key can
be operated.)
When unlocking the trunk lid
The system can be operated
when the access key is
within about 1.3 - 2.6 ft. (0.4 -
0.8 m) of the trunk lid releasebutton.
When starting the engine or changing push-button
ignition switch modes
The system can be operated
when the access key is
inside the vehicle.
