2014 SUBARU BRZ door lock

43
1-2. Opening, closing and locking the doors and trunk lid
1
Before driving

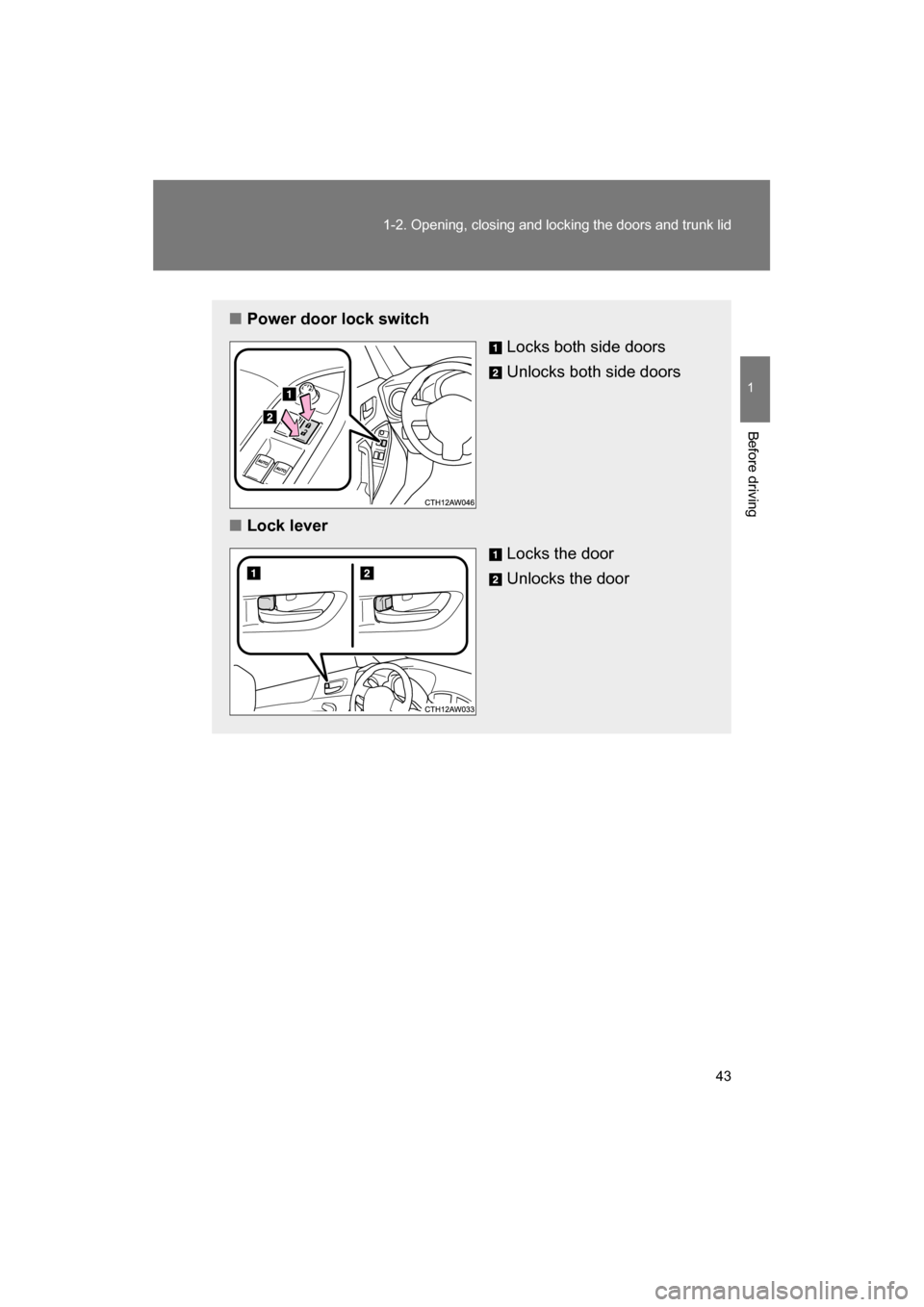

■Power door lock switchLocks both side doors
Unlocks both side doors
■Lock leverLocks the door
Unlocks the door

44
1-2. Opening, closing and locking the doors and trunk lid
Locking the doors from the outside without a keyMove the lock lever to the lock position.
Close the door.
Vehicles with a keyless access with push button start system The door cannot be locked if the access key is left inside the vehi-
cle.
The key may not be detected correctly and the door may be locked.
■Window open/close function linked to door operation
In order to make opening and closing the doors easier, completely closed
windows are linked to door operations. Therefore, when a door is opened, its
window opens slightly. When a door is closed, its window closes completely.
However, if the battery has discharged or is disconnected, this function will not operate. ( →P. 404)
■If the keyless access with push button start system has been deacti-
vated in a customized setting (vehicles with a keyless access with
push button start system)
Use the remote keyless entry system or mechanical key. ( →P. 37, 396)
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seatbelt.
●Always lock both side doors.
●Ensure that both side doors are properly closed.
●Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
STEP 1
STEP 2

45
1
1-2. Opening, closing and locking the doors and trunk lid
Before driving
Trunk lid
The trunk lid can be opened using the key, trunk lid opener, “keyless
access” entry function or remote keyless entry system.
■Opening the trunk lid from inside the vehicle
Press and hold the opener
switch to release the trunk lid.
If the trunk lid cannot be
opened by the opener switch:
→P. 4 6
■Opening the trunk lid from outside the vehicle
Key (vehicles without a keyless access with push button start
system) Turn the master key clockwise
to release the trunk lid.
“Keyless access” entry function (vehicles with a keyless
access with push button start system) →P. 2 4
Remote keyless entry system →P. 3 7

46
1-2. Opening, closing and locking the doors and trunk lid

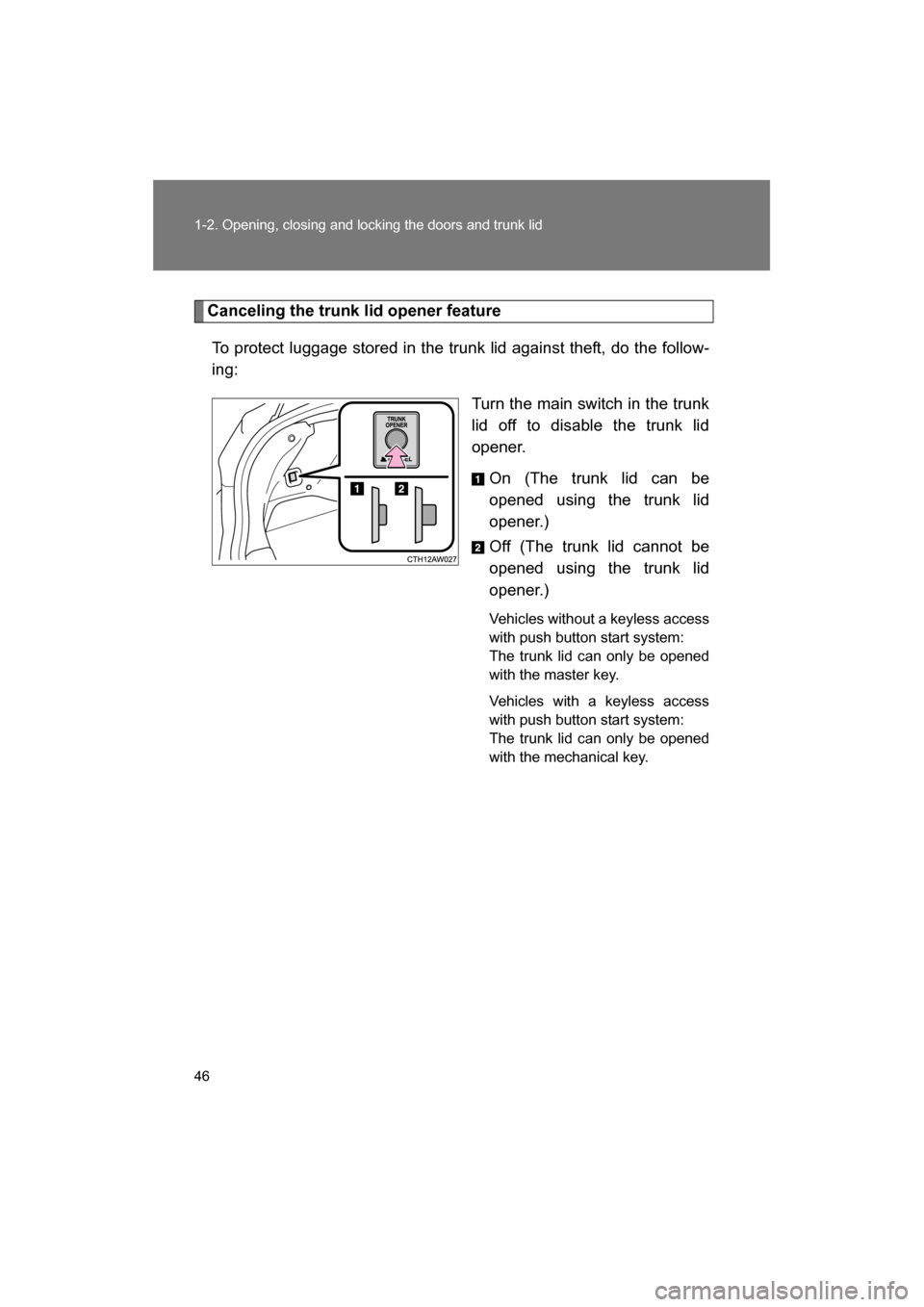

Canceling the trunk lid opener featureTo protect luggage stored in the trunk lid against theft, do the follow-
ing: Turn the main switch in the trunk
lid off to disable the trunk lid
opener.On (The trunk lid can be
opened using the trunk lid
opener.)
Off (The trunk lid cannot be
opened using the trunk lid
opener.)
Vehicles without a keyless access
with push button start system:
The trunk lid can only be opened
with the master key.
Vehicles with a keyless access
with push button start system:
The trunk lid can only be opened
with the mechanical key.

47
1-2. Opening, closing and locking the doors and trunk lid
1
Before driving
■Function to prevent the trunk lid being locked with the access key
inside (vehicles with a keyless access with push button start system)
●When all doors are being locked, closing the trunk lid with the access key
left inside the trunk will sound an alarm.
In this case, the trunk lid can be opened using the “keyless access” entry
function.
●Even when the spare access key is put in the trunk with all the doors
locked, the key confinement prevention function can be activated so the
trunk lid can be opened. In order to prevent theft, take all access keys
with you when leaving the vehicle.
●Even when the access key is put in the trunk with all the doors are
locked, the key may not be detected depending on the places and the
surrounding radio wave conditions. In this case, the key confinement pre-
vention function cannot be activated, causing the doors to lock when the
trunk lid is closed. Make sure to check where the key is before closing
the trunk lid.
●The key confinement prevention function cannot be activated if any one
of the doors is unlocked. In this case, open the trunk lid using the trunk lid
opener.
■Internal trunk lid release lever
■Using the mechanical key (vehicles with a keyless access with push
button start system)
The trunk lid can be also opened using the mechanical key. (→P. 396)
■Which key to the vehicle is to leave with a parking attendant after dis-
abling the trunk lid opener main switch
→ P. 2 1 The trunk lid can be opened by pulling on
the glow-in-the-dark lever located on the
inside of the trunk lid.
The lever will continue to glow for some
time after the trunk lid is closed.

48
1-2. Opening, closing and locking the doors and trunk lid

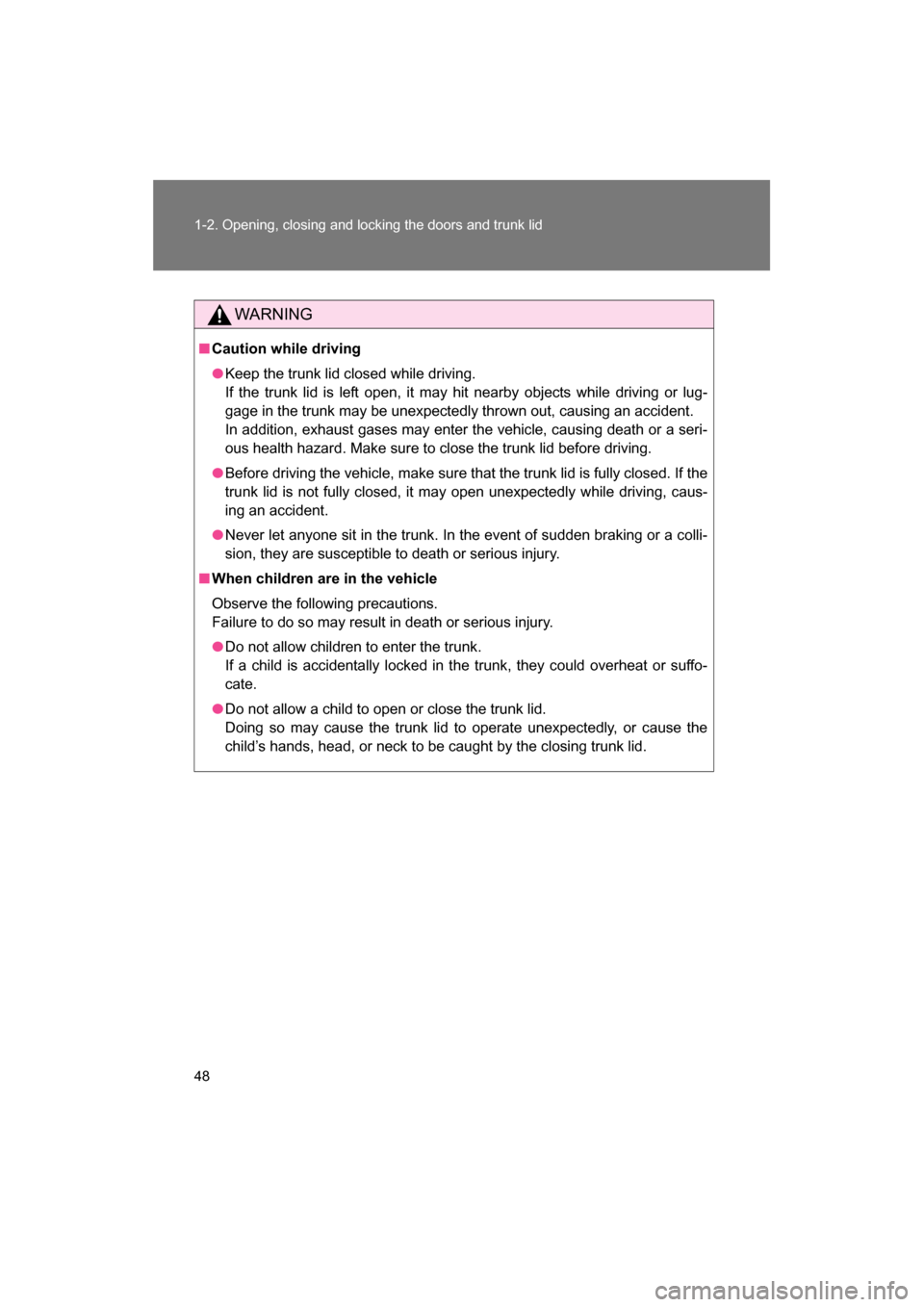

WARNING
■Caution while driving
●Keep the trunk lid closed while driving.
If the trunk lid is left open, it may hit nearby objects while driving or lug-
gage in the trunk may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the trunk lid before driving.
●Before driving the vehicle, make sure that the trunk lid is fully closed. If the
trunk lid is not fully closed, it may open unexpectedly while driving, caus-
ing an accident.
●Never let anyone sit in the trunk. In the event of sudden braking or a colli-
sion, they are susceptible to death or serious injury.
■When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to enter the trunk.
If a child is accidentally locked in the trunk, they could overheat or suffo-
cate.
●Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing trunk lid.

49
1-2. Opening, closing and locking the doors and trunk lid
1
Before driving
WARNING
■Using the trunk
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in seri-
ous injury.
●Remove any heavy loads, such as snow and ice, from the trunk lid before
opening it. Failure to do so may cause the trunk lid to fall closed again
after it is opened.
●When opening or closing the trunk lid, thoroughly check to make sure the
surrounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them know that
the trunk lid is about to open or close.
●Use caution when opening or closing the trunk lid in windy weather as it
may move abruptly in strong wind.
●Do not attach any accessories other than genuine parts to the trunk lid.
Such additional weight on the trunk lid may cause the lid to fall closed
again after it is opened.
●The trunk lid may fall if it is not
opened fully. It is more difficult to
open or close the trunk lid on an
incline than on a level surface, so
beware of the trunk lid unexpectedly
opening or closing by itself. Make
sure that the trunk lid is fully open
and secure before using the trunk.
●When closing the trunk lid, take extra
care to prevent your fingers etc. from
being caught.
●When closing the trunk lid, make sure
to press it lightly on its outer surface.

50
1-2. Opening, closing and locking the doors and trunk lid

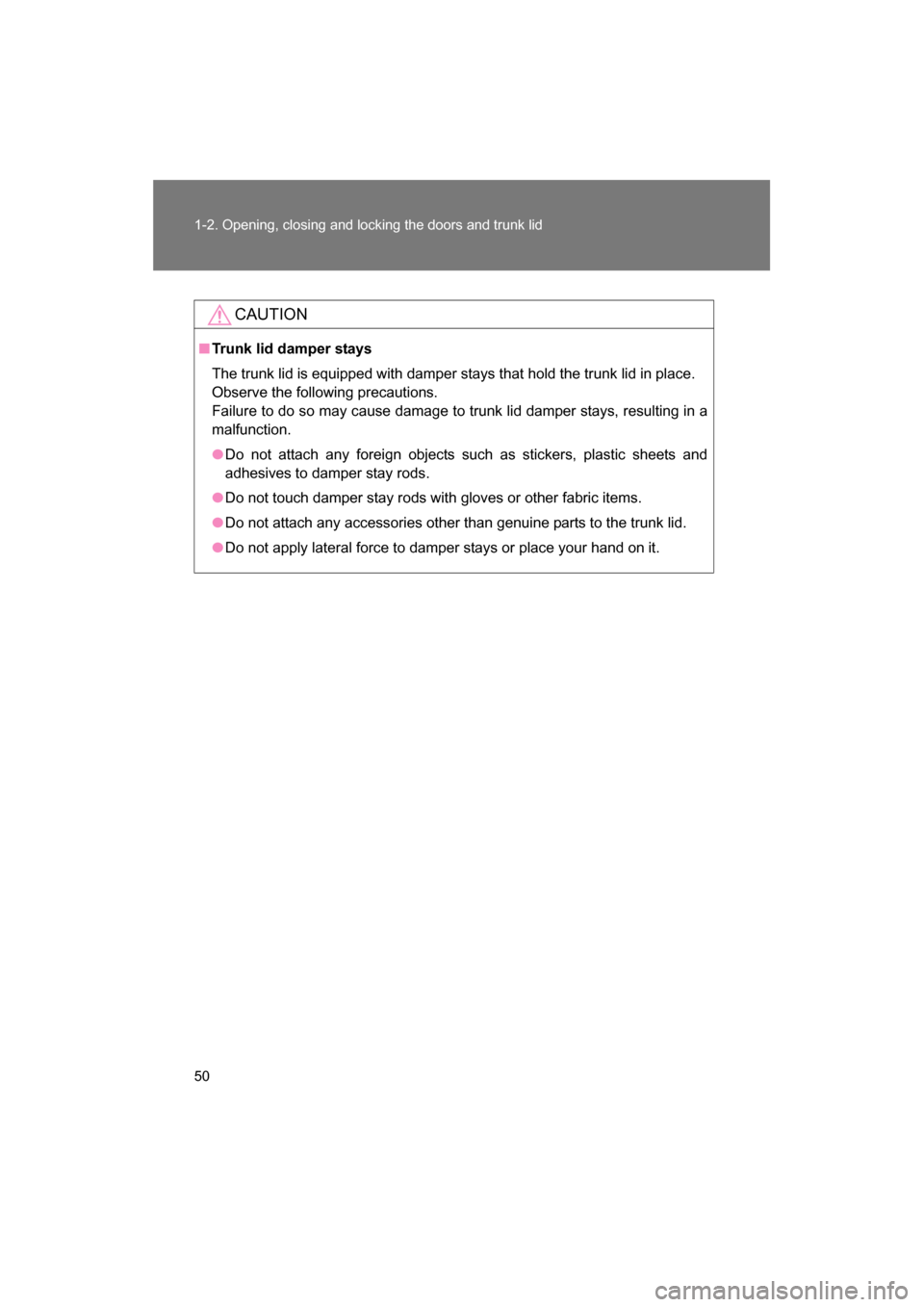

CAUTION
■Trunk lid damper stays
The trunk lid is equipped with damper stays that hold the trunk lid in place.
Observe the following precautions.
Failure to do so may cause damage to trunk lid damper stays, resulting in a
malfunction.
●Do not attach any foreign objects such as stickers, plastic sheets and
adhesives to damper stay rods.
●Do not touch damper stay rods with gloves or other fabric items.
●Do not attach any accessories other than genuine parts to the trunk lid.
●Do not apply lateral force to damper stays or place your hand on it.
