1-2. Opening, closing and locking the doors and trunk lid
Locking the doors from the outside without a keyMove the lock lever to the lock position.
Close the door.
Vehicles with a keyless access with push button start system The door cannot be locked if the access key is left inside the vehi-
cle.
The key may not be detected correctly and the door may be locked.
■Window open/close function linked to door operation
In order to make opening and closing the doors easier, completely closed
windows are linked to door operations. Therefore, when a door is opened, its
window opens slightly. When a door is closed, its window closes completely.
However, if the battery has discharged or is disconnected, this function will not operate. ( →P. 404)
■If the keyless access with push button start system has been deacti-
vated in a customized setting (vehicles with a keyless access with
push button start system)
Use the remote keyless entry system or mechanical key. ( →P. 37, 396)
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seatbelt.
●Always lock both side doors.
●Ensure that both side doors are properly closed.
●Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
STEP 1
STEP 2

45
1
1-2. Opening, closing and locking the doors and trunk lid
Before driving
Trunk lid
The trunk lid can be opened using the key, trunk lid opener, “keyless
access” entry function or remote keyless entry system.
■Opening the trunk lid from inside the vehicle
Press and hold the opener
switch to release the trunk lid.
If the trunk lid cannot be
opened by the opener switch:
→P. 4 6
■Opening the trunk lid from outside the vehicle
Key (vehicles without a keyless access with push button start
system) Turn the master key clockwise
to release the trunk lid.
“Keyless access” entry function (vehicles with a keyless
access with push button start system) →P. 2 4
Remote keyless entry system →P. 3 7

83
1-6. Security system
1
Before driving
Activating/deactivating the alarm systemCheck that both side doors and the trunk lid are closed.
Turn the push-button ignition switch to “ON” mode. Open the driver ’s door while
pressing and holding on
the power door lock switch and
continue to press for
approximately 10 seconds after
the driver’s door has opened.
The alarm system changes
between activated and deacti-
vated as follows.
■Deactivating or stopping the alarm
Perform one of the following to deactivate or stop the alarm: ●Unlock the doors using the “keyless access” entry function.
● Unlock the doors using the remote keyless entry system.
● Turn the push-button ignition switch to “ACC” or “ON” mode,
or start the engine. (The alarm will be deactivated or stopped
after a few seconds.)
STEP 1
STEP 2
STEP 3
Alarm statusHornMulti-information dis-
play
Deactivated Sounds twice AL oF
Activated Sounds once AL on

306
4-3. Do-it-yourself maintenance

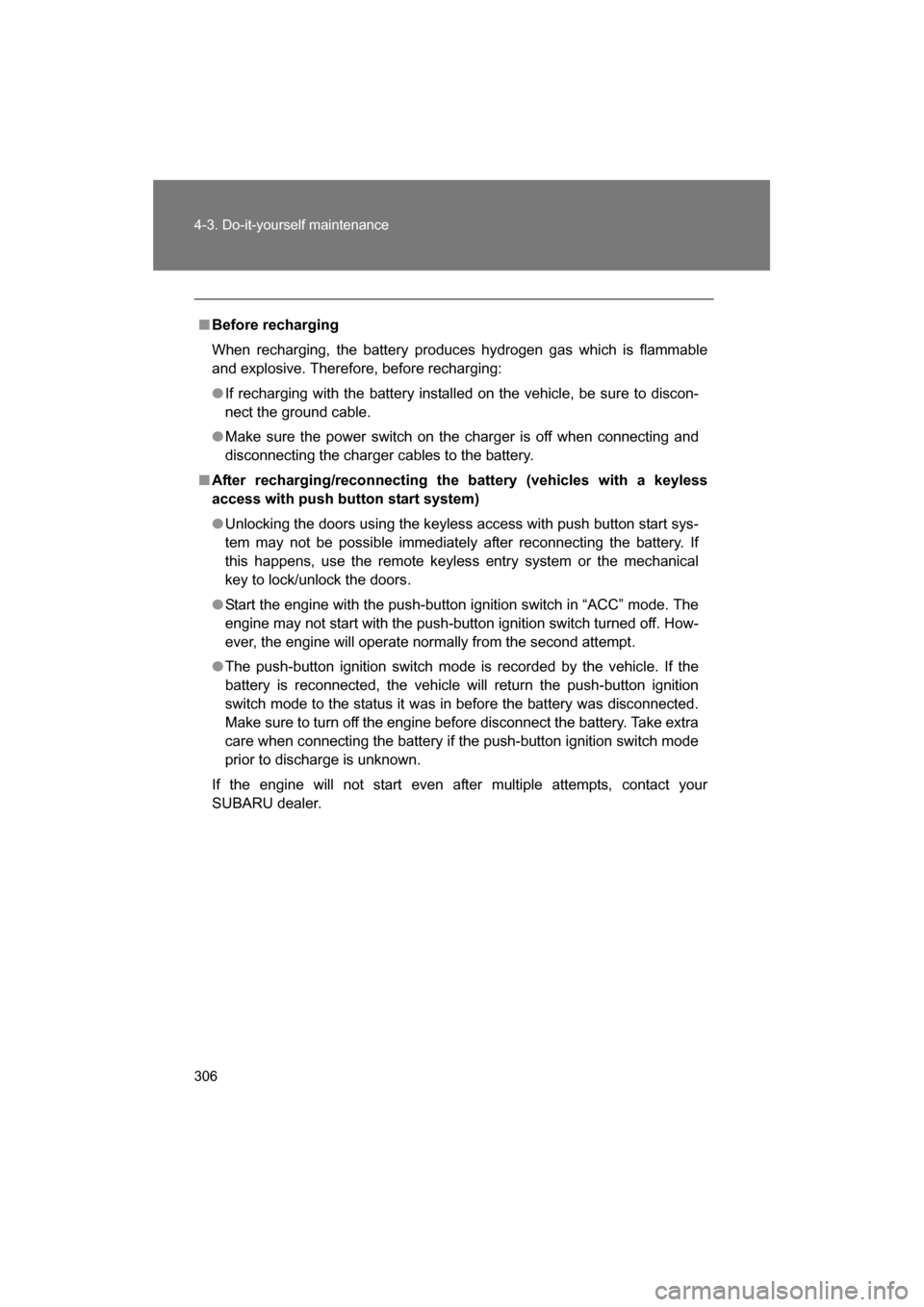

■Before recharging
When recharging, the battery produces hydrogen gas which is flammable
and explosive. Therefore, before recharging:
●If recharging with the battery installed on the vehicle, be sure to discon-
nect the ground cable.
●Make sure the power switch on the charger is off when connecting and
disconnecting the charger cables to the battery.
■After recharging/reconnecting the battery (vehicles with a keyless
access with push button start system)
●Unlocking the doors using the keyless access with push button start sys-
tem may not be possible immediately after reconnecting the battery. If
this happens, use the remote keyless entry system or the mechanical
key to lock/unlock the doors.
●Start the engine with the push-button ignition switch in “ACC” mode. The
engine may not start with the push-button ignition switch turned off. How-
ever, the engine will operate normally from the second attempt.
●The push-button ignition switch mode is recorded by the vehicle. If the
battery is reconnected, the vehicle will return the push-button ignition
switch mode to the status it was in before the battery was disconnected.
Make sure to turn off the engine before disconnect the battery. Take extra
care when connecting the battery if the push-button ignition switch mode
prior to discharge is unknown.
If the engine will not start even after multiple attempts, contact your
SUBARU dealer.

330
4-3. Do-it-yourself maintenance
■Use a CR2016 (vehicles without a keyless access with push button
start system) or CR1632 (vehicles with a keyless access with push but-
ton start system) lithium battery
●Batteries can be purchased at your SUBARU dealer, local electrical
appliance shops or camera stores.
●Replace only with the same or equivalent type recommended by the
manufacturer.
●Dispose of used batteries according to local laws.
■If the key battery is depleted
The following symptoms may occur:
●The keyless access with push button start system (if equipped) and
remote keyless entry system will not function properly.
●The operational range will be reduced.
■When putting the module back (vehicles without a keyless access with
push button start system)Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP3
Insert the module from directly above.
Inserting it on an angle may prevent the
key buttons from operating properly.

336
4-3. Do-it-yourself maintenance

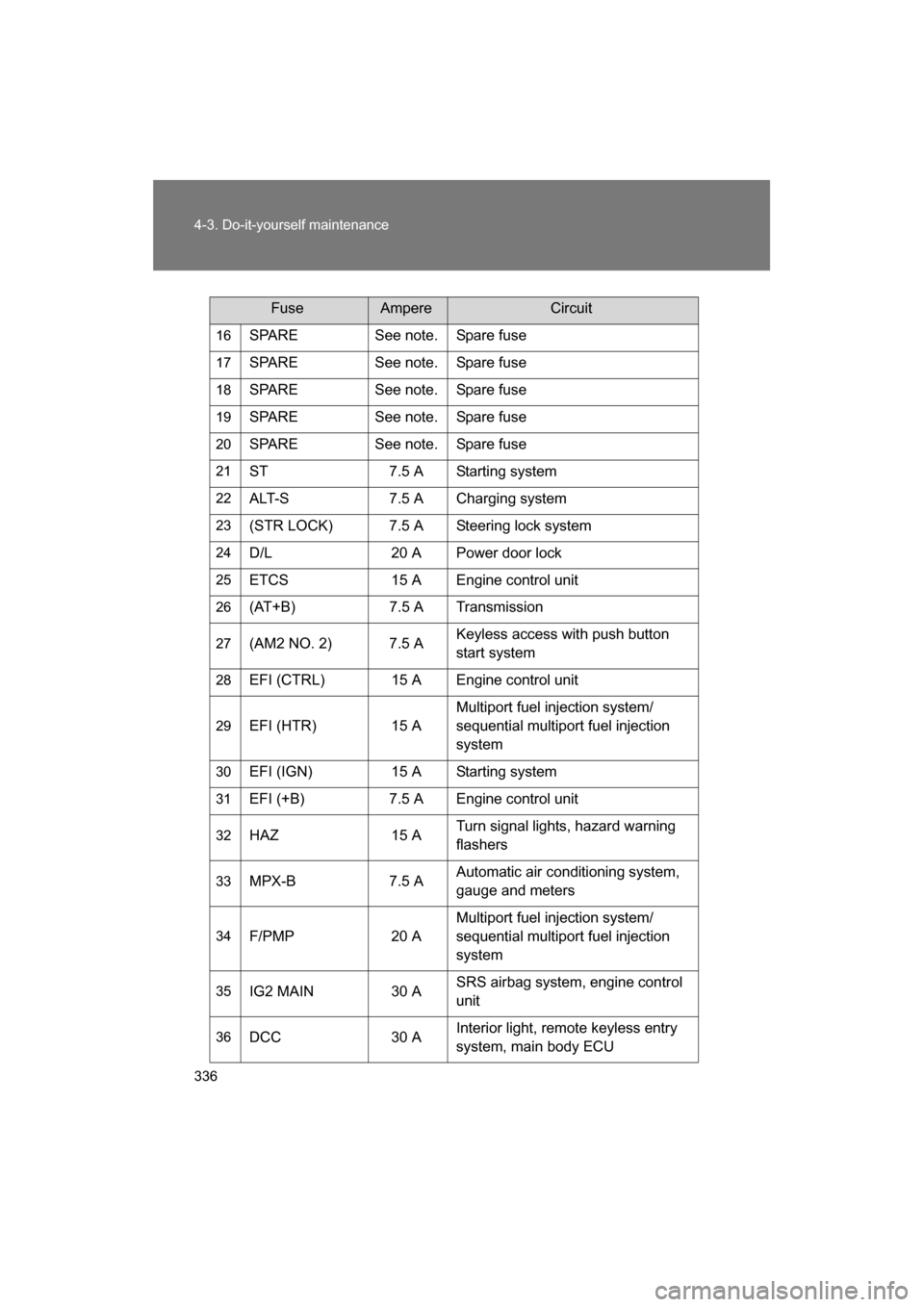

16SPARE See note. Spare fuse
17 SPARE See note. Spare fuse
18 SPARE See note. Spare fuse
19 SPARE See note. Spare fuse
20 SPARE See note. Spare fuse
21 ST 7.5 A Starting system
22 ALT-S 7.5 A Charging system
23 (STR LOCK) 7.5 A Steering lock system
24 D/L 20 A Power door lock
25 ETCS 15 A Engine control unit
26 (AT+B) 7.5 A Transmission
27 (AM2 NO. 2) 7.5 A Keyless access with push button
start system
28 EFI (CTRL) 15 A Engine control unit
29 EFI (HTR) 15 A Multiport fuel injection system/
sequential multiport fuel injection
system
30 EFI (IGN) 15 A Starting system
31 EFI (+B) 7.5 A Engine control unit
32 HAZ 15 A Turn signal lights, hazard warning
flashers
33 MPX-B 7.5 A Automatic air conditioning system, gauge and meters
34 F/PMP 20 A Multiport fuel injection system/
sequential multiport fuel injection
system
35 IG2 MAIN 30 A SRS airbag system, engine control
unit
36 DCC 30 A Interior light, remote keyless entry
system, main body ECU
FuseAmpereCircuit

337
4-3. Do-it-yourself maintenance
4
Maintenance and care
Note
One of each of the following spare fuses are provided: 7.5 A, 10 A, 15
A, 20 A, 25 A, 30 A.37
HORN NO. 2 7.5 A Horn
38 HORN NO. 1 7.5 A Horn
39 H-LP LH LO 15 A Left-hand headlight (low beam)
40 H-LP RH LO 15 A Right-hand headlight (low beam)
41 H-LP LH HI 10 A Left-hand headlight (high beam)
42 H-LP RH HI 10 A Right-hand headlight (high beam)
43 INJ 30 A Multiport fuel injection system/
sequential multiport fuel injection
system
44 H-LP WASHER 30 A 
45 AM2 NO. 1 40 A Starting system, engine control unit
46 EPS 80 A Electric power steering
47 A/B MAIN 15 A SRS airbag system
48 ECU-B 7.5 A Remote keyless entry system,
main body ECU
49 DOME 20 A Interior light
50 IG2 7.5 A Engine control unit
FuseAmpereCircuit

396
5-2. Steps to take in an emergency
If the access key does not operate properly (vehicles with a keyless access with push button star t system)
Unlocking and locking the doors, unlocking the trunk lid
Use the mechanical key built in to the access keys to operate the
doors and trunk lid. ( →P. 21)
Vehicles with an alarm: An alarm will sound if the alarm is set when the
trunk lid or doors are unlocked. ( →P. 82)
Doors
Locks driver’s door
Unlocks driver’s door
Trunk lid Turn the mechanical key clock-
wise to open.
If communication between the access key and vehicle is interrupted (→ P. 30) or the access key cannot be used because the battery is
depleted, the keyless access with push button start system and
remote keyless entry system canno t be used. In such cases, the
doors and trunk lid can be opened or the engine can be started by
following the procedure below.
