2014 SUBARU BRZ engine

26
1-2. Opening, closing and locking the doors and trunk lid
■Effective range (areas within which the access key is
detected)When locking or unlockingthe doors
The system can be operated
when the access key is
within about 1.3 - 2.6 ft. (0.4 -
0.8 m) of either of the outside
door handles. (Only the
doors detecting the key can
be operated.)
When unlocking the trunk lid
The system can be operated
when the access key is
within about 1.3 - 2.6 ft. (0.4 -
0.8 m) of the trunk lid releasebutton.
When starting the engine or changing push-button
ignition switch modes
The system can be operated
when the access key is
inside the vehicle.

30
1-2. Opening, closing and locking the doors and trunk lid
■Conditions affecting operation
The keyless access with push button start system uses weak radio waves. In
the following situations, the communication between the access key and the
vehicle may be affected, preventing the keyless access with push button
start system, remote keyless entry system and engine immobilizer system
from operating properly. (Way of coping →P. 396)
●When the access key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
●When the access key is in contact with, or is covered by the following
metallic objects

33
1-2. Opening, closing and locking the doors and trunk lid
1
Before driving

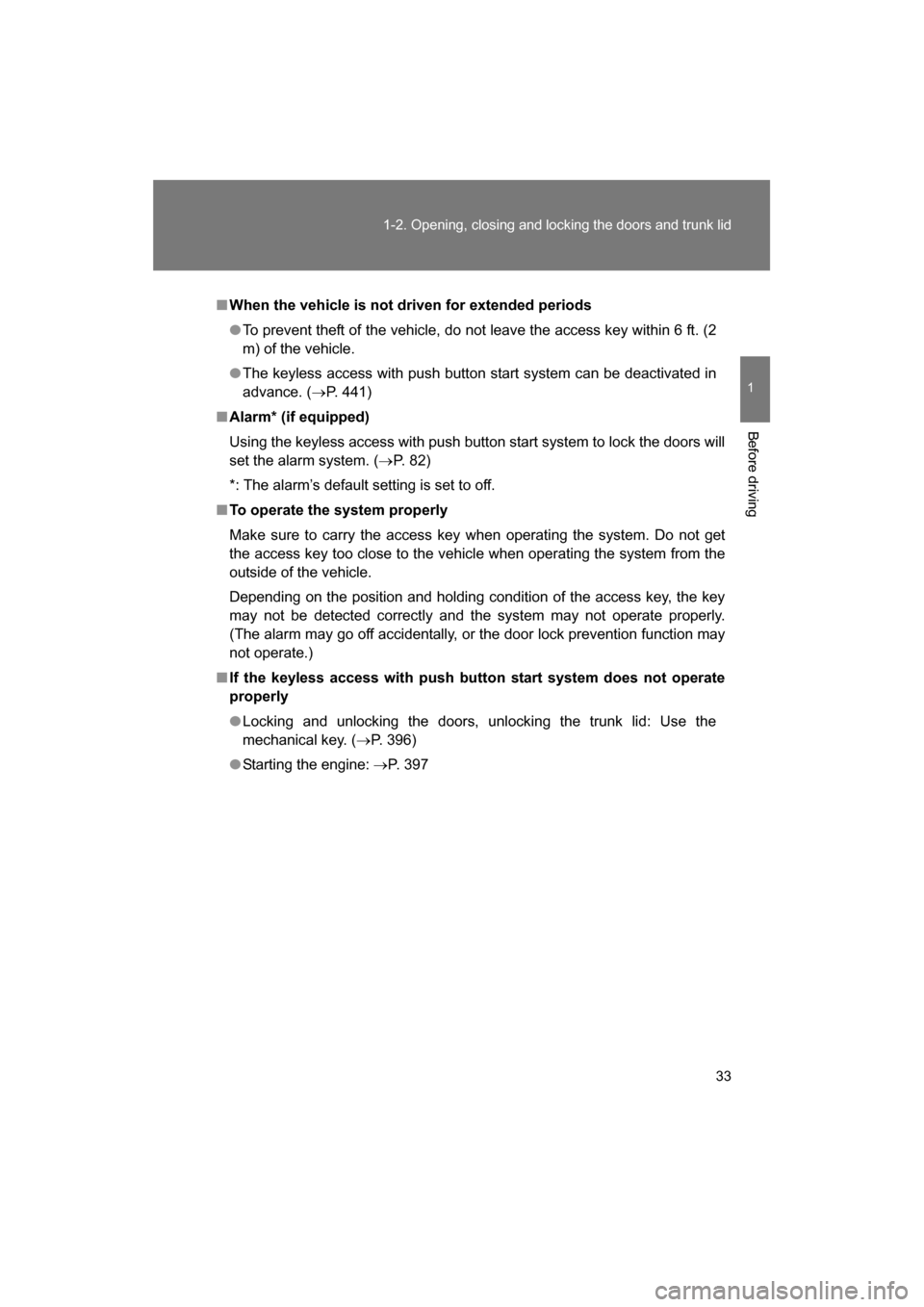

■When the vehicle is not driven for extended periods
●To prevent theft of the vehicle, do not leave the access key within 6 ft. (2
m) of the vehicle.
●The keyless access with push button start system can be deactivated in
advance. (→P. 441)
■Alarm* (if equipped)
Using the keyless access with push button start system to lock the doors will
set the alarm system. ( →P. 82)
*: The alarm’s default setting is set to off.
■To operate the system properly
Make sure to carry the access key when operating the system. Do not get
the access key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the access key, the key
may not be detected correctly and the system may not operate properly.
(The alarm may go off accidentally, or the door lock prevention function may
not operate.)
■If the keyless access with push button start system does not operate
properly
●Locking and unlocking the doors, unlocking the trunk lid: Use the
mechanical key. ( →P. 396)
●Starting the engine: →P. 397

34
1-2. Opening, closing and locking the doors and trunk lid
■Access key battery depletion
●The standard battery life is 1 to 2 years.
●If the battery becomes low, an alarm will sound in the cabin when the
engine stops. (→P. 376)
●As the access key always receives radio waves, the battery will become
depleted even if the access key is not used. The following symptoms
indicate that the access key battery may be depleted. Replace the bat-
tery when necessary. ( →P. 328)

68
1-3. Adjustable components (seats, mirrors, steering wheel)

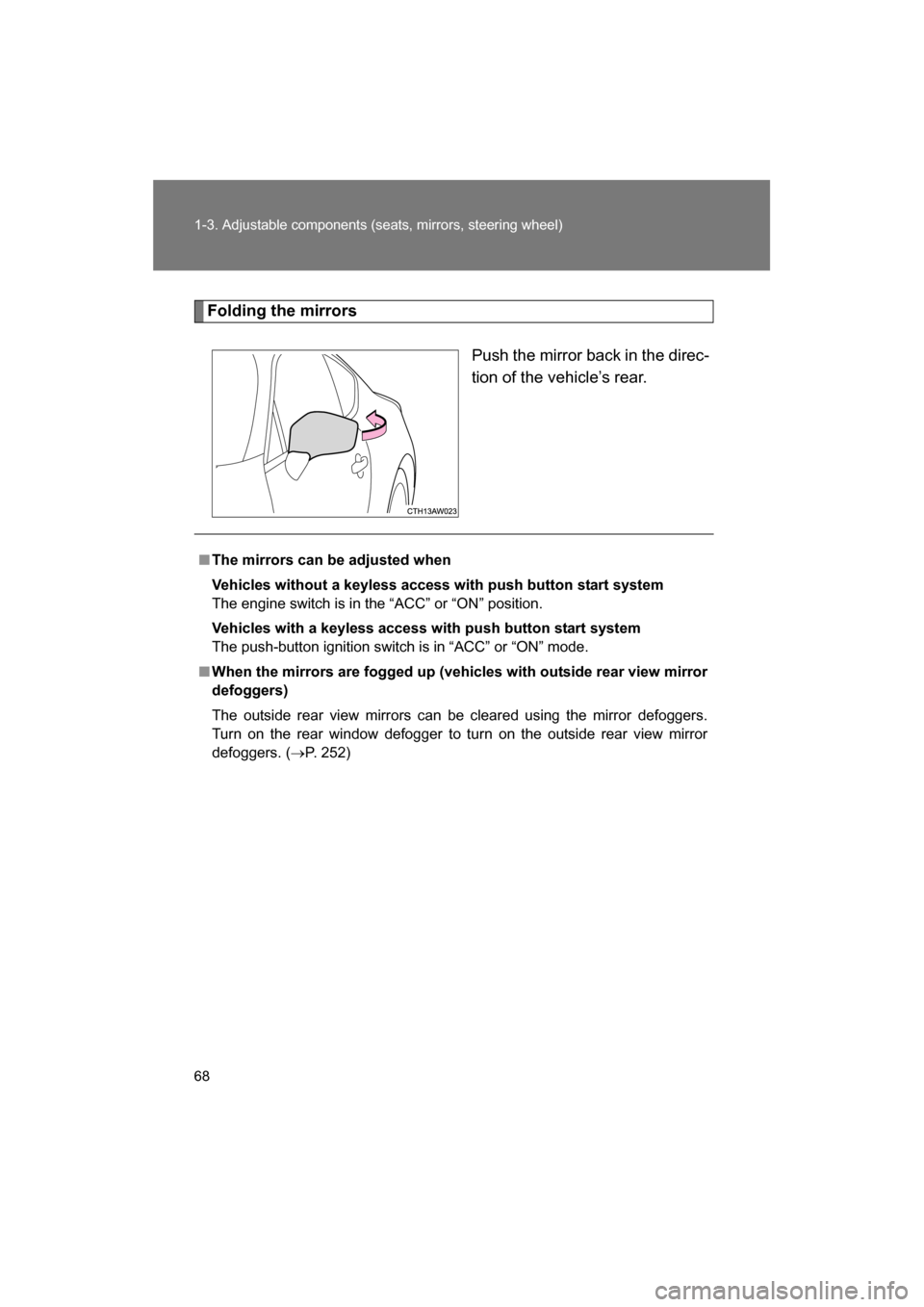

Folding the mirrorsPush the mirror back in the direc-
tion of the vehicle’s rear.
■The mirrors can be adjusted when
Vehicles without a keyless access with push button start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a keyless access with push button start system
The push-button ignition switch is in “ACC” or “ON” mode.
■When the mirrors are fogged up (vehicles with outside rear view mirror
defoggers)
The outside rear view mirrors can be cleared using the mirror defoggers.
Turn on the rear window defogger to tu rn on the outside rear view mirror
defoggers. ( →P. 252)

71
1-4. Opening and closing the windows
1
Before driving
■The power windows can be operated when
Vehicles without a keyless access with push button start system
The engine switch is in the “ON” position.
Vehicles with a keyless access with push button start system
The push-button ignition switch is in “ON” mode.
■Operating the power windows after turning the engine off
Vehicles without a keyless access with push button start system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once either door is opened.
Vehicles with a keyless access with push button start system
The power windows can be operated for approximately 45 seconds even
after the push-button ignition switch is turned to “ACC” mode or turned off.
They cannot, however, be operated once either door is opened.
■Jam protection function
If an object becomes caught between the window and the body, window
travel is stopped and the window is opened slightly.

72
1-4. Opening and closing the windows
■When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot
be closed, close all the doors perform the following operations using the
power window switch on the relevant door.Vehicles without a keyless access with push button start system:
After stopping the vehicle, the engine switch is turned to the “ON”
position.
Vehicles with a keyless access with push button start system: After
stopping the vehicle, the push-button ignition switch is turned to
“ON” mode.
Hold the power window switch in the one-touch closing position two
consecutive times.
Hold the power window switch in the one-touch closing position
once again and continue holding for 1 second or more after the win-
dow closes completely.
If you push the power window switch to the opening position while the win-
dow is moving, start again from the beginning. If the window continues to
close but then re-open slightly even after performing the above procedure
correctly, we recommend that you have your SUBARU dealer.
STEP 1
STEP 2
STEP 3

74
1-5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:
■Before refueling the vehicle ●Vehicles without a keyless access with push button start sys-
tem: Turn the engine switch off and ensure that all the doors
and windows are closed.
● Vehicles with a keyless access with push button start system:
Turn the push-button ignition switch off and ensure that all the
doors and windows are closed.
● Confirm the type of fuel. ( →P. 7 5 )
■Opening the fuel tank cap
Pull up the opener to open the
fuel filler lid.
Turn the fuel tank cap slowly
to open.
STEP 1
STEP 2
