2014 SUBARU BRZ light

343
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Front side marker lightsTurn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
Remove the clips and partly
remove the fender liner. To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Release the light's claw. Insert the screwdriver into the
hole. While firmly pushing the
screwdriver forward, move it
towards the inside of the vehicle.
To prevent damage to the vehicle,
wrap the tip of the screwdriver
with a tape.
Pull out the lamp and turn the
lens counterclockwise.
STEP 1
STEP 2
STEP 3
STEP 4

344
4-3. Do-it-yourself maintenance
Remove the light bulb.
When installing, reverse the steps listed.
■Front fog lights (if equipped) Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
Remove the clips and partly
remove the fender liner. To prevent damage to the vehicle,
cover the tip of the screwdriverwith a rag.
STEP 5
STEP 6
STEP 1
STEP 2

345
4-3. Do-it-yourself maintenance
4
Maintenance and care

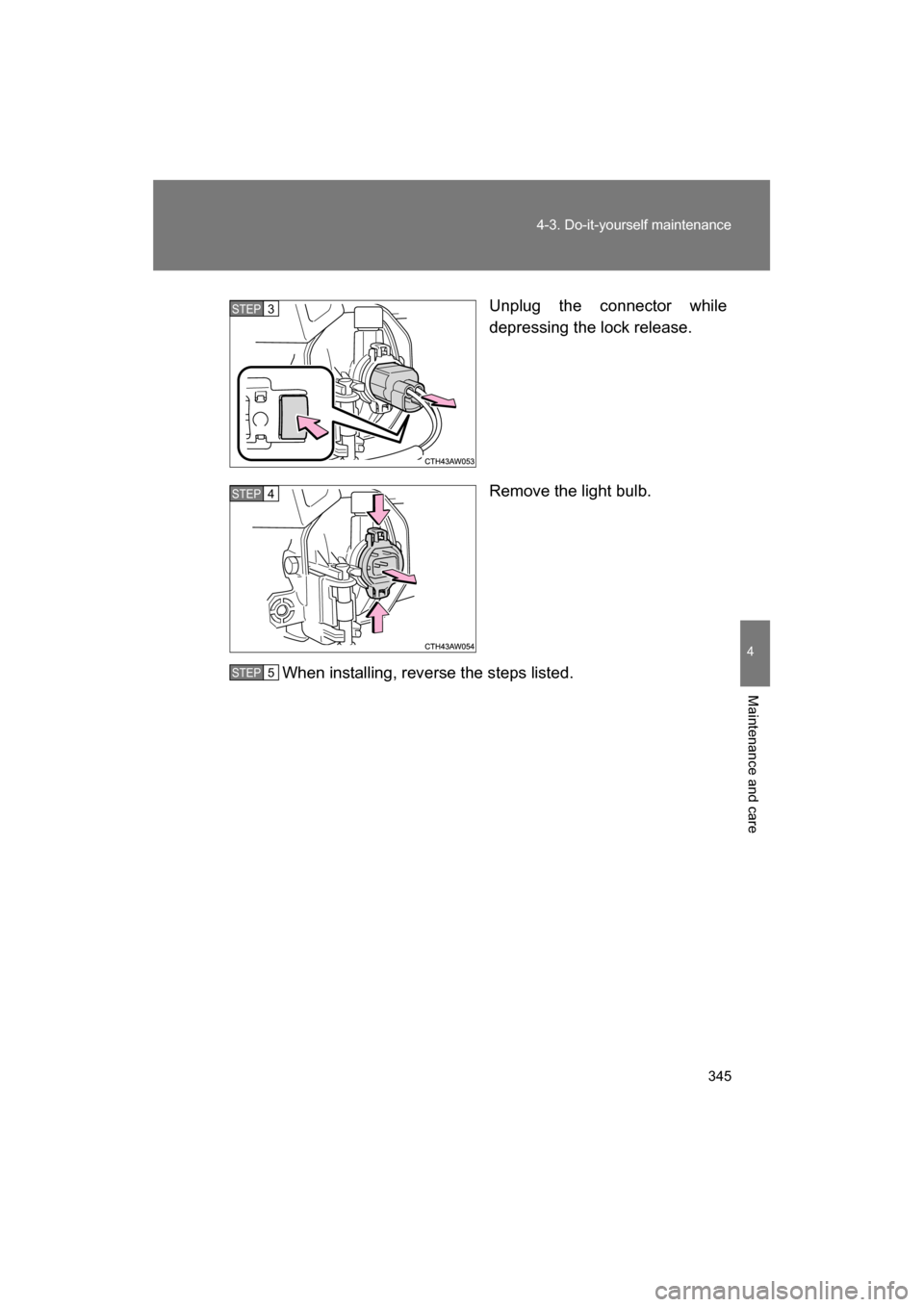

Unplug the connector while
depressing the lock release.
Remove the light bulb.
When installing, reverse the steps listed.STEP 3
STEP 4
STEP 5

346
4-3. Do-it-yourself maintenance
■Rear side marker lightsRemove a clip and partly remove
the cover.
To prevent damage to the vehicle,
cover the tip of the screwdriverwith a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

347
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Rear turn signal lightsRemove a clip and partly remove
the cover.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

348
4-3. Do-it-yourself maintenance
■Back-up lightsTurn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 3 STEP 2
STEP 3

349
4-3. Do-it-yourself maintenance
4
Maintenance and care
■License plate lightsRemove the trunk lid panel cover
clips and partly remove the trunk
lid panel cover.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

350
4-3. Do-it-yourself maintenance

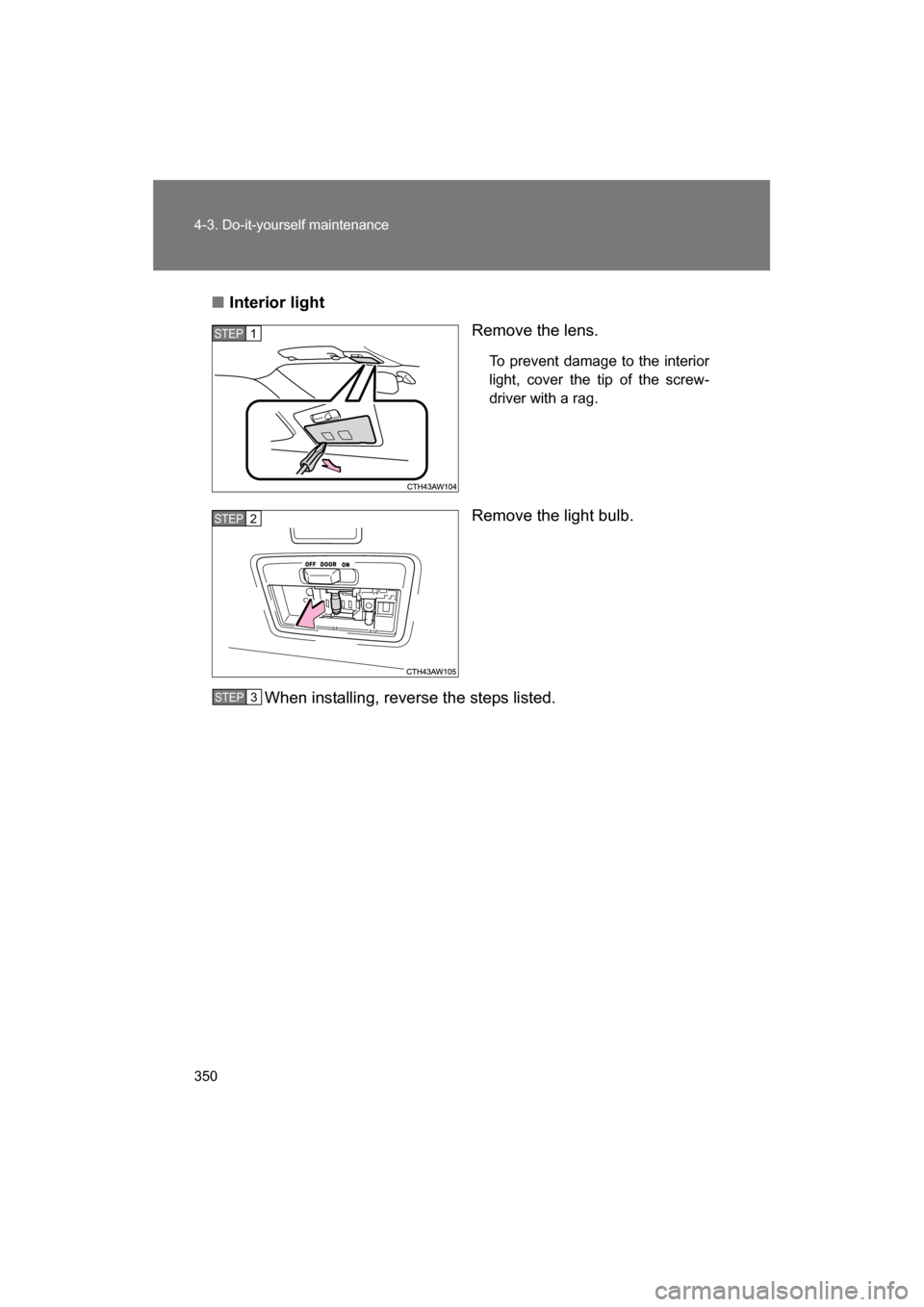

■Interior lightRemove the lens.
To prevent damage to the interior
light, cover the tip of the screw-
driver with a rag.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
