2014 SKODA YETI Blues Car Radio Manual

NoteSome radio stations misleadingly identify themselves as traffic programs. It is
therefore not an error with the unit that there are no traffic news on these sta-
tions.
7Radio

CD player
Using the system
Information on how to use a CD
The internal drive can play CD-ROM, CD-R, CD-RW discs.
Insert the CD
With the labelled side facing up, only insert a CD into CD slot
7
until it is auto-
matically drawn in.
The play function will start automatically.
Removing the CD
Press the button 
– the CD is ejected.
If the “ejected” CD is not taken out within 10 seconds, it will be retracted again for safety reasons.
Buttons on the unit for controlling the current audio source
The arrow buttons 
or  on the unit will always affect the audio source you are
currently listening to, irrespective of the current menu used.

- pressing them briefly within 5 seconds of song playback brings you back to
the previous track, while pressing them after 5 seconds of playback will bring you
back to the start of the current track or chapter.

- pressing this briefly changes over to the beginning of the next title or chap-
ter, repeated pressing changes over to the beginning of the subsequent title or
chapter.
For quick playback of the title press the backward and forward buttons 
or .
The play function is continued after releasing the button.
Changing between the audio sources
Press the CD
button to select the audio source:
CD (internal CD drive), EXT (CD
changer, if it is connected to the device) or AUX.
WARNINGThe CD-player is a laser product. On the manufacturing date, this unit was
classified as a class 1 laser product in accordance with the national/interna-
tional standards DIN EN 60825-1: 2008-05 and DHHS Rules 21 CFR,
Subchapter J. The laser used in this class 1 laser product is so weak that there is no risk of danger when operated correctly. This product is designed such
that the laser is restricted to the inside of the unit. However, the installed la- ser could be classified in a higher class were the housing to be removed. Forthis reason, never remove the housing of the unit.
CAUTION
■ For playback in the internal drive, never use marked CDs “Do not insert in drives
without a drawer” or use Eco Disc.■
There is a time delay of a few seconds after the  button is pressed before the
CD is ejected. During this time the lock in front of the CD slot is open.
■
Be sure to wait until the CD has been fully ejected before you try to insert a new
CD. Otherwise you can damage the drive inside the unit.
■
A dirty, mechanically damaged, unreadable or incorrectly inserted CD can cause
playback problems. For this reason, the disc may not be playable or may cause the
CD to jump. Check the CD and insert it properly into the drive. Should the problem
persist , try using another CD and visit a specialist garage if necessary.
■
Outside temperatures that are either too high or too low might cause the unit
to be temporarily unavailable. The changer is equipped with a thermostat to pro-
tect the CD and the laser.
■
If the internal temperature of the device is too high, no CDs will be accepted.
The unit switches into the last active operating mode.
■
Never use liquids such as gasoline, paint thinner or record cleaner to clean the
surface of the CD - this may cause damage.
■
Never expose the CD to direct sunlight!
■
Only write on the CD using appropriate pens.
■
Do not stick anything to the CD.
Note
■ Poor or unsealed road surfaces and severe vibrations may cause the CD to jump.■Damp (condensation) may affect the device in cold weather or after showers.
This can effect the CD jump or impair the play function. Wait until the moisture
has evaporated if this happens. 8CD player

■If a CD is dirty, never clean it in a circular motion, but instead work from the in-
side out. Use a soft, lint-free cloth. For heavy stains, we recommend that you
clean the CD with a commercially available CD cleaner and allow it to dry.■
It is possible that CDs protected by copyright or home-made CD-R/CD-RW will
not be played back at all or only in certain circumstances.
■
Please also note the additional information for MP3 mode.
■
The national copyright laws that apply in your country must be observed.
■
The CD-player does not contain parts that need to be serviced or repaired. In
the case of a defective CD player, please visit a specialist garage.
■
If the ejected CD is not taken out, it will be retracted again for safety reasons.
■
If a TP station was set before changing to CD mode, CD playback will be inter-
rupted during the traffic news and the device switches to radio mode. Once the
traffic news have ended, CD playback will resume.

Function SCAN
The function allows you to play the first 10 seconds of every track in turn.
›
Press the SCAN switch and select one of the following options:
›
CD
- Browsing of the CD's contents begins;
›
FOLDER - browsing of the current folder begins.
›
To return to normal operation, press the rocker switch SCAN again.
›
To select the previous or next track, press the rocker switch  or  .

MIX function
›
Press the
MENU rocker switch to select the Setup menu.
›
Use the function keys to select the
MIX menu function.
›
Use the adjustment knob
1
to select the desired setting.
MIX
Play function of titles in random order.
› MIX OFF
- the menu function is inactive;
› MIX CD
- random playback of tracks on a CD;
› MIX FLD
- random playback of tracks in a specific folder;
› MIX PLS
- Playback of the playlist (folder of selected tracks from individual fold-
ers, which is stored on the CD). Is only displayed when a play-list is created for
the replayed CD.

General information for MP3 operation
Requirements for the MP3 data and data carrier
› CD-ROM, CD-R, CD-RW with a capacity of 650 MB and 700 MB.
› The CDs must correspond to the ISO 9660 Level 2 standard as well as the Joliet
data system (single and multi-session).
› Data names must be no longer than 64 characters.
› The list structure is restricted to a depth of 8 list levels.
› The name of the artist, the album and the title of the played MP3 file can be dis-
played if such information is available in the form of so called ID3 tags. If there
is no ID3 tag only the directory or data name will be displayed.
Bit rate (data flow per time unit)
› The system supports MP3 data with bit rates of 32 to 320 KB/s as well as MP3
data with variable bit rates.
› The indicated playing time data with variable bit rates is not reliable.

Display of additional information (MP3 data)
The selection buttons 1
- 6 can be used to display the additional information
about MP3 files on the screen:
› 1
- Number of the folder and number of the track;
› 2 - Name of the track;
› 3 - Name of the performer;
› 4 - Name of the album;
› 5 - Name of the file;
› 6 - Name of the folder.

Buttons on the unit for controlling the current audio source
If there is a folder structure with files inside on the CD (MP3), navigation within
this structure takes place as follows:
›
 - pressing briefly takes you back to the previous file in the selected folder.
›
 - pressing briefly takes you to the next file in the selected folder.
›
 - pressing briefly takes you to the previous track/playlist.
›
 - pressing briefly takes you to the next track/playlist.
›
For fast forwarding or rewinding the track press and hold the  or  rocker
switch. Playback will continue upon releasing the rocker switch.

9CD player

External sources
Using the system
Advice for dealing with external sources
An external audio source connected to the AUX input can be played in the car through the speakers of the device. External audio sources cannot be controlled
via the device.
A different audio source can be selected on the device at any time. As long as the
external audio source is not switched off, it always remains active in the back-
ground.
See the owner's manual of the specific manufacturer for operating the external
audio source.
Conditions for a successful connection
External audio sources are connected via the AUX input using a 3.5 mm standard
jack plug. If the external audio source does not have this jack plug, you must use
an adapter.
› Only USB devices with the specification 2.0 can be connected.
› The version of the file allocation table FAT (File Allocation Table) of the connec-
ted device must be FAT16 ( <2 GB) or FAT32 (> 2 GB).
› In order to replay from a unit with a hard disk (HDD) which includes a large data
volume, it can lead to a time delay when reading in the overview of the music
data.
› In order to replay from a unit, which includes a complicated folder structure, it
can lead to a time delay when reading in the overview of the music data.
› The folder structure in the connected unit must not exceed a depth of 8 levels.
One folder must not contain more than 1000°data.
› A USB extension cable or USB distributor (HUB) must not be used to connect
the unit.
Adapter
We recommend that you purchase an adapter for connecting the USB devices, the
devices with Mini USB output or an iPod, at an authorised ŠKODA Service Partner.
Adjust the play function volume of the external audio source
The playback volume of the external audio source can be adjusted via the volume
control on the device.
Depending on the connected audio source, the output volume on the external au-
dio source can be changed.
You can also change the input sensitivity of the external audio source, » page 4,
AUX , in order to adapt the play volume of the external audio source to that of the
other audio sources or to avoid distortions.WARNING■ Never place external sources on the console panel. They could be thrown in-
to the passenger compartment during sudden driving manoeuvres, thereby in-
juring the occupants.■
Never place external sources close to the airbags. These could be thrown in-
to the passenger compartment when the airbags are deployed, injuring the
occupants.
■
Never hold external sources in your hand or on your knees while driving.
They could be thrown into the passenger compartment during sudden driving
manoeuvres, thereby injuring the occupants.
■
Always route the connection cable for the external source such that it does
not restrict you when driving.
CAUTION
The AUX input must only be used for audio sources!
Note
■ See the owner's manual of the specific manufacturer for instructions on operat-
ing the external source.■
If an external audio source equipped with an adapter for external power supply
is connected via AUX, it is possible that the audio signal may become disrupted. This depends on the quality of the adapter which is used.
■
The loudspeakers in the vehicle are designed for a power output of the device
of 4x20 W.
■
For the equipment sound system, the loudspeakers are matched to a power
output of the amplifier of 4x40°W + 6x20 W.

AUX Input
The AUX input for external audio sources is located below the armrest of the front seats and is marked with the  symbol. 
10External sources

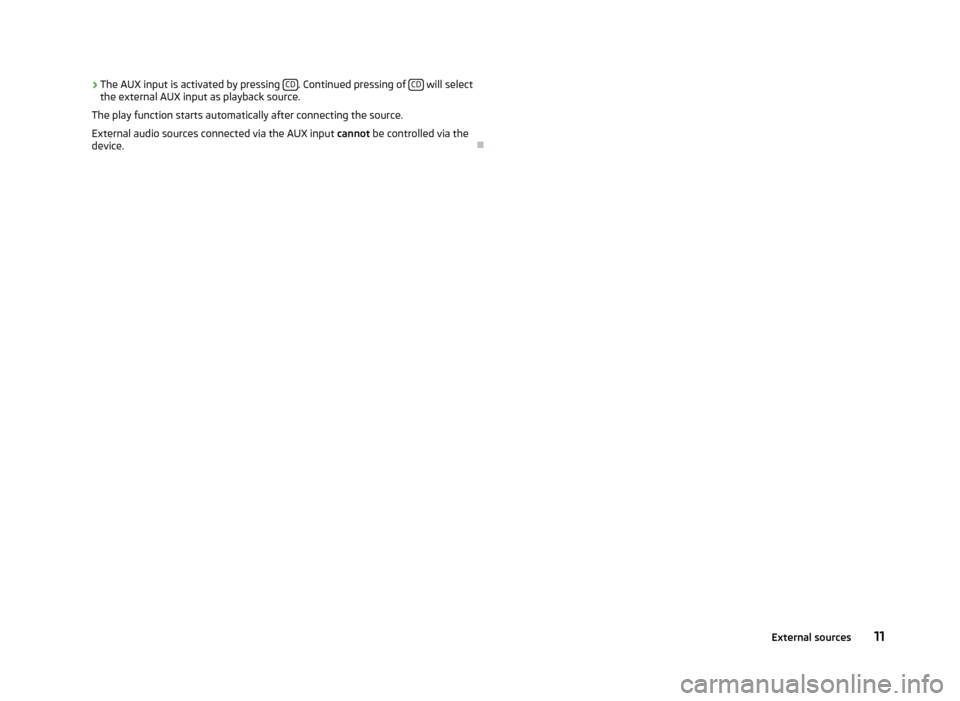

›The AUX input is activated by pressing
CD. Continued pressing of CD will select
the external AUX input as playback source.
The play function starts automatically after connecting the source.
External audio sources connected via the AUX input cannot be controlled via the
device.
11External sources
