AbbreviationsAbbreviationDefinitionrpmEngine revolutions per minuteA2DPa Bluetooth software profile for a one-way transfer of audio
dataABSAnti-lock brake systemAGAutomatic gearboxAGMVehicle battery typeTCSTraction controlCO 2Carbon dioxideDPFDiesel particle filterDSGAutomatic double clutch gearboxEDLElectronic differential lockECEEconomic Commission for EuropeEPCEPC fault lightESCElectronic Stability ControlETRim depthEUEuropean UnionGSMGlobal System for Mobile communicationsHBAHydraulic brake assistHHCUphill start assistkWKilowatt, measuring unit for the engine outputMDIInputs for connecting external devicesMFDMultifunction displayMGManual gearboxMPIGasoline engine with a multi-point fuel injectionN1Panel van intended exclusively or mainly for the transporta-
tion of goodsNmNewton meter, measuring unit for the engine torquePINpersonal identification numberSIM carda card for the identification of the mobile network operatorAbbreviationDefinitionTDI CRDiesel engine with turbo charging and common rail injection
systemTSIPetrol engine with turbocharging and direct injectionVINVehicle identification numberWi-Fiwireless data network7Abbreviations

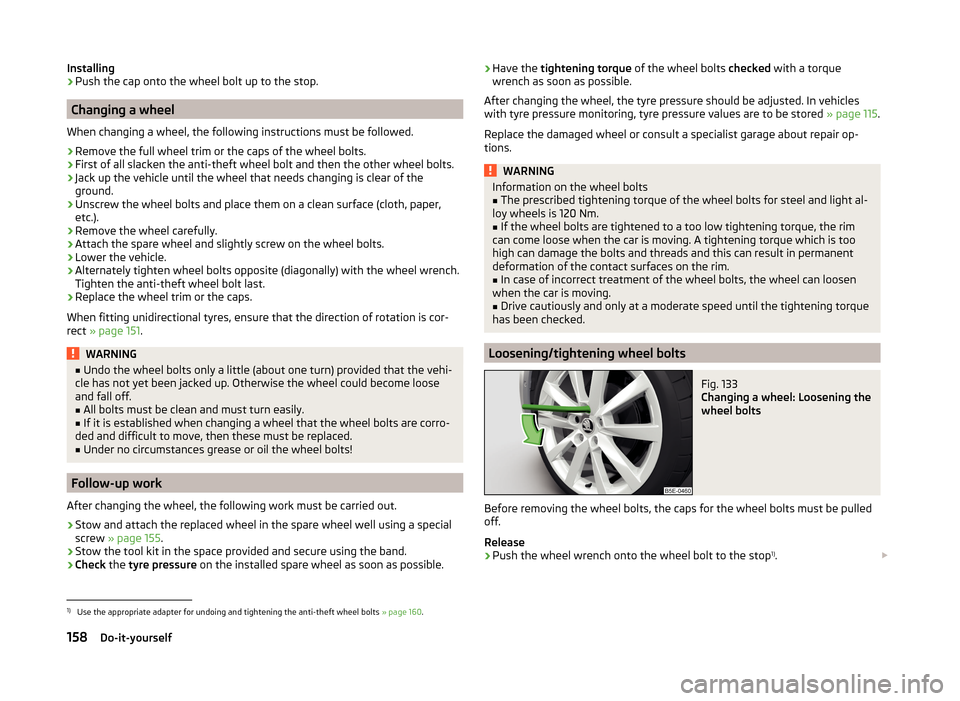

Installing›Push the cap onto the wheel bolt up to the stop.
Changing a wheel
When changing a wheel, the following instructions must be followed.
›
Remove the full wheel trim or the caps of the wheel bolts.
›
First of all slacken the anti-theft wheel bolt and then the other wheel bolts.
›
Jack up the vehicle until the wheel that needs changing is clear of the
ground.
›
Unscrew the wheel bolts and place them on a clean surface (cloth, paper, etc.).
›
Remove the wheel carefully.
›
Attach the spare wheel and slightly screw on the wheel bolts.
›
Lower the vehicle.
›
Alternately tighten wheel bolts opposite (diagonally) with the wheel wrench.
Tighten the anti-theft wheel bolt last.
›
Replace the wheel trim or the caps.
When fitting unidirectional tyres, ensure that the direction of rotation is cor-
rect » page 151 .
WARNING■
Undo the wheel bolts only a little (about one turn) provided that the vehi-
cle has not yet been jacked up. Otherwise the wheel could become loose
and fall off.■
All bolts must be clean and must turn easily.
■
If it is established when changing a wheel that the wheel bolts are corro-
ded and difficult to move, then these must be replaced.
■
Under no circumstances grease or oil the wheel bolts!
Follow-up work
After changing the wheel, the following work must be carried out.
›
Stow and attach the replaced wheel in the spare wheel well using a special
screw » page 155 .
›
Stow the tool kit in the space provided and secure using the band.
›
Check the tyre pressure on the installed spare wheel as soon as possible.
›Have the
tightening torque of the wheel bolts checked with a torque
wrench as soon as possible.
After changing the wheel, the tyre pressure should be adjusted. In vehicles
with tyre pressure monitoring, tyre pressure values are to be stored » page 115.
Replace the damaged wheel or consult a specialist garage about repair op-
tions.WARNINGInformation on the wheel bolts■The prescribed tightening torque of the wheel bolts for steel and light al-
loy wheels is 120 Nm.■
If the wheel bolts are tightened to a too low tightening torque, the rim
can come loose when the car is moving. A tightening torque which is too
high can damage the bolts and threads and this can result in permanent
deformation of the contact surfaces on the rim.
■
In case of incorrect treatment of the wheel bolts, the wheel can loosen
when the car is moving.
■
Drive cautiously and only at a moderate speed until the tightening torque
has been checked.
Loosening/tightening wheel bolts
Fig. 133
Changing a wheel: Loosening the
wheel bolts
Before removing the wheel bolts, the caps for the wheel bolts must be pulled
off.
Release
›
Push the wheel wrench onto the wheel bolt to the stop 1)
. 
1)
Use the appropriate adapter for undoing and tightening the anti-theft wheel bolts
» page 160.
158Do-it-yourself

Vehicle-specific details per engine typeThe specified values have been determined in accordance with rules and under conditions set out by legal or technical requirements for determining operational
and technical data for motor vehicles.
1.2 l/55 kW MPI engine
Output (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm 3
)55/5400112/37503/1198 Performance and WeightsMG5Top speed (km/h)175Acceleration 0 - 100 km/h (s)13.9Operating weight - minimal (kg)1135Permissible trailer load, braked (kg)Increases up to 12 %750Increases up to 8 %950Permissible trailer load, unbraked (kg)560
1.2 ltr./63 kW TSI engine
Output (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm 3
)63/4800160/1500-35004/1197 Performance and WeightsMG5Top speed (km/h)183Acceleration 0 - 100 km/h (s)11.8Operating weight - minimal (kg)1155Permissible trailer load, braked (kg)Increases up to 12 %900Increases up to 8 %1100Permissible trailer load, unbraked (kg)570 181Technical data

1.2 ltr./77 kW TSI engineOutput (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm3
)77/5000175/1550-41004/1197 Performance and WeightsMG6Top speed (km/h)195Acceleration 0 - 100 km/h (s)10.3Operating weight - minimal (kg)1175Permissible trailer load, braked (kg)Increases up to 12 %1100Increases up to 8 %1200Permissible trailer load, unbraked (kg)580
1.4 ltr./90 kW TSI engine
Output (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm 3
)90/5000200/1500-40004/1390 Performance and WeightsDSG7Top speed (km/h)206Acceleration 0 - 100 km/h (s)9.5Operating weight - minimal (kg)1230Permissible trailer load, braked (kg)Increases up to 12 %1200Increases up to 8 %1200Permissible trailer load, unbraked (kg)610 182Technical data

1.6 l/77 kW MPI engineOutput (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm3
)77/5600153/38004/1598 Performance and WeightsMG5AG6Top speed (km/h)193192Acceleration 0 - 100 km/h (s)10.611.9Operating weight - minimal (kg)11551195Permissible trailer load, braked (kg)Increases up to 12 %10001000Increases up to 8 %12001200Permissible trailer load, unbraked (kg)570590
1.6 l./66 kW TDI CR engine
Output (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm 3
)66/4200230/1500-25004/1598 Performance and WeightsMG5MG5 Green LineDSG7Top speed (km/h)184186184Acceleration 0 - 100 km/h (s)12.012.012.2Operating weight - minimal (kg)126512631285Permissible trailer load, braked (kg)Increases up to 12 %120010001200Increases up to 8 %120010001200Permissible trailer load, unbraked (kg)630630640 183Technical data

1.6 ltr./77 kW TDI CR engineOutput (kW at rpm)Maximum torque (Nm at rpm)Number of cylinders/displacement (cm3
)77/4400250/1500-25004/1598 Performance and WeightsMG5Top speed (km/h)190Acceleration 0 - 100 km/h (s)10.4Operating weight - minimal (kg)1265Permissible trailer load, braked (kg)Increases up to 12 %1200Increases up to 8 %1200Permissible trailer load, unbraked (kg)630184Technical data
