Advice
Changing bulbs. LED lamps
Carry out the same operations as in lights fit-
ted with bulbs.
If necessary, remove the socket, as if it were
a bulb.
If the brake light and/or side light with LEDs
have to be replaced, the tail light must be re-
placed.
Changing the side and interior
bulbs

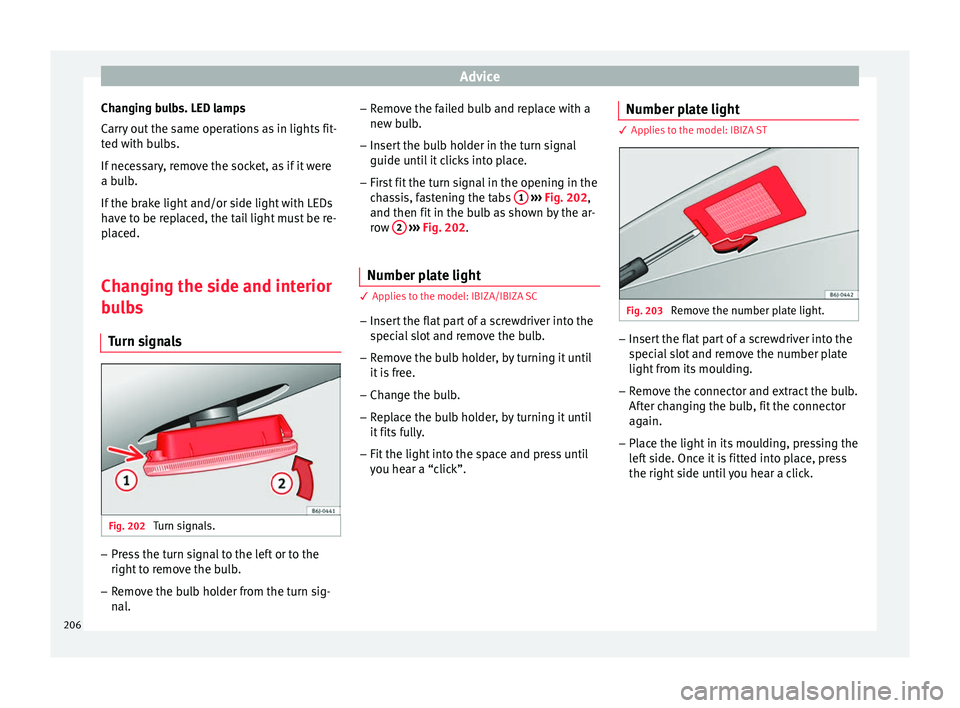

Turn signals Fig. 202
Turn signals. –
Press the turn signal to the left or to the
right to remove the bulb.
– Remove the bulb holder from the turn sig-
nal. –
Remove the failed bulb and replace with a
new bulb.
– Insert the bulb holder in the turn signal
guide until it clicks into place.
– First fit the turn signal in the opening in the
chassis, fastening the tabs 1
››› Fig. 202 ,
and then fit in the b
ulb as shown by the ar-
row 2
››› Fig. 202 .
Number p l

ate light 3 Applies to the model: IBIZA/IBIZA SC
– Insert the flat part of a screwdriver into the
special slot and remove the bulb.
– Remove the bulb holder, by turning it until
it is free.
– Change the bulb.
– Replace the bulb holder, by turning it until
it fits fully.
– Fit the light into the space and press until
you hear a “click”. Number plate light 3 Applies to the model: IBIZA ST
Fig. 203
Remove the number plate light. –
Insert the flat part of a screwdriver into the
special slot and remove the number plate
light from its moulding.
– Remove the connector and extract the bulb.
After changing the bulb, fit the connector
again.
– Place the light in its moulding, pressing the
left side. Once it is fitted into place, press
the right side until you hear a click.
206
