2014 Seat Ibiza 5D service

Table of Contents
Table of Contents
The essentials . . . . . . . . . . . . . . . . . . . . . . . . 5
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Interior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
How it works . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Unlocking and locking . . . . . . . . . . . . . . . . . . . . 9
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Starting the vehicle . . . . . . . . . . . . . . . . . . . . . . 13
Lights and visibility . . . . . . . . . . . . . . . . . . . . . . 14
Multi-function display (MFA)* . . . . . . . . . . . . . . 16
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Gear lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . 21
Level control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Action in the event of a puncture . . . . . . . . . . . 26
Emergency towing of the vehicle . . . . . . . . . . . 28
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Safety first! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Advice about driving . . . . . . . . . . . . . . . . . . . . . 29
Proper sitting position for occupants . . . . . . . . 30
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
The reasons why we should wear seat belts . . 34
How to properly adjust your seatbelt . . . . . . . . 37
Belt pretensioners* . . . . . . . . . . . . . . . . . . . . . . 39
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Brief introduction . . . . . . . . . . . . . . . . . . . . . . . . 40
Airbag overview . . . . . . . . . . . . . . . . . . . . . . . . . 42
Deactivating airbags . . . . . . . . . . . . . . . . . . . . . 45
Transporting children safety . . . . . . . . . . . . . . . 46
Safety for children . . . . . . . . . . . . . . . . . . . . . . . 46
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Operation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Digital instrument panel display . . . . . . . . . . . . 64
Communications and multimedia . . . . . . . . . . . 69
Steering column controls* . . . . . . . . . . . . . . . . . 69
Bluetooth System* . . . . . . . . . . . . . . . . . . . . . . . 72
Opening and closing . . . . . . . . . . . . . . . . . . . . . 78
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Radio frequency remote control* . . . . . . . . . . . 83
Anti-theft alarm system* . . . . . . . . . . . . . . . . . . 84
Boot hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . 87
Panoramic tilting sunroof* . . . . . . . . . . . . . . . . 89
Lights and visibility . . . . . . . . . . . . . . . . . . . . . . 90
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Windscreen wiper and rear window wiper
systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . 99
Seats and head restraints . . . . . . . . . . . . . . . . . 100
Adjusting the seat and head restraints . . . . . . 100
Seat functions . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Transport and practical equipment . . . . . . . . . 104
Practical equipment . . . . . . . . . . . . . . . . . . . . . . 104
Luggage compartment . . . . . . . . . . . . . . . . . . . . 108
Roof carrier system* . . . . . . . . . . . . . . . . . . . . . . 111
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . 113
General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Air conditioning* . . . . . . . . . . . . . . . . . . . . . . . . 118
Climatronic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 Driving
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Starting and stopping the engine . . . . . . . . . . . 123
Braking and parking . . . . . . . . . . . . . . . . . . . . . 126
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 128
Automatic gearbox* . . . . . . . . . . . . . . . . . . . . . . 129
Run-in and economical driving . . . . . . . . . . . . . 134
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Driver assistance systems . . . . . . . . . . . . . . . . . 139
Braking and stability systems . . . . . . . . . . . . . . 139
Start-Stop System* . . . . . . . . . . . . . . . . . . . . . . . 142
Rear Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Parking aid* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Cruise speed* (cruise control system - CCS) . . . 150
Towing bracket device . . . . . . . . . . . . . . . . . . . . 152
Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Fitting a towing bracket* . . . . . . . . . . . . . . . . . . 153
Advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Care and maintenance . . . . . . . . . . . . . . . . . . . . 155
Accessories and modifications to the vehicle . 155
Care and cleaning . . . . . . . . . . . . . . . . . . . . . . . 156
Care of the vehicle exterior . . . . . . . . . . . . . . . . 157
Caring for the vehicle interior . . . . . . . . . . . . . . 162
Checking and refilling levels . . . . . . . . . . . . . . . 163
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Working in the engine compartment . . . . . . . . 166
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Windscreen washer reservoir . . . . . . . . . . . . . . 174
Vehicle battery . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Wheels and tyres . . . . . . . . . . . . . . . . . . . . . . . . 176
Winter service . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
3

The essentials
Brake fluid Fig. 37
The brake fluid reservoir is located in the en-
gine compartment
›››
 page 168.
The level should be between the  and 
marks. If it is below , please visit a Techni-
cal Service.
››› in Changing the brake fluid on
page 173
››› page 173 Windscreen washer
Fig. 38
The windscreen washer reservoir is located in
the engine compartment
›››
 page 168.
To top up, mix water with a product recom-
mended by SEAT.
In cold temperatures, add anti-freeze.

››› in Topping up washer fluid on
page 174
››› page 174 Fuses
Fig. 39
Fig. 40
Opening and closing the fuse box situated
below the dash panel
●
Opening: remove the fuse box cover
››› Fig. 39 .
● Clo

sing: click the cover back into place. » 25
Technical specifications
Advice
Operation
Safety
The essentials

The essentials
To open the engine compartment fuse box
● Raise the bonnet.
● Press the locking tabs to release the fuse
box cover ››› Fig. 40
● Then lift the cover out.
● To fit
the cover, place it on the fuse box.
P
ush the locking tabs down until they click
audibly into place.

››› in Introduction on page 195
››› page 195 Battery
The battery is located in the engine compart-
ment
›››
 page 168
. It does not require
m aint

enance. It is checked as part of the In-
spection Service.

››› in Warnings on handling the battery
on page 174
››› page 174 Action in the event of a
puncture
With anti-puncture kit Fig. 41
The anti-puncture kit is located under the
floor panel in the luggage compartment.
Sealing the tyre
●
Unscrew the tyre valve cap and insert. Use
the ››› Fig. 41 1 tool to remove the insert.
Place it on a clean surface.
● Shake the tyre sealant bottle vigorously
››› Fig. 41 10 .
● Screw the inflator tube ››› Fig. 41 3 into
the sealant bottle. The bottle's seal will break
automatically. ●
Remove the lid from the filling tube
››› Fig. 41 3 and screw the open end of the
tube into the tyre valve.
● With the tyre sealant bottle upside down,
fill the tyre with the contents of the sealant
bottle.
● Remove the bottle from the valve.
● Place the insert back into the tyre valve us-
ing the tool ››› Fig. 41 1 .
Inflating the tyre
● Screw the compressor tyre inflator tube
››› Fig. 41 5 into the tyre valve.
● Check that the air bleed screw is closed
››› Fig. 41 7 .
● Start the engine and leave it running.
● Insert the connector ››› Fig. 41 9 into the
vehicle's 12-volt socket ›››
 page 107.
● Turn the air compressor on with the ON/OFF
switch ››› Fig. 41 8 .
● Keep the air compressor running until it
reaches 2.0 to 2.5 bar
(29-36 psi/200-250 kPa). A maximum of 8
minutes .
● Di s
connect the air compressor.
● If it does not reach the pressure indicated,
unscrew the tyre inflator tube from the valve.
● Move the vehicle 10m so that the sealant is
distributed throughout the tyre. 26

Safe driving
the chest and the centre of the steering
wheel
››› Fig. 46. If distance is less than 25
c m, the airb
ag system may not protect you
properly.
● If your physical constitution prevents you
from maintaining the minimum distance of 25
cm, contact a specialised workshop. The
workshop will help you decide if special spe-
cific modifications are necessary.
● When driving, always hold the steering
wheel with both hands on the outside of the
ring at the 9 o'clock and 3 o'clock positions.
This reduces the risk of injury when the driver
airbag is triggered.
● Never hold the steering wheel at the 12
o'clock position, or in any other manner (e.g.
in the centre of the steering wheel). In such
cases, if the airbag is triggered, you may sus-
tain injuries to the arms, hands and head.
● To reduce the risk of injury to the driver
during sudden braking manoeuvres or an ac-
cident, never drive with the backrest tilted far
back! The airbag system and seat belts can
only provide optimal protection when the
backrest is in an upright position and the
driver is wearing his or her seat belt correct-
ly.
● Adjust the head restraint properly to ach-
ieve optimal protection. Adjusting the steering wheel position
Read the additional information carefully
›››  page 13
The height and reach of the steering wheel
can be freely adjusted to suit the driver.
– Adjust the driver seat to the correct posi-
tion. WARNING
● Incorrect use of the steering column adjust-
ment function and an incorrect seating posi-
tion can result in serious injury.
● To avoid accidents, the steering column
should be adjusted only when the vehicle is
stationary.
● Adjust the driver seat or steering wheel so
that there is a distance of at least 25 cm be-
tween the steering wheel and your chest
››› Fig. 46. If you fail to observe the minimum
di s

tance, the airbag will not protect you. Risk
of fatal injury.
● If your physical constitution does not allow
you to maintain the minimum distance of
25 cm, contact a Technical Service. The Tech-
nical Service will help you to decide if certain
specific modifications are necessary.
● If you adjust the steering wheel so that it
points towards your face, the driver airbag
will not protect you properly in the event of
an accident. Make sure that the steering
wheel points towards your chest. ●
When driving, always hold the steering
wheel with both hands on the outside of the
ring at the 9 o'clock and 3 o'clock positions.
Never hold the steering wheel at the 12
o'clock position, or in any other manner (e.g.
in the centre of the steering wheel, or on the
inside of the rim). In such cases, if the airbag
is triggered, you may sustain injuries to your
arms, hands and head. Correct sitting position for front
passenger
For your own safety and to reduce the risk of
injury in the event of an accident, we recom-
mend the following adjustments for the front
passenger:
– Move the front passenger seat back as far
as possible ››› .
– Move the seat backrest to an upright posi-
tion so that your back rests completely
against it.
– Adjust the head restraint so that its upper
edge is at the same level as the top of your
head, or as close as possible to the same
level as the top of your head ››› page 32.
– Always keep both feet in the footwell in
front of the front passenger seat.
– Fasten your seat belt securely ››› page 34.
»
31
Technical specifications
Advice
Operation
Safety
The essentials

Seat belts
Belt pretensioners* How the seat belt tensioner works During a frontal collision, the seat belts on
the front seats are retracted automatically.
The seat belts for the occupants in the front
seats are equipped with belt tensioners. Sen-
sors will trigger the belt pretensioners during
severe head-on, lateral and rear collisions
only if the seat belt is being worn. This re-
tracts and tightens the seat belts, reducing
the forward motion of the occupants.
The seat belt tensioner can be triggered only
once.
The belt tensioners will not be triggered in
the event of light frontal and side collisions,
if the vehicle overturns, or in situations
where no large forces act on the front, side or
rear of the vehicle.
Note
● If the seat belt tensioners are triggered, a
fine dust is produced. This is normal and it is
not an indication of fire in the vehicle.
● The relevant safety requirements must be
observed when the vehicle or components of
the system are scrapped. Specialised work-
shops are familiar with these regulations,
which are also available to you. Service and disposal of belt
tensioners
The belt tensioners are components of the
seat belts that are installed in the seats of
your vehicle. If you work on the belt tension-
ers or remove and install parts of the system
when performing other repair work, the seat
belt may be damaged. The consequence may
be that, in the event of an accident, the belt
tensioners function incorrectly or may not
function at all.
So that the effectiveness of the seat belt ten-
sioner is not reduced and that removed parts
do not cause any injuries or environmental
pollution, regulations, which are known to
the specialised workshops, must be ob-
served.
WARNING
● Improper use or repairs not carried out by
qualified mechanics increase the risk of se-
vere or fatal injuries. The belt tensioners may
fail to trigger or may trigger in the wrong cir-
cumstances.
● Never attempt to repair, adjust, remove or
install parts of the belt tensioners or seat
belts.
● The seat belt tensioner, seat belt and auto-
matic retractor cannot be repaired.
● Any work on the belt tensioners and seat
belts, including the removal and refitting of
system parts in conjunction with other repair work, must be performed by a specialised
workshop only.
●
The belt tensioners will only provide pro-
tection for one accident and must be changed
if they have been activated. 39Technical specifications
Advice
Operation
Safety
The essentials

Safety
Control lamp for airbag and seat belt
tensioner The control lamp monitors all airbags and
seat belt tensioners in the vehicle, including
control units and wiring connections.
Monitoring of airbag and belt tensioner
system
Both the airbag and belt tensioner systems
operation is constantly monitored electroni-
cally. The control lamp
 will light up for a
few seconds every time the ignition is switch-
ed on (self-diagnosis).
The system must be checked when the
control lamp  :
● does not light up when the ignition is
switched on,
● turns off after 4 seconds after the ignition
is switched on
● turns off and then lights up again after the
ignition is switched on
● illuminates or flashes while the vehicle is
moving.
In the event of a malfunction, the warning
lamp remains on continuously. Have the air-
bag system inspected immediately by a spe-
cialised workshop.
If any of the airbags are disabled by a Techni-
cal Service, the warning lamp flashes for sev- eral more seconds after verification and will
turn off if there is no fault. WARNING
● If there is a malfunction, the airbag and
belt tensioner system cannot properly per-
form its protective function.
● If a malfunction occurs, have the system
checked immediately by a specialised work-
shop. Otherwise, in the event of an accident,
the airbag system and belt tensioners may
not be triggered, or may not be triggered cor-
rectly. Airbag overview
Front airbags Fig. 56
Driver airbag located in steering
wheel. 42

Transporting children safety
Follow the manufacturer's instructions and
observe any statutory requirements when in-
stalling and using child seats. Always read
and note ››› page 47 .
W e r
ecommend you always carry the manu-
facturer's Child Seat Instruction Manual to-
gether with the on-board documentation.
Important information on the front
passenger airbag Fig. 63
Passenger's side sun visor: airbag
sticker. Fig. 64
On the rear frame of the passenger
side door: airbag sticker. A sticker with important information about
the passenger airbag is located on the pas-
senger's sun visor and/or on the passenger
side door frame. Read and always observe
the safety information included in the follow-
ing chapters:
● Safety distance with respect to the passen-
ger airbag ››› page 40 .
● Ob

jects between the passenger and the
passenger side airbag ››› in Front airbags
on page 43 .
The p a

ssenger side front airbag, when ena-
bled, is a serious risk for a child that is facing
backward since the airbag can strike the seat
with such force that it can cause serious or
fatal injuries. Children up to 12 years old
should always travel on the rear seat.
Therefore we strongly recommend you to
transport children on the rear seats. This is the safest location in the vehicle. Alternative-
ly, the front passenger airbag can be disa-
bled with a key-operated switch
››› page 45.
When transporting children, use a child seat
appropriate to the age and size of each child. WARNING
● If a child seat is secured to the front pas-
senger seat, the risk to the child of sustain-
ing critical or fatal injuries in the event of an
accident increases.
● An inflating front passenger airbag can
strike the rear-facing child seat and project it
with great force against the door, the roof or
the backrest.
● Never install a child seat facing backwards
on the front passenger seat unless the front
passenger front airbag has been disabled.
Risk of potentially fatal injuries to the child!
However, if it is necessary, in exceptional ca-
ses, to transport a child in the front passen-
ger seat, the front passenger front airbag
must always be disabled ››› page 45, Front
passenger airbag deactivation*. If the front
passenger seat has a height adjustment op-
tion, move it to the highest position.
● For those vehicles that do not include a key
lock switch to deactivate the airbag, the vehi-
cle must be taken to a technical service.
● All vehicle occupants, especially children,
must assume the proper sitting position and
be properly belted in while travelling. » 47
Technical specifications
Advice
Operation
Safety
The essentials

Safety
Suitable for universal restraint systems
for use in this weight group.
Move the front passenger seat as far
back as possible, as high as possible
and always disable the airbag.
U:
*:
Seat position not suitable for children in
this age group. WARNING
● When travelling, children must be secured
in the vehicle with a restraint system suitable
for age, weight and size. X
●
Read and always observe information and
warnings concerning the use of child seats

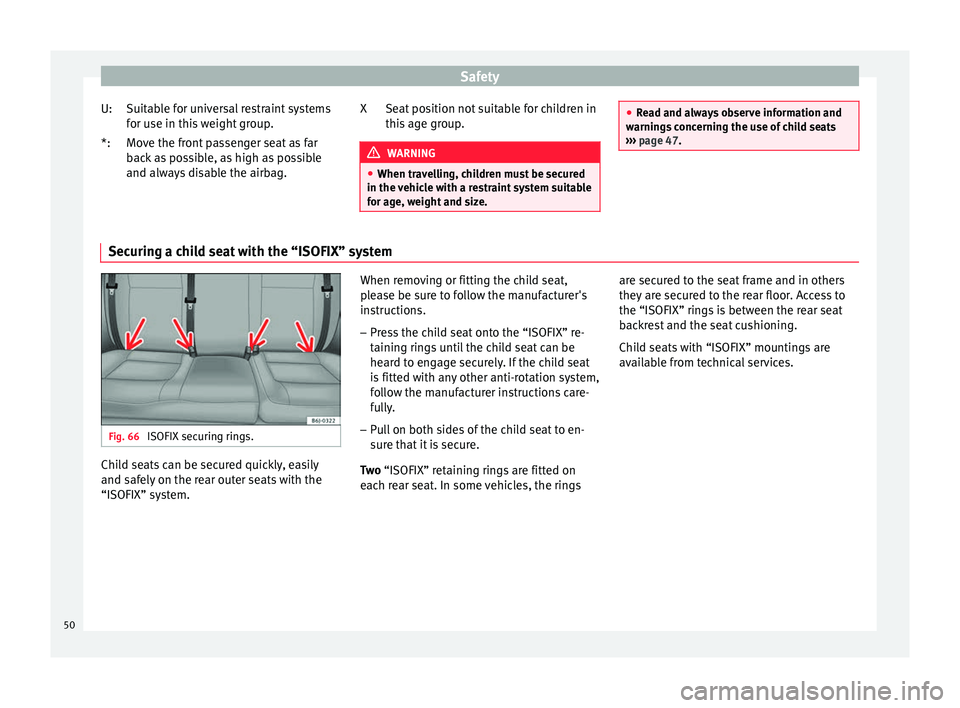

››› page 47. Securing a child seat with the “ISOFIX” system
Fig. 66
ISOFIX securing rings. Child seats can be secured quickly, easily
and safely on the rear outer seats with the
“ISOFIX” system. When removing or fitting the child seat,
please be sure to follow the manufacturer's
instructions.
– Press the child seat onto the “ISOFIX” re-
taining rings until the child seat can be
heard to engage securely. If the child seat
is fitted with any other anti-rotation system,
follow the manufacturer instructions care-
fully.
– Pull on both sides of the child seat to en-
sure that it is secure.
Two “ISOFIX” retaining rings are fitted on
e ac
h rear seat. In some vehicles, the rings are secured to the seat frame and in others
they are secured to the rear floor. Access to
the “ISOFIX” rings is between the rear seat
backrest and the seat cushioning.
Child seats with “ISOFIX” mountings are
available from technical services.
50
