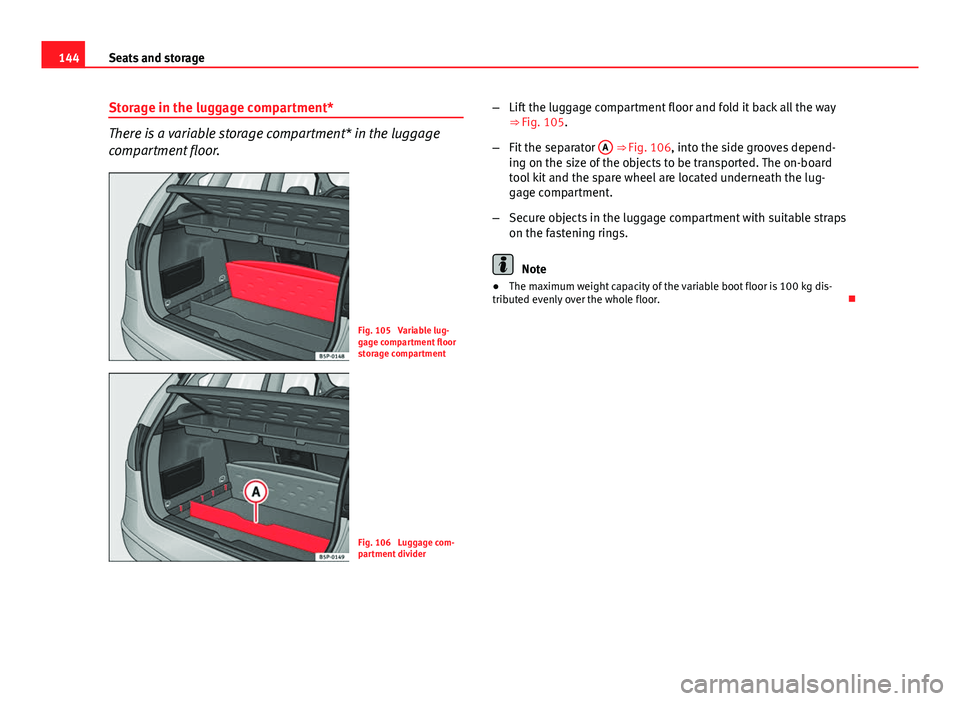

144Seats and storage
Storage in the luggage compartment*
There is a variable storage compartment* in the luggage
compartment floor.
Fig. 105 Variable lug-
gage compartment floor
storage compartment
Fig. 106 Luggage com-
partment divider –
Lift the luggage compartment floor and fold it back all the way
⇒ Fig. 105.
– Fit the separator A
⇒ Fig. 106, into the side grooves depend-
ing on the size of the objects to be transported. The on-board
tool kit and the spare wheel are located underneath the lug-
gage compartment.
– Secure objects in the luggage compartment with suitable straps
on the fastening rings.
Note
● The maximum weight capacity of the variable boot floor is 100 kg dis-
tributed evenly over the whole floor.
