2014 Ram 5500 Chassis Cab engine

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Oil Change Required” message is
displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone otherthan your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)” in “Understanding Your
Instrument Panel” for further information.
NOTE:
•
Gasoline Engines
• Under no circumstances should oil change intervals
exceed 8,000 miles (13,000 km) or twelve months,
whichever comes first.
• Severe Duty
• Change Engine Oil at 4000 miles (6,500 km) if the
vehicle is operated in a dusty and off road environ-
ment. This type of vehicle use is considered Severe
Duty
Once A Month Or Before A Long Trip:
• Check engine oil level
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S508 MAINTENANCE SCHEDULES

•Check windshield washer fluid level
• Check the tire inflation pressures and look for unusual
wear or damage
• Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering and automatic trans-
mission as needed
• Check function of all interior and exterior lights
Required Maintenance
Refer to the Maintenance Schedules on the following
pages for required maintenance.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•Change oil and filter.
At Every Oil Change Interval As Indicated By Oil
Change Indicator System:
•Rotate the tires. Rotate at the first sign of irregu-
lar wear, even if it occurs before the oil indicator
system turns on.
• Inspect battery and clean and tighten terminals as
required.
• Inspect automatic transmission fluid if equipped
with dipstick.
• Inspect brake pads, shoes, rotors, drums, hoses
and park brake.
• Inspect engine cooling system protection and
hoses.
• Inspect exhaust system.
• Inspect engine air cleaner if using in dusty or
off-road conditions.
• Lube the front drive shaft fitting.
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 509

Mileage or time passed
(whichever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Inspect the brake linings, parking
brake function. XXX X X X X
Additional Maintenance
Replace engine air filter. XX X XX
Replace spark plugs (5.7L engine).** X
Replace spark plugs (6.4L engine).** X
Flush and replace the engine cool-
ant at 10 years or 150,000 miles
(240,000 km) whichever comes first. XX
Change the automatic transmission
fluid (AS66RC Transmission Only). XX X
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 511

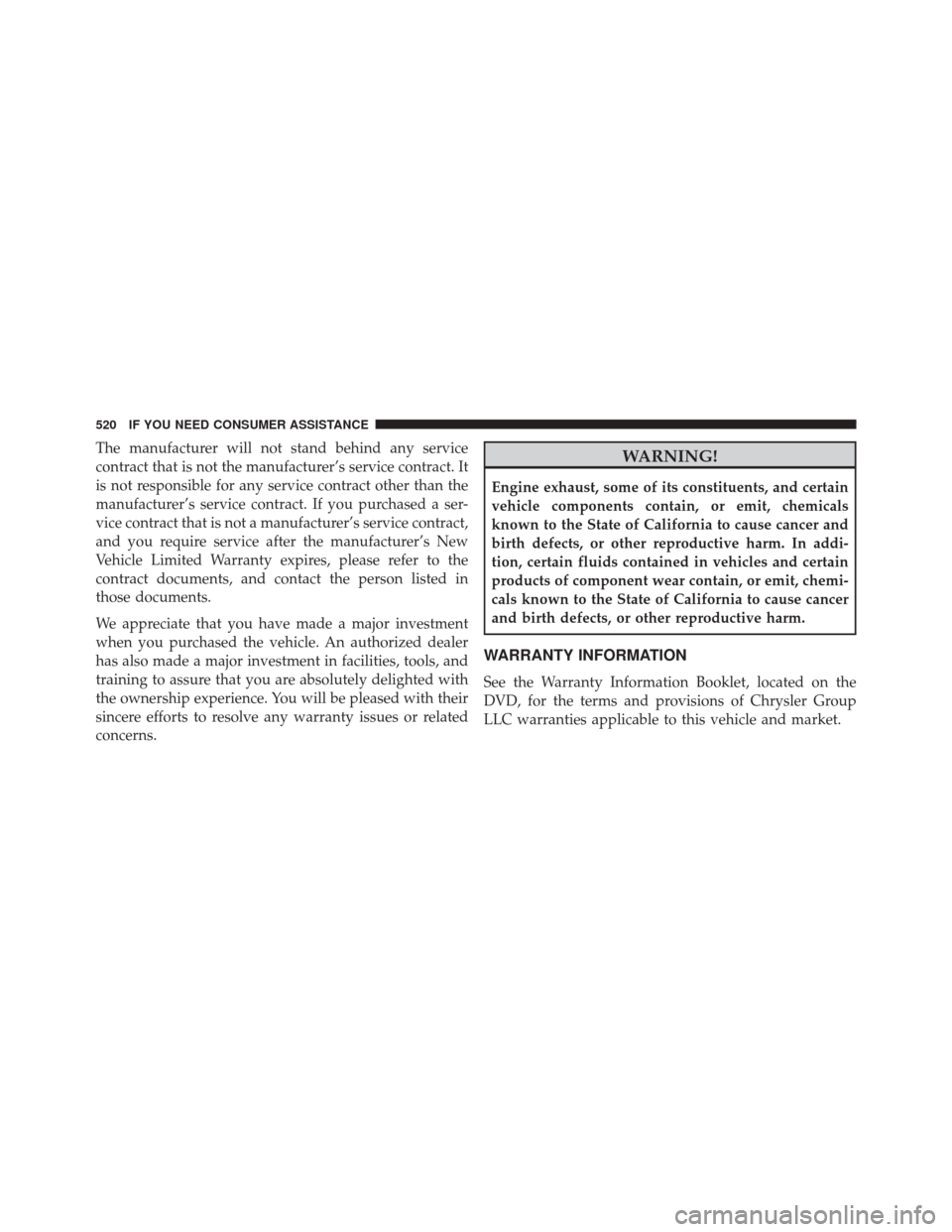

The manufacturer will not stand behind any service
contract that is not the manufacturer’s service contract. It
is not responsible for any service contract other than the
manufacturer’s service contract. If you purchased a ser-
vice contract that is not a manufacturer’s service contract,
and you require service after the manufacturer’s New
Vehicle Limited Warranty expires, please refer to the
contract documents, and contact the person listed in
those documents.
We appreciate that you have made a major investment
when you purchased the vehicle. An authorized dealer
has also made a major investment in facilities, tools, and
training to assure that you are absolutely delighted with
the ownership experience. You will be pleased with their
sincere efforts to resolve any warranty issues or related
concerns.WARNING!
Engine exhaust, some of its constituents, and certain
vehicle components contain, or emit, chemicals
known to the State of California to cause cancer and
birth defects, or other reproductive harm. In addi-
tion, certain fluids contained in vehicles and certain
products of component wear contain, or emit, chemi-
cals known to the State of California to cause cancer
and birth defects, or other reproductive harm.
WARRANTY INFORMATION
See the Warranty Information Booklet, located on the
DVD, for the terms and provisions of Chrysler Group
LLC warranties applicable to this vehicle and market.
520 IF YOU NEED CONSUMER ASSISTANCE

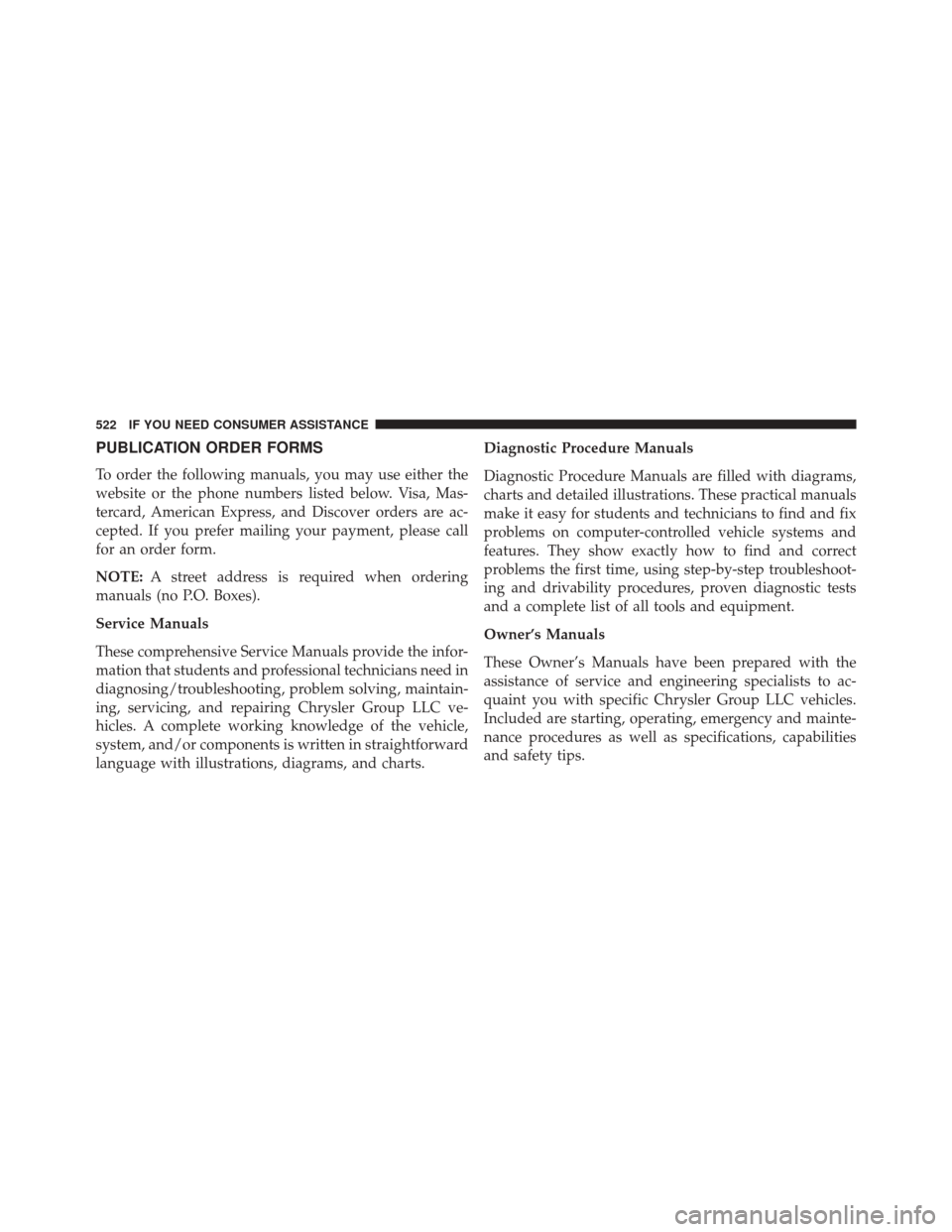

PUBLICATION ORDER FORMS
To order the following manuals, you may use either the
website or the phone numbers listed below. Visa, Mas-
tercard, American Express, and Discover orders are ac-
cepted. If you prefer mailing your payment, please call
for an order form.
NOTE:A street address is required when ordering
manuals (no P.O. Boxes).
Service Manuals
These comprehensive Service Manuals provide the infor-
mation that students and professional technicians need in
diagnosing/troubleshooting, problem solving, maintain-
ing, servicing, and repairing Chrysler Group LLC ve-
hicles. A complete working knowledge of the vehicle,
system, and/or components is written in straightforward
language with illustrations, diagrams, and charts. Diagnostic Procedure Manuals
Diagnostic Procedure Manuals are filled with diagrams,
charts and detailed illustrations. These practical manuals
make it easy for students and technicians to find and fix
problems on computer-controlled vehicle systems and
features. They show exactly how to find and correct
problems the first time, using step-by-step troubleshoot-
ing and drivability procedures, proven diagnostic tests
and a complete list of all tools and equipment.
Owner’s Manuals
These Owner’s Manuals have been prepared with the
assistance of service and engineering specialists to ac-
quaint you with specific Chrysler Group LLC vehicles.
Included are starting, operating, emergency and mainte-
nance procedures as well as specifications, capabilities
and safety tips.
522 IF YOU NEED CONSUMER ASSISTANCE

Adding Engine Coolant (Antifreeze)............463
Adding Fuel ............................ .385
Additives, Fuel .......................... .383
Adjustable Pedals ........................ .166
Airbag ..................................64
Airbag Deployment ........................70
Airbag Light .............................68
Airbag Maintenance ........................71
Airbag, Side ..............................67
Airbag, Window (Side Curtain) ................67
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . .454
Air Conditioner Maintenance .................456
Air Conditioning ......................... .269
Air Conditioning Controls ...................269
Air Conditioning, Operating Tips ..............288
Air Conditioning Refrigerant .................456
Air Conditioning System ....................269
Air Pressure, Tires ........................ .357
Alarm Light ............................ .205Alarm, Panic
.............................27
Alarm (Security Alarm) ......................21
Alarm System (Security Alarm) ................21
Alterations/Modifications, Vehicle ...............7
Antifreeze (Engine Coolant) ..................462
Capacities ........................... .503
Disposal ............................. .466
Anti-Lock Brake System (ABS) ................333
Anti-Lock Warning Light ....................200
Appearance Care ........................ .477
Ashtray ............................... .180
Auto Down Power Windows ..................45
Automatic Door Locks ......................37
Automatic Headlights ..................... .151
Automatic High Beams .....................153
Automatic Transmission ....................474
Adding Fluid ......................... .476
Fluid and Filter Changes ..................477
Fluid Level Check ...................... .475
526 INDEX

Fluid Type........................... .474
Shifting ............................. .300
Special Additives ...................... .474
Axle Fluid ............................. .471
Axle Lubrication (Axle Fluid) .................471
Battery ................................ .455
Keyless Transmitter Replacement (RKE) ........28
Belts, Seat ...............................50
Body Builders Guide ........................6
Body Mechanism Lubrication .................457
B-Pillar Location ......................... .351
Brake Control System, Electronic ..............333
Brake Fluid ............................ .469
Brake System ........................... .330
Anti-Lock (ABS) ....................... .331
Fluid Check .......................... .469
Master Cylinder ....................... .469
Parking ............................. .328Warning Light
........................ .202
Brake/Transmission Interlock .................300
Bulb Replacement ........................ .496
Bulbs, Light .............................114
Cab Top Clearance Lights ...................501
Capacities, Antifreeze (Engine Coolant) ..........503
Capacities, Fluid ......................... .503
Caps, Filler Oil (Engine) .......................... .453
Power Steering ........................ .327
Radiator (Coolant Pressure) ................465
Carbon Monoxide Warning ..................110
Cargo Light ............................ .159
Car Washes ............................ .478
Cellular Phone .......................... .268
Center High Mounted Stop Light ..............499
Center Lap Belts ...........................59
Center Seat Storage Compartment .............187
10
INDEX 527

Certification Label........................ .387
Chart, Tire Sizing ........................ .345
Check Engine Light (Malfunction Indicator Light) . .200
Checking Your Vehicle For Safety ..............110
Checks, Safety ............................110
Child Restraint ............................74
Child Restraints Child Seat Installation .....................98
Lower Anchors And Tethers For Children .......82
Cigar Lighter ........................... .180
Clean Air Gasoline ....................... .381
Cleaning Wheels .............................. .480
Climate Control ......................... .268
Cold Weather Operation ....................295
Compact Disc (CD) Maintenance ..............267
Compact Spare Tire ....................... .362
Console, Overhead ....................... .174
Contract, Service ......................... .519Coolant Pressure Cap (Radiator Cap)
...........465
Cooling System .......................... .461
Adding Coolant (Antifreeze) ...............463
Coolant Capacity ...................... .503
Coolant Level ......................... .461
Disposal of Used Coolant .................466
Drain, Flush, and Refill ...................462
Inspection ........................... .466
Points to Remember .....................468
Pressure Cap ......................... .465
Radiator Cap ......................... .465
Selection of Coolant (Antifreeze) .............462
Corrosion Protection ...................... .477
Cupholders ............................ .182
Customer Assistance ...................... .517
Data Recorder, Event .......................73
Daytime Running Lights ....................152
Dealer Service ........................... .449
528 INDEX
