Access
For all work on the alarm system,
contact a PEUGEOT dealer or a
qualified workshop.






Alarm *
System which protects and provides a deterrent against theft and break-ins. It provides the following types of monitoring:




- perimeter

The system checks for any opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot, the bonnet....


- volumetric

The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.




- tilt

The system checks for any change in the
attitude of the vehicle.
The alarm is triggered if the vehicle is lifted,
moved or knocked.




Self-protection function

The system checks for the putting out of
ser vice of its components.
The alarm is triggered if the battery, the central
control or the siren wiring are put out of service
or damaged.


Locking the vehicle with full
alarm system

Activation



)
Switch off the ignition (OFF mode if your
vehicle has the Keyless Entry and Starting
system).

)
Remove the key from the ignition switch,
if your vehicle does not have the "Keyless
Entry and Starting" system.

)
Leave the vehicle, and close all the doors
and the bonnet.

)
Press the locking button on the remote
control or one of the door or boot buttons
if your vehicle has the "Keyless Entry and
Starting" system.


Deactivation

Do one of the the following to deactivate the
alarm:


)
Press the unlocking button on the remote
control or one of the door or boot buttons
if your vehicle has the "Keyless Entry and
Starting" system.

)
Switch on the ignition (ON mode if your
vehicle has the "Keyless Entry and
Starting" system).

)
Open a door or the boot while the system is
being activated.
The alarm system is deactivated: the indicator
lamp A
goes off.
The alarm is being activated: the indicator
lamp A
flashes rapidly accompanied by
an intermittent audible signal for about
20 seconds.
Once the 20 seconds have expired, the
system is active
. The audible signal stops and
the indicator lamp in the button flashes slowly.

*
According to equipment.

77
2
Access

Triggering of the alarm


This is indicated by sounding of the siren
and flashing of the direction indicators for
thirty seconds.
A message then appears in the instrument
panel screen while the siren is operating.
When the ignition is next switched on (ON
mode if your vehicle has the "Keyless Entry
and Starting" system), an audible signal sounds
four times to inform you that the alarm was
triggered during your absence.



Complete deactivation of
the alarm



)
Switch off the ignition (OFF mode if
your vehicle has the "Keyless Entry and
Starting" system).

)
Remove the key from the ignition switch,
if your vehicle does not have the "Keyless
Entry and Starting" system.

)
Open the driver's door.

)
Place the lighting control stalk in the " OFF
"
position.

)
Pull the wiper control stalk towards you and
hold.
After about ten seconds there is an audible
signal.

)
When the audible signal stops, continue to
hold the wiper stalk pulled towards you and
press the remote control locking button. You can completely deactivate the alarm
system. To do this, proceed as follows:

)
The state of the system is then signalled to
you by the number of beeps:
One beep: the alarm system is completely
deactivated.
Two beeps: the alarm system is activated.
Each new press of the remote control
locking button changes the state of the
system.

88
Comfort

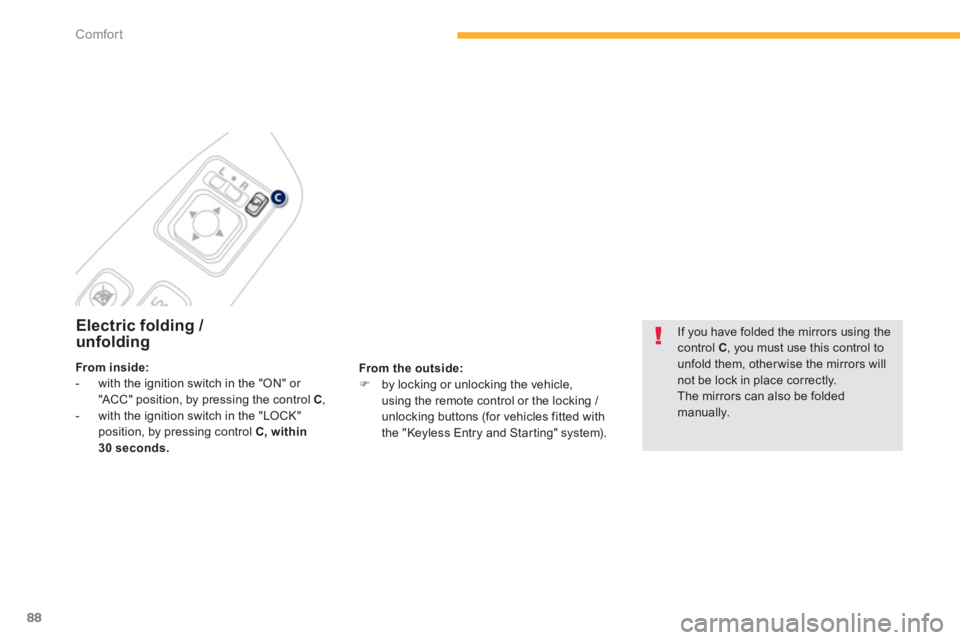

Electric folding /
unfolding

From the outside:



)
by locking or unlocking the vehicle,
using the remote control or the locking /
unlocking buttons (for vehicles fitted with
the "Keyless Entry and Starting" system).

If you have folded the mirrors using the
control C
, you must use this control to
unfold them, other wise the mirrors will
not be lock in place correctly.
The mirrors can also be folded
manually.

From inside:



- with the ignition switch in the "ON" or
"ACC" position, by pressing the control C
,

- with the ignition switch in the "LOCK"
position, by pressing control C, within
30 seconds.

138
Visibility





Exterior welcome lighting
Remote switching on of the lighting makes your approach to the vehicle easier in poor light.
It comes on when the vehicle is unlocked remotely.


Switching on




)
Place the lighting control in
position "OFF" or "AUTO".

)
Press the open padlock on the
remote control or the electronic
key.
The sidelamps come on for about
30 seconds. For vehicles fitted
with automatic illumination of
headlamps, the welcome lighting
only comes on under conditions
of low ambient light.




Switching off


The welcome lighting goes off immediately if:


- you press the open padlock on the remote
control,

- you place the lighting control in another
position,

- you switch on the ignition (or select "ON"
mode for vehicles fitted with the "Keyless
Entry and Starting" system).

202
Practical information

The batteries contain harmful substances
such as sulphuric acid and lead. They must
be disposed of in accordance with regulations
and must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.


Do not reverse the polarity and use only a 12 V charger.
Do not disconnect the terminals while the engine is running.
Do not charge the batteries without disconnecting the terminals first.
Do not push the vehicle to start the engine if it is fitted with a CVT gearbox.

It is advisable to disconnect the battery
if the vehicle is to be left unused for
more than one month.


Before disconnecting the
battery
Wait 2 minutes after switching off the
ignition before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.


Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation of the
electronic systems. However, if problems
remain following this operation, contact a
PEUGEOT dealer or a qualified workshop.


)
Disconnect the battery from the vehicle, if
necessary.

)
Follow the instructions for use provided by
the manufacturer of the charger.

)
Reconnect starting with the negative
terminal (-).

)
Check that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.


Charging the battery using
a battery charger

Some functions are not available if the battery is not sufficiently charged.

.
