2014 Peugeot 308 steering

136
Driving
308_EN_CHAP04_CONDUITE_ED02-2013
Steering mounted controls
The information is grouped together in the instrument panel. 6. Cruise control pause / resume indication. 7. Cruise control mode selection indication. 8. Speed value setting.
Cruise control
System which automatically maintains the speed of the vehicle at the value programmed by the driver, without any action on the accelerator pedal.
The cruise control system cannot, in any circumstances, replace the need to observe speed limits, nor can it replace the need for vigilance and responsibility on the part of the driver. You are advised to keep your feet near the pedals
at all times.
The cruise control is switched on manually: it requires a minimum vehicle speed of 25 mph (40 km/h).
The controls of this system are grouped together at the steering wheel. 1. Cruise control mode selection wheel. 2. Decrease value or speed setting on the fly button. 3. Increase value or speed setting on the fly
button. 4. Cruise control pause / resume button. 5. Memorised speeds display button.
Displays in the instrument panel
Switching off the ignition cancels any programmed speed value.
The cruise control is paused manually or by pressing the brake or clutch pedal or on triggering of the ESC system for safety reasons. It is possible to exceed the programmed speed temporarily by pressing the accelerator pedal. To return to the programmed speed, simply release the accelerator pedal until the programmed cruise speed is reached again.
As well as the engagement of at least third or fourth gear (depending on engine) on a manual gearbox.
For more information on the list of
memorised speeds, refer to the "Memorising speeds" section.
As well as the engagement of at least second
gear (depending on engine) on an automatic gearbox.

141
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013
The controls for this system are grouped together on the steering wheel. 1. Cruise control mode selection wheel. 2. Button for reducing the cruise value setting or for setting the cruise value on the fly. 3. Button for increasing the cruise value setting or for setting the cruise value on the fly.
4.Button for pausing / resuming the cruise control. 5. Button for displaying the list of memorised speeds and for adjusting the inter-vehicle time.
Steering mounted controls
 Turn the wheel 1 to the " CRUISE " position: cruise control mode is selected, but not started (Pause).  Press one of the buttons 2 or 3 : the current speed of your vehicle becomes the cruise speed setting (set on the fly). The cruise control is activated (ON). The inter-vehicle time is set at 2 seconds.
Switching on
The information is grouped together in the instrument panel. 6. Indication of cruise control pause/resume. 7. Indication of selection of cruise control mode, or vehicle speed adjustment phase. 8. Cruise speed setting.
Displays in the instrument panel
For more information on the list of memorised speeds, refer to the "Memorising speeds" section.

162
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

Park Assist
This system provides active assistance with parking, detecting a parking space then controlling the steering to park in the space. It controls the steering while the driver manages the accelerator, brakes, gears and clutch (manual gearbox). During phases of entry into and exit from a parking space, the system provides visual and audible information
to the driver in order to make the manoeuvres safe. It may be necessary to move for wards and backwards more than once.
During a manoeuvre the steering wheel turns quickly: do not hold the steering wheel, do not place your hand between the spokes of the steering wheel and take care with loose and bulky clothing, scarves, handbags... There is a risk of injury.
When Park Assist is activated, it prevents a change to STOP mode of Stop & Start. In STOP mode, activation of Park Assist restarts the engine.
The Park Assist system cannot in any circumstances replace the care and responsibility of the driver. The driver must remain in control of their vehicle ensuring that the space remains clear throughout the manoeuvre. In some circumstances, the sensors may not detect small obstacles located in their blind spots.
The driver can take control at any time by gripping the steering wheel.
The Park Assist system provides assistance for the following manoeuvres:
- entry into a parallel parking space
- exiting from a parallel parking space
- bay parking
The Park Assist system takes control of the power steering for a maximum of 4 manoeuvre cycles. The function is deactivated after these 4 cycles. If you think that your vehicle is not positioned correctly, you should then take control of the steering to carry out the manoeuvre. The Park Assist system cannot work with the engine off.

163
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013
The sequence of manoeuvres and the driving instructions are displayed in the instrument panel.
You should always check the surroundings of your vehicle before starting a manoeuvre.
The assistance is deactivated: the display of this symbol indicates that the steering manoeuvres are no longer controlled by the system: you must take control of the steering.
The assistance is activated: the display of this symbol and a speed limit indicate that the steering manoeuvres are controlled by the system: do not touch the steering wheel.
The park sensors function is not available during parking space measurement. It intervenes later when manoeuvring to warn you that your vehicle is approaching an obstacle: the audible signal becomes continuous when the obstacle is less than thirty centimetres away. If you have deactivated the parking sensors, they are automatically reactivated during assisted parking manoeuvres.
Activation of Park Assist inhibits the blind spot monitoring function.

165
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013
 Move for wards slowly until a message is displayed, accompanied by an audible signal, asking you to engage reverse gear.
 Select reverse, release the steering wheel and start moving without exceeding 5 mph (8 km/h).
 The assisted parking manoeuvre is in progress. Without exceeding 5 mph (8 km/h), move for wards and backwards, aided by the warnings from the "Parking sensors" system, until the indication of the end of the manoeuvre.
 At the end of the manoeuvre, the operating indicator lamp goes out in the instrument panel, accompanied by a message and an audible signal. The assistance is deactivated: you can take over control.

166
Driving
308_EN_CHAP04_CONDUITE_ED02-2013
Assistance in exiting from a parallel parking space
 With the vehicle stationary, press this control.
 Press on " Exit parking slot " in the touch screen.
 Operate the direction indicator for the exit side chosen.  Engage reverse or for ward gear and release the steering wheel.
 The assisted parking manoeuvre is in progress. Without exceeding 3 mph (5 km/h), move for wards and backwards, aided by the warnings from the "Parking sensors" system, until the indication of the end of the manoeuvre.
The manoeuvre is complete when the vehicle's front wheels are clear of the parking space. At the end of the manoeuvre, the indicator lamp in the instrument panel goes off, accompanied by a message and an audible signal. The assistance is deactivated: you can take over control.
 When you want to leave a parallel parking space, start the engine.
or
 Select " Park Assist " in the " Driving assistance " menu of the touch screen to activate the function.

167
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013
 Once you have identified a parking zone, press this control at the steering wheel,

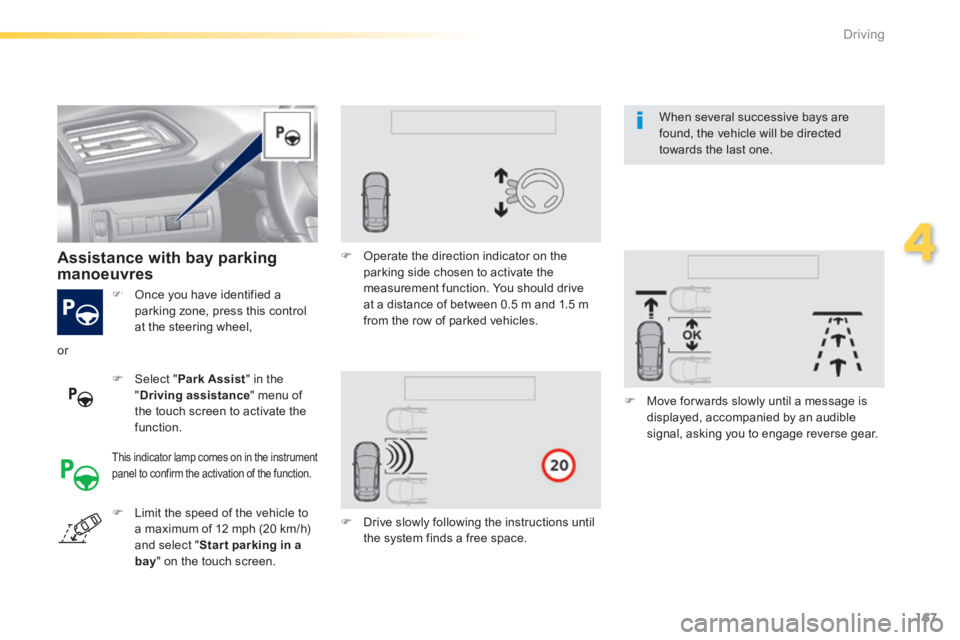

Assistance with bay parking manoeuvres
 Select " Park Assist " in the " Driving assistance " menu of the touch screen to activate the function.
This indicator lamp comes on in the instrument panel to confirm the activation of the function.
 Operate the direction indicator on the parking side chosen to activate the measurement function. You should drive at a distance of between 0.5 m and 1.5 m from the row of parked vehicles.
 Drive slowly following the instructions until
the system finds a free space.
 Move for wards slowly until a message is displayed, accompanied by an audible
signal, asking you to engage reverse gear.
or
 Limit the speed of the vehicle to a maximum of 12 mph (20 km/h)
and select " Star t parking in a bay " on the touch screen.
When several successive bays are found, the vehicle will be directed towards the last one.

168
Driving
308_EN_CHAP04_CONDUITE_ED02-2013
During a bay parking manoeuvre, the Park Assist system is automatically deactivated once the rear of the vehicle is within 50 cm of an obstacle.
 Select reverse, release the steering wheel and start moving without exceeding 5 mph (8 km/h).
 The assisted parking manoeuvre is in progress. Without exceeding 5 mph (8 km/h), follow the instructions displayed in the instrument
panel, aided by the warnings from the "Parking sensors" system, until the indication of the end of the manoeuvre.
At the end of the manoeuvre, the operating indicator lamp goes out in the instrument panel, accompanied by a message and an audible signal. The assistance is deactivated: you can take over control.
During parking and exit from parking manoeuvres, the reversing camera function may come into operation. It facilitates monitoring of the surroundings of the vehicle, by displaying additional information in the instrument panel (see the corresponding section).
