2014 Peugeot 308 gearbox

136
Driving
308_EN_CHAP04_CONDUITE_ED02-2013
Steering mounted controls
The information is grouped together in the instrument panel. 6. Cruise control pause / resume indication. 7. Cruise control mode selection indication. 8. Speed value setting.
Cruise control
System which automatically maintains the speed of the vehicle at the value programmed by the driver, without any action on the accelerator pedal.
The cruise control system cannot, in any circumstances, replace the need to observe speed limits, nor can it replace the need for vigilance and responsibility on the part of the driver. You are advised to keep your feet near the pedals
at all times.
The cruise control is switched on manually: it requires a minimum vehicle speed of 25 mph (40 km/h).
The controls of this system are grouped together at the steering wheel. 1. Cruise control mode selection wheel. 2. Decrease value or speed setting on the fly button. 3. Increase value or speed setting on the fly
button. 4. Cruise control pause / resume button. 5. Memorised speeds display button.
Displays in the instrument panel
Switching off the ignition cancels any programmed speed value.
The cruise control is paused manually or by pressing the brake or clutch pedal or on triggering of the ESC system for safety reasons. It is possible to exceed the programmed speed temporarily by pressing the accelerator pedal. To return to the programmed speed, simply release the accelerator pedal until the programmed cruise speed is reached again.
As well as the engagement of at least third or fourth gear (depending on engine) on a manual gearbox.
For more information on the list of
memorised speeds, refer to the "Memorising speeds" section.
As well as the engagement of at least second
gear (depending on engine) on an automatic gearbox.

140
Driving
308_EN_CHAP04_CONDUITE_ED02-2013
The active cruise control is switched on manually, it requires that the speed of the vehicle be between 25 mph (40 km/h) and 90 mph (150 km/h).
General points
The active cruise control can be pausedmanually with the control, or automatically: - by pressing the brake or clutch pedal, - in the event of operation of the ESP, for safety reasons, - in the event of an action of the electric parking brake control, - when an inter-vehicle time threshold is reached (calculated according to the relative speeds of your vehicle and the vehicle in front and the inter-vehicle time setting chosen), - when the distance between your vehicle and the one in front becomes to small, - when the speed of the vehicle in front is to low, - when the speed of your vehicle becomes too low.
The active cruise control cannot in any circumstances replace the observation of speed limits, nor the the vigilance and responsibility of the driver. It is recommended that you always keep your feet close to the pedals.
Switching off the ignition cancels any programmed value, and the inter-vehicle time is reset to 2 seconds.
As well as the engagement of at least third or fourth gear (depending on engine) on a manual gearbox.
As well as the engagement of at least second gear (depending on engine) on an automatic gearbox.
If the cruise speed setting is above 90 mph (150 km/h), the active cruise control switches to normal cruise control mode (without automatic adjustment of the safety inter-vehicle distance).

162
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

Park Assist
This system provides active assistance with parking, detecting a parking space then controlling the steering to park in the space. It controls the steering while the driver manages the accelerator, brakes, gears and clutch (manual gearbox). During phases of entry into and exit from a parking space, the system provides visual and audible information
to the driver in order to make the manoeuvres safe. It may be necessary to move for wards and backwards more than once.
During a manoeuvre the steering wheel turns quickly: do not hold the steering wheel, do not place your hand between the spokes of the steering wheel and take care with loose and bulky clothing, scarves, handbags... There is a risk of injury.
When Park Assist is activated, it prevents a change to STOP mode of Stop & Start. In STOP mode, activation of Park Assist restarts the engine.
The Park Assist system cannot in any circumstances replace the care and responsibility of the driver. The driver must remain in control of their vehicle ensuring that the space remains clear throughout the manoeuvre. In some circumstances, the sensors may not detect small obstacles located in their blind spots.
The driver can take control at any time by gripping the steering wheel.
The Park Assist system provides assistance for the following manoeuvres:
- entry into a parallel parking space
- exiting from a parallel parking space
- bay parking
The Park Assist system takes control of the power steering for a maximum of 4 manoeuvre cycles. The function is deactivated after these 4 cycles. If you think that your vehicle is not positioned correctly, you should then take control of the steering to carry out the manoeuvre. The Park Assist system cannot work with the engine off.

251
7
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013

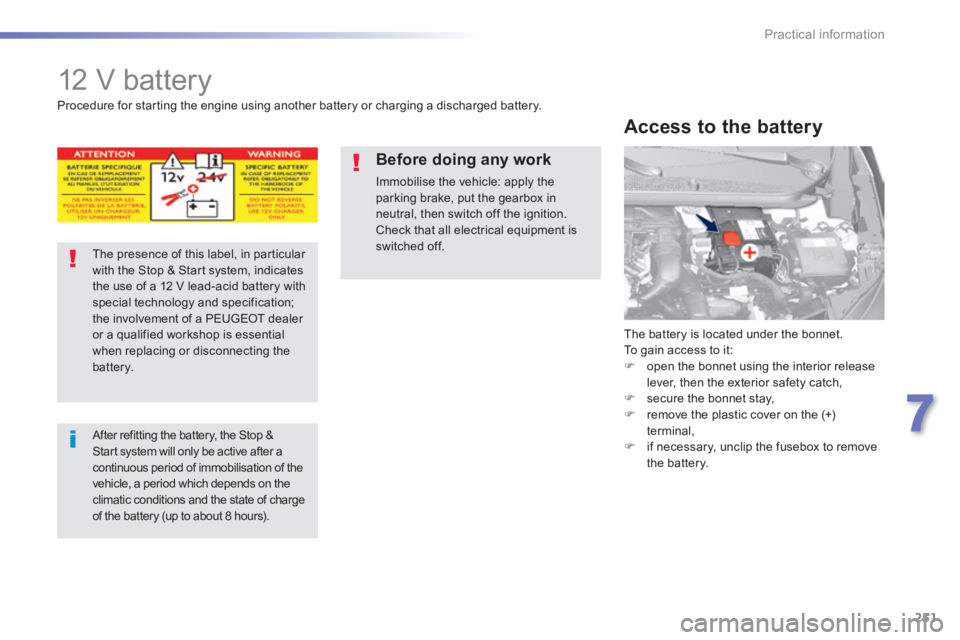

12 V battery
The battery is located under the bonnet. To gain access to it:  open the bonnet using the interior release lever, then the exterior safety catch,  secure the bonnet stay,  remove the plastic cover on the (+) terminal,  if necessary, unclip the fusebox to remove the battery.
Access to the battery
Procedure for starting the engine using another battery or charging a discharged battery.
The presence of this label, in particular with the Stop & Start system, indicates the use of a 12 V lead-acid battery with special technology and specification; the involvement of a PEUGEOT dealer or a qualified workshop is essential when replacing or disconnecting the battery.
After refitting the battery, the Stop & Start system will only be active after a continuous period of immobilisation of the vehicle, a period which depends on the climatic conditions and the state of charge of the battery (up to about 8 hours).
Before doing any work
Immobilise the vehicle: apply the parking brake, put the gearbox in neutral, then switch off the ignition.
Check that all electrical equipment is switched off.

258
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013
General recommendations
Observe the legislation in force in your country. Ensure that the weight of the towing vehicle is higher than that of the towed vehicle. The driver must remain at the wheel of the towed vehicle and must have a valid driving licence. When towing a vehicle with all four wheels on the ground, always use an approved towing bar; rope and straps are prohibited. The towing vehicle must move off gently. When towing a vehicle with the engine off, there is no longer any power assistance for braking or steering. In the following cases, you must always call on a professional recovery service: - vehicle broken down on a motor way or fast road, - four-wheel drive vehicle, - when it is not possible to put the gearbox into neutral, unlock the steering, or release the parking brake, - towing with only two wheels on the ground, - where there is no approved towing bar available...
 On the rear bumper, press the cover (as shown above) to unclip it.  Screw the towing eye in fully.  Install the towing bar.  Switch on the hazard warning lamps on the towed vehicle.  Move off gently and drive slowly over a short distance only.
From the rear

284
Checks
308_EN_CHAP08_VERIFICATIONS_ED02-2013
Manual gearbox
The gearbox does not require any maintenance (no oil change). Refer to the warranty and maintenance record for the details of the level checking interval for this component.
Brake wear depends on the style of driving, particularly in the case of vehicles used in town, over short distances. It may be necessary to
Brake pads
For information on checking brake disc wear, contact a PEUGEOT dealer or a qualified workshop.
Brake disc wear
Electric parking brake
This system does not require any routine servicing. However, in the event of a problem, have the system checked by a PEUGEOT dealer or a qualified workshop.
Only use products recommended by PEUGEOT or products of equivalent quality and specification. In order to optimise the operation of units as important as those in the
braking system, PEUGEOT selects and offers very specific products. After washing the vehicle, dampness, or in wintry conditions, ice can form on the brake discs and pads: braking efficiency may be reduced. Make light brake applications to dry and defrost the brakes.
Parking brake
If excessive travel or a loss of effectiveness of this system is noticed, the parking brake must be checked, even between two services.
Checking this system must be done by a PEUGEOT dealer or a qualified workshop.
have the condition of the brakes checked, even between vehicle services. Unless there is a leak in the circuit, a drop in the brake fluid level indicates that the brake pads are worn.
For more information, refer to the "Electric parking brake - Operating faults" section. Automatic gearbox
The gearbox does not require any maintenance (no oil change). Refer to the warranty and maintenance record for details of the level checking interval for this component.

388
Alphabetical index
308_EN_CHAP11_INDEX ALPHA _ED02-2013
Filling with fuel ...........................................7 2 -74Fitting a wheel ...............................................232Fitting roof bars .....................................262, 263Fittings, boot .............................................90, 91Flashing indicators ........187, 235, 238, 240, 242Foglamps ......................................................175Foglamps, front ....................................235, 239Foglamps, rear ......................Foglamps, rear ......................Foglamps, rear240, 241, 243, 244Folding the rear seats .....................................82Frequency (radio) .................................305, 369Front seats ................................................76 -78Fuel............................................................10 , 74Fuel consumption ............................................10Fuel filler cap ...................................................72Fuel filler flap ...................................................72Fuel gauge ..........................................12, 22, 72Fuel tank..............................................12, 22, 72Fuses .....................................................245 -250
Gearbox, automatic ...automatic ...automatic10, 12, 15, 121, 124, 129, 130, 284Gearbox, manual ..............10, 12, 15, 121, 122, 129, 284Gear lever, automatic gearbox .....................124Gear lever, manual gearbox .........................12 2Gear shift indicator .......................................Gear shift indicator .......................................Gear shift indicator123Glove box, cooled ...........................................84Guidance .......................................................320Guide-me-home ....................................17 7, 178Jack ...............................................................227Jack cable .....................................................314
Identification plates .......................................287Ignition on......................................104, 108, 110Indicator lamps, status ..............................13 -25Indicators, direction ......................................187Inflating accessories (using the kit) ..............226Inflating tyres ..........................................10, 287Inputs for audio system .....................84, 87, 310, 314, 374, 376Instrument panel .............................................12Instrument panel screen ...................12, 2 2, 123Intelligent Traction Control ............................19 4Interior fittings .................................................84Interior mood lighting ....................................18 6ISOFIX ..........................................................213ISOFIX mountings.................................213, 214
Halogen headlamps ..............................235, 237Hands-free kit .......................................352, 377Hazard warning lamps ............................94, 187Headlamp adjustment ...................................180Headlamp wash ............................................182Headlamp wash reservoir .............................Headlamp wash reservoir .............................Headlamp wash reservoir282Head restraints, front ......................................79Head restraints, rear .................................Head restraints, rear .................................Head restraints, rear82, 83Heated seats ...................................................79Heating ..............................................97, 99, 101Height and reach adjustment, steering wheel ..............................................75High load retaining net ..................................396Hill start assist ...............................................121
F
G
J
I
H
Eco-driving .....................................................10Economy mode .............................................255Electric window controls .................................69Electronic engine immobiliser...........50, 63, 112Electronic stability control (ESC) ..................193Emergency boot release .................................60Emergency call ............................188, 289, 290Emergency starting .......................................253Emergency warning lamps .....................94, 187Energy economy mode .................................255Engine compartment ...........................268, 269Engine compartment fusebox .......................249Engine, Diesel .................................74, 269, 270Engine oil level ........................................29, 280Engine, petrol ..................................74, 268, 285
Defrosting ..............................................10 6, 107Demisting ..............................................10 6, 107Denon (audio system) ...................................291Diesel ..............................................................74Diesel additive level ......................................282Diesel engine pre-heat warning lamp ............15Digital Audio Broadcasting (DA B) .................................308, 309, 372, 373Dimensions ...................................................286Dipped beam .................................173, 235, 237Dipstick ....................................................29, 280Direction indicators .......187, 235, 238, 240, 242Distance alert ................................................147Doors backup control ......................................61Driving economically ......................................10Driving positions (storing) ...............................78Dynamic emergency braking ........................118Dynamic (sport) .............................................128Dynamic stability control (DSC) ........17, 21, 195
E
Environment .................10, 52, 62, 96, 254, 282ESC/ASR .......................................................193
