243
7
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013

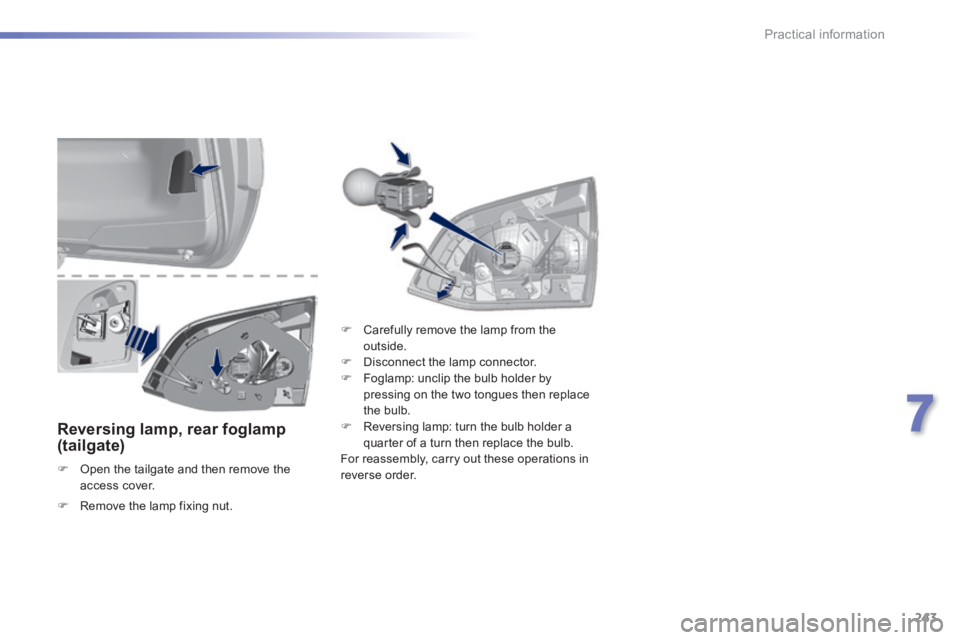

Reversing lamp, rear foglamp (tailgate)
Open the tailgate and then remove the access cover.
Carefully remove the lamp from the outside. Disconnect the lamp connector. Foglamp: unclip the bulb holder by pressing on the two tongues then replace the bulb. Reversing lamp: turn the bulb holder a quarter of a turn then replace the bulb. For reassembly, carry out these operations in reverse order.
Remove the lamp fixing nut.
263
7
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013

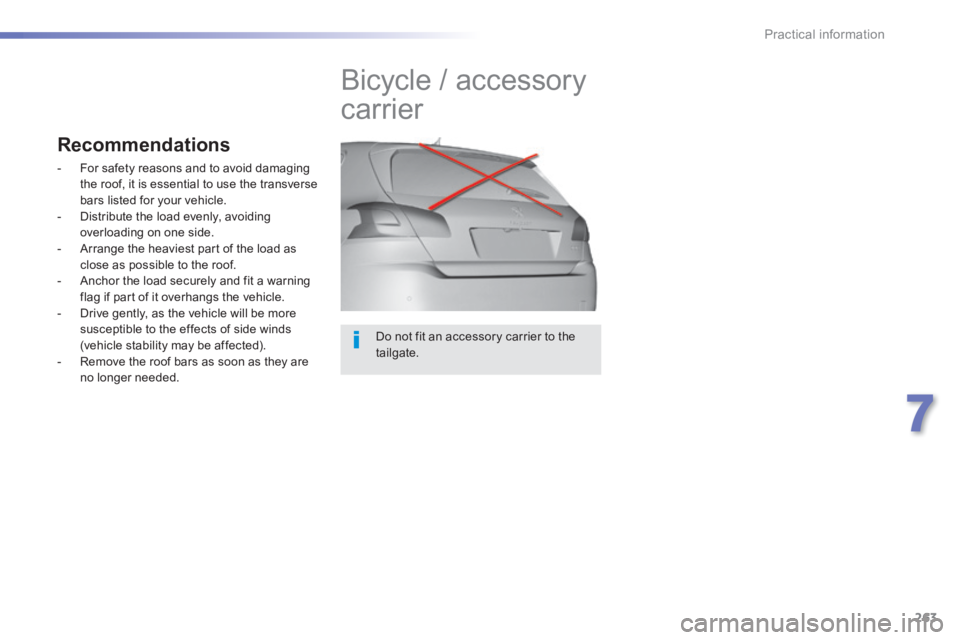

Do not fit an accessory carrier to the tailgate.
Bicycle / accessory
carrier
Recommendations
- For safety reasons and to avoid damaging the roof, it is essential to use the transverse bars listed for your vehicle. - Distribute the load evenly, avoiding overloading on one side. - Arrange the heaviest part of the load as close as possible to the roof. - Anchor the load securely and fit a warning flag if part of it overhangs the vehicle. - Drive gently, as the vehicle will be more susceptible to the effects of side winds (vehicle stability may be affected). - Remove the roof bars as soon as they are no longer needed.
278
Checks
308_EN_CHAP08_VERIFICATIONS_ED02-2013

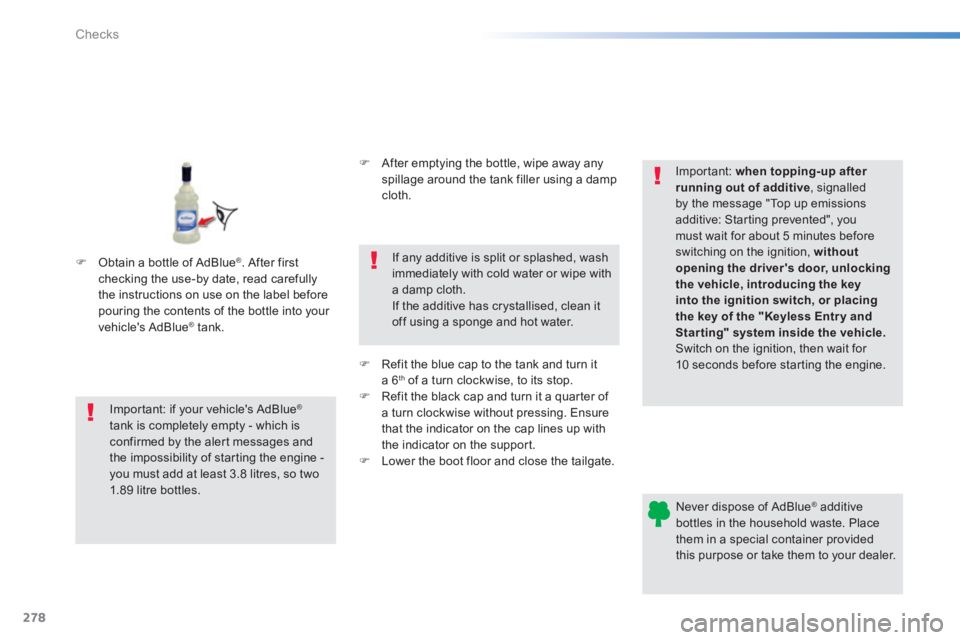

Never dispose of AdBlue ® additive ® additive ®
bottles in the household waste. Place them in a special container provided this purpose or take them to your dealer.
Important: if your vehicle's AdBlue ®
tank is completely empty - which is
confirmed by the alert messages and the impossibility of starting the engine - you must add at least 3.8 litres, so two 1.89 litre bottles.
After emptying the bottle, wipe away any spillage around the tank filler using a damp cloth.
If any additive is split or splashed, wash immediately with cold water or wipe with a damp cloth. If the additive has crystallised, clean it off using a sponge and hot water.
Refit the blue cap to the tank and turn it a 6 th of a turn clockwise, to its stop. Refit the black cap and turn it a quarter of a turn clockwise without pressing. Ensure that the indicator on the cap lines up with
the indicator on the support. Lower the boot floor and close the tailgate.
Important: when topping-up after running out of additive , signalled by the message "Top up emissions additive: Starting prevented", you must wait for about 5 minutes before switching on the ignition, without opening the driver's door, unlocking the vehicle, introducing the key into the ignition switch, or placing the key of the "Keyless Entr y and Star ting" system inside the vehicle. Switch on the ignition, then wait for 10 seconds before starting the engine.
Obtain a bottle of AdBlue ® . After first checking the use-by date, read carefully the instructions on use on the label before pouring the contents of the bottle into your vehicle's AdBlue ® tank. ® tank. ®
