2014 PEUGEOT 3008 open bonnet

Monitoring
34

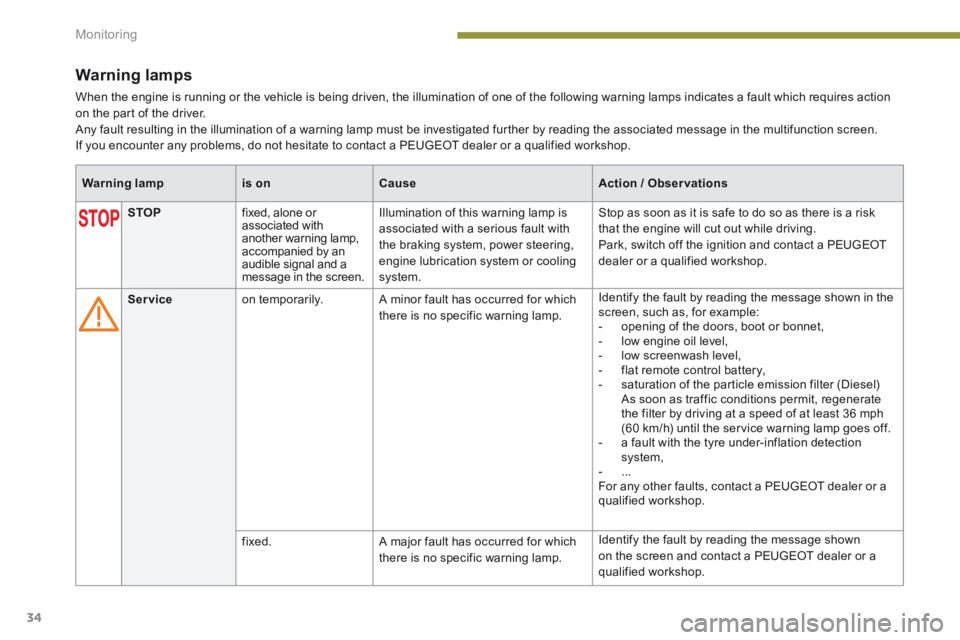

Warning lamps
When the engine is running or the vehicle is being driven, the illumination of one of the following warning lamps indicates a fault which requires action on the part of the driver. Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the multifunction screen. If you encounter any problems, do not hesitate to contact a PEUGEOT dealer or a qualified workshop.
Warning lampis onCauseAction / Observations
STOP fixed, alone or associated with another warning lamp, accompanied by an audible signal and a message in the screen.
Illumination of this warning lamp is associated with a serious fault with the braking system, power steering, engine lubrication system or cooling system.
Stop as soon as it is safe to do so as there is a risk that the engine will cut out while driving. Park, switch off the ignition and contact a PEUGEOT dealer or a qualified workshop.
Service on temporarily. A minor fault has occurred for which there is no specific warning lamp.
Identify the fault by reading the message shown in the screen, such as, for example: - opening of the doors, boot or bonnet, - low engine oil level, - low screenwash level, - flat remote control battery, - saturation of the particle emission filter (Diesel) As soon as traffic conditions permit, regenerate the filter by driving at a speed of at least 36 mph (60 km/h) until the service warning lamp goes off. - a fault with the tyre under-inflation detection system, - ... For any other faults, contact a PEUGEOT dealer or a qualified workshop.
fixed. A major fault has occurred for which there is no specific warning lamp.
Identify the fault by reading the message shown on the screen and contact a PEUGEOT dealer or a qualified workshop.

1
Monitoring37

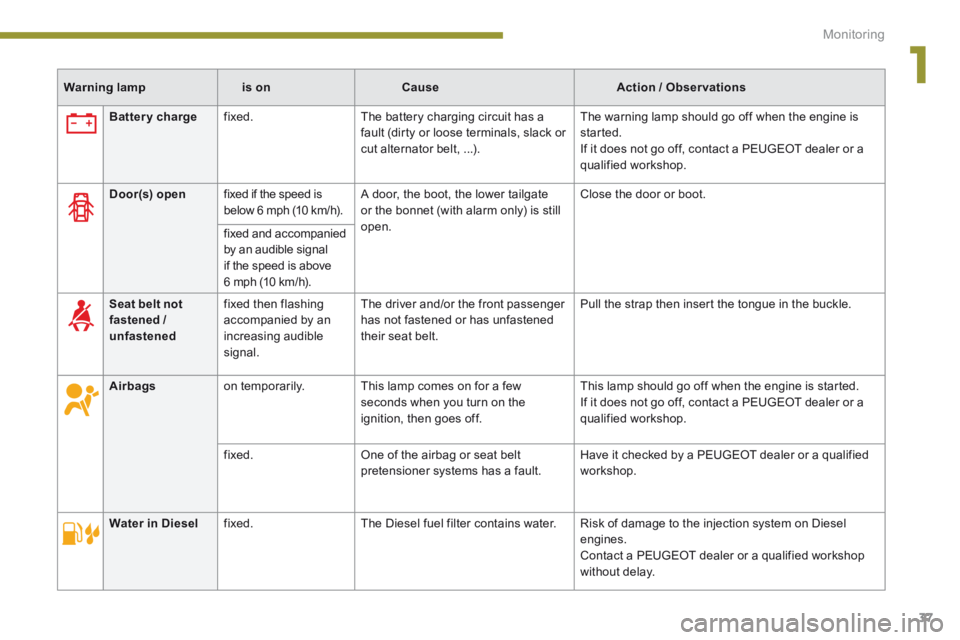

Warning lampis onCauseAction / Observations

Battery charge fixed. The battery charging circuit has a fault (dirty or loose terminals, slack or cut alternator belt, ...).
The warning lamp should go off when the engine is started. If it does not go off, contact a PEUGEOT dealer or a qualified workshop.

Door(s) open fixed if the speed is below 6 mph (10 km/h). A door, the boot, the lower tailgate or the bonnet (with alarm only) is still open.
Close the door or boot.
fixed and accompanied by an audible signal if the speed is above 6 mph (10 km/h).

Seat belt not fastened / unfastened
fixed then flashing accompanied by an increasing audible signal.
The driver and/or the front passenger has not fastened or has unfastened their seat belt.
Pull the strap then insert the tongue in the buckle.

Airbags on temporarily. This lamp comes on for a few seconds when you turn on the ignition, then goes off.
This lamp should go off when the engine is started. If it does not go off, contact a PEUGEOT dealer or a qualified workshop.
fixed. One of the airbag or seat belt pretensioner systems has a fault. Have it checked by a PEUGEOT dealer or a qualified workshop.

Water in Diesel fixed. The Diesel fuel filter contains water. Risk of damage to the injection system on Diesel engines. Contact a PEUGEOT dealer or a qualified workshop without delay.

4
Access81

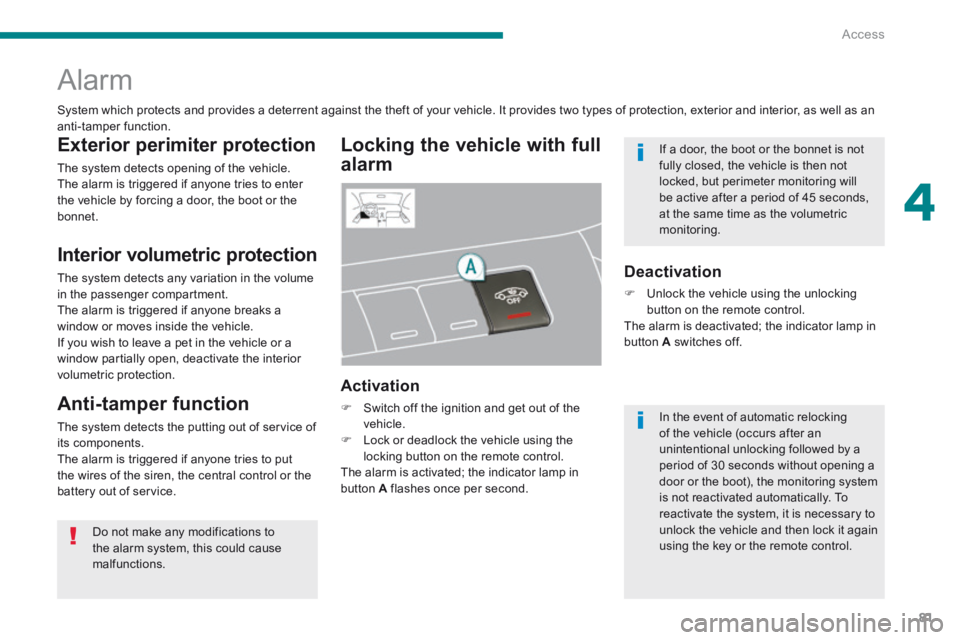

Alarm
Locking the vehicle with full
alarm
Activation
 Switch off the ignition and get out of the vehicle.  Lock or deadlock the vehicle using the locking button on the remote control. The alarm is activated; the indicator lamp in button A flashes once per second.
Exterior perimiter protection
The system detects opening of the vehicle. The alarm is triggered if anyone tries to enter the vehicle by forcing a door, the boot or the bonnet.
Interior volumetric protection
The system detects any variation in the volume in the passenger compartment. The alarm is triggered if anyone breaks a window or moves inside the vehicle. If you wish to leave a pet in the vehicle or a window partially open, deactivate the interior volumetric protection.
Anti-tamper function
The system detects the putting out of service of its components. The alarm is triggered if anyone tries to put the wires of the siren, the central control or the battery out of service.
Deactivation
 Unlock the vehicle using the unlocking button on the remote control. The alarm is deactivated; the indicator lamp in button A switches off.
System which protects and provides a deterrent against the theft of your vehicle. It provides two types of protection, exterior and interior, as well as an anti-tamper function.
Do not make any modifications to the alarm system, this could cause malfunctions.
In the event of automatic relocking of the vehicle (occurs after an unintentional unlocking followed by a period of 30 seconds without opening a door or the boot), the monitoring system is not reactivated automatically. To reactivate the system, it is necessary to unlock the vehicle and then lock it again
using the key or the remote control.
If a door, the boot or the bonnet is not fully closed, the vehicle is then not locked, but perimeter monitoring will be active after a period of 45 seconds, at the same time as the volumetric
monitoring.

Checks
192

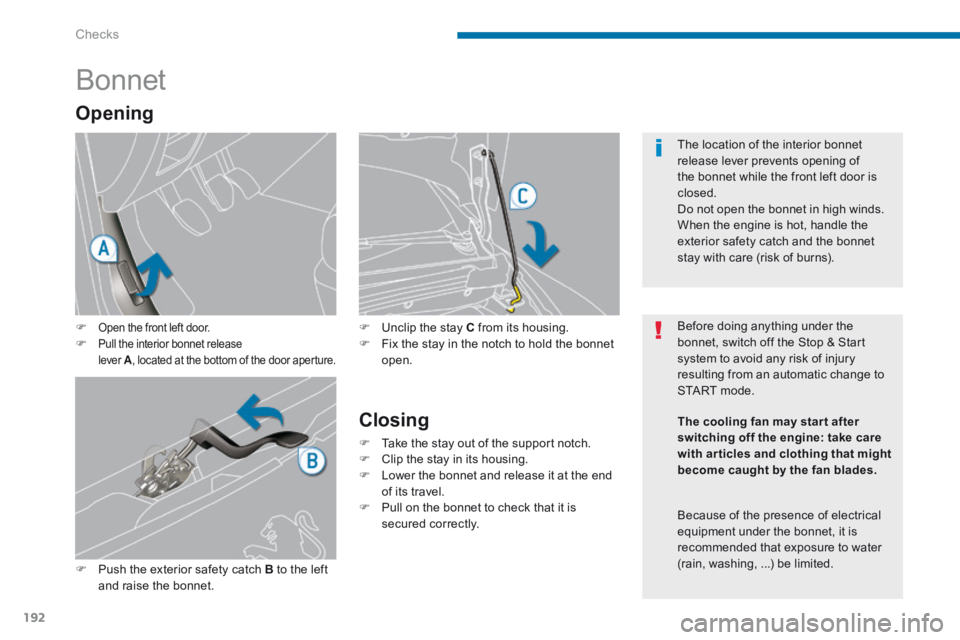

Bonnet
Open the front left door.  Pull the interior bonnet release lever A , located at the bottom of the door aperture.
 Push the exterior safety catch B to the left and raise the bonnet.
Closing
 Take the stay out of the support notch.  Clip the stay in its housing.  Lower the bonnet and release it at the end of its travel.  Pull on the bonnet to check that it is secured correctly.
Opening
 Unclip the stay C from its housing.  Fix the stay in the notch to hold the bonnet open.
Before doing anything under the bonnet, switch off the Stop & Start system to avoid any risk of injury resulting from an automatic change to START mode.
The location of the interior bonnet release lever prevents opening of the bonnet while the front left door is closed. Do not open the bonnet in high winds.
When the engine is hot, handle the exterior safety catch and the bonnet stay with care (risk of burns).
Because of the presence of electrical equipment under the bonnet, it is recommended that exposure to water (rain, washing, ...) be limited.
The cooling fan may star t after
switching off the engine: take care with articles and clothing that might become caught by the fan blades.

10
Checks193

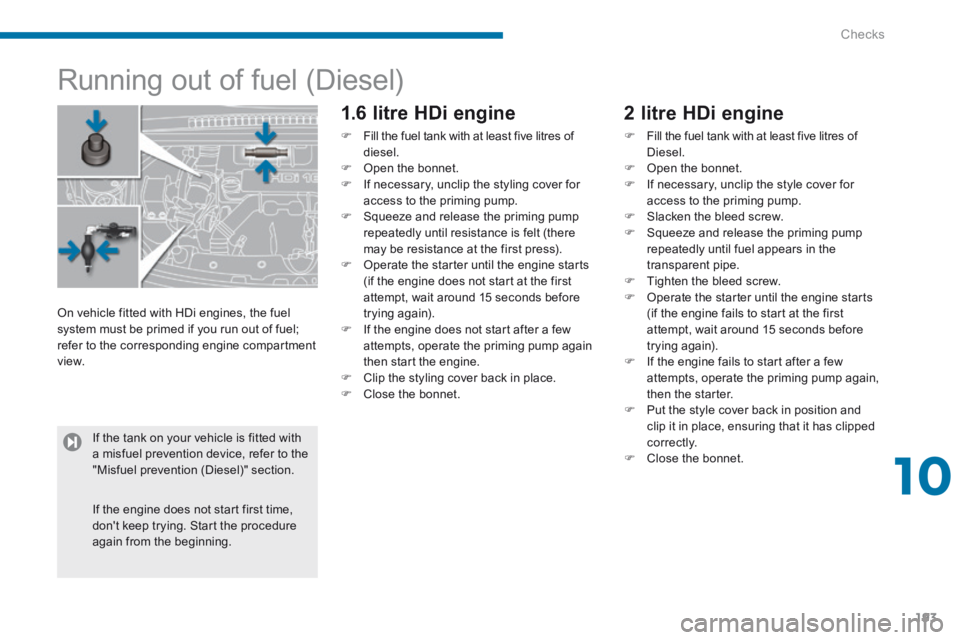

Running out of fuel (Diesel)
1.6 litre HDi engine
 Fill the fuel tank with at least five litres of diesel.  Open the bonnet.  If necessary, unclip the styling cover for access to the priming pump.  Squeeze and release the priming pump repeatedly until resistance is felt (there may be resistance at the first press).  Operate the starter until the engine starts (if the engine does not start at the first attempt, wait around 15 seconds before trying again).  If the engine does not start after a few attempts, operate the priming pump again then start the engine.  Clip the styling cover back in place.  Close the bonnet.
2 litre HDi engine
 Fill the fuel tank with at least five litres of Diesel.  Open the bonnet.
 If necessary, unclip the style cover for access to the priming pump.  Slacken the bleed screw.  Squeeze and release the priming pump repeatedly until fuel appears in the transparent pipe.  Tighten the bleed screw.  Operate the starter until the engine starts (if the engine fails to start at the first attempt, wait around 15 seconds before trying again).  If the engine fails to start after a few attempts, operate the priming pump again, then the starter.  Put the style cover back in position and clip it in place, ensuring that it has clipped
c o r r e c t l y.  Close the bonnet.
On vehicle fitted with HDi engines, the fuel system must be primed if you run out of fuel; refer to the corresponding engine compartment view.
If the tank on your vehicle is fitted with a misfuel prevention device, refer to the "Misfuel prevention (Diesel)" section.
If the engine does not start first time, don't keep trying. Start the procedure again from the beginning.

11
Practical information229

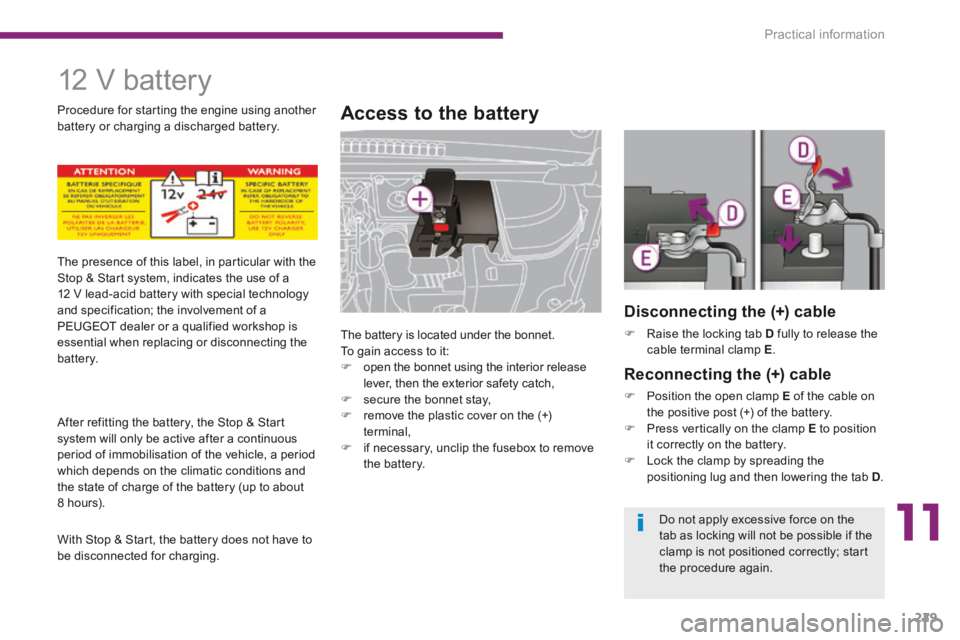

12 V battery
Access to the battery
The battery is located under the bonnet. To gain access to it:  open the bonnet using the interior release lever, then the exterior safety catch,  secure the bonnet stay,  remove the plastic cover on the (+) terminal,  if necessary, unclip the fusebox to remove the battery.
The presence of this label, in particular with the Stop & Start system, indicates the use of a 12 V lead-acid battery with special technology and specification; the involvement of a PEUGEOT dealer or a qualified workshop is essential when replacing or disconnecting the battery.
After refitting the battery, the Stop & Start
system will only be active after a continuous period of immobilisation of the vehicle, a period which depends on the climatic conditions and the state of charge of the battery (up to about 8 hours).
With Stop & Start, the battery does not have to be disconnected for charging.
Procedure for starting the engine using another battery or charging a discharged battery.
Disconnecting the (+) cable
 Raise the locking tab D fully to release the cable terminal clamp E .
Reconnecting the (+) cable
 Position the open clamp E of the cable on the positive post (+) of the battery.  Press vertically on the clamp E to position it correctly on the battery.  Lock the clamp by spreading the positioning lug and then lowering the tab D .
Do not apply excessive force on the
tab as locking will not be possible if the clamp is not positioned correctly; start the procedure again.

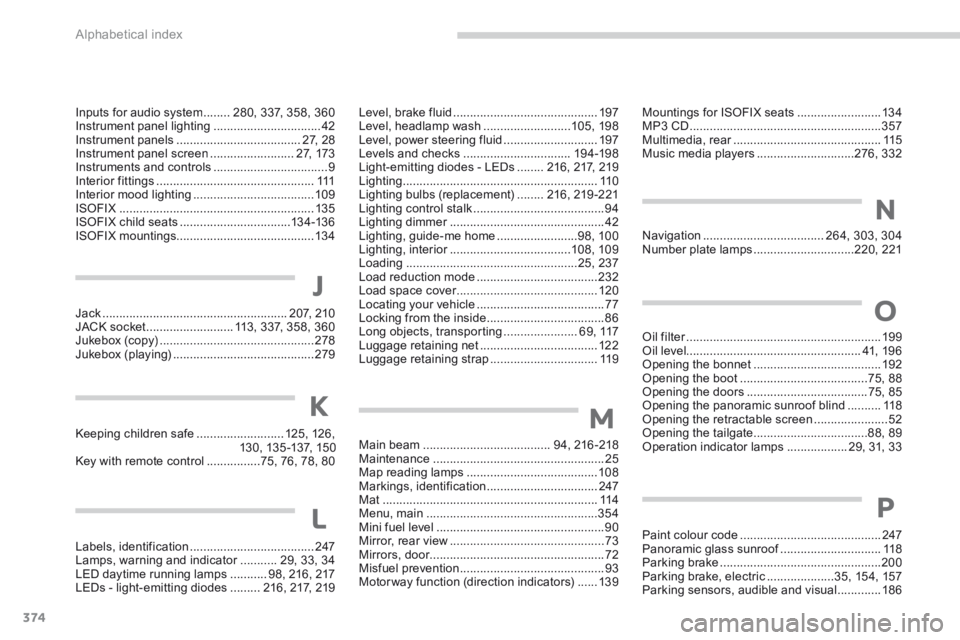

Alphabetical index
374
Keeping children safe ..........................125, 126,13 0, 13 5 -137, 15 0Key with remote control ................75, 76, 78, 80
Labels, identification .....................................247Lamps, warning and indicator ...........Lamps, warning and indicator ...........Lamps, warning and indicator29, 33, 34LED daytime running lamps ...........98, 216, 217LEDs - light-emitting diodes .........216, 217, 219
Paint colour code ..........................................247Panoramic glass sunroof ..............................Panoramic glass sunroof ..............................Panoramic glass sunroof118Parking brake ................................................200Parking brake, electric ....................35, 15 4, 157Parking sensors, audible and visual .............18 6
Jack .......................................................2 0 7, 2 1 0JACK socket ..........................113, 337, 358, 360Jukebox (c opy) ..............................................278Jukebox (playing) ..........................................279
Main beam ......................................94, 216 -218Maintenance ...................................................25Map reading lamps .......................................108Markings, identification .................................247Mat ................................................................114Menu, main ...................................................354Mini fuel level ..................................................90Mirror, rear view ..............................................73Mirrors, door....................................................72Misfuel prevention ...........................................93Motorway function (direction indicators) ......13 9
J
K
LP
M
Mountings for ISOFIX seats .........................13 4MP3 CD .........................................................357Multimedia, rear ............................................Multimedia, rear ............................................Multimedia, rear115Music media players .............................276, 332
Navigation ....................................264, 303, 304Number plate lamps ..............................220, 221
Oil filter ..........................................................Oil filter ..........................................................Oil filter19 9Oil level....................................................41, 196Opening the bonnet ......................................192Opening the boot ......................................75, 88Opening the doors ....................................75, 85Opening the panoramic sunroof blind ..........118Opening the retractable screen ......................52Opening the tailgate ..................................88, 89Operation indicator lamps ..................29, 31, 33
N
O
Inputs for audio system ........280, 337, 358, 360Instrument panel lighting ................................42Instrument panels .....................................2 7, 2 8Instrument panel screen .........................2 7, 17 3Instruments and controls ..................................9Interior fittings ...............................................111Interior mood lighting ....................................109ISOFIX ..........................................................13 5ISOFIX child seats .................................13 4 -13 6ISOFIX mountings.........................................13 4
Level, brake fluid ...........................................197Level, headlamp wash ..........................105, 198Level, power steering fluid ............................197Levels and checks ................................19 4 -198Light-emitting diodes - LEDs ........216, 217, 219Lighting ..........................................................11 0Lighting bulbs (replacement) ........216, 219 -221Lighting control stalk .......................................94Lighting dimmer ..............................................Lighting dimmer ..............................................Lighting dimmer42Lighting, guide-me home ........................98, 100Lighting, interior ....................................Lighting, interior ....................................Lighting, interior108, 109Loading ...................................................25, 237Load reduction mode ....................................232Load space cover ..........................................Load space cover ..........................................Load space cover120Locating your vehicle ......................................77Locking from the inside ...................................86Long objects, transporting ......................69, 117Luggage retaining net ...................................12 2Luggage retaining strap ................................11 9

.
Visual search379

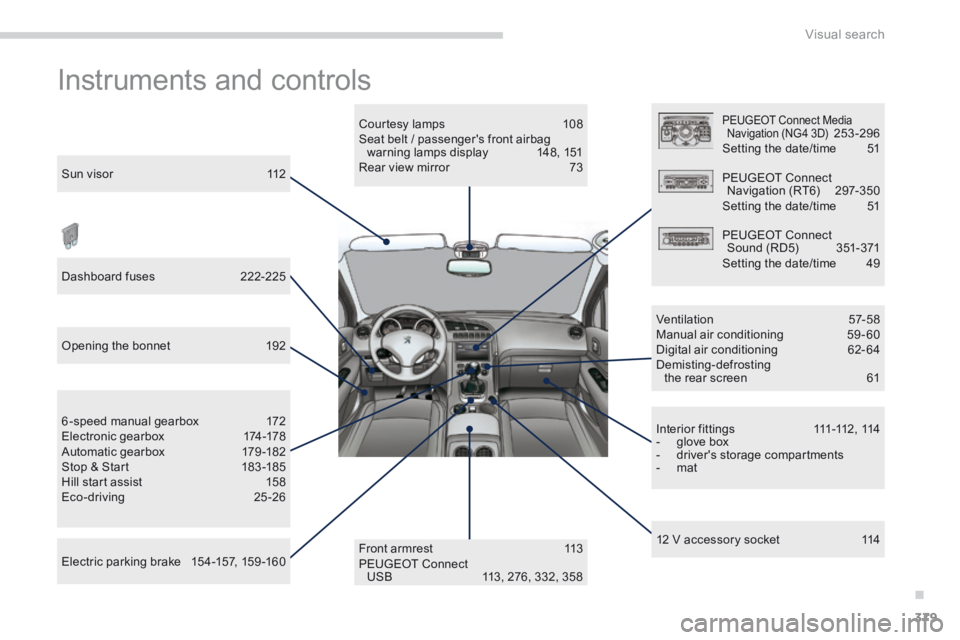

Instruments and controls
Sun visor 112
Dashboard fuses 222-225
Opening the bonnet 192
Electric parking brake 154-157, 159 -160
6-speed manual gearbox 172 Electronic gearbox 174-178 Automatic gearbox 179 -182 Stop & Start 183 -185 Hill start assist 158 Eco-driving 25 -26
Front armrest 113 PEUGEOT Connect USB 113, 276, 332, 358
Courtesy lamps 108 Seat belt / passenger's front airbag warning lamps display 148, 151 Rear view mirror 73
PEUGEOT Connect Media Navigation (NG4 3D) 253 -296 Setting the date/time 51
PEUGEOT Connect Navigation (RT6) 297-350 Setting the date/time 51
PEUGEOT Connect Sound (RD5) 351-371 Setting the date/time 49
Ventilation 57-58 Manual air conditioning 59 - 60 Digital air conditioning 62-64 Demisting-defrosting the rear screen 61
I n t e r i o r f i t t i n g s 111 -112 , 114 - glove box - driver's storage compartments - mat
12 V accessory socket 114
