2014 Peugeot 3008 Hybrid 4 Owner's Manual - RHD (UK. Australia)

.
197
104183
131
Familiarisation7
Exterior
Panoramic sunroof
This roof provides incomparable visibility and light in the passenger compartment.
Temporary tyre repair kit
This kit is a complete system, consisting of a compressor and an integral sealant cartridge, for the temporary repair of a tyre.
Lower tailgate
This lower tailgate permits remarkable accessibility
and makes the loading of bulky objects easier.
Visual and audible front and/or rear parking sensors
This system warns you if an obstacle is detected in front of or behind the vehicle in for ward or reverse g e a r.
When using an automatic car wash. - Unscrew the aerial. - Unscrew the aerial. - fold back the mirrors. - fold back the mirrors.

90
105
11 3

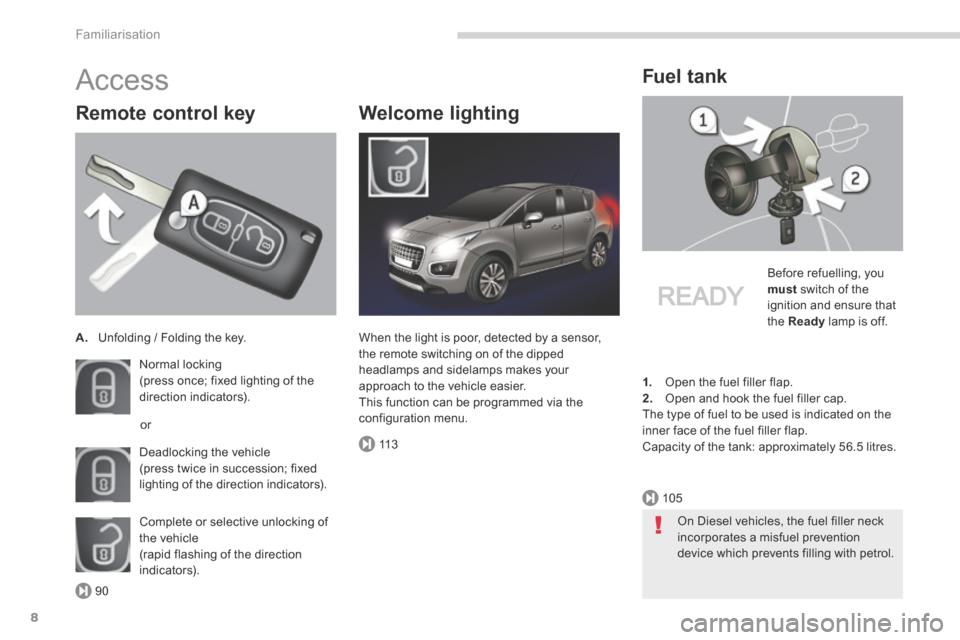

Familiarisation
8
Access
Remote control key
A. Unfolding / Folding the key.
Normal locking (press once; fixed lighting of the direction indicators).
Deadlocking the vehicle (press twice in succession; fixed lighting of the direction indicators).
Complete or selective unlocking of the vehicle (rapid flashing of the direction i n di c ato r s).
or
When the light is poor, detected by a sensor, the remote switching on of the dipped headlamps and sidelamps makes your approach to the vehicle easier. This function can be programmed via the configuration menu.
Fuel tank
Before refuelling, you must switch of the ignition and ensure that the Ready lamp is off.
1. Open the fuel filler flap. 2. Open and hook the fuel filler cap. The type of fuel to be used is indicated on the
inner face of the fuel filler flap. Capacity of the tank: approximately 56.5 litres.
Welcome lighting
On Diesel vehicles, the fuel filler neck incorporates a misfuel prevention device which prevents filling with petrol.

.
103
104
Familiarisation9
Access
Boot
Opening
 After unlocking the vehicle using the remote control or the key, press the handle A and lift the tailgate. Closing
 After closing the lower tailgate, pull the
handle B downwards to guide the tailgate.
Lower tailgate
Opening
 Push the handle C to the right and tilt the tailgate D .
Closing
 Raise the tailgate D , push it fully to close it, check that it is locked correctly.

164
171
245
289
343
350
353
24176
Familiarisation
10
Interior
Electric parking brake
This combines the functions of automatic application on switching off the engine and automatic release on acceleration. Manual application/release is possible.
Audio and communication systems
These systems benefit from the latest technology: MP3 compatible audio system, USB player, Bluetooth hands-free system, satellite navigation system with colour screen, Hi-Fi audio system.
Head-up display
This system projects certain information into the driver's field of vision: speed, cruise control/speed limiter.
Dual-zone digital air conditioning
This systems allows different levels of comfort to be set for the driver and front passenger. It then controls these level automatically according to the ambient conditions. PEUGEOT Connect Navigation (RT6)
PEUGEOT Connect PEUGEOT Connect PEUGEOTSound (RD5)
PEUGEOT Connect Media PEUGEOT Connect Media PEUGEOTNavigation (NG4 3D) PEUGEOT Connect USB PEUGEOT Connect USB PEUGEOT
Bluetooth
PEUGEOT Assistance

.Familiarisation11
Instruments and controls
1. Steering wheel adjustment control.
2. Cruise control / speed limiter switches.
3. Lighting and direction indicators control stalk.
4. Central adjustable air vents.
5. Head-up display.
6. Multifunction screen.
7. Passenger's airbag.
8. Side adjustable air vent.
9. Glove box - Audio/video sockets - Passenger's airbag deactivation.
10. Storage compartment with net.
11. HYbrid4 mode selector.
12 . Bonnet release.
13. Grab handle.
14 . Heating / air conditioning controls.
15. Audio and telematics system.
16. Buttons: - head-up display, - hazard warning lamps, - ECO OFF, - parking sensors, - central locking.

Familiarisation
12
Instruments and controls
1. Wiper / screenwash / trip computer control stalk.
2. Audio and telematics system steering mounted control.
3. Steering lock and ignition.
4. Instrument panel.
5. Driver's airbag. Horn.
6. Gear selector.
7. Electric parking brake.
8. Front armrest - PEUGEOT Connect USB.
9. 12 V accessory socket.
10. Driver's storage compartment (Handbook).
11. Alarm button Dynamic stability control (DSC) button, Parking space sensor button.
12 . Manual headlamp adjustment.
Instrument panel navigator.
13. Door mirror controls. Electric window controls. Child lock.
14 . Front side window demisting vent.
15. Windscreen demisting vent.

.
80
81
Familiarisation13
Sitting comfortably
Driver's seat
Forwards-backwards Height
Manual adjustment
Electric adjustment
Seat back angle

82-83
87
126
84

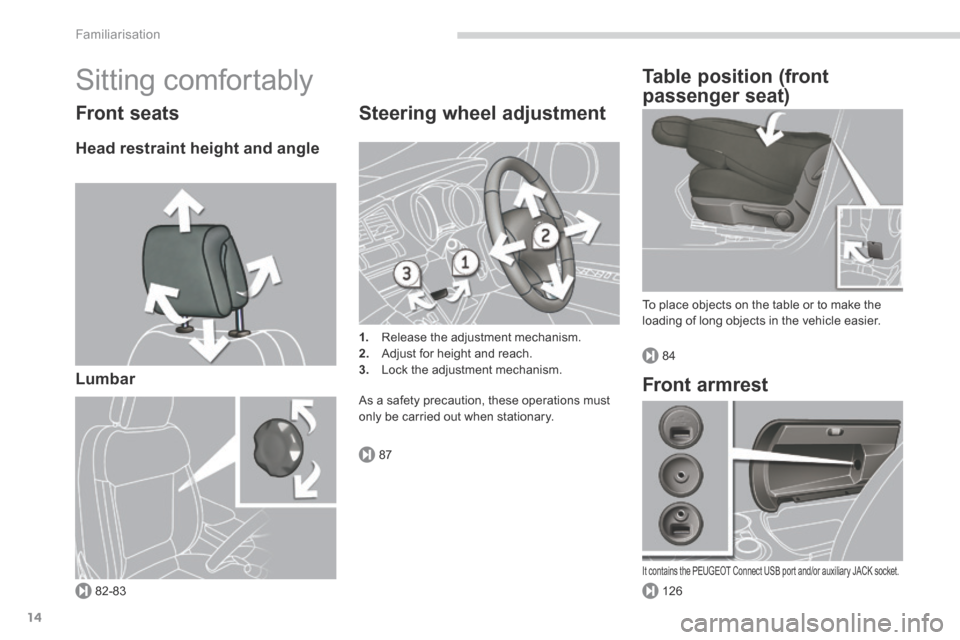

Familiarisation
14
Sitting comfortably
Front seats
Head restraint height and angle
Lumbar
Steering wheel adjustment
1. Release the adjustment mechanism. 2. Adjust for height and reach. 3. Lock the adjustment mechanism.
As a safety precaution, these operations must only be carried out when stationary.
Table position (front
passenger seat)
To place objects on the table or to make the loading of long objects in the vehicle easier.
Front armrest
It contains the PEUGEOT Connect USB port and/or auxiliary JACK socket. PEUGEOT Connect USB port and/or auxiliary JACK socket. PEUGEOT
