2014 PEUGEOT 108 manual radio set

187
Level 1
Level 2 Level 3 Comment
Audio source FM FM radio configuration
u

pdate the list of stations
update the list to take account of reception.
List of stationsChoose to list by "Broadcaster" or "Alphabetic".
FM traffic announcements
Activate or deactivate options.FM alternative frequencies
Change regional code
FM radiotext
Presets
List of preset stations.
StationsList of radio stations received.
ManualSearch for stations step by step or automatically.
Audio source
AM PresetsList of preset stations.
ManualSearch for stations step by step or automatically.
Audio source
DAB DAB radio configuration
u
pdate the list of stations
update the list to take account of reception.
L-Band
Activate or deactivate options.DAB traffic announcements
DAB alternative frequencies
DAB radiotext
Presets
List of preset stations.
StationsList of radio stations received.
ManualSearch for stations step by step or automatically.
B3_en_Chap12a_Autoradio-t oyota-tactile-1_ed01-2014

04
191
Changing a radio frequency
RADIO
Select "FM". Press on "Audio source" to display the
carousel of sound sources.
Select the "Manual" tab to search for a station.
Press the step by step buttons, the automatic
buttons or turn the button at bottom right of
the screen to search for frequencies up or
down.
Preset a station
Select the "Presets" tab then make long press
on one of the numbered preset locations. Select a radio station or frequency
(refer to the "Changing a frequency" section).
Activate/ Deactivate RDS
Select "FM radio configuration ".
Press on "Audio source" to display the
carousel of audio sources.
Activate/deactivate "Change of regional
code".
RDS, if activated, allows you to continue listening to the same
station by automatic retuning to alternative frequencies. However, in
certain conditions, coverage of an RDS station may not be assured
throughout the entire country as radio stations do not cover 100 % of
the territory.
t

his explains the loss of reception of the station during
a journey. Select "FM".
B3_en_Chap12a_Autoradio-t
oyota-tactile-1_ed01-2014

03
MODE
MODE
225
Press on "MODE" to select the FM or AM
waveband.
t

he surroundings (hills, buildings, tunnel, parking, under ground...) m\
ay prevent reception, including RDS alternative frequencies.
t

his phenomenon is normal in the propagation of radio waves and does not \
in any way imply a fault with the audio system.
Press on "MODE" to select the FM or AM
waveband.
Briefly press one of these buttons to start an
automatic search up/down for frequencies.
Make a long press one of the buttons to preset the current radio
station.
t

he name of the station is displayed and an audible signal
confirms the preset.
Briefly press one of the buttons to carry out an
automatic search down/up for radio stations.
turn the dial to carry out a manual search down/
up for radio stations.
In FM mode, press the "

List" button to display the
list of stations received locally.
Press one of the buttons to select the chosen
radio station then confirm.
Press on "Update" to refresh the list.

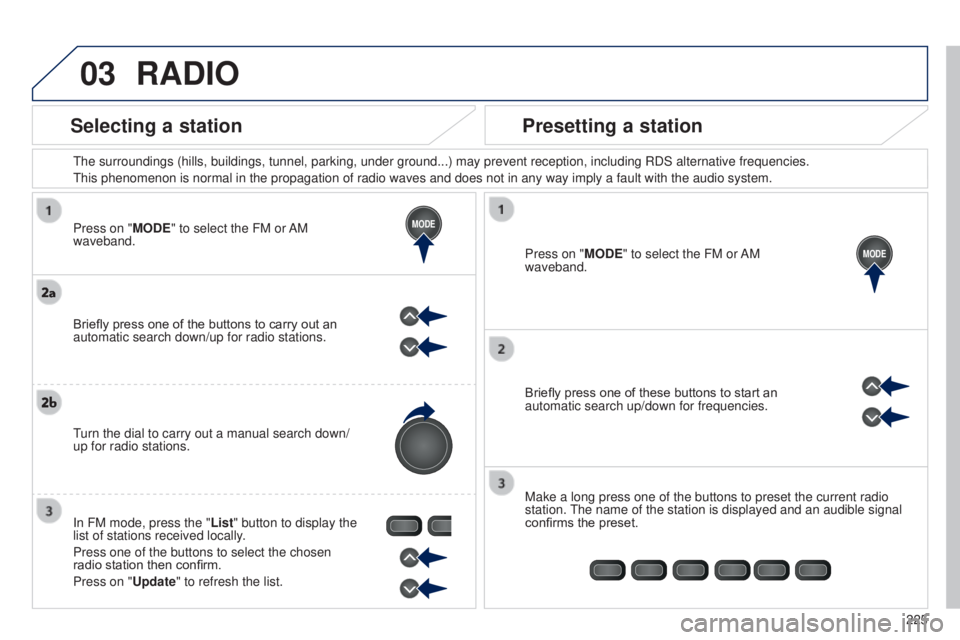

RADIO
Selecting a station Presetting a station
B3_en_Chap12b_Autoradio-toyota-2_ed01-2014

03
MODE
227

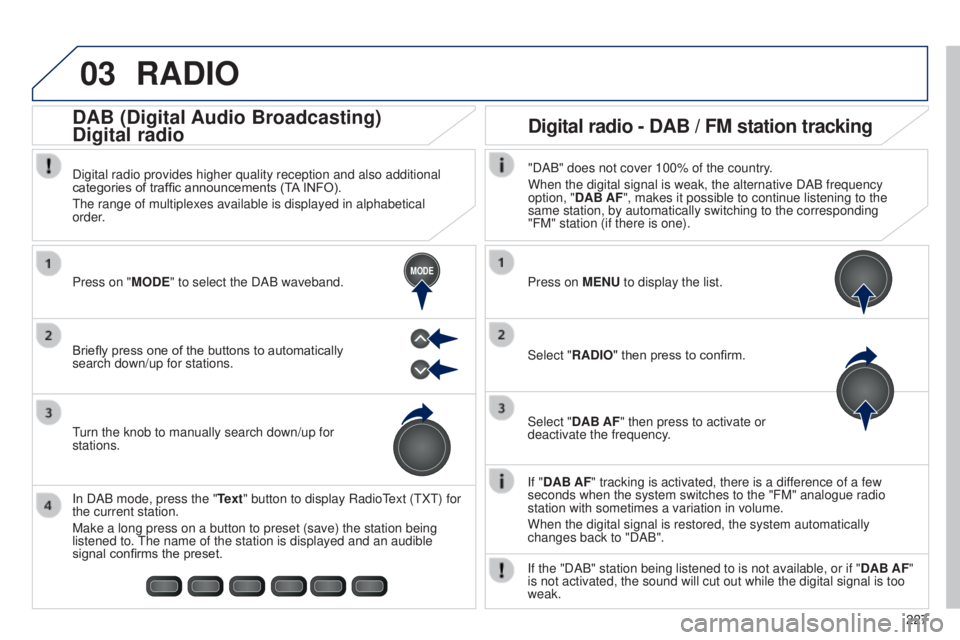

RADIO
If "DAB AF" tracking is activated, there is a difference of a few
seconds when the system switches to the "FM" analogue radio
station with sometimes a variation in volume.
When the digital signal is restored, the system automatically
changes back to "DAB".
Briefly press one of the buttons to automatically
search down/up for stations. Press on "MODE" to select the DAB waveband.
In DAB mode, press the "Text" button to display Radio
t
ext (

t
X
t
) for
the current station.
Make a long press on a button to preset (save) the station being
listened to.
t

he name of the station is displayed and an audible
signal confirms the preset.
turn the knob to manually search down/up for
stations. Digital radio provides higher quality reception and also additional
categories of traffic announcements (T

A INFO).
t

he range of multiplexes available is displayed in alphabetical
order.
Press on MENU to display the list.
Select "RADIO" then press to confirm.
Select "DAB AF" then press to activate or
deactivate the frequency."DAB" does not cover 100% of the country.
When the digital signal is weak, the alternative DAB frequency
option, "DAB AF", makes it possible to continue listening to the
same station, by automatically switching to the corresponding
"FM" station (if there is one).
If the "DAB" station being listened to is not available, or if " DAB AF"
is not activated, the sound will cut out while the digital signal is too\

weak.
Digital radio - DAB / FM station tracking
DAB (Digital Audio Broadcasting)
Digital radio
B3_en_Chap12b_Autoradio-t
oyota-2_ed01-2014

239
Dashboard fuses 152-156
Instruments and controls
Opening the bonnet 1 70
Door mirrors
5
1
el

ectric windows
4
2
Courtesy lamp
1
01
Control for electric fabric roof
4
2
Rear view mirror
5
2
Sun visors
6
5
Manual parking brake
7
6Heating, ventilation
5

3-55
Manual air conditioning
5
6-57
Automatic air conditioning
5
8 - 61
Windscreen demist / defrost
6
2
Rear screen demist / defrost
6
3
7-inch touch screen
1
81-220
Setting the time
2
9
Radio

221-236
Setting the time
2
8
Manual gearbox
7
6
e

tg
el
ectronic gearbox
7
7-80
ge

ar shift indicator
8
1
Stop & Start

8
3 - 85
Hill start assist

8
2
12 V accessory socket
6 5uS
B port 6 6
Jack auxiliary socket

6
6
B3_en_Chap13_recherche-visuelle_ed01-2014
.
Visual search
