Changing a bulb
Front lamps
1. Sidelamps (LEDs*).
2. Direction indicators (PY21W amber).
3.
D

ipped beam / Main beam headlamps
(HiR2-55W).
4.
F

ront foglamps.
5.
D

aytime running lamps (LEDs*). In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
th

e headlamps are fitted with
polycarbonate glass with a protective
coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
u
se a sponge and soapy water or a
pH neutral product,
F
w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F
D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (
uV

) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
* L
eD

: light-emitting diode.
9
Practical information

148
Direction indicators
(PY 21W amber)
Sidelamps (LEDs)
F turn the bulb holder one quarter of a turn
and remove it.
F

R
emove the bulb and change it.
If you encounter any difficulties, contact a
P
e

uge
Ot
dealer or a qualified workshop.
For the replacement of these lamps, contact a
Pe
ugeOt
dealer or a qualified workshop.
Dipped / Main beam headlamps
(HiR2-55W)
F Remove the protective cover by pulling the
clip.
F

S
pread the spring to free the bulb holder.
F

R
emove the assembly of bulb holder and
bulb and change it.
to r

eassemble, carry out these operations in
reverse order.
If you encounter any difficulties, contact a
P
e

uge
Ot
dealer or a qualified workshop.
Practical information

149

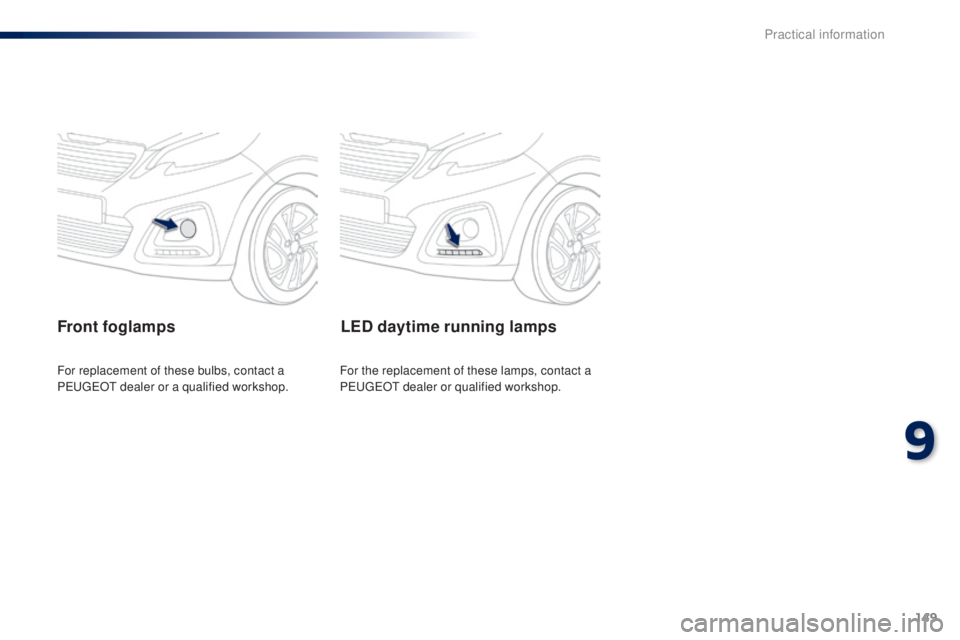

LED daytime running lamps
For the replacement of these lamps, contact a
PeugeOt dealer or qualified workshop.
For replacement of these bulbs, contact a
Pe
ugeOt
dealer or a qualified workshop.
Front foglamps
9
Practical information

150
1. Brake lamps (P21/5W)
2. Sidelamps (P21/5W)
3.
D

irection indicators (PY21W)
4.
R

eversing lamp (P21W), near side
F

oglamp (P21W), offside
Rear lamps
these bulbs are changed by removing the lamp
unit:
F
O
pen the boot,
F
t
i
p the plastic cover and remove the screw.
F

M
ove the boot trim firmly aside.
D

eformation of the trim is normal.
F
u
n
screw the nut and remove it (take care
not to drop it in the wing).
F

R
emove the lamp unit by pulling it firmly
outwards. F
A t the back of the lamp, remove the failed
bulb and change it.
When refitting, proceed in the reverse order,
taking care to position the lamp unit correctly.
Practical information

151
Number plate lamps (W5W)
F Insert a thin screwdriver into one of the cutouts in the the lens.
F

P
ush it outwards to unclip it.
F

R
emove the lens.
F

C
hange the faulty bulb.
Third brake lamp (4 W5W bulbs)
F With the boot open, unclip the plastic cover.
F P ress the metal clips to disengage the
lamp.
F

R
emove the lamp via the exterior of the
tailgate.
F

R
emove the bulb-holder by squeezing the
plastic catches.
F

C
hange the failed bulb(s).
Direction indicator side repeaters
(WY 5W amber)
F Push the repeater for wards or rear wards and detach it by pulling towards you.
F

D
isconnect the bulb holder and change it.
to r

efit, press on the lens to clip it in place.
to r

efit, carry out these operations in reverse
o r d e r.
