Low fuel levelfixed. When it first comes on there remains
approximately 5 litres of fuel in the
tank. You must refuel as soon as possible to avoid running
out of fuel.
th

is warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is
made.
Fuel tank capacity: approximately 35 litres.
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
Battery charge fixed.
th

e battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...). Contact a P
e

uge
Ot
dealer or a qualified workshop.
Front seat belts flashing accompanied
by an audible signal.
th

e driver has not fastened or has
unfastened their seat belt.
the

front passenger has unfastened
their seat belt. Pull the strap then insert the tongue in the buckle.
Warning / indicator lamp
StateCause Action / Observations
1
Monitoring

23
Stop & Star t
(e-VTi 68 engine)flashing.th
e Stop & Start system has a fault. Have the system checked by a Pe ugeOt dealer or a
qualified workshop.
Warning / indicator lamp
StateCause Action / Observations
Speed limiter fixed.
th

e speed limiter has a fault.Have it checked by a P
e

uge
Ot
dealer or a qualified
workshop.
Door(s) open /
Boot open fixed, accompanied by
an audible signal. A door or the boot is still open. Close the door or boot.
Keyless Entr y
and Starting
system flashing quickly.
th

e steering column has not been
unlocked. Change to "
OFF" mode, then " ON" mode and turn the
wheel slightly to unlock the steering column.
flashing, accompanied
by an audible signal.
th

e battery in the electronic key is
discharged. Replace the battery.
Refer to the corresponding section.
You are leaving the vehicle without
activating " OFF" mode. With the electronic key on your person, press the
S
tA

R
t/
S
tO
P button to change to "OFF" mode.
th

e electronic key has not been
detected. Check that you have the electronic key with you.
th

e Keyless e
n
try and Starting
system has a fault. Have the system checked by a P
e

uge
Ot
dealer or a
qualified workshop.
1
Monitoring

32
Battery ref.: CR 2016 / 3 volts.
F un clip the cover using a small screwdriver
in the cut-out.
F

L
ift of the cover.
F

R
emove the old battery from its housing.
F

F
it the new battery in its place, observing
the direction of fitment.
F

C
lip the cover in place.
Changing the remote
control battery
Do not discard the remote control
batteries, they contain metals which are
harmful to the environment.
ta
ke them to a P
e
uge
Ot
dealership,
or to an approved collection point.
Electronic engine immobiliser
this locks the engine management system as soon
as the ignition has been switched off and therefore
prevents starting of the vehicle by anyone who does
not have the key.
th

e ignition key has an electronic chip which has a
special code. When the ignition is switched on, the
code must be recognised for starting to be possible.
In the event of a malfunction, your vehicle will not
start.
Contact a P
e

uge
Ot
dealer or a qualified
workshop.
Do not make any modifications to the
electronic immobiliser system.
Access

35
Emergency procedure
Unlocking
F Insert the integral key into the driver's door lock barrel and turn it towards the front of
the vehicle to unlock the vehicle.
Locking
F Insert the integral key into the driver's door lock barrel and turn it towards the rear of
the vehicle to lock the vehicle.
th

e integral key is used to lock and unlock the
vehicle when the electronic key cannot operate
and in the event of a fault with the Keyless
en

try and Starting system:
-

c

ell battery discharged, vehicle battery
discharged or disconnected, ...
-

v

ehicle located in an area with strong
electromagnetic signals.
F

P

ress and hold the latch 1 to extract the
integral key 2 .
2
Access

36
Changing the battery of
the electronic key
Battery ref.: CR2032 / 3 volts.
Saving the electronic key
battery
to preserve the battery, it is possible to prevent
the electronic key working (no reception of
radio waves).
When this function is activated, the "Keyless
en
try and Starting" system is inoperative.
to r

eactivate the electronic key, press one of
the buttons (open or closed padlock). F

P
ress on the open padlock twice,
while pressing on and holding
the closed padlock.
Check that the indicator lamp in the electronic
key flashes 4 times. When replacement of the battery is
needed, this warning lamp comes on
in the instrument panel.
F
u
n
clip the cover using a small screwdriver
at the cutout.
F

R
emove the cover.
F

R
emove the protective battery holder,
pulling it upwards.
F

R
emove the discharged battery from its
housing.
F

F
it the new battery into its housing
observing the original direction of fitment.
F

R
efit the battery holder.
F

C
lip the cover onto the casing.
Access

42

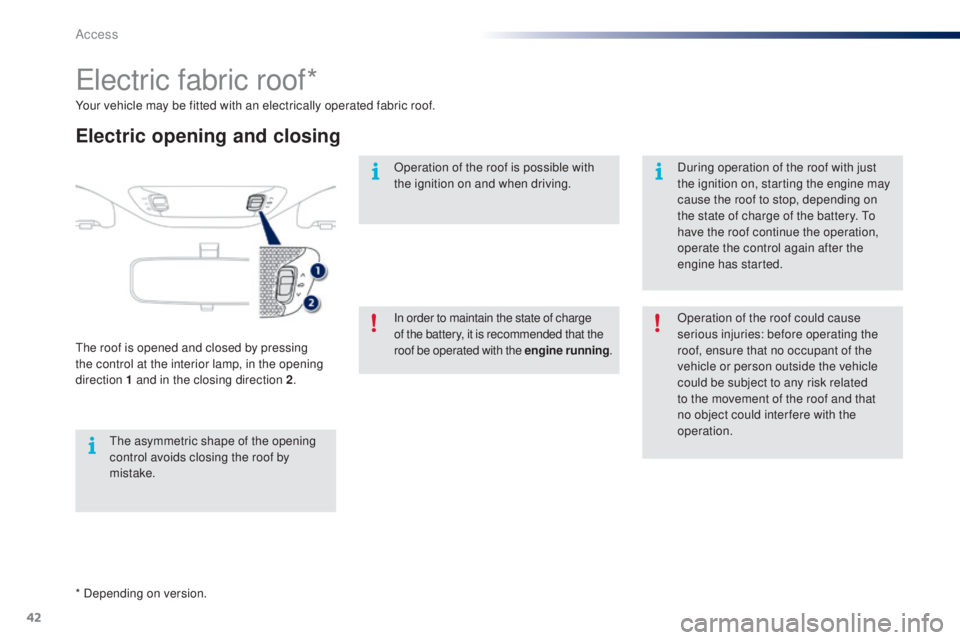

* Depending on version. Your vehicle may be fitted with an electrically operated fabric roof.
electric fabric roof*
Electric opening and closing
the roof is opened and closed by pressing
the control at the interior lamp, in the opening
direction 1 and in the closing direction 2.In order to maintain the state of charge
of the battery, it is recommended that the
roof be operated with the engine running
.
Operation of the roof is possible with
the ignition on and when driving.
Operation of the roof could cause
serious injuries: before operating the
roof, ensure that no occupant of the
vehicle or person outside the vehicle
could be subject to any risk related
to the movement of the roof and that
no object could inter fere with the
operation. During operation of the roof with just
the ignition on, starting the engine may
cause the roof to stop, depending on
the state of charge of the battery. t
o
h
ave the roof continue the operation,
operate the control again after the
engine has started.
th

e asymmetric shape of the opening
control avoids closing the roof by
mistake.
Access

71
Starting - stopping the engine with the key
1. "LOCK " position.
2. " AC
C" position.
3.


"ON " position.
4.
" S

TA R T" position.
Ignition switch
Avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction.
Key in ignition
For vehicle fitted with a manual gearbox:
F
I nsert the key in the ignition switch.
F
t
u
rn the key to position 2 and unlock the
steering column, by turning wheel slightly.
F

F
ully depress the clutch pedal.
F

P
ut the gear lever into neutral.
F

O
perate the starter by turning the key to
position 4 (S TA R T ) .
F

O
nce the engine is running, release
t h e


key.


t
h
e key returns automatically to
position


3

(ON).
Starting using the key
If the key has been left in the ignition,
an audible signal is heard on opening
the driver's door.
For vehicles fitted with an ETG electronic
gearbox:
F

I

nsert the key in the ignition switch.
F
t
u

rn the key to position 2 and unlock the
steering column, by turning wheel slightly.
F

P

ress and hold the brake pedal
.
F

P

ut the gear lever into position N
.
F

O

perate the starter by turning the key to
position 4 (S TA R T ) .
F

O

nce the engine is running, release
t h e
key.
th
e key returns automatically to
position


3


(ON) .
If you use the accessories for a
prolonged period (key in position 2
or 3),
you risk discharging the battery. Starting
your vehicle will then no longer be
possible. Be aware . F

Imm
obilise the vehicle.
F

P

ut the gear lever into neutral (vehicles
fitted with a manual gearbox), or position N
(vehicles fitted with an etg electronic
gearbox).
F
t
u
rn the key towards you to
position

2

(ACC)
.
F

P

ress in and turn the key to
position

1 (LOCK)
.
F

R

emove the key from the ignition switch.
F
t
u
rn the steering until the steering column
locks.
Stopping
5
Driving
