2014 PEUGEOT 108 key

71
Starting - stopping the engine with the key
1. "LOCK " position.
2. " AC
C" position.
3.


"ON " position.
4.
" S

TA R T" position.
Ignition switch
Avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction.
Key in ignition
For vehicle fitted with a manual gearbox:
F
I nsert the key in the ignition switch.
F
t
u
rn the key to position 2 and unlock the
steering column, by turning wheel slightly.
F

F
ully depress the clutch pedal.
F

P
ut the gear lever into neutral.
F

O
perate the starter by turning the key to
position 4 (S TA R T ) .
F

O
nce the engine is running, release
t h e


key.


t
h
e key returns automatically to
position


3

(ON).
Starting using the key
If the key has been left in the ignition,
an audible signal is heard on opening
the driver's door.
For vehicles fitted with an ETG electronic
gearbox:
F

I

nsert the key in the ignition switch.
F
t
u

rn the key to position 2 and unlock the
steering column, by turning wheel slightly.
F

P

ress and hold the brake pedal
.
F

P

ut the gear lever into position N
.
F

O

perate the starter by turning the key to
position 4 (S TA R T ) .
F

O

nce the engine is running, release
t h e
key.
th
e key returns automatically to
position


3


(ON) .
If you use the accessories for a
prolonged period (key in position 2
or 3),
you risk discharging the battery. Starting
your vehicle will then no longer be
possible. Be aware . F

Imm
obilise the vehicle.
F

P

ut the gear lever into neutral (vehicles
fitted with a manual gearbox), or position N
(vehicles fitted with an etg electronic
gearbox).
F
t
u
rn the key towards you to
position

2

(ACC)
.
F

P

ress in and turn the key to
position

1 (LOCK)
.
F

R

emove the key from the ignition switch.
F
t
u
rn the steering until the steering column
locks.
Stopping
5
Driving

72
If you use the accessories for a
prolonged period, the vehicle will
automatically switch to "OFF" mode
after about 20 minutes.
Be aware in order to avoid discharging
the battery.
Starting - stopping the engine with the Keyless en try and
Star ting system
Changing the mode of the
vehicle
With the electronic key inside the
vehicle ; each press on the " S TA R T/
STOP " button, with no action on the
pedals, changes the vehicle's mode :
F

F

irst press (" ACC" m o d e).


t
h

e accessories (radio, 12V socket...) can
be used.
F

Sec

ond press (" ON" m o d e).
I

gnition on.
F
t
h

ird press (" OFF" m o d e).
Driving

73
Starting using the
electronic key
With the first press on the "S TA R T/
STOP " button, this indicator lamp
flashes slowly in the instrument panel. Depending on the ambient temperature,
each attempt at starting can take up to
around 30 seconds. During this period,
do not press the "
START/STOP" button
again, or release the clutch pedal or
brake pedal (depending on the type of
gearbox).
After this period, if the engine has not
started, press the " START/STOP"
button again for another attempt at
starting. If one of the starting conditions
is not met, the Keyless
e
n
try and
Starting system indicator lamp flashes
in the instrument panel. In some
circumstances, it is necessary to
turn the steering wheel slightly while
pressing the " START/STOP " button to
assist unlocking of the steering.
For vehicles fitted with a manual gearbox:
F

W

ith the electronic key inside the vehicle,
put the gear lever into neutral and fully
depress the clutch pedal.th e presence of the electronic key in
the vehicle is essential for switching
on the ignition and starting only. Once
the engine has started,
make sure
that the electronic key remains with
the vehicle until the end of the journey:
other wise you would not be able to lock
the vehicle.
F

P
ress and release the " S TA R T/
STOP " button.
th

is indicator lamp comes on in the
instrument panel. For vehicles fitted with an ETG electronic
gearbox
:
F
W
ith the electronic key inside the vehicle,
put the gear lever at N and press the brake
pedal.
th
is indicator lamp comes on in the
instrument panel.
F
P
ress and release the "
S TA R T/
STOP " button.
5
Driving

74
there is an audible signal when the driver's
door is opened and the vehicle is not in "OFF"
mode.
If the vehicle is not immobilised, the
engine will not stop.
Switching off using the
electronic key
F Immobilise the vehicle.
F P lace the gear lever in neutral for vehicles
fitted with a manual gearbox, or at N for
vehicles fitted with an
etg electronic
gearbox.
F

W
ith the electronic key inside
the vehicle, press the " S TA R T/
STOP " button.
the

engine stops.
th

e steering locks when a door is opened or on
locking the vehicle. F

P
ress the "START/STOP " button
again to change to " OFF" mode.
Emergency starting
When the electronic key is in the
recognition zone and your vehicle
does not start after pressing the
"START/STOP " button, this warning
lamp flashes in the instrument panel.
F

P

lace the gear lever at N for vehicles with
an
etg electronic gearbox or neutral for
vehicles with a manual gearbox.
F

P

ut the corner of the electronic key, where
the indicator lamp is located, in contact
with the " START/STOP " button.


t
h

ere is an audible signal when the
electronic key is recognised; the vehicle
changes to " ON" mode.
F

P

ress the brake pedal on vehicles with an
e

tg
electronic gearbox, or fully declutch
with a manual gearbox.
F

C

heck that the "Keyless e
n
try and
Starting" indicator lamp comes on in green
in the instrument panel.
F

P

ress the " START/STOP " button.


t
h

e engine starts.
If the engine does not start, contact a
P
e

uge
Ot
dealer or a qualified workshop.
Driving

75

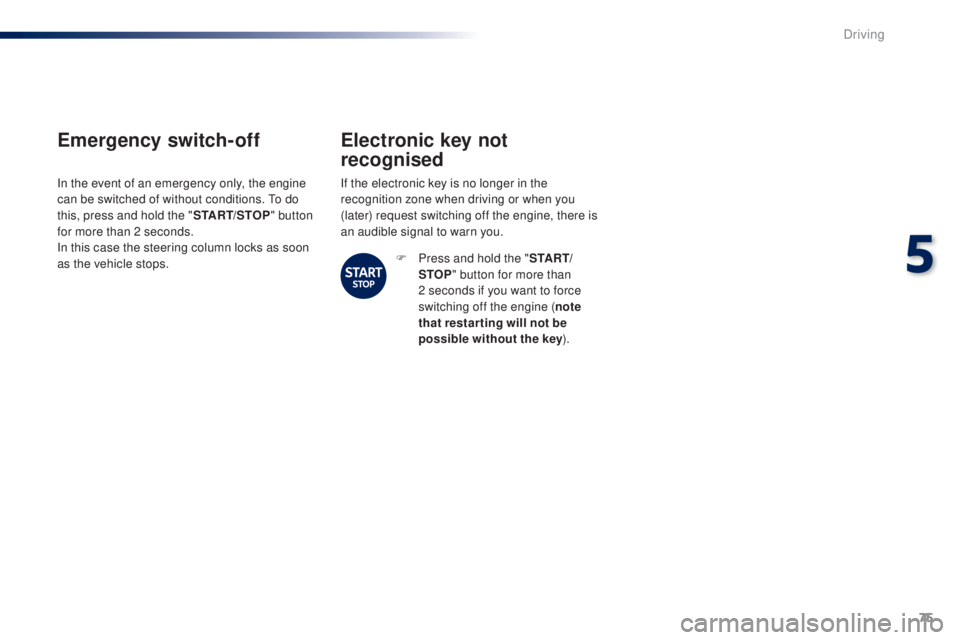

Emergency switch-off
In the event of an emergency only, the engine
can be switched of without conditions. to d o
this, press and hold the " START/STOP" button
for more than 2 seconds.
In this case the steering column locks as soon
as the vehicle stops.
Electronic key not
recognised
If the electronic key is no longer in the
recognition zone when driving or when you
(later) request switching off the engine, there is
an audible signal to warn you.
F

P
ress and hold the " S TA R T/
STOP " button for more than
2
seconds if you want to force
switching off the engine ( note
that restar ting will not be
possible without the key ).
5
Driving

114

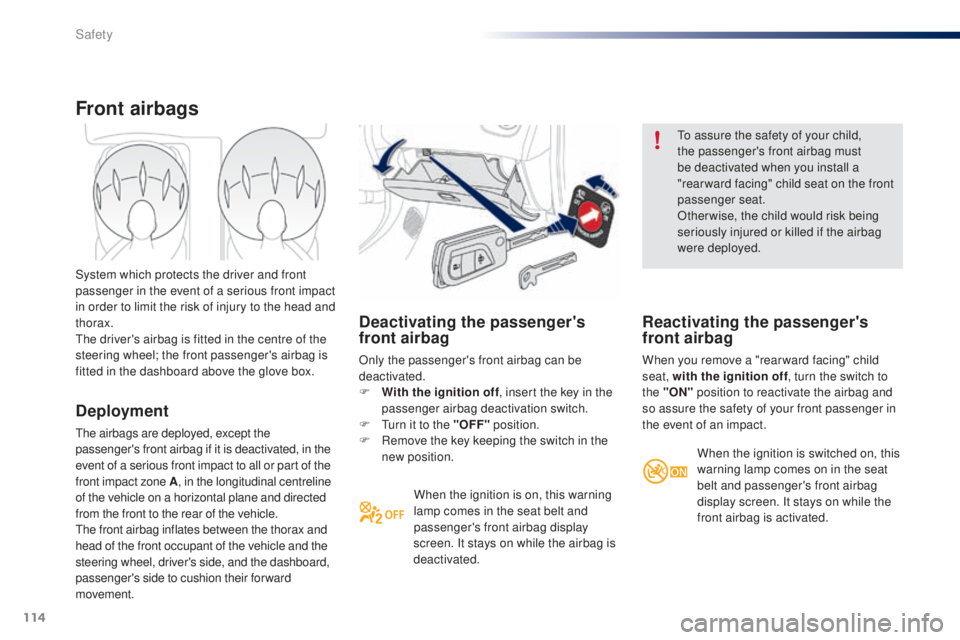

Deactivating the passenger's
front airbag
Only the passenger's front airbag can be
deactivated.
F
W
ith the ignition off , insert the key in the
passenger airbag deactivation switch.
F
t
u
rn it to the "OFF" position.
F

R
emove the key keeping the switch in the
new position.
When the ignition is on, this warning
lamp comes in the seat belt and
passenger's front airbag display
screen. It stays on while the airbag is
deactivated.
to a
ssure the safety of your child,
the passenger's front airbag must
be deactivated when you install a
"rear ward facing" child seat on the front
passenger seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were deployed.
Reactivating the passenger's
front airbag
When you remove a "rear ward facing" child
seat, with the ignition off , turn the switch to
the "ON" position to reactivate the airbag and
so assure the safety of your front passenger in
the event of an impact.
Front airbags
Deployment
the airbags are deployed, except the
passenger's front airbag if it is deactivated, in the
event of a serious front impact to all or part of the
front impact zone A , in the longitudinal centreline
of the vehicle on a horizontal plane and directed
from the front to the rear of the vehicle.
th

e front airbag inflates between the thorax and
head of the front occupant of the vehicle and the
steering wheel, driver's side, and the dashboard,
passenger's side to cushion their forward
movement. System which protects the driver and front
passenger in the event of a serious front impact
in order to limit the risk of injury to the head and
thorax.
th
e driver's airbag is fitted in the centre of the
steering wheel; the front passenger's airbag is
fitted in the dashboard above the glove box.
When the ignition is switched on, this
warning lamp comes on in the seat
belt and passenger's front airbag
display screen. It stays on while the
front airbag is activated.
Safety

132

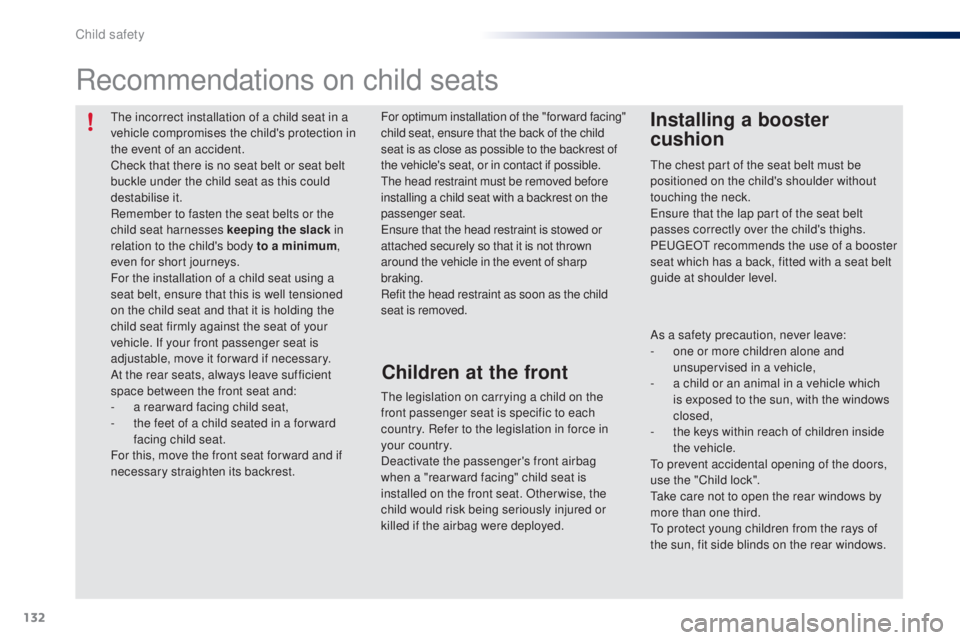

the incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Check that there is no seat belt or seat belt
buckle under the child seat as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack in
relation to the child's body to a minimum,
even for short journeys.
For the installation of a child seat using a
seat belt, ensure that this is well tensioned
on the child seat and that it is holding the
child seat firmly against the seat of your
vehicle. If your front passenger seat is
adjustable, move it forward if necessary.
At the rear seats, always leave sufficient
space between the front seat and:
-

a r
ear ward facing child seat,
-

t
he feet of a child seated in a for ward
facing child seat.
For this, move the front seat for ward and if
necessary straighten its backrest.
Recommendations on child seats
the chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
en

sure that the lap part of the seat belt
passes correctly over the child's thighs.
P
e

uge
Ot
recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, never leave:
-

o
ne or more children alone and
unsupervised in a vehicle,
-

a c
hild or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
-

t
he keys within reach of children inside
the vehicle.
to p

revent accidental opening of the doors,
use the "Child lock".
ta

ke care not to open the rear windows by
more than one third.
to p

rotect young children from the rays of
the sun, fit side blinds on the rear windows.
th

e legislation on carrying a child on the
front passenger seat is specific to each
country. Refer to the legislation in force in
your country.
Deactivate the passenger's front airbag
when a "rear ward facing" child seat is
installed on the front seat. Otherwise, the
child would risk being seriously injured or
killed if the airbag were deployed. For optimum installation of the "forward facing"
child seat, ensure that the back of the child
seat is as close as possible to the backrest of
the vehicle's seat, or in contact if possible.
th

e head restraint must be removed before
installing a child seat with a backrest on the
passenger seat.
en

sure that the head restraint is stowed or
attached securely so that it is not thrown
around the vehicle in the event of sharp
braking.
Refit the head restraint as soon as the child
seat is removed.
Installing a booster
cushion
Children at the front
Child safety

141

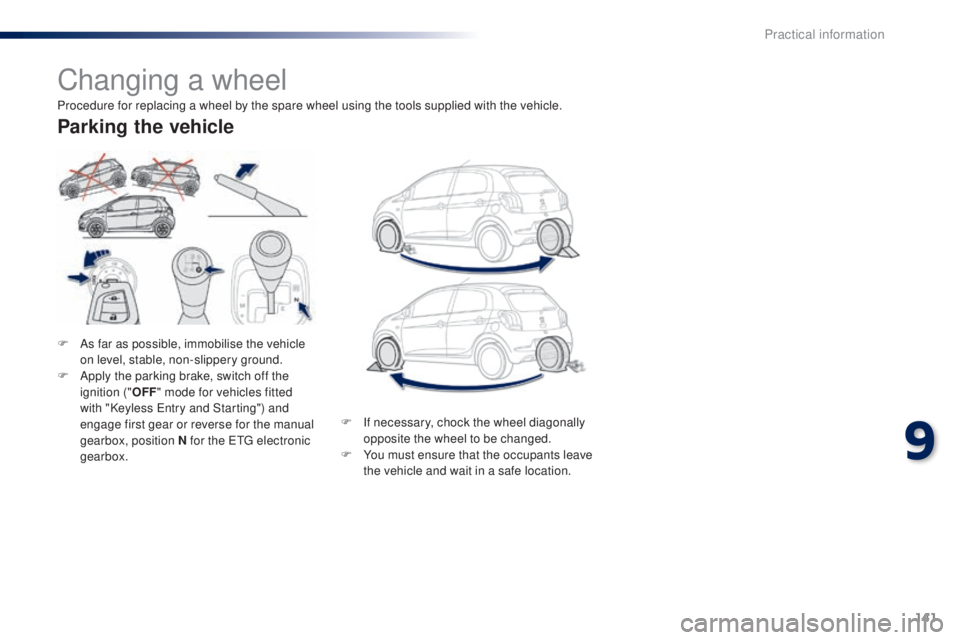

Changing a wheel
F As far as possible, immobilise the vehicle on level, stable, non-slippery ground.
F

A
pply the parking brake, switch off the
ignition (" OFF" mode for vehicles fitted
with "Keyless
e
n
try and Starting") and
engage first gear or reverse for the manual
gearbox, position N for the
etg electronic
gearbox.
Parking the vehicle
Procedure for replacing a wheel by the spare wheel using the tools supplied with the vehicle.
F
I
f necessary, chock the wheel diagonally
opposite the wheel to be changed.
F

Y
ou must ensure that the occupants leave
the vehicle and wait in a safe location.
9
Practical information
