Instruments and controls95
Press the SET/CLR button to select a
function or to confirm a message.
Vehicle Information Menu X
Press the MENU button to select
X .
Turn the adjuster wheel to select a
submenu. Press the SET/CLR button
to confirm.
Follow the instructions given in the
submenus.
Possible submenus can be,
depending on the version:
■ Unit : displayed units can be
changed
■ Tire Pressure : checks tyre pressure
of all wheels during driving 3 204
■ Tire Load : select tyre pressure
category according to the actually
inflated tyre pressure 3 204
■ Remaining Oil Life : indicates when
to change the engine oil and filter
3 85
■ Speed Warning : if exceeding the
preset speed, a warning chime will
be activated
■ Traffic Sign Assistant : displays
detected traffic signs for the current
route section 3 167
■ Following Dist. : displays the
distance to a preceding moving
vehicle 3 156
Trip/Fuel Information Menu W
Press the MENU button to select W.
Turn the adjuster wheel to select a
page:

96Instruments and controls

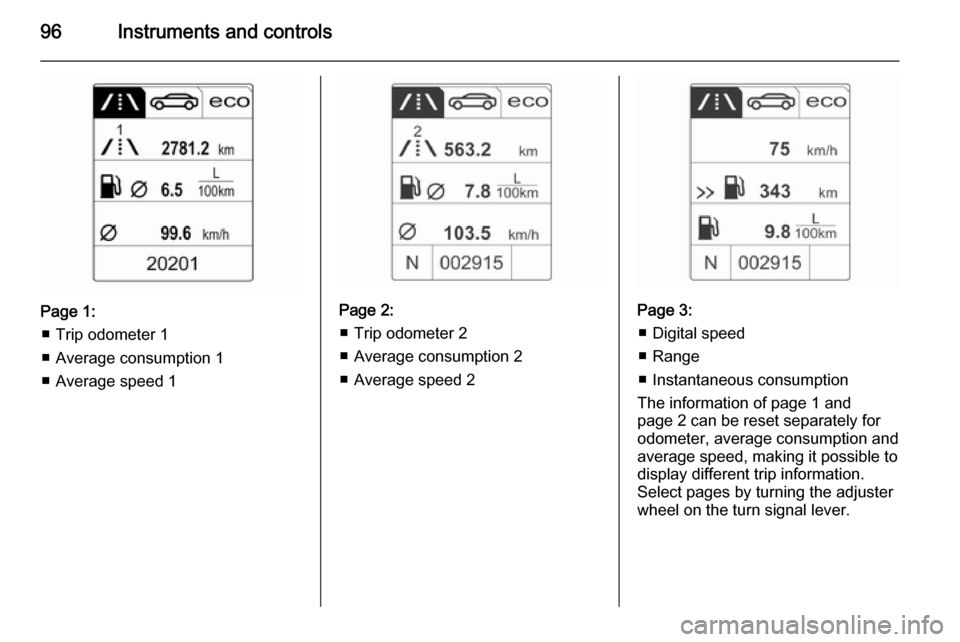

Page 1:■ Trip odometer 1
■ Average consumption 1
■ Average speed 1Page 2: ■ Trip odometer 2
■ Average consumption 2
■ Average speed 2Page 3: ■ Digital speed
■ Range
■ Instantaneous consumption
The information of page 1 and
page 2 can be reset separately for
odometer, average consumption and
average speed, making it possible to
display different trip information.
Select pages by turning the adjuster
wheel on the turn signal lever.

Instruments and controls97
Trip odometer 1 or 2
Trip odometer displays the recorded
distance since a certain reset.
Trip odometer counts up to a distance
of 2,000 km and then restarts at 0.
Reset trip odometer by pressing the
SET/CLR button on the turn signal
lever for a few seconds or by pressing the reset knob near the speedometer
separately for selected page 1 or 2.
Average consumption 1 or 2 Display of average consumption. Themeasurement can be reset at any
time and starts with a default value.
To reset, press the SET/CLR button
for a few seconds separately for
selected page 1 or 2.
Average speed 1 or 2 Display of average speed. The
measurement can be reset at any
time.
To reset, press the SET/CLR button
for a few seconds separately for
selected page 1 or 2.
Digital speed Digital display of the instantaneous
speed.
Range
Range is calculated from current fuel
tank content and current
consumption. The display shows
average values.
After refuelling, the range is updated
automatically after a brief delay.
When the fuel level in the tank is low, a message appears in the display.
When the tank has to be refuelled
immediately, a warning message is
displayed.Additionally the control indicator
I in the fuel gauge illuminates or
flashes 3 92.
Instantaneous consumption Displays the instantaneous
consumption.
ECO Information Menu s
Press the MENU button to select
s .
Turn the adjuster wheel to select a
page:
■ Shift indication : Current gear is
indicated inside an arrow. The digit

98Instruments and controls
above recommends upshifting for
fuel saving reasons.
Eco index display : The current fuel
consumption is indicated on a
segment display. For economical driving adapt your driving style to
keep the filled segments within the
Eco area. The more segments are
filled, the higher the fuel
consumption. Simultaneously the
current consumption value is
indicated.
■ Top Consumers : List of top comfort
consumers currently switched on is displayed in descending order. Fuel
saving potential is indicated. A
switched off consumer disappears
from the list and the consumption
value will be updated.
During sporadic driving conditions,
the heated rear window is activated automatically to increase engine
load. In this event, the heated rear
window is indicated as one of the
top consumers, without activation
by the driver.
■ Economy Trend : Displays the
average consumption development
over a distance of 50 km. Filled
segments display the consumption
in 5 km steps and shows the effect
of topography or driving behaviour
on fuel consumption.
Graphic-Info-Display,
Colour-Info-Display Depending on the vehicle
configuration the vehicle has a
Graphic-Info-Display or a Colour-
Info-Display.
The Info-Displays is located in the
instrument panel above the
Infotainment system.
Graphic-Info-Display

Instruments and controls99
Depending on the Infotainment
system, the Graphic-Info-Display is
available in two versions.
Graphic-Info-Display indicates:
■ time 3 80
■ outside temperature 3 80
■ date 3 80
■ electronic climate control settings 3 126
■ Infotainment system, see description in the Infotainment
system manual
■ settings for vehicle personalisation 3 102
Colour-Info-Display
The Colour-Info-Display indicates in
colour:
■ time 3 80
■ outside temperature 3 80
■ date 3 80
■ electronic climate control settings 3 126
■ rear view camera 3 165
■ Infotainment system, see description in the Infotainment
system manual
■ navigation, see description in the Infotainment system manual
■ system settings
■ vehicle messages 3 100
■ settings for vehicle personalisation 3 102
The type of information and how it is
displayed depends on the equipment
of the vehicle and the settings made.
Selecting menus and settingsMenus and settings are accessed via
the display.
Push button CONFIG: Menu page
Settings is displayed.

100Instruments and controls
Turn multifunction knob to:■ select a setting or value
■ display a menu option
Push multifunction knob to: ■ confirm a setting or value
■ select or activate the marked option
■ switch a system function on/off
Push button BACK to:
■ exit a menu or setting without changing
■ return from a submenu to a higher menu level
■ delete the last character in a character sequence. Push BACK
for a few seconds to delete the
entire entry.
To exit the Settings menu, push
button BACK stepwise or push button
CONFIG after confirming the
changes.
Vehicle personalisation 3 102.
Memorised settings 3 21.
Vehicle messages
Messages are indicated in the Driver
Information Centre (DIC), in some
cases together with a warning and
signal sound.
Press the SET/CLR button, the
MENU button or turn the adjuster
wheel to confirm a message.

Instruments and controls101
Messages in the Driver
Information Centre (DIC)
The vehicle messages are displayed
as text. Follow the instructions given
in the messages.
The system displays messages
regarding the following topics:
■ Service messages
■ Fluid levels
■ Anti-theft alarm system
■ Brakes
■ Ride control systems
■ Driver assistance systems
■ Cruise control
■ Speed limiter
■ Parking assist systems
■ Lighting, bulb replacement
■ Wiper/washer system
■ Doors, windows
■ Soft top
■ Load compartment, boot lid
■ Radio remote control
■ Seat belts
■ Airbag systems
■ Engine and transmission
■ Tyre pressure
■ Diesel particle filter
■ Vehicle battery status
Messages in the
Colour-Info-Display
Some important messages may
appear additionally in the
Colour-Info-Display. Press the
multifunction knob to confirm a
message. Some messages only pop
up for a few seconds.Warning chimes
When starting the engine or
whilst driving Only one warning chime will sound at
a time.
The warning chime regarding
unfastened seat belts has priority
over any other warning chime.
■ If seat belt is not fastened.
■ If a door or the boot lid is not fully closed when starting off.
■ If the soft top is not completely opened or closed.
■ If the soft top lid is not completely closed.
■ If the load compartment partition is folded in when operating the soft
top.
■ If a certain speed is exceeded with parking brake applied.
■ If a certain speed is exceeded when
operating the soft top.
■ If a programmed speed or speed limit is exceeded.

102Instruments and controls
■ If a warning message appears inthe Driver Information Centre.
■ If the parking assist detects an object.
■ If unintended lane change occurs.
■ If the diesel particle filter has reached the maximum filling level.
When the vehicle is parked and/ or the driver's door is opened ■ When the key is in the ignition switch.
■ With exterior lights on.
During an Autostop ■ If the driver's door is opened.
Battery voltage When the vehicle battery voltage is
running low, a warning message will
appear in the Driver Information
Centre.1. Switch off immediately any electrical consumers which are
not required for a safe ride, e.g.
seat heating, heated rear window
or other main consumers.
2. Charge the vehicle battery by driving continuously for a while or
by using a charging device.
The warning message will disappear
after the engine has been started
twice consecutively without a voltage
drop.
If the vehicle battery cannot be
recharged, have the cause of the fault
remedied by a workshop.Vehicle personalisation
The vehicle's behaviour can be
personalised by changing the settings in the Info-Display.
Some of the personal settings for
different drivers can be memorised
individually for each vehicle key.
Memorised settings 3 21.
Depending on vehicle equipment and
country-specific regulations some of
the functions described below may
not be available.
Some functions are only displayed or
active when the engine is running.
Personal settings in the
Graphic-Info-Display
CD 300/CD 400/CD400plus
