2014 OPEL ANTARA technical data

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............19
Seats, restraints ........................... 34
Storage ........................................ 56
Instruments and controls .............73
Lighting ...................................... 106
Climate control ........................... 115
Driving and operating .................123
Vehicle care ............................... 151
Service and maintenance ..........194
Technical data ........................... 197
Customer information ................208
Index .......................................... 210Contents

Introduction3Vehicle specific data
Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.When this Owner's Manual refers to aworkshop visit, we recommend your
Opel Service Partner.
All Opel Service Partners provide
first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ■ This manual describes all options and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model variant,
country specifications, special
equipment or accessories.
■ The "In brief" section will give you an initial overview.
■ The table of contents at the beginning of this manual and withineach section shows where the
information is located.■ The index will enable you to search
for specific information.
■ This Owner's Manual depicts left- hand drive vehicles. Operation is
similar for right-hand drive vehicles.
■ The Owner's Manual uses the factory engine designations. The
corresponding sales designations
can be found in the section
"Technical data".
■ Directional data, e.g. left or right, or
front or back, always relate to the direction of travel.
■ The vehicle display screens may not support your specific language.
■ Display messages and interior labelling are written in bold letters.
Danger, Warnings and
Cautions9 Danger
Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.

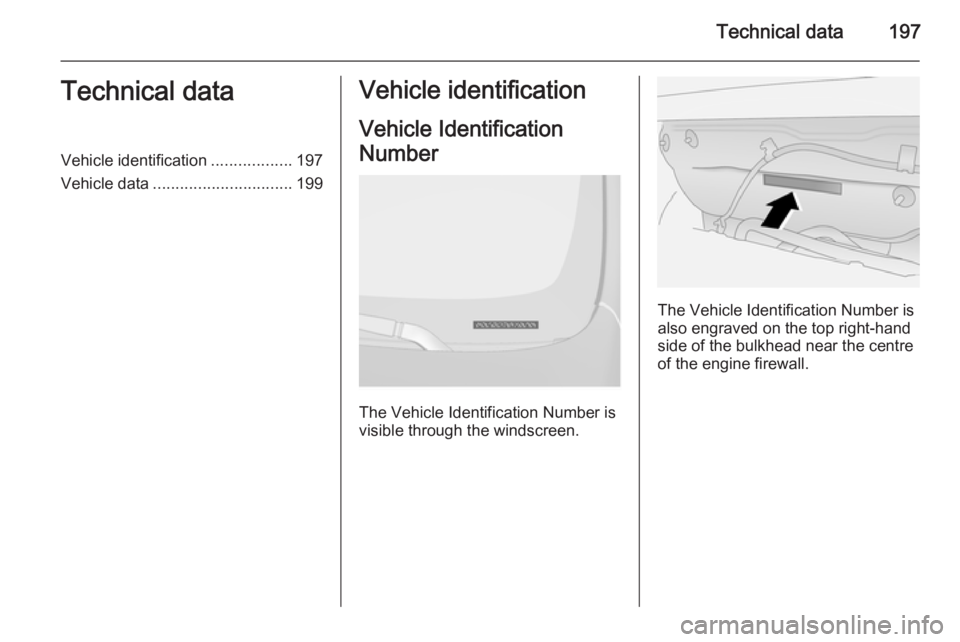

Technical data197Technical dataVehicle identification..................197
Vehicle data ............................... 199Vehicle identification
Vehicle Identification
Number
The Vehicle Identification Number is
visible through the windscreen.
The Vehicle Identification Number is
also engraved on the top right-hand
side of the bulkhead near the centre
of the engine firewall.

198Technical dataIdentification plate
The identification label is located on
the front left door frame.
Information on identification label:1=Manufacturer2=Type approval number3=Vehicle Identification Number4=Permissible gross vehicle
weight rating in kg5=Permissible gross train weight
in kg6=Maximum permissible front axle load in kg7=Maximum permissible rear axle
load in kg8=Vehicle-specific or country-
specific data
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identification
The technical data tables show the
engine identifier code. Engine data
3 202.
To identify the respective engine,
refer to the engine power in the EEC
Certificate of Conformity provided
with your vehicle or other national
registration documents.

Technical data199Vehicle dataRecommended fluids and lubricantsEuropean service scheduleRequired engine oil qualityAll European countries
(except Belarus, Moldova, Russia, Turkey)
Only Israel
Engine oil qualityPetrol engines
(including E85)Diesel enginesPetrol engines
(including E85)Diesel enginesdexos 1––✔–dexos 2✔✔–✔
In case dexos quality is unavailable you may use max. 1 litre engine oil quality ACEA C3 once between each oil change.
Engine oil viscosity grades
All European countries and Israel (except Belarus, Moldova, Russia, Turkey)Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40

200Technical data
International service scheduleRequired engine oil qualityAll countries outside Europe except Israel
Only Belarus, Moldova, Russia, Turkey
Engine oil qualityPetrol engines
(including E85)Diesel enginesPetrol engines
(including E85)Diesel enginesdexos 1✔–––dexos 2–✔✔✔
In case dexos quality is unavailable you may use the oil qualities listed below:
All countries outside Europe except Israel
Only Belarus, Moldova, Russia, Turkey
Engine oil qualityPetrol engines
(including E85)Diesel enginesPetrol engines
(including E85)Diesel enginesGM-LL-A-025✔–✔–GM-LL-B-025–✔–✔

Technical data201
All countries outside Europeexcept Israel
Only Belarus, Moldova, Russia, Turkey
Engine oil qualityPetrol engines
(including E85)Diesel enginesPetrol engines
(including E85)Diesel enginesACEA A3/B3✔–✔–ACEA A3/B4✔✔✔✔ACEA C3✔✔✔✔API SM✔–✔–API SN resource conserving✔–✔–
Engine oil viscosity grades
All countries outside Europe (except Israel),
including Belarus, Moldova, Russia, TurkeyAmbient temperaturePetrol and diesel enginesdown to -25 °CSAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40down to -20 °CSAE 10W-30 1)
or SAE 10W-40 1)1)
Permitted, but usage of SAE 5W-30 or SAE 5W-40 with dexos quality is recommended.

202Technical dataEngine dataSales designation2.43.0 V62.2 CDTI2.2 CDTIEngine identifier codeA 24 XFA 30 XFA 22 DMA 22 DMHNumber of cylinders4644Piston displacement [cm3
]2384299722312231Engine power [kW]123190120135at rpm5600690038003800Torque [Nm]217287350400at rpm4500540020002000Fuel typePetrolPetrolDieselDieselCetane requirement [CN]––49 (D)49 (D)Octane rating [RON] recommended 2)9595––possible98
91 3)98
91 3)––Additional fuel typeE85E85––Oil consumption [l/1000 km]0.60.60.60.62)
Use unleaded Premium fuel only for the following countries: Armenia, Azerbaijan, Belarus, Moldova.
3) Use of 91 RON fuel reduces power and torque. If no unleaded Premium fuel is available, 91 RON can be used, taking care to avoid high engine load or
full load as well as driving in mountainous terrain with a trailer load or high payload.
