2014 NISSAN XTERRA Owners Manual

To remove the fuel-filler cap:1. Turn the fuel-filler cap counterclockwise to remove.
2. Put the fuel-filler cap on the cap holder
1
while refueling.
To install the fuel-filler cap: 1. Insert the fuel-filler cap straight into the fuel- filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
Loose Fuel Cap warning message
The LOOSE FUEL CAP warning message dis-
plays in the odometer when the fuel-filler cap is
not tightened correctly after the vehicle has been
refueled. It may take a few driving trips for the
message to be displayed. To turn off the warning
message, perform the following:
1. Remove and install the fuel-filler cap as pre- viously described as soon as possible.
2. Tighten the fuel-filler cap until it clicks.
3. Press the loose fuel cap warning reset but- ton
Ain the meter for about 1 second to
turn off the LOOSE FUEL CAP warning
message after tightening the fuel-filler cap.
TILT OPERATION
WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
Pull the lock lever forward and hold it to adjust the
steering wheel up or down to the desired posi-
tion.
Release the lock lever to lock the steering wheel
in place.
LPD0323LRS2004LPD0304
STEERING WHEEL
3-12Pre-driving checks and adjustments

1To block glare from the front, swing down the
main sun visor.
2To block glare from the side, remove the
main sun visor from the center mount and
swing the visor to the side.
1To block glare from the front, swing down the
main sun visor.
2To block glare from the side, remove the
main sun visor from the center mount and
swing the visor to the side.
3To extend the sun visor, slide in or out as
needed.
CAUTION
● Do not store the sun visor before return-
ing the extension to its original
position.
● Do not pull the extension sun visor
forcedly downward.
Type A
LPD2021Type BLPD2154
SUN VISORS
Pre-driving checks and adjustments3-13

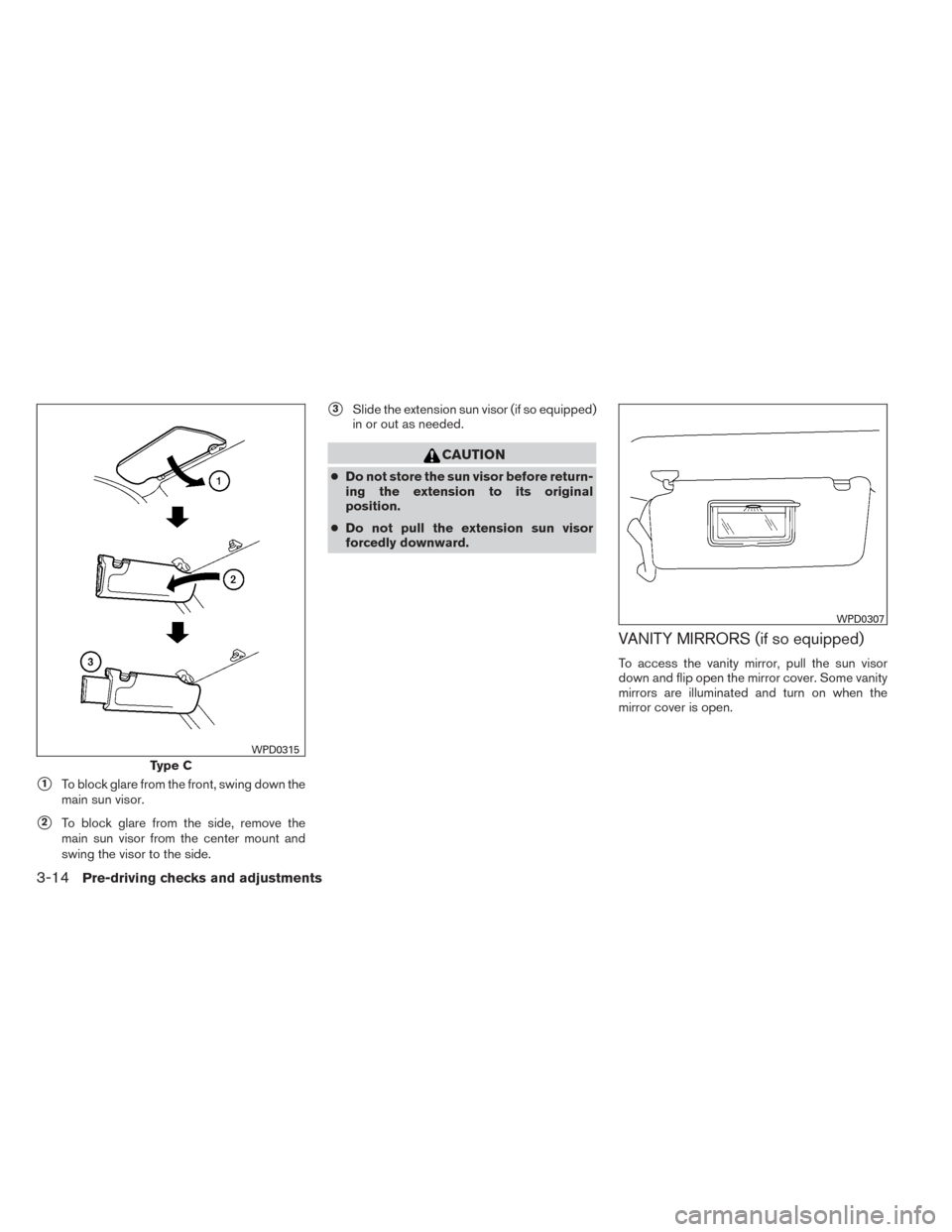

1To block glare from the front, swing down the
main sun visor.
2To block glare from the side, remove the
main sun visor from the center mount and
swing the visor to the side.
3Slide the extension sun visor (if so equipped)
in or out as needed.
CAUTION
● Do not store the sun visor before return-
ing the extension to its original
position.
● Do not pull the extension sun visor
forcedly downward.
VANITY MIRRORS (if so equipped)
To access the vanity mirror, pull the sun visor
down and flip open the mirror cover. Some vanity
mirrors are illuminated and turn on when the
mirror cover is open.
Type C
WPD0315
WPD0307
3-14Pre-driving checks and adjustments

REARVIEW MIRROR (if so equipped)
The night position1reduces glare from the
headlights of vehicles behind you at night.
Use the day position
2when driving in daylight
hours.
WARNING
Use the night position only when neces-
sary, because it reduces rear view clarity.
AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so equipped)
The inside mirror is designed so that it automati-
cally dims according to the intensity of the head-
lights of the vehicle following you. The automatic
anti-glare feature is activated when the ignition
switch is in the ON position.
NOTE:
Do not hang any objects over the sensors
1or apply glass cleaner to the sensors.
Doing so will reduce the sensitivity of the
sensors, resulting in improper operation. The indicator light will illuminate when the auto-
matic anti-glare feature is operating.
With the ignition switch in the ON position, press
the
button as described:
● To turn off the anti-glare feature, press
the
button. The indicator light will turn
off.
● To turn on the anti-glare feature, press
the
button again. The indicator light
will turn on.
For more information about the compass
2and
compass features (if so equipped) , refer to
“Compass display” in the “Instruments and con-
trols” section of this manual.
OUTSIDE MIRRORS
WARNING
● Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident.
● Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
WPD0126LPD0446
MIRRORS
Pre-driving checks and adjustments3-15

Manual control type (if so equipped)
The outside mirror can be moved in any direction
for a better rear view.
Electric control type (if so equipped)
The outside mirror remote control will operate
only when the ignition switch is placed in the
ACC or ON position.
Move the small switch
1to select the right or left
mirror. Adjust each mirror to the desired position
using the large switch
2.
Heated mirrors (Canada only) (if so
equipped)
Some outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. For addi-
tional information, see “Rear window and outside
mirror defroster switch” in the “Instruments and
controls” section of this manual.
WPD0170LPD0237
3-16Pre-driving checks and adjustments

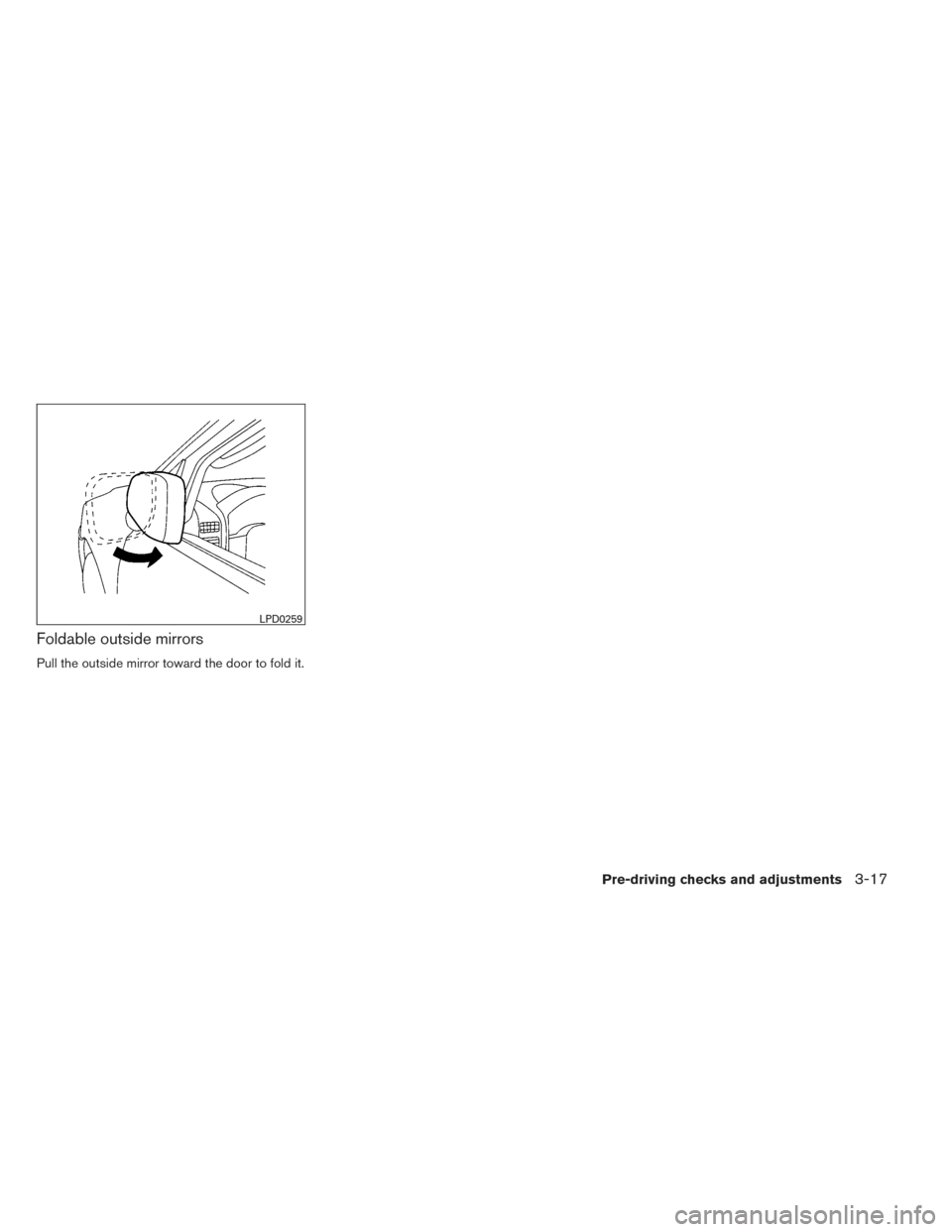

Foldable outside mirrors
Pull the outside mirror toward the door to fold it.
LPD0259
Pre-driving checks and adjustments3-17

4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen with
Navigation System (if so equipped)..................4-2
How to use the touch screen ....................4-3
How to use the BACK button ....................4-5
How to use the APPS – i button .................4-5
button...................................4-7
How to use the ON-OFF button/VOL
(volume) control knob ...........................4-7
How to use the CAMERA button .................4-7
RearView Monitor (if so equipped) ...................4-8
How to read the displayed lines ..................4-8
Difference between predicted and actual
distances ......................................4-9
Adjusting the screen ........................... 4-11
Operating tips ................................. 4-12
Vents . .......................................... 4-13
Heater and air conditioner (manual) .................4-14
Controls ...................................... 4-14
Heater operation .............................. 4-15
Air conditioner operation .......................4-16
Air flow charts ................................. 4-17
Servicing air conditioner ........................... 4-21
Audio system .................................... 4-21Radio
........................................ 4-21
FM radio reception ............................ 4-21
AM radio reception ............................ 4-22
Satellite radio reception (if so equipped) . . . ......4-22
Audio operation precautions ....................4-22
FM/AM radio with compact disc (CD) player
(if so equipped) ............................... 4-29
FM/AM/SAT radio with compact disc (CD)
player (Type A) (if so equipped) .................4-34
FM/AM/SAT radio with compact disc (CD)
player (Type B) (if so equipped) .................4-39
USB interface (models without Navigation
System) (if so equipped) .......................4-44
USB interface (models with Navigation
System) ...................................... 4-46
iPod®* player operation without Navigation
System (if so equipped) ........................ 4-48
iPod®* player operation with Navigation
System (if so equipped) ........................ 4-50
Bluetooth® streaming audio with Navigation
System (if so equipped) ........................ 4-53
Pandora® audio (United States only)
(if so equipped) ............................... 4-54
CD care and cleaning .......................... 4-55

Steering wheel switch for audio control..........4-56
Antenna ...................................... 4-57
NissanConnect™ App Smartphone Integration
(if so equipped) .................................. 4-58
Registering with NissanConnect™ App ...........4-58
Connect Phone ............................... 4-58
Application Download .......................... 4-58
Car phone or CB radio . . .......................... 4-58
Bluetooth® Hands-Free Phone System without
Navigation System (if so equipped) .................4-59
Regulatory Information ......................... 4-60
Using the system .............................. 4-61
Control buttons ............................... 4-63
Getting started ................................ 4-63
List of voice commands ........................ 4-65
Voice Adaptation (VA) mode ....................4-70
Manual control ................................ 4-71
Troubleshooting guide ......................... 4-72
Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) .................4-73
Regulatory Information ......................... 4-74
Voice commands .............................. 4-75Connecting Procedure
......................... 4-75
Vehicle phonebook ............................ 4-75
Making a call .................................. 4-76
Receiving a call ............................... 4-76
During a call .................................. 4-76
Ending a call .................................. 4-76
Text messaging ................................ 4-76
Bluetooth® settings ........................... 4-78
Phone settings ................................ 4-79
NISSAN Voice Recognition System
(if so equipped) . . . ............................... 4-79
Using the system .............................. 4-79
System features ............................... 4-81
Bluetooth® Hands-Free Phone System
voice commands .............................. 4-81
Navigation System voice commands .............4-82
Audio
system voice commands ..................4-83
Information voice commands ....................4-83
My Apps Voice Commands .....................4-83
Help voice commands ......................... 4-83
Troubleshooting guide ......................... 4-84
