Low windshield-washer fluidwarning light (if so equipped)
This light comes on when the windshield-washer
fluid is at a low level. Add windshield-washer fluid
as necessary. See “Windshield-washer fluid” in
the “Maintenance and do-it-yourself” section of
this manual.
NISSAN Intelligent Key®warning light (if so equipped)
The Intelligent Key warning light illuminates green
when the ignition switch can be turned. The
Intelligent Key warning light illuminates red when
the ignition switch cannot be turned.
The Intelligent Key warning light blinks red if the
Intelligent Key is taken outside of the vehicle
while the ignition switch is placed in the ACC or
ON position.
● If the Intelligent Key warning light blinks,
make sure of the location of the Intelligent
Key as soon as possible. The Intelligent Key
should be carried by the driver while operat-
ing the vehicle.
● The Intelligent Key warning light turns off
about 10 seconds after the Intelligent Key is
brought inside the vehicle. The Intelligent Key warning light blinks green
indicating that the Intelligent Key battery is almost
discharged.
See “NISSAN Intelligent Key®” in the “Pre-
driving checks and adjustments” section.
Power steering warning light
WARNING
●
If the engine is not running or is turned
off while driving, the power assist for
the steering will not work. Steering will
be harder to operate.
● When the power steering warning light
illuminates with the engine running,
there will be no power assist for the
steering. You will still have control of
the vehicle but the steering will be
harder to operate. Have the power
steering system checked by a NISSAN
dealer.
When the ignition switch is placed in the ON
position, the power steering warning light illumi-
nates. After starting the engine, the power steer-
ing warning light turns off. This indicates the
power steering system is operational. If the power steering warning light illuminates
while the engine is running, it may indicate the
power steering system is not functioning properly
and may need servicing. Have the power steering
system checked by a NISSAN dealer.
When the power steering warning light illumi-
nates with the engine running, there will be no
power assist for the steering but you will still have
control of the vehicle. At this time, greater steering
effort is required to operate the steering wheel,
especially in sharp turns and at low speeds.
See “Power steering” in the “Starting and driving”
section.
P position selecting warning
light (for models with NISSAN
Intelligent Key®) (if so
equipped)
The light blinks red and the warning buzzer
sounds if you are outside of the vehicle with the
Intelligent Key and the engine is off, but the shift
lever is not in the P (Park) position.
When the warning light blinks, place the ignition
switch in the ON position, move the shift lever to
the P (Park) position, then place the ignition
switch in the LOCK position.
Instruments and controls2-13

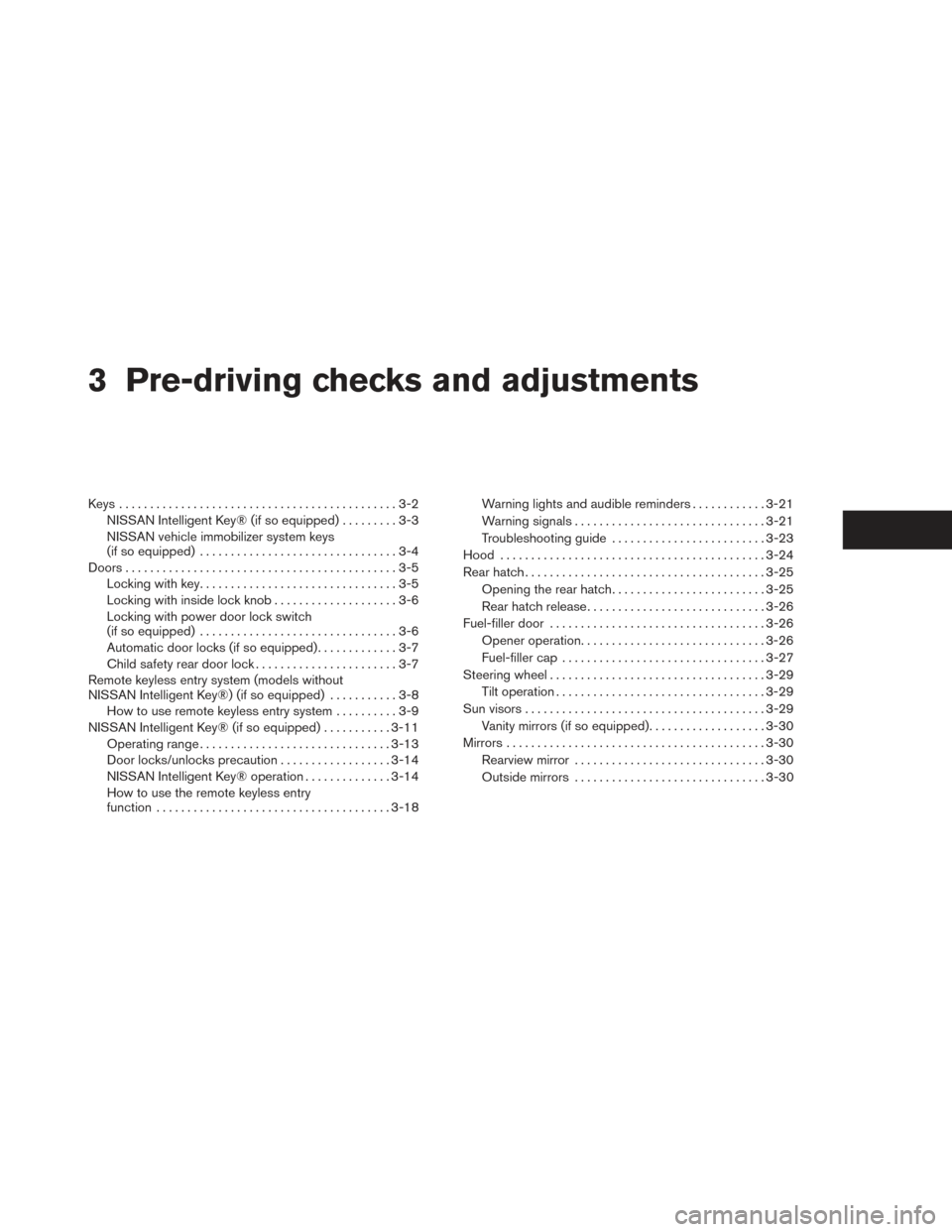

3 Pre-driving checks and adjustments
Keys .............................................3-2NISSAN Intelligent Key® (if so equipped) .........3-3
NISSAN vehicle immobilizer system keys
(if so equipped) ................................3-4
Doors ............................................3-5
Locking with key ................................3-5
Locking with inside lock knob ....................3-6
Locking with power door lock switch
(if so equipped) ................................3-6
Automatic door locks (if so equipped) .............3-7
Child safety rear door lock .......................3-7
Remote keyless entry system (models without
NISSAN Intelligent Key®) (if so equipped) ...........3-8
How to use remote keyless entry system ..........3-9
NISSAN Intelligent Key® (if so equipped) ...........3-11
Operating range ............................... 3-13
Door locks/unlocks precaution ..................3-14
NISSAN Intelligent Key® operation ..............3-14
How to use the remote keyless entry
function ...................................... 3-18Warning lights and audible reminders
............3-21
Warning signals ............................... 3-21
Troubleshooting guide ......................... 3-23
Hood ........................................... 3-24
Rear hatch ....................................... 3-25
Opening the rear hatch ......................... 3-25
Rear hatch release ............................. 3-26
Fuel-filler door ................................... 3-26
Opener operation .............................. 3-26
Fuel-filler cap . . ............................... 3-27
Steering wheel ................................... 3-29
Tilt operation .................................. 3-29
Sun visors ....................................... 3-29
Vanity mirrors (if so equipped) ...................3-30
Mirrors .......................................... 3-30
Rearview mirror ............................... 3-30
Outside mirrors ............................... 3-30

TILT OPERATION
Push the lock lever1down and adjust the
steering wheel up or down
2to the desired
position.
Pull the lock lever
1up to lock the steering
wheel in place.
WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.1To block glare from the front, swing down the
sun visor.
2To block glare from the side, remove the sun
visor from the center mount and swing the
visor to the side.
3Slide the extension sun visor in or out as
needed.
CAUTION
● Do not store the sun visor before return-
ing the extension to its original
position.
● Do not pull the extension sun visor forc-
ibly downward.
LPD0355
WPD0435
STEERING WHEEL SUN VISORS
Pre-driving checks and adjustments3-29

When driving in areas using road salt or other
corrosive materials, check lubrication frequently.
Lights*Clean the headlights on a regular basis.
Make sure that the headlights, stop lights, tail
lights, turn signal lights, and other lights are all
operating properly and installed securely. Also
check headlight aim.
Road wheel nuts (lug nuts)* When checking
the tires, make sure no wheel nuts are missing,
and check for any loose wheel nuts. Tighten if
necessary.
Tire rotation* Tires should be rotated every
7,500 miles (12,000 km).
Tires* Check the pressure with a gauge often
and always prior to long distance trips. If neces-
sary, adjust the pressure in all tires, including the
spare, to the pressure specified. Check carefully
for damage, cuts or excessive wear.
Tire Pressure Monitoring System (TPMS)
transmitter components (if so equipped)
Replace the TPMS transmitter grommet seal,
valve core and cap when the tires are replaced
due to wear or age.
Wheel alignment and balance If the vehicle
should pull to either side while driving on a
straight and level road, or if you detect uneven or
abnormal tire wear, there may be a need for wheel alignment. If the steering wheel or seat vibrates at
normal highway speeds, wheel balancing may be
needed.
● For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the Warranty Information Booklet.
Windshield Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a dam-
aged windshield repaired by a qualified repair
facility.
Windshield wiper blades* Check for cracks or
wear if they do not wipe properly.
Inside the vehicle
The maintenance items listed here should be
checked on a regular basis, such as when per-
forming periodic maintenance, cleaning the ve-
hicle, etc.
Additional information on the following
items with an “*” is found in this section.
Accelerator pedal Check the pedal for smooth
operation and make sure the pedal does not bind
or require uneven effort. Keep the floor mat away
from the pedal.
Brake pedal Check the pedal for smooth opera-
tion. If the brake pedal suddenly goes down fur- ther than normal, the pedal feels spongy or the
vehicle seems to take longer to stop, see a
NISSAN dealer immediately. Keep the floor mat
away from the pedal.
Brakes
Check that the brakes do not pull the
vehicle to one side when applied.
Continuously Variable Transmission (CVT)
P (Park) position mechanism (if so
equipped) On a fairly steep hill check that the
vehicle is held securely with the shift lever in the P
(Park) position without applying any brakes.
Parking brake Check the parking brake opera-
tion regularly. The vehicle should be securely held
on a fairly steep hill with only the parking brake
applied. If the parking brake needs adjustment,
see a NISSAN dealer.
Seats Check seat position controls such as seat
adjusters, seat back recliner, etc. to ensure they
operate smoothly and all latches lock securely in
every position. Check that the head
restraints/headrests move up and down
smoothly and the locks hold securely in all
latched positions.
Seat belts Check that all parts of the seat belt
system (for example, buckles, anchors, adjusters
and retractors) operate properly and smoothly,
and are installed securely. Check the belt web-
bing for cuts, fraying, wear or damage.
Maintenance and do-it-yourself8-3

Steering wheel audio control switch....4-67
Readiness for inspection maintenance
(I/M) test .....................9-20
Rearcenterseatbelt ..............1-15
Rear power windows ..............2-34
Rearseat......................1-4
RearViewMonitor.................4-9
Rear window defroster switch .........2-20
Rear window wiper and washer switches . . .2-20
Recorders Eventdata..................9-20
Refrigerant recommendation ...........9-7
Registering your vehicle in another country . .9-10
Reporting safety defects (US only) .......9-19
S
Safety Child safety rear door lock ..........3-7
Childseatbelts.....1-20,1-27,1-31,1-35
Reporting safety defects (US only) .....9-19
Seat adjustment Front manual seat adjustment ........1-2
Rear seat adjustment .............1-4
Seatback pockets ................2-27
Seat belt Childsafety..................1-18
Infantsandsmallchildren..........1-19
Injured Person ................1-12
Largerchildren................1-19
Precautionsonseatbeltusage........1-9
Pregnant women ...............1-12
Rear center seat belt ............1-15
Seat belt extenders .............1-17
Seat belt maintenance ............1-18 Seatbelts ...................1-9
Shoulder belt height adjustment
......1-17
Three-point type with retractor .......1-12
Seat belt warning light ..............2-14
Seats Adjustment ...................1-2
Frontseats...................1-2
Heatedseats.................2-24
Manual front seat adjustment .........1-2
Rearseat....................1-4
Security indicator light ..............2-16
Security system (NISSAN vehicle immobilizer
system) , engine start .....2-17,3-4,5-10,5-13
Self-adjusting brakes ..............8-19
Service manual order form ...........9-21
Servicing air conditioner .............4-29
Setting button ...................4-5
Shifting Continuously Variable Transmission
(CVT) .....................5-16
Manual transmission .............5-19
Shoulder belt height adjustment ........1-17
Side air bag system
(See supplemental side air bag and
curtain side-impact air bag system) ......1-51
Sparkplugreplacement.............8-16
Speedometer ...................2-3
SRSwarninglabel................1-53
Starting Before starting the engine ..........5-13
Jump starting .................6-12
Precautions when starting and driving ....5-2
Push starting .................6-14
Starting the engine .............5-14 Steering
Power steering system ...........5-26
Tilting steering wheel ............3-29
Steering wheel audio control switch ......4-67
Stoplight.....................8-26
Storage......................2-27
Storage tray ...................2-28
Sun visors ....................3-29
Supplemental air bag warning labels ......1-53
Supplemental air bag warning light . . .1-54, 2-14
Supplemental front impact air bag system . . .1-46
Supplemental restraint system Information and warning labels .......1-53
Precautions

on supplemental restraint
system ....................1-39
Supplemental restraint system
(Supplemental air bag system) .........1-39
Supplemental side and curtain side-impact
air bag system ..................1-51
Switch Automatic power window switch ......2-34
Fog light switch ...............2-23
Hazard warning flasher switch ........6-2
Headlightandturnsignalswitch......2-21
Headlight control switch ..........2-21
Ignition switch .................5-8
Power door lock switch ............3-6
Rearwindowdefrosterswitch .......2-20
Rear window wiper and washer
switches...................2-20
Turnsignalswitch..............2-23
Vehicle dynamic control (VDC) off
switch .....................2-25
Windshield wiper and washer switch . . .2-19
10-5
