2014 NISSAN VERSA NOTE odometer

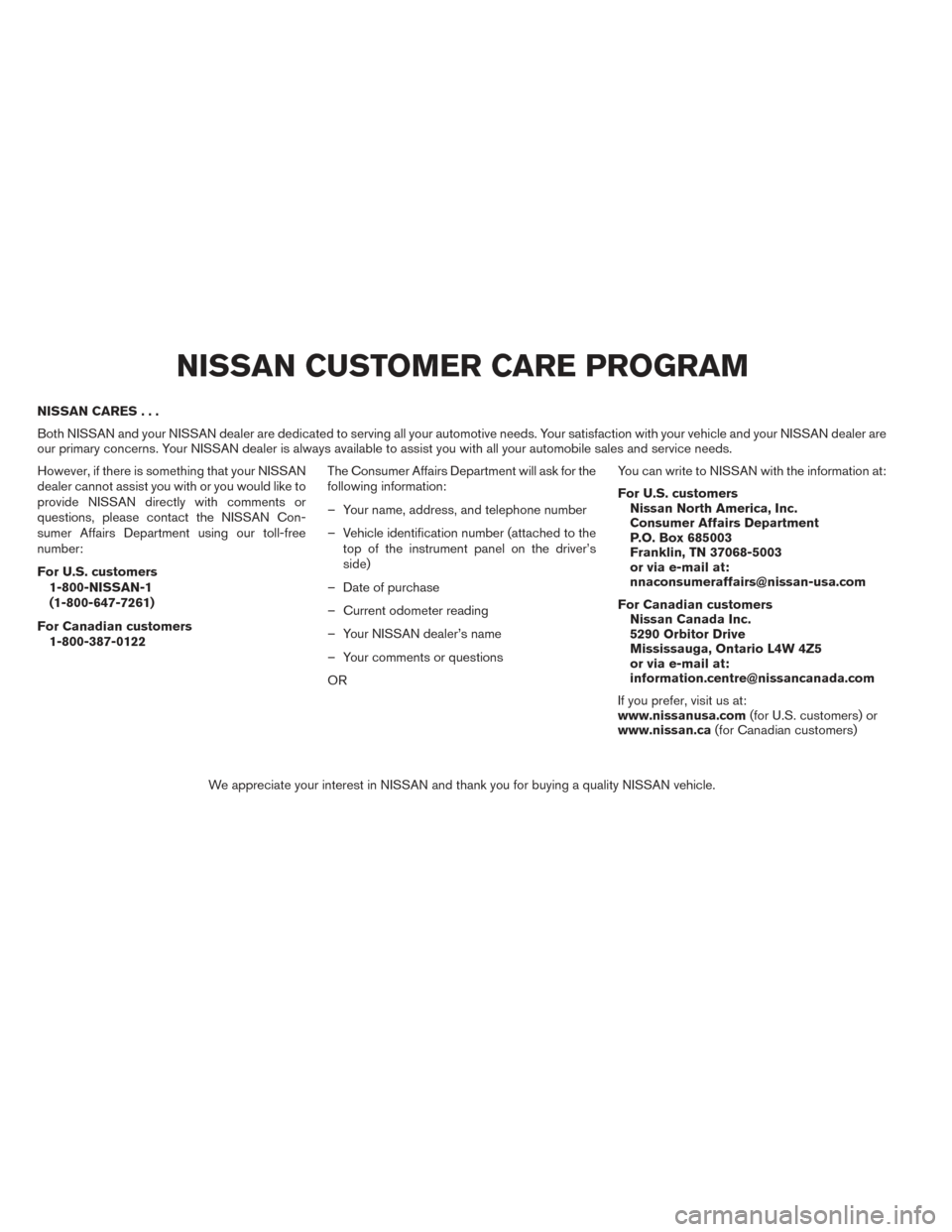

NISSAN CARES...
Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are
our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.
However, if there is something that your NISSAN
dealer cannot assist you with or you would like to
provide NISSAN directly with comments or
questions, please contact the NISSAN Con-
sumer Affairs Department using our toll-free
number:
For U.S. customers1-800-NISSAN-1
(1-800-647-7261)
For Canadian customers 1-800-387-0122 The Consumer Affairs Department will ask for the
following information:
– Your name, address, and telephone number
– Vehicle identification number (attached to the
top of the instrument panel on the driver’s
side)
– Date of purchase
– Current odometer reading
– Your NISSAN dealer’s name
– Your comments or questions
OR You can write to NISSAN with the information at:
For U.S. customers
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
[email protected]
For Canadian customers Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
[email protected]
If you prefer, visit us at:
www.nissanusa.com (for U.S. customers) or
www.nissan.ca (for Canadian customers)
We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.
NISSAN CUSTOMER CARE PROGRAM

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer . . ...................2-3
Tachometer ....................................2-5
Engine coolant temperature gauge ...............2-6
Fuel gauge ....................................2-6
Trip computer ..................................2-7
Service interval reminder (if so equipped) .........2-8
Warning/indicator lights and audible reminders .......2-9
Checking bulbs ............................... 2-10
Warning lights ................................ 2-10
Indicator lights ................................ 2-14
Audible reminders ............................. 2-17
Security systems ................................. 2-17
NISSAN vehicle immobilizer system
(if so equipped) ............................... 2-17
Windshield wiper and washer switch ...............2-19
Switch operation .............................. 2-19
Rear window wiper and washer switch ..............2-20
Rear window and outside mirror defroster switch .....2-20
Headlight and turn signal switch. . ..................2-21
Headlight control switch ........................ 2-21
Daytime running light system (Canada only) . . ....2-22 Instrument brightness control
...................2-22
Turn signal switch ............................. 2-23
Fog light switch (if so equipped) ................2-23
Horn ............................................ 2-23
Heated seats (if so equipped) ......................2-24
Vehicle Dynamic Control (VDC) off switch ...........2-25
Power outlet ..................................... 2-26
Storage ......................................... 2-27
Map pockets .................................. 2-27
Seatback pockets ............................. 2-27
Storage trays ................................. 2-28
Cup holders . . . ............................... 2-28
Glove box .................................... 2-29
Cargo cover (if so equipped) ....................2-30
Divide-n-hide adjustable floor
(if so equipped) ............................... 2-31
Grocery
hooks................................ 2-32
Windows ........................................ 2-33
Power windows (if so equipped) ................2-33
Manual windows (if so equipped) ................2-35
Interior light ...................................... 2-36
Map light (if so equipped) ......................... 2-37
Luggage compartment light ........................2-37

1. Tachometer
2. Temperature gauge
3. Odometer/twin trip odometer/tripcomputer
4. Fuel gauge
5. Speedometer 6. Trip odometer reset switch/trip
computer mode
7. Continuously Variable Transmission
(CVT) / Manual Transmission shift
indicator position indicator
8. Instrument brightness control
SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates the vehicle speed.
LIC2146
LIC2136
METERS AND GAUGES
Instruments and controls2-3

Odometer/Twin trip odometer
The odometer/twin trip odometer is displayed
when the ignition switch is placed in the ON
position.
The odometer
1records the total distance the
vehicle has been driven.
The twin trip odometer
2records the distance
of individual trips. Changing the display:
Press the change button
3to change the dis-
play as follows:
Odometer (ODO) →Trip
→Trip→
Instant fuel consumption →Average fuel con-
sumption →DTE (cruising range) →Odometer
(ODO)
Resetting the trip odometer:
Press the change button
3for more than 1 sec-
ond to reset the currently displayed trip odometer
to zero.
Loose fuel cap warning message
Push the reset buttonAfor more than 1 second
to reset the LOOSE FUEL CAP warning mes-
sage after the fuel cap has been tightened. For
additional information see “Fuel-filler cap” in the
“Pre-driving checks and adjustments” section of
this manual.
LIC2139LPD2025
2-4Instruments and controls

When the fuel level drops even lower, the dis-
tance to empty will display (----) .
Trip computer reset
Pushing the change button for more than 3 sec-
onds will reset all modes except Trip A and dis-
tance to empty (dte) .
SERVICE INTERVAL REMINDER (if so
equipped)
When the ignition switch is placed in the ON
position, a wrench symbol and the distance to oil
change information will illuminate on the display
for approximately 5 seconds. The wrench symbol
and distance to oil change switch to oil display
status. Then the oil display status switches to
odometer and twin trip odometer/trip computer
information mode that was displayed before the
ignition switch was placed in the ACC, OFF or
LOCK position.
The oil level display status provides specific in-
formation regarding your approximate engine oil
level.
If the oil level is sufficient, “Oil Good” is displayed
for approximately 10 seconds. If the oil level is
low, “Oil Lo” blinks for approximately 30 seconds
in order to draw your attention to necessary ac-
tion.Quickly push and release the trip computer
change button
Aon the instrument panel lo-
cated near the speedometer
Bduring the “Oil
Good” or “Oil Lo” mode to display an approxi-
mate oil level indication.
In case of low engine oil level, see “Engine oil” in
the “Maintenance and do-it-yourself” section for
the proper engine oil refilling procedure.
Oil change schedule set up
It is possible to adjust the interval distance to oil
change by pushing the trip computer change
button
Aon the instrument panel located near
the speedometer
Bfor 3 seconds while the
wrench symbol and distance to oil change are
displayed. The symbol and distance display will
start flashing and the display shows the current
interval. Push the switch to increase the interval
distance. Each step increases the interval dis-
tance by 500 mi (1,000 km). The interval distance
can be set up to 18,000 mi (30,000 km) after
which the display returns to zero.
If no further action is made, the display returns to
oil display status indication and the new interval is
set. If the interval distance is set to 0, the display will
skip the distance to oil change information and
wrench symbol display mode and will directly
display the oil display status (“Oil Good” or “Oil
Lo”) . In order to return to the distance to oil
change information and wrench symbol display
mode, push the trip computer change button
A
on the instrument panel located near the speed-
ometer
Bfor approximately 3 seconds after the
ignition switch has been turned to the ON posi-
tion, and adjust the distance to oil change sched-
ule as previously described.
See the Warranty Information & Maintenance
Booklet for the appropriate interval distance to oil
change.
CAUTION
● The oil level should be checked regu-
larly. Operating with insufficient
amount of oil level can damage the en-
gine and such damage is not covered by
the warranty.
● NISSAN recommends checking the oil
level every 3,000 mi (5,000 km).
2-8Instruments and controls

Anti-lock Braking System (ABS) warning
indicator
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate the
ABS is not functioning properly. Have the brake
system checked, and if necessary, repaired by a
NISSAN dealer promptly. Avoid high-speed driv-
ing and abrupt braking. See “Anti-lock Braking
System (ABS) warning light” in this section.
Charge warning light
If this light comes on while the engine is running,
it may indicate the charging system is not func-
tioning properly. Turn the engine off and check
the drive belt. If the belt is loose, broken, missing,
or if the light remains on, see a NISSAN dealer
immediately.
CAUTION
Do not continue driving if the drive belt is
loose, broken or missing.
Door open warning light
This light comes on when any of the doors are not
closed securely while the ignition switch is
placed in the ON position.
Engine oil pressure warninglight
This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a NISSAN dealer or other
authorized repair shop.
The engine oil pressure warning light is not
designed to indicate a low oil level. Use the
dipstick to check the oil level. See “Engine oil” in
the “Maintenance and do-it-yourself” section of
this manual.
CAUTION
Running the engine with the engine oil
pressure warning light on could cause se-
rious damage to the engine almost imme-
diately. Such damage is not covered by
warranty. Turn off the engine as soon as it
is safe to do so.
Low fuel warning light
This light comes on when the fuel level in the fuel
tank is getting low. Refuel as soon as it is conve-
nient, preferably before the fuel gauge reaches E
(Empty) . There will be a small reserve of fuel
in the tank when the fuel gauge reaches E
(Empty) , showing no more fuel bars.
Low tire pressure warning light
(if so equipped)
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is placed in the ON
position, this light illuminates for about 1 second
and turns off.
Low tire pressure warning:
If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
A CHECK TIRE PRES (pressure) warning
message is also displayed in the odometer.
When the low tire pressure warning light
illuminates, you should stop and adjust the
tire pressure of all 4 tires to the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label located
in the driver’s door opening. The low tire
pressure warning light does not automati-
cally turn off when the tire pressure is ad-
justed. After the tire is inflated to the rec-
ommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h)
Instruments and controls2-11

Front fog light indicator light (ifso equipped)
The front fog light indicator light illuminates when
the front fog lights are ON. See “Fog light switch”
in this section.
Front passenger air bag statuslight
The front passenger air bag status light ()
will be lit and the passenger front air bag will be
OFF depending on how the front passenger seat
is being used.
For front passenger air bag status light operation,
see “Front passenger air bag and status light” in
the “Safety — Seats, seat belts and supplemental
restraint system” section of this manual.
High beam indicator light
(blue)
This blue light comes on when the headlight high
beams are on and goes out when the low beams
are selected.
The high beam indicator light also comes on
when the passing signal is activated.
Malfunction Indicator Light(MIL)
If this indicator light comes on steady or blinks
while the engine is running, it may indicate a
potential emission control malfunction.
The
may also come on steady if the fuel-
filler cap is loose or missing, or if the vehicle runs
out of fuel. Check to make sure the fuel-filler cap
is installed and closed tightly, and that the vehicle
has at least 3 gal (11.4 L) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light comes on steady for 20 sec-
onds and then blinks for 10 seconds when the
engine is not running, it indicates that the vehicle
is not ready for an emission control system
inspection/maintenance test. See “Readiness for
inspection/maintenance (I/M) test” in the “Tech-
nical and consumer information” section of this
manual. Operation
The Malfunction Indicator Light will come on in
one of two ways:
● Malfunction Indicator Light on steady — An
emission control system malfunction has
been detected. Check the fuel-filler cap. If
the LOOSE FUEL CAP warning message is
displayed in the odometer, and the fuel-filler
cap is loose or missing, tighten or install the
cap and continue to drive the vehicle.
Thelight should turn off after a few
driving trips. If the
light does not turn
off after a few driving trips, have the vehicle
inspected by a NISSAN dealer. You do not
need to have your vehicle towed to the
dealer.
● Malfunction Indicator Light blinking — An
engine misfire has been detected which may
damage the emission control system. To re-
duce or avoid emission control system dam-
age:
– do not drive at speeds above 45 MPH (72 km/h).
– avoid hard acceleration or deceleration.
– avoid steep uphill grades.
– if possible, reduce the amount of cargo being hauled.
Instruments and controls2-15

To remove the fuel-filler cap:1. Turn the fuel-filler cap counterclockwise to remove.
2. Put the fuel-filler cap on the cap holder
1
while refueling.
To install the fuel-filler cap: 1. Insert the fuel-filler cap straight into the fuel- filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
Loose Fuel Cap warning message
The LOOSE FUEL CAP warning message dis-
plays in the odometer when the fuel-filler cap is
not tightened correctly after the vehicle has been
refueled. It may take a few driving trips for the
message to be displayed. To turn off the warning
message, perform the following:
1. Remove and install the fuel-filler cap as pre- viously described as soon as possible.
2. Tighten the fuel-filler cap until it clicks. 3. Push the loose fuel cap warning reset button
Ain the meter for about 1 second to turn off
the LOOSE FUEL CAP warning message
after tightening the fuel-filler cap.
LPD2172LPD2025
3-28Pre-driving checks and adjustments
