2014 NISSAN ROGUE SELECT Fuel filter

Black plate (287,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

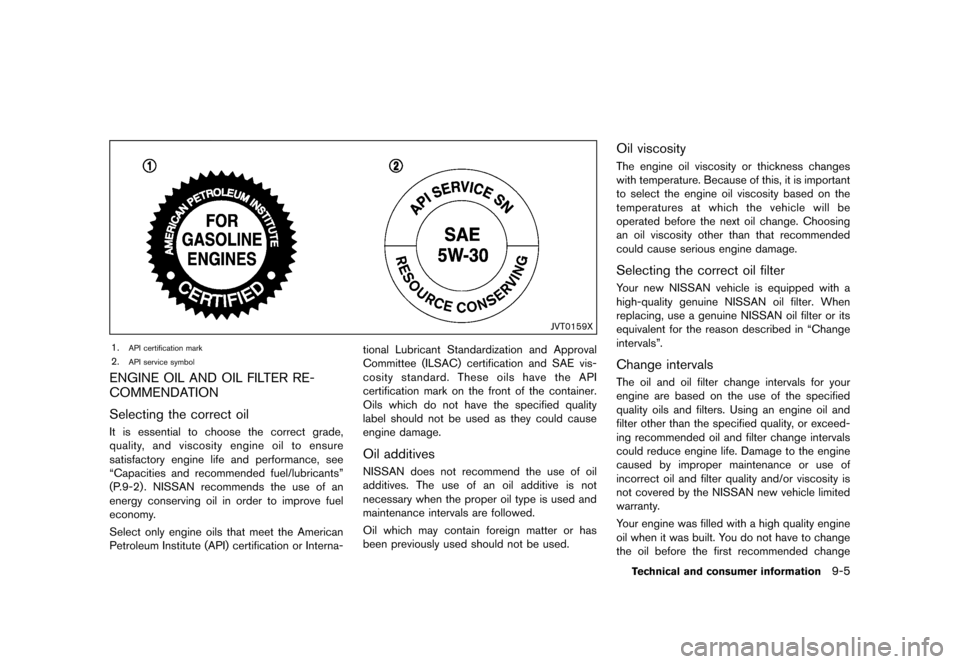

JVT0159X
1.API certification mark
2.API service symbol
ENGINE OIL AND OIL FILTER RE-
COMMENDATION
S35-D-110201-511B0564-AE50-4334-B6D3-9D8F4C034698
Selecting the correct oilGUID-8D4FD86D-A2DA-4341-81D4-4CF7B1865601It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance, see
“Capacities and recommended fuel/lubricants”
(P.9-2) . NISSAN recommends the use of an
energy conserving oil in order to improve fuel
economy.
Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-tional Lubricant Standardization and Approval
Committee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API
certification mark on the front of the container.
Oils which do not have the specified quality
label should not be used as they could cause
engine damage.
Oil additivesGUID-0A3C4262-C7F8-4C22-9C20-79A9670C31D8NISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosityGUID-E4195374-9D10-473F-BA7C-56E3D3B9F144The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
to select the engine oil viscosity based on the
temperatures at which the vehicle will be
operated before the next oil change. Choosing
an oil viscosity other than that recommended
could cause serious engine damage.
Selecting the correct oil filterGUID-4C0A1D71-5F5E-490A-B551-48CAC8DBB8CEYour new NISSAN vehicle is equipped with a
high-quality genuine NISSAN oil filter. When
replacing, use a genuine NISSAN oil filter or its
equivalent for the reason described in “Change
intervals”.
Change intervalsS35-D-110201-7567B092-EA86-43AA-AC44-4953DDF10C88The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using an engine oil and
filter other than the specified quality, or exceed-
ing recommended oil and filter change intervals
could reduce engine life. Damage to the engine
caused by improper maintenance or use of
incorrect oil and filter quality and/or viscosity is
not covered by the NISSAN new vehicle limited
warranty.
Your engine was filled with a high quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
Technical and consumer information9-5
Condition:

Black plate (313,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-26
Advanced air bag system ...
......................................... 1-45
Air bag system Advanced air bag system ...
.................................. 1-45
Front passenger air bag and status light ...
....... 1-46
Front-seat mounted side-impact supplemental
air bag system ...
....................................................... 1-50
Roof-mounted curtain side-impact and
rollover supplemental air bag system ...
............. 1-50
Air bag warning labels ...
............................................... 1-52
Air bag warning light ...
...................................... 1-53, 2-14
Air cleaner housing filter ...
........................................... 8-16
Air conditioner Air conditioner operation ...
....................................... 4-8
Air conditioner service ...
........................................ 4-11
Air conditioner specification label ...
.................... 9-10
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-11, 9-6
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-27
Alcohol, drugs and driving ...
.......................................... 5-7
All-wheel drive (AWD) ...
............................................... 5-21
All-wheel drive (AWD) warning light ...
...................... 2-10
Antenna ...
.......................................................................... 4-39
Anti-lock Braking System (ABS) ...
............................ 5-26
Anti-lock braking system (ABS) warning light ...
..... 2-10
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-4
Audible reminders ...
....................................................... 2-16
Audio operation precautions ...
.................................... 4-12
Audio system ...
................................................................ 4-12
Steering wheel audio controls ...
.......................... 4-38 Automatic
Door locks ...
................................................................. 3-4
Average speed (MPH or km/h) ...
............................... 2-23
Avoiding collision and rollover ...
................................... 5-5
B
Back door (See lift gate) ...
.......................................... 3-10
Battery ...
............................................................................ 8-13
Battery replacement, Keyfob ...
............................. 8-22
Battery saver system ...
........................................... 2-32
Keyfob battery replacement ...
............................... 8-22
Before starting the engine ...
........................................ 5-11
Belts (See drive belts) ...
............................................... 8-14
Bluetooth
®Hands-Free Phone System ...
................ 4-41
Booster seats ...
............................................................... 1-35
Brake Anti-lock Braking System (ABS) ...
..................... 5-26
Brake fluid ...
.............................................................. 8-11
Brake system ...
......................................................... 5-25
Parking brake operation ...
..................................... 5-17
Warning light ...
......................................................... 2-11
Break-in schedule ...
....................................................... 5-19
Brightness control Instrument panel ...
...................................................... 2-8
Bulb check/instrument panel ...
................................... 2-10
Bulb replacement ...
........................................................ 8-24
C
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
............................................. 4-40
Cargo cover ...
.................................................................. 2-38
Cargo light ...
.................................................................... 2-46
Catalytic converter, Three way catalyst ...
................... 5-3
CD/CF/USB memory care and cleaning ...
.............. 4-38 Ceiling light
...
................................................................... 2-45
Child restraints ...
............................................................. 1-21
Booster seats ...
........................................................ 1-35
LATCH system ...
...................................................... 1-22
Precautions on child restraints ...
......................... 1-21
Child safety ...
................................................................... 1-19
Child safety rear door lock ...
......................................... 3-5
Chimes, Audible reminders ...
...................................... 2-16
Circuit breaker, Fusible link ...
...................................... 8-20
Cleaning exterior and interior ...
............................ 7-2, 7-4
Clock ...
...................................................... 2-24, 4-23, 4-31
Coat hooks ...
................................................................... 2-40
Cold weather driving ...
.................................................. 5-29
Compact Disc (CD) player (See
audio system) ...
................................................... 4-25, 4-33
Console box ...
................................................................. 2-37
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Controls, Steering wheel audio controls ...
............... 4-38
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Checking engine coolant level ...
............................. 8-8
Corrosion protection ...
.................................................... 7-6
Cover, Cargo cover ...
.................................................... 2-38
Cruise control ...
............................................................... 5-17
Cup holders ...
.................................................................. 2-34
CVT, Driving with CVT (Continuously
Variable Transmission) ...
................................... 5-10, 5-12D
Defroster switch, Rear window
defroster switch ...
........................................................... 2-30
Dimensions and weights ...
............................................. 9-8
Condition:

Black plate (314,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
10-2
Drive belts...
..................................................................... 8-14
Driving All-wheel drive (AWD) ...
........................................ 5-21
Cold weather driving ...
........................................... 5-29
Distance (miles or km) ...
........................................ 2-24
Driving with CVT (Continuously
Variable Transmission) ...
............................. 5-10, 5-12
On-pavement and off-road driving ...
..................... 5-6
Precautions when starting and driving ...
.............. 5-2
Safety precautions ...
.................................................. 5-7
E
Economy, Fuel ...
.............................................................. 5-20
Elapsed time ...
................................................................. 2-24
Electric power steering system ...
............................... 5-25
Electric power steering warning light ...
.................... 2-11
Emission control information label ...
.......................... 9-10
Emission control system warranty ...
........................... 9-26
Engine Before starting the engine ...
................................. 5-11
Break-in schedule ...
................................................ 5-19
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Changing engine oil and filter ...
.............................. 8-9
Checking engine coolant level ...
............................. 8-8
Checking engine oil level ...
...................................... 8-9
Coolant temperature gauge ...
................................. 2-6
Engine compartment check locations ...
................ 8-6
Engine cooling system ...
........................................... 8-7
Engine oil ...
................................................................... 8-9
Engine oil and oil filter recommendation ...
........... 9-5
Engine oil viscosity ...
.................................................. 9-5
Engine serial number ...
.............................................. 9-9
Engine specifications ...
............................................. 9-7
If your vehicle overheats ...
..................................... 6-11 Starting the engine
...
.............................................. 5-11
Event Data Recorders (EDR) ...
................................... 9-27
Exhaust gas (carbon monoxide) ...
................................ 5-2
Extended storage fuse warning ...
............................... 2-20
Exterior light indicator ...
................................................ 2-14
F
F.M.V.S.S. certification label ...
....................................... 9-9
Filter Air cleaner housing filter ...
.................................... 8-16
Changing engine oil and filter ...
.............................. 8-9
Flashers (See hazard warning flasher switch) ...
....... 6-2
Flat tire ...
............................................................................. 6-2
Flat towing ...
.................................................................... 9-24
Floor mat cleaning ...
........................................................ 7-5
Fluid Brake fluid ...
.............................................................. 8-11
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Engine coolant ...
......................................................... 8-7
Engine oil ...
................................................................... 8-9
Window washer fluid ...
.......................................... 8-12
FM-AM radio with Compact Disc (CD) player ...
.... 4-22
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................................... 4-30
Fog light switch ...
........................................................... 2-32
Front manual seat adjustment ...
.................................... 1-3
Front passenger air bag and status light ...
.............. 1-46
Front seat, Front seat adjustment ...
............................. 1-3
Fuel Capacities and
recommended fuel/lubricants ...
............................... 9-2
Fuel economy ...
........................................................ 5-20
Fuel octane rating ...
................................................... 9-3 Fuel recommendation
...
............................................. 9-3
Fuel-filler cap ...
......................................................... 3-11
Fuel-filler door ...
....................................................... 3-11
Gauge ...
........................................................................ 2-7
Loose fuel cap warning ...
........................... 2-19, 3-12
Fuel efficient driving tips ...
........................................... 5-19
Fuses ...
.............................................................................. 8-19
Fusible links ...
.................................................................. 8-20G
Gas cap ...
......................................................................... 3-11
Gauge ...
.............................................................................. 2-4
Engine coolant temperature gauge ...
.................... 2-6
Fuel gauge ...
................................................................ 2-7
Tachometer ...
............................................................... 2-6
Trip computer ...
........................................................ 2-22
General maintenance ...
................................................... 8-2
Glove box ...
...................................................................... 2-36
H
Hands-Free Phone System, Bluetooth®...
............... 4-41
Hazard warning flasher switch ...
................................... 6-2
Head restraints/headrests ...
........................................... 1-5
Headlights Bulb replacement ...
................................................. 8-25
Headlight switch ...
................................................... 2-31
Heater Heater and air conditioner operation ...
................. 4-8
Hood release ...
.................................................................. 3-9
Hook Coat hooks ...
............................................................ 2-40
Luggage hook ...
....................................................... 2-39
Utility hook ...
............................................................. 2-40
Horn ...
................................................................................ 2-33
Condition:

Black plate (315,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
I
Ignition switch...
.............................................................. 5-10
Key positions ...
......................................................... 5-10
Immobilizer system ...
...................................................... 2-27
Indicator lights ...
.............................................................. 2-14
Inside mirror ...
.................................................................. 3-14
Inspection/maintenance (I/M) test ...
.......................... 9-27
Instrument brightness control ...
.................................... 2-8
Instrument panel ...
............................................................ 2-3
Interior light replacement ...
........................................... 8-26
Interior lights ...
................................................................. 2-44
iPod
®connecting ...
........................................................ 4-26
iPod®player operation ...
............................................... 4-35
ISOFIX child restraint ...
................................................. 1-22
J
Jump starting ...
.................................................................. 6-9
K
Keyless entry
(See remote keyless entry system) ...
.................... 3-5
Keys ...
.................................................................................. 3-2
L
Labels
Air bag warning labels ...
........................................ 1-52
Air conditioner specification label ...
.................... 9-10
Emission control information label ...
................... 9-10
Engine serial number ...
.............................................. 9-9
F.M.V.S.S. certification label ...
................................. 9-9
Tire and Loading information label ...
....... 8-30, 9-10
Vehicle identification number (VIN) ...
.................... 9-8
LATCH system ...
............................................................. 1-22 License plate, Installing front license plate
...
.......... 9-11
Lift gate ...
.......................................................................... 3-10
Light Air bag warning light ...
........................................... 1-53
Bulb replacement ...
................................................. 8-24
Cargo light ...
............................................................. 2-46
Ceiling light ...
............................................................ 2-45
Fog light switch ...
.................................................... 2-32
Headlight switch ...
................................................... 2-31
Headlights bulb replacement ...
............................ 8-25
Indicator lights ...
....................................................... 2-14
Interior lights ...
.......................................................... 2-44
Map lights ...
.............................................................. 2-44
Replacement ...
.......................................................... 8-24
Vanity mirror lights ...
............................................... 2-46
Warning/indicator lights and
audible reminders ...
................................................. 2-10
Lights, Exterior and interior light replacement ...
..... 8-26
Loading information (See vehicle
loading information) ...
.................................................... 9-12
Lock Automatic door locks ...
............................................. 3-4
Door locks ...
................................................................. 3-3
Lift gate lock ...
.......................................................... 3-10
Power door lock ...
...................................................... 3-3
Loose fuel cap warning ...
................................. 2-19, 3-12
Low fuel warning light ...
................................................ 2-12
Low tire pressure warning light ...
............................... 2-12
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ...
.... 5-3
Luggage floor box ...
....................................................... 2-37
Luggage hooks ...
............................................................ 2-39
Luggage side box ...
....................................................... 2-38
M
Maintenance
Battery ...
..................................................................... 8-13
General maintenance ...
............................................. 8-2
Indicators for maintenance ...
................................ 2-21
Inside the vehicle ...
.................................................... 8-3
Maintenance precautions ...
...................................... 8-5
Maintenance requirements ...
.................................... 8-2
Outside the vehicle ...
................................................. 8-2
Seat belt maintenance ...
........................................ 1-18
Malfunction indicator light (MIL) ...
.............................. 2-15
Manual air conditioner ...
.................................................. 4-9
Manual front seat adjustment ...
..................................... 1-3
Map lights ...
..................................................................... 2-44
Master warning light ...
................................................... 2-13
Meter, Trip computer ...
.................................................. 2-22
Meters and gauges ...
....................................................... 2-4
Instrument brightness control ...
.............................. 2-8
Mirror Inside mirror ...
........................................................... 3-14
Outside mirrors ...
..................................................... 3-14
Mirror, Vanity mirror ...
.................................................... 3-15
Monitor, Rearview monitor ...
.......................................... 4-2
N
New vehicle break-in ...
.................................................. 5-19
NISSAN Vehicle Immobilizer System ...
..................... 2-27
O
Off-road recovery ...
.......................................................... 5-6
Oil Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine oil and filter ...
.............................. 8-9
10-3
Condition:

Black plate (321,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
11 Epilogue
S35-D-110201-D18CE73C-47CA-4965-9D6A-594E194C1200FUEL RECOMMENDATION:S35-D-110201-8353293D-A4BD-46C0-9633-FAB1DBA2F0B6Use unleaded regular gasoline with an octane
rating of at least 87 AKI (Anti-Knock Index)
number (Research octane number 91).
CAUTION
.Using a fuel other than that speci-
fied could adversely affect the emis-
sion control systems, and may also
affect warranty coverage.
. Under no circumstances should a
leaded gasoline be used, since this
will damage the three way catalyst.
. Do not use E-15 or E-85 fuel in your
vehicle. Your vehicle is not designed
to run on E-15 or E-85 fuel. Using E-
15 or E-85 fuel in a vehicle not
specifically designed for E-15 or E-
85 fuel can adversely affect the
emission control devices and sys-
tems of the vehicle. Damage caused
by such fuel is not covered by the
NISSAN new vehicle limited war-
ranty.
. U.S. government regulations require
ethanol dispensing pumps to be identified by a small, square, orange
and black label with the common
abbreviation or the appropriate per-
centage for that region.
For additional information, see “Capacities and
recommended fuel/lubricants” (P.9-2) .ENGINE OIL RECOMMENDATION:S35-D-110201-942C3F30-2B84-4860-ADA6-9725D0B054EC. Genuine NISSAN engine oil or equivalent
. Engine oil with API Certification Mark
. Viscosity SAE 5W-30
See “Capacities and recommended fuel/lubri-
cants” (P.9-2) for engine oil and oil filter
recommendation.
COLD TIRE PRESSURES:S35-D-110201-F5A875D1-931B-459F-A004-D1F2497D37E7The label is typically located on the driver side
center pillar or on the driver’s door. For
additional information, see “Wheels and tires”
(P.8-29) .
NEW VEHICLE BREAK-IN PROCE-
DURES RECOMMENDATION:
GUID-C20D5137-E921-4C3D-8F6D-828773466D4BDuring the first 1,200 miles (2,000 km) of
vehicle use, follow the recommendations out-
lined in the “Break-in schedule” (P.5-19) of this
Owner’s Manual. Follow these recommenda-
tions for the future reliability and economy of your new vehicle.
GAS STATION INFORMATION
Condition:
