2014 NISSAN ROGUE SELECT glove box

Black plate (12,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
0-6Illustrated table of contents
S35-D-110201-8C8F180E-0520-4D0C-9AA2-07D387D3F374
JVC0578X
1. Side ventilator (P.4-7)
2. Headlight, fog light* and turn signal switch(P.2-31)
3. Steering-wheel-mounted controls (left side)*
— Audio control* (P.4-38)
— Bluetooth
®Hands-Free Phone System con-
trol* (P.4-41) 4. Steering wheel
— Horn (P.2-33)
— Driver supplemental air bag (P.1-39)
— Electric power steering system (P.5-25)
5. Meters and gauges (P.2-4)
6. Steering-wheel-mounted controls (right side) — Cruise control switches* (P.5-17) 7. Wiper and washer switch (P.2-28)
8. Center ventilator (P.4-7)
9. Hazard warning flasher switch (P.6-2)
10. Audio system (P.4-12)
— Clock (P.4-22, P.4-31)
— Rear view monitor* (P.4-2)
11. Front passenger supplemental air bag (P.1-39)
12. Outside remote mirror control switch (P.3-14)
13. All-Wheel Drive (AWD) LOCK switch* (P.5-21)
14. Fuse box cover (P.8-20)
15. Vehicle Dynamic Control (VDC) OFF switch (P.2-33, P.5-27)
16. Hood release handle (P.3-9)
17. Tilting steering wheel lever (P.3-13)
18. Parking brake (P.5-17)
19. Ignition switch (P.5-10)
20. Sport mode switch (P.5-14)
21. Power outlet (P.2-33)
22. Heater/air conditioner control (P.4-8)
23 Shift lever (P.5-12)
24. Front passenger air bag status light (P.1-46)
25. Rear window defroster switch (P.2-30)
26. Glove box (P.2-36)
*: if so equipped
INSTRUMENT PANEL
Condition:

Black plate (61,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
SSS0804
1. Crash zone sensor
2. Supplemental front-impact air bag modules
3. Front seat-mounted side-impact supplementalair bag modules
4. Occupant classification sensor (pattern sensor)
5. Occupant classification system control unit
6. Roof-mounted curtain side-impact and rollover supplemental air bags 7. Roof-mounted curtain side-impact and rollover
supplemental air bag inflators
8. Lap outer pretensioners
9. Seat belt with pretensioners
10. Satellite sensors
11. Air bag Control Unit (ACU)
NISSAN ADVANCED AIR BAG SYS-
TEM (front seats)
GUID-BCBE423F-BE9E-45CC-9789-8C72FD21C176This vehicle is equipped with the NISSAN
Advanced Air Bag System for the driver and
front passenger seats. This system is designed
to meet certification requirements under U.S.
regulations. All of the information, cautions
and warnings in this manual still apply and
must be followed.
The driver supplemental front-impact air bag is
located in the center of the steering wheel; the
passenger supplemental front-impact air bag is
mounted in the instrument panel above the glove
box. The front air bags are designed to inflate in
higher severity frontal collisions, although they
may inflate if the forces in another type of
collision are similar to those of a higher severity
frontal impact. They may not inflate in certain
frontal collisions. Vehicle damage (or lack of it) is
not always an indication of proper front air bag
operation.
The NISSAN Advanced Air Bag System has
dual stage air bag inflators. The system monitors
information from the crash zone sensor, satellite
sensor, Air bag Control Unit (ACU) , seat belt
buckle sensors and occupant classification
sensor (pattern sensor) . Inflator operation is
based on the severity of a collision and seat belt
usage for the driver. For the front passenger, the
Safety — Seats, seat belts and supplemental restraint system1-45
Condition:

Black plate (71,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2 Instruments and controls
Instrument panel...
........................................................................\
2-3
Meters and gauges ...
................................................................... 2-4
Speedometer ...
........................................................................\
2-5
Odometer/twin trip odometer ...
.......................................... 2-5
Tachometer ...
........................................................................\
... 2-6
Engine coolant temperature gauge ...
................................ 2-6
Fuel gauge ...
........................................................................\
.... 2-7
Instrument brightness control ...
.......................................... 2-8
Warning/indicator lights and audible reminders ...
............... 2-9
Checking bulbs ...
................................................................. 2-10
Warning lights ...
................................................................... 2-10
Indicator lights ...
................................................................... 2-14
Audible reminders ...
............................................................ 2-16
Vehicle information display ...
.................................................. 2-17
Outside air temperature ...
.................................................. 2-17
Indicators for operation ...
................................................... 2-19
Indicators for maintenance ...
............................................. 2-21
Trip computer ...
.................................................................... 2-22
Continuously Variable Transmission (CVT)
position indicator ...
.............................................................. 2-25
Security systems ...
.................................................................... 2-26
Vehicle Security System ...
................................................. 2-26
NISSAN Vehicle Immobilizer System ...
.......................... 2-27 Windshield wiper and washer switch
...
.............................. 2-28
Rear window wiper and washer switch ...
.......................... 2-29
Rear window defroster switch ...
........................................... 2-30
Headlight and turn signal switch ...
....................................... 2-31
Headlight switch ...
............................................................ 2-31
Turn signal switch ...
.......................................................... 2-32
Fog light switch (if so equipped) ...
.............................. 2-32
Horn ...
........................................................................\
.................. 2-33
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-33
Power outlet ...
........................................................................\
.... 2-33
Storage ...
........................................................................\
............ 2-34
Cup holders ...
..................................................................... 2-34
Sunglasses holder ...
......................................................... 2-35
Glove box ...
........................................................................\
. 2-36
Console box ...
.................................................................... 2-37
Luggage floor box (if so equipped) ...
.......................... 2-37
Luggage side box ...
.......................................................... 2-38
Cargo cover (if so equipped) ...
..................................... 2-38
Luggage hooks ...
............................................................... 2-39
Coat hooks ...
...................................................................... 2-40
Utility hook ...
....................................................................... 2-40
Roof rack (if so equipped) ...
.......................................... 2-40
Condition:
>

Black plate (73,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
S35-D-110201-A7D4030A-2862-489B-A7AF-66159DF04F04
JVC0578X
1. Side ventilator
2. Headlight, fog light (if so equipped) and turnsignal switch
3. Steering-wheel-mounted controls (left side) (if so equipped)
— Audio control
— Bluetooth
®Hands-Free Phone system con- trol
4. Steering wheel — Horn
— Driver supplemental air bag
5. Meters and gauges
6. Steering-wheel-mounted controls (right side) — Cruise control switches (if so equipped) 7. Wiper and washer switch
8. Center ventilator
9. Hazard warning flasher switch
10. Audio system
— Clock
— Rear view monitor (if so equipped)
11. Front passenger supplemental air bag
12. Outside remote mirror control switch
13. All-Wheel Drive (AWD) LOCK switch (if so equipped)
14. Fuse box cover
15. Vehicle Dynamic Control (VDC) OFF switch
16. Hood release handle
17. Tilting steering wheel lever
18. Parking brake
19. Ignition switch
20. Sport mode switch
21. Power outlet
22. Heater/air conditioner control
23. Shift lever
24. Front passenger air bag status light
25. Rear window defroster switch
26. Glove box
Instruments and controls2-3
INSTRUMENT PANEL
Condition:

Black plate (106,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-36Instruments and controls
.Do not leave glasses in the sun-
glasses holder while parking in
direct sunlight. The heat may da-
mage the glasses.
SIC3497
SIC3498

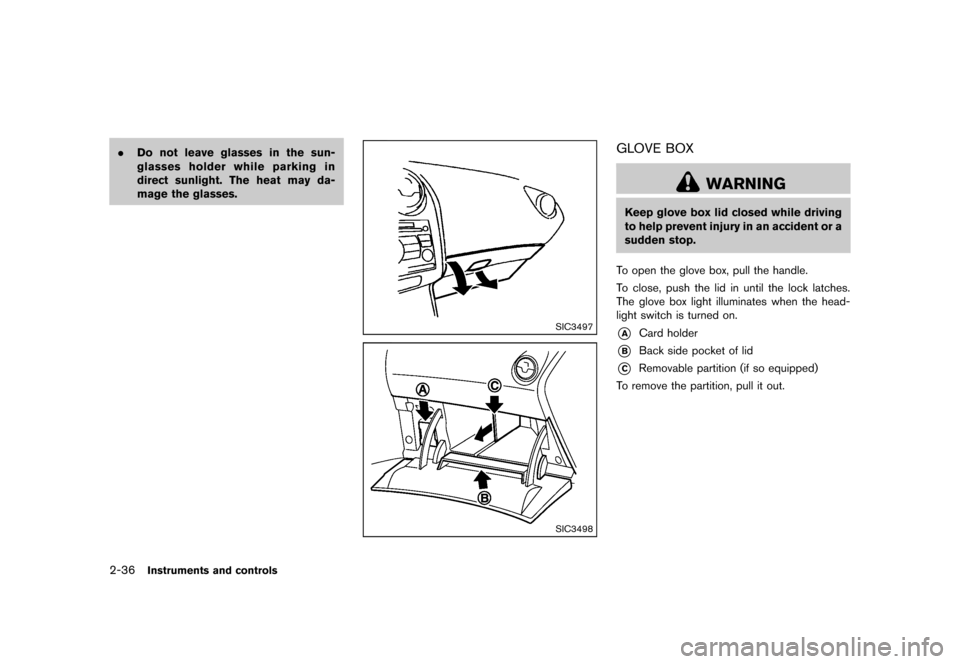

GLOVE BOXS35-D-110201-F9260F73-5260-4688-8D88-814B9E5BA4ED
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle.
To close, push the lid in until the lock latches.
The glove box light illuminates when the head-
light switch is turned on.
*ACard holder
*BBack side pocket of lid
*CRemovable partition (if so equipped)
To remove the partition, pull it out.
Condition:

Black plate (268,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-26Maintenance and do-it-yourself

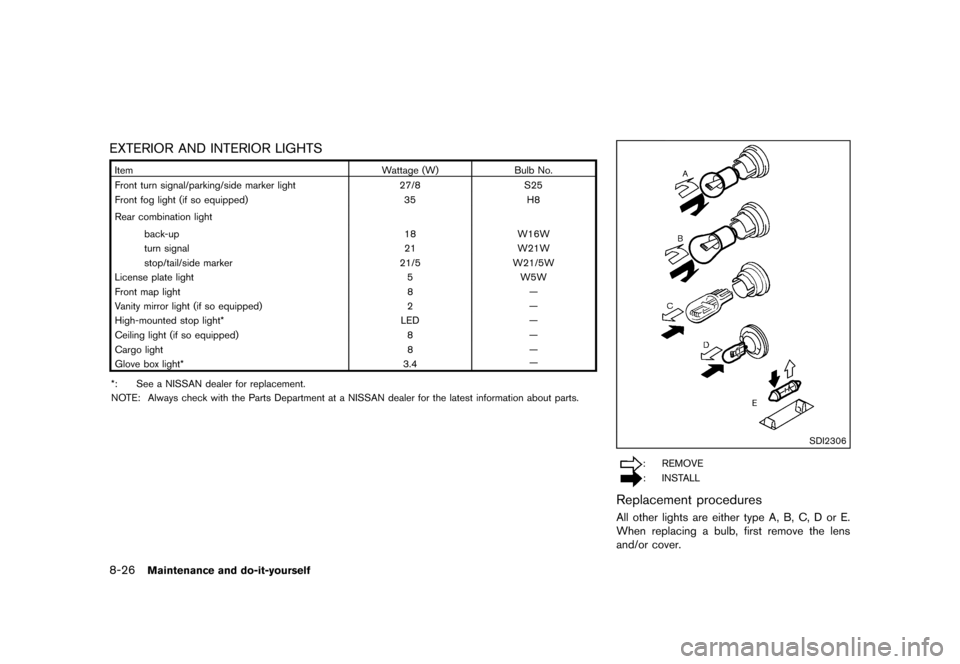

EXTERIOR AND INTERIOR LIGHTSS35-D-110201-57CCB661-474F-4B16-A4E0-FA7B38594BB2
ItemWattage (W)Bulb No.
Front turn signal/parking/side marker light 27/8S25
Front fog light (if so equipped) 35H8
Rear combination light
back-up 18W16W
turn signal 21W21W
stop/tail/side marker 21/5W21/5W
License plate light 5W5W
Front map light 8—
Vanity mirror light (if so equipped) 2—
High-mounted stop light* LED—
Ceiling light (if so equipped) 8—
Cargo light 8—
Glove box light* 3.4—
*: See a NISSAN dealer for replacement.
NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.
SDI2306
: REMOVE
: INSTALL
Replacement proceduresS35-D-110201-CFA652EC-DF34-4605-85FA-A4F826DD3B31All other lights are either type A, B, C, D or E.
When replacing a bulb, first remove the lens
and/or cover.
Condition:

Black plate (314,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
10-2
Drive belts...
..................................................................... 8-14
Driving All-wheel drive (AWD) ...
........................................ 5-21
Cold weather driving ...
........................................... 5-29
Distance (miles or km) ...
........................................ 2-24
Driving with CVT (Continuously
Variable Transmission) ...
............................. 5-10, 5-12
On-pavement and off-road driving ...
..................... 5-6
Precautions when starting and driving ...
.............. 5-2
Safety precautions ...
.................................................. 5-7
E
Economy, Fuel ...
.............................................................. 5-20
Elapsed time ...
................................................................. 2-24
Electric power steering system ...
............................... 5-25
Electric power steering warning light ...
.................... 2-11
Emission control information label ...
.......................... 9-10
Emission control system warranty ...
........................... 9-26
Engine Before starting the engine ...
................................. 5-11
Break-in schedule ...
................................................ 5-19
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Changing engine oil and filter ...
.............................. 8-9
Checking engine coolant level ...
............................. 8-8
Checking engine oil level ...
...................................... 8-9
Coolant temperature gauge ...
................................. 2-6
Engine compartment check locations ...
................ 8-6
Engine cooling system ...
........................................... 8-7
Engine oil ...
................................................................... 8-9
Engine oil and oil filter recommendation ...
........... 9-5
Engine oil viscosity ...
.................................................. 9-5
Engine serial number ...
.............................................. 9-9
Engine specifications ...
............................................. 9-7
If your vehicle overheats ...
..................................... 6-11 Starting the engine
...
.............................................. 5-11
Event Data Recorders (EDR) ...
................................... 9-27
Exhaust gas (carbon monoxide) ...
................................ 5-2
Extended storage fuse warning ...
............................... 2-20
Exterior light indicator ...
................................................ 2-14
F
F.M.V.S.S. certification label ...
....................................... 9-9
Filter Air cleaner housing filter ...
.................................... 8-16
Changing engine oil and filter ...
.............................. 8-9
Flashers (See hazard warning flasher switch) ...
....... 6-2
Flat tire ...
............................................................................. 6-2
Flat towing ...
.................................................................... 9-24
Floor mat cleaning ...
........................................................ 7-5
Fluid Brake fluid ...
.............................................................. 8-11
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Engine coolant ...
......................................................... 8-7
Engine oil ...
................................................................... 8-9
Window washer fluid ...
.......................................... 8-12
FM-AM radio with Compact Disc (CD) player ...
.... 4-22
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................................... 4-30
Fog light switch ...
........................................................... 2-32
Front manual seat adjustment ...
.................................... 1-3
Front passenger air bag and status light ...
.............. 1-46
Front seat, Front seat adjustment ...
............................. 1-3
Fuel Capacities and
recommended fuel/lubricants ...
............................... 9-2
Fuel economy ...
........................................................ 5-20
Fuel octane rating ...
................................................... 9-3 Fuel recommendation
...
............................................. 9-3
Fuel-filler cap ...
......................................................... 3-11
Fuel-filler door ...
....................................................... 3-11
Gauge ...
........................................................................ 2-7
Loose fuel cap warning ...
........................... 2-19, 3-12
Fuel efficient driving tips ...
........................................... 5-19
Fuses ...
.............................................................................. 8-19
Fusible links ...
.................................................................. 8-20G
Gas cap ...
......................................................................... 3-11
Gauge ...
.............................................................................. 2-4
Engine coolant temperature gauge ...
.................... 2-6
Fuel gauge ...
................................................................ 2-7
Tachometer ...
............................................................... 2-6
Trip computer ...
........................................................ 2-22
General maintenance ...
................................................... 8-2
Glove box ...
...................................................................... 2-36
H
Hands-Free Phone System, Bluetooth®...
............... 4-41
Hazard warning flasher switch ...
................................... 6-2
Head restraints/headrests ...
........................................... 1-5
Headlights Bulb replacement ...
................................................. 8-25
Headlight switch ...
................................................... 2-31
Heater Heater and air conditioner operation ...
................. 4-8
Hood release ...
.................................................................. 3-9
Hook Coat hooks ...
............................................................ 2-40
Luggage hook ...
....................................................... 2-39
Utility hook ...
............................................................. 2-40
Horn ...
................................................................................ 2-33
Condition:
