2014 NISSAN ROGUE buttons

2 Getting started
Control buttons and functions.......................2-2
Control panel (Type A) ..........................2-2
Control panel (Type B) ..........................2-3
Control panel (Type C) ..........................2-4
Steering wheel switch (Type A) ..................2-5
Steering wheel switch (Type B) ..................2-5 Steering wheel switch (Type C)
..................2-6
Basic operation ...................................2-7
Touch screen operation .........................2-7
Menu screen operation ..........................2-8
How to input characters .........................2-9

CONTROL PANEL (Type A)
1VOL (volume) control knob/POWER button:Rotate clockwise to increase the volume or
counterclockwise to lower the volume.
Press to turn the audio system on or off.
2Touch screen display
3TUNE-SCROLL dial / ENTER/AUDIO but-
ton:
Turn to scroll through the items in a list.
Press to select a menu item. When the
screen is not displaying a list or menu, the
knob is used to control the audio system.
Press the ENTER/AUDIO button to select a
highlighted item on the screen.
4BACK button:
Press to return to the previous screen or to
delete the last inputted letter if a touch key-
board is displayed on the screen.
5MAP button: Press to display the current location map
screen.
6NAV button:Press to access the functions of the Navi-
gation system.
7button:
Press to access the system settings.
8button:
Press to change the display brightness be-
tween day and night modes. While the
mode is being displayed, the brightness can
be adjusted using the TUNE/SCROLL dial.
Press and hold for more than two seconds
to switch the display to a larger display of
the digital clock.
“DISPLAY SETTINGS”
(page 5-3)
LNV2446
CONTROL BUTTONS AND FUNC-
TIONS
2-2Getting started

Scrolling through a message or list:
Turn the TUNE-SCROLL dial to scroll through a
message or a list. When scrolling a lengthy list,
you can also touch the screen and slide your fin-
ger along the scroll bar where shown to scroll
more quickly. Touching the up or down arrow will
move between pages of the list.MENU SCREEN OPERATION Menu screens and their purpose
Press one of the application buttons to activate
the corresponding menu screen:
●NAV (Navigation)
●
or MENU
LNV0921(Type A)LNV2448(Type B)LNV2478
2-8Getting started

Menu ItemOptions
My Points of Interest Alert Select to control alert options. Choose “Off” to disable the alert. Choose “Show Only” to have the alert displayed on the screen.
Choose “Show & Beep” to have an audible beep in addition to the alert displayed on the screen.
Show Presets On Map Select to toggle on or off the preset radio station buttons on the map screen.
Split Map for Freeway Exit Select to toggle on or off the split view map when approaching a freeway exit.
Show Lane Information Select to toggle on or off lane information when available.
Show Speed Limit Select to toggle on or off the display of speed limit information when available.
Show Estimated Time Select to control display of estimated time of arrival or trip time remaining.
Customize Travel Speed Select to customize travel speeds on local roads and freeways along route.
Speed Limit Warning Select to control the speed limit alert that activates when the vehicle speed is greater than the speed limit information for the cu r-
rent location. Choose “Off” to disable the alert. Choose “Show Only” to have the alert displayed on the screen. Choose “Show &
Beep” to have an audible beep in addition to the alert displayed on the screen.
Speed Limit Sensitivity Select the sensitivity level for the speed limit warning. Choose a value between zero and 30
Speed Warning for Curves Select to control the alert that activates depending on vehicle speed and a curve in the road ahead. Choose “Off” to disable the
alert. Choose “Show Only” to have the alert displayed on the screen. Choose “Show & Beep” to have an audible beep in addition
to the alert displayed on the screen.
Distance Units Select to toggle “US” or “Metric” for the distance units on the map screen.
3-10Map settings

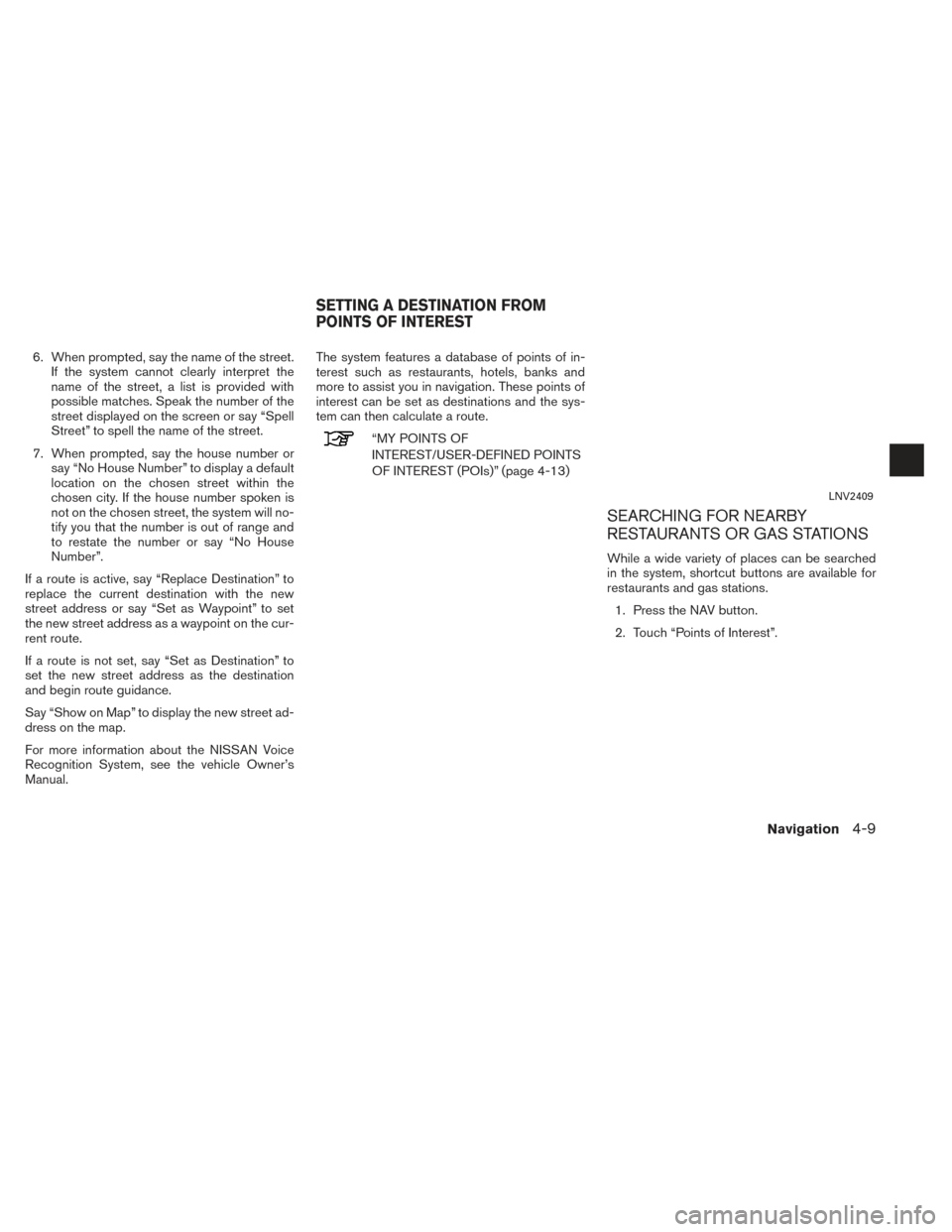

6. When prompted, say the name of the street.If the system cannot clearly interpret the
name of the street, a list is provided with
possible matches. Speak the number of the
street displayed on the screen or say “Spell
Street” to spell the name of the street.
7. When prompted, say the house number or say “No House Number” to display a default
location on the chosen street within the
chosen city. If the house number spoken is
not on the chosen street, the system will no-
tify you that the number is out of range and
to restate the number or say “No House
Number”.
If a route is active, say “Replace Destination” to
replace the current destination with the new
street address or say “Set as Waypoint” to set
the new street address as a waypoint on the cur-
rent route.
If a route is not set, say “Set as Destination” to
set the new street address as the destination
and begin route guidance.
Say “Show on Map” to display the new street ad-
dress on the map.
For more information about the NISSAN Voice
Recognition System, see the vehicle Owner’s
Manual. The system features a database of points of in-
terest such as restaurants, hotels, banks and
more to assist you in navigation. These points of
interest can be set as destinations and the sys-
tem can then calculate a route.
“MY POINTS OF
INTEREST/USER-DEFINED POINTS
OF INTEREST (POIs)” (page 4-13)
SEARCHING FOR NEARBY
RESTAURANTS OR GAS STATIONS
While a wide variety of places can be searched
in the system, shortcut buttons are available for
restaurants and gas stations.
1. Press the NAV button.
2. Touch “Points of Interest”.
LNV2409
SETTING A DESTINATION FROM
POINTS OF INTEREST
Navigation4-9

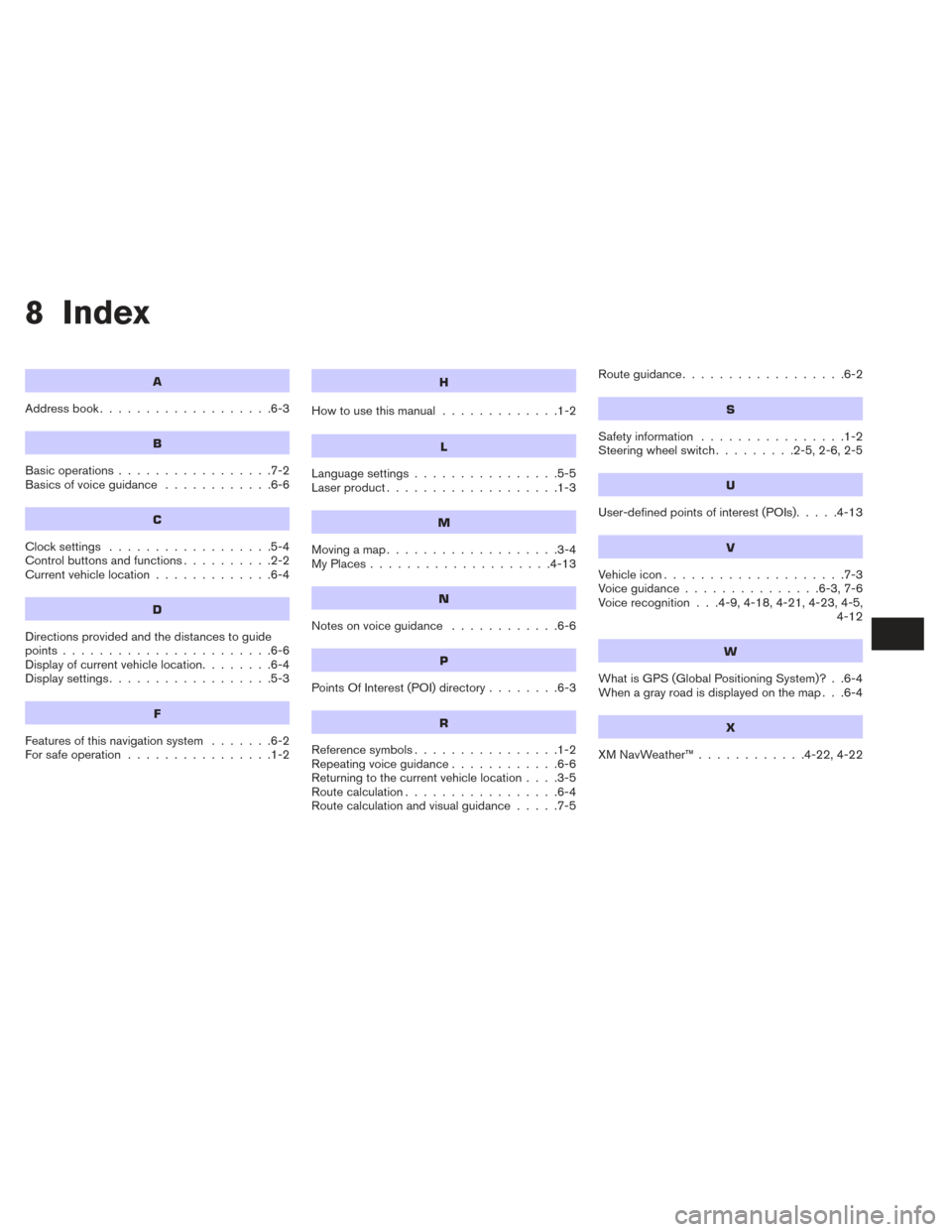

8 Index
A
Address book...................6-3
B
Basic operations .................7-2
Basicsofvoiceguidance ............6-6
C
Clocksettings ..................5-4
Control buttons and functions ..........2-2
Current vehicle location .............6-4
D
Directions provided and the distances to guide
points.......................6-6
Display of current vehicle location ........6-4
Displaysettings..................5-3
F
Features of this navigation system .......6-2
For safe operation ................1-2
H
Howtousethismanual .............1-2
L
Language settings................5-5
Laser product ...................1-3
M
Movingamap...................3-4
MyPlaces....................4-13
N
Notesonvoiceguidance ............6-6
P
PointsOfInterest(POI)directory........6-3
R
Reference symbols ................1-2
Repeating voice guidance ............6-6
Returning to the current vehicle location ....3-5
Route calculation .................6-4
Route calculation and visual guidance .....7-5Routeguidance..................6-2
S
Safety information
................1-2
Steering wheel switch .........2-5,2-6,2-5
U
User-defined points of interest (POIs).....4-13
V
Vehicleicon....................7-3
Voiceguidance...............6-3,7-6
Voice recognition . . .4-9, 4-18, 4-21, 4-23, 4-5,
4-12
W
What is GPS (Global Positioning System)? . .6-4
When a gray road is displayed on the map . . .6-4
X
XMNavWeather™............4-22,4-22
