2014 NISSAN QUEST Owners Manual

0-2Illustrated table of contents
SSI0820
1. Non-adjustable head restraints/headrests (Page1-10)
2. Child restraint anchor points (for top tether strap child restraint) (P.1-31)
3. Seat belt for 3rd row center seat belt (P.1-20)
4. Seat belts (P.1-15)
5. Roof-mounted curtain side-impact supplemental air bags (P.1-46)
6. Adjustable head restraints (P.1-10) — Front-seat Active Head Restraints (P.1-14)
7. Supplemental front-impact air bags (P.1-46)
8. LATCH (Lower Anchors and Tethers for CHil- dren) system (P.1-28)
9. 3rd row seats (P.1-7) — Child restraints (P.1-26)
10. Armrest (2nd row seat) (P.1-7)
11. 2nd row seats (P.1-6) — Child restraints (P.1-26)
12. Front seat-mounted side-impact supplemental air bags (P.1-46)
13. Seat belt pretensioner (P.1-58)
14. Front seats (P.1-3) — Occupant classification sensors (weight
sensors) (P.1-52)
SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)

JVO0058X
1. Front view camera* (P.4-29)
2. Hood (P.3-25)
3. Windshield wiper and washer— Switch operation (P.2-30)
— Blade replacement (P.8-17)
— Window washer fluid (P.8-13)
4. Moonroof* (P.2-53) 5. Outside mirrors (P.3-35)
- Side view camera* (P.4-29)
6. Power windows (P.2-51)
7. Side turn signal light* — Switch operation (P.2-37)
— Bulb replacement (P.8-27)
8. Roof rack (rail)* (P.2-49) 9. Recovery hook (P.6-16)
10. License plate installation (P.9-11)
11. Fog lights*
— Switch operation (P.2-38)
— Bulb replacement (P.8-27)
12. Headlight and turn signal lights — Switch operation (P.2-33)
— Bulb replacement (P.8-27)
13. Tires — Wheel and tires (P. 8-30, P.9-7)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System (TPMS)
(P.2-14, P.5-3)
14. Doors — Keys (P.3-3)
— Door locks (P.3-5)
— Intelligent Key system (P.3-13)
— Security system (P.2-27)
15. Child safety rear door lock (P.3-9)
16. Sliding doors (P.3-7)
*: if so equipped
Illustrated table of contents0-3
EXTERIOR FRONT

0-4Illustrated table of contents
SSI0822
1. Antenna (P.4-101)— Satellite radio antenna* (P.4-102)
2. Rear window wiper and washer — Switch operation (P.2-31)
— Window washer fluid (P.8-13)
3. High-mounted stop light — Bulb replacement (P.8-27) 4. Rear window defroster (P.2-32)
5. Fuel-filler door
— Operation (P.3-30)
— Fuel recommendation (P.9-3)
6. Rear combination light — Bulb replacement (P.8-27)
7. RearView camera* — RearView monitor (P.4-23)
— Around View monitor (P. 4-29)
8. Lift gate (P.3-26)
— Remote keyless entry system (P.3-21)
— Intelligent Key system (P.3-13)
*: if so equipped
EXTERIOR REAR

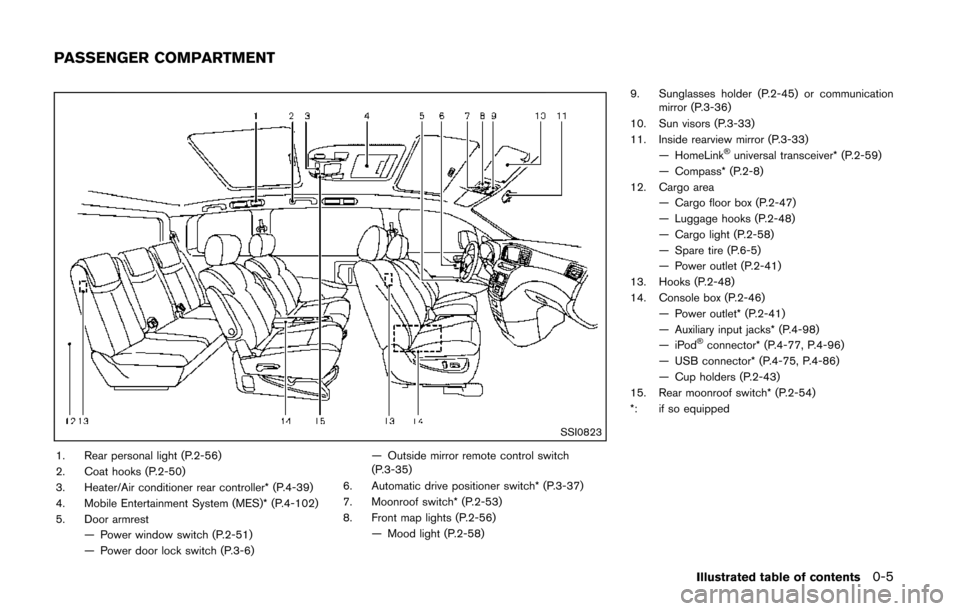

SSI0823
1. Rear personal light (P.2-56)
2. Coat hooks (P.2-50)
3. Heater/Air conditioner rear controller* (P.4-39)
4. Mobile Entertainment System (MES)* (P.4-102)
5. Door armrest— Power window switch (P.2-51)
— Power door lock switch (P.3-6) — Outside mirror remote control switch
(P.3-35)
6. Automatic drive positioner switch* (P.3-37)
7. Moonroof switch* (P.2-53)
8. Front map lights (P.2-56) — Mood light (P.2-58) 9. Sunglasses holder (P.2-45) or communication
mirror (P.3-36)
10. Sun visors (P.3-33)
11. Inside rearview mirror (P.3-33) — HomeLink
®universal transceiver* (P.2-59)
— Compass* (P.2-8)
12. Cargo area — Cargo floor box (P.2-47)
— Luggage hooks (P.2-48)
— Cargo light (P.2-58)
— Spare tire (P.6-5)
— Power outlet (P.2-41)
13. Hooks (P.2-48)
14. Console box (P.2-46) — Power outlet* (P.2-41)
— Auxiliary input jacks* (P.4-98)
—iPod
®connector* (P.4-77, P.4-96)
— USB connector* (P.4-75, P.4-86)
— Cup holders (P.2-43)
15. Rear moonroof switch* (P.2-54)
*: if so equipped
Illustrated table of contents0-5
PASSENGER COMPARTMENT

0-6Illustrated table of contents
SSI0825
1. Vehicle Dynamic Control (VDC) OFF switch(P.2-40)
2. Blind Spot Warning (BSW) switch* (P.2-40) — Blind Spot Warning (BSW)* (P.5-17)
3. Sliding door switch* (driver’s side) (P.3-9)
4. Sliding door switch* (passenger’s side) (P.3-9)
5. Instrument brightness control switch (P.2-37) 6. Power lift gate switch* (P.3-26)
7. Headlight, fog light and turn signal switch
— Headlight (P.2-33)
— Turn signal (P.2-37)
— Fog light* (P.2-38)
8. Trip computer switch (P.2-23) 9. TRIP/RESET switch for twin trip odometer
(P.2-6)
10. Wiper and washer switch (P.2-30)
11. Fuse box cover (P.8-21)
12. Fuel-filler door opener handle (P.3-30)
13. Hood release handle (P.3-25)
14. Headlight aiming control* (P.2-36)
15. Power door main switch* (P.3-9, P.3-27)
16. Steering-wheel-mounted controls (left side) — Audio control steering switch* (P.4-100)
— Hands-Free Phone System switch* (P.4-114,
P.4-124)
17. Horn (P.2-38)
18. Steering-wheel-mounted controls (right side) — Cruise control system (P.5-24)
*: if so equipped
COCKPIT

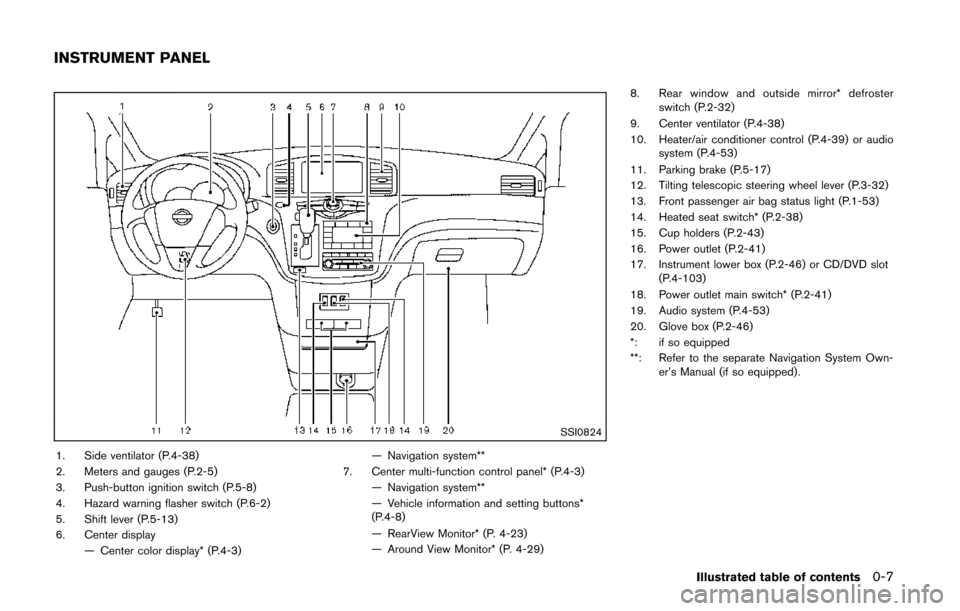

SSI0824
1. Side ventilator (P.4-38)
2. Meters and gauges (P.2-5)
3. Push-button ignition switch (P.5-8)
4. Hazard warning flasher switch (P.6-2)
5. Shift lever (P.5-13)
6. Center display— Center color display* (P.4-3) — Navigation system**
7. Center multi-function control panel* (P.4-3) — Navigation system**
— Vehicle information and setting buttons*
(P.4-8)
— RearView Monitor* (P. 4-23)
— Around View Monitor* (P. 4-29) 8. Rear window and outside mirror* defroster
switch (P.2-32)
9. Center ventilator (P.4-38)
10. Heater/air conditioner control (P.4-39) or audio system (P.4-53)
11. Parking brake (P.5-17)
12. Tilting telescopic steering wheel lever (P.3-32)
13. Front passenger air bag status light (P.1-53)
14. Heated seat switch* (P.2-38)
15. Cup holders (P.2-43)
16. Power outlet (P.2-41)
17. Instrument lower box (P.2-46) or CD/DVD slot (P.4-103)
18. Power outlet main switch* (P.2-41)
19. Audio system (P.4-53)
20. Glove box (P.2-46)
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual (if so equipped) .
Illustrated table of contents0-7
INSTRUMENT PANEL

0-8Illustrated table of contents
JVC0210X
1. Instrument brightness control switch (P.2-37)
2. Tachometer (P.2-7)
3. Speedometer (P.2-6)
4. Fuel gauge (P.2-8)
5. Warning/indicator lights (P.2-11)
6. Trip computer switch (P.2-23)
7. Dot matrix liquid crystal display (P.2-18)— Trip computer (P.2-23)
8. Engine coolant temperature gauge (P.2-7)
9. Odometer/twin trip odometer (P.2-6)/Continu- ously Variable Transmission (CVT) position
indicator (P.2-16)
10. TRIP/RESET switch for twin trip odometer (P.2-6)
METERS AND GAUGES

SDI2715
VQ35DE ENGINE1. Power steering fluid reservoir (P.8-11)
2. Drive belt location (P.8-15)
3. Engine oil filler cap (P.8-8)
4. Brake fluid reservoir (P.8-12)
5. Air cleaner (P.8-17)
6. Fuse/fusible link holder (P.8-21)7. Window washer fluid reservoir (P.8-13)
8. Engine coolant reservoir (P.8-7)
9. Radiator filler cap (P.8-7)
10. Engine oil dipstick (P.8-8)
11. Battery (P.8-13)
Illustrated table of contents0-9
ENGINE COMPARTMENT
