ARoUND viEW® MoNi To R SYSTEM
W
i
TH CAMERA A i
D
ED S
o
NAR
(parking sensor) (if so equipped)
With the ignition switch in the o N position, the
Around View® Monitor is activated by pressing the
CAMERA button
01 located on the control panel,
or by moving the shift lever to the R (RE v ERSE)
position. The control panel displays various views of
the position of the vehicle.
When the shift lever is in the P (PARK), N (NEUTRA l ) or D (DR
iv
E) position and the
CAMERA button
01 is pressed, the front view and
bird’s eye view screen is displayed.
When the CAMERA button 01 is pressed again the
front view and front-side view screen is displayed.
When the shift lever is in the R (RE v ERSE)
position the rear view and bird’s-eye view screen will
be displayed.
When the C AMERA button 01 is pressed, the rear
view and front-side view screen will be displayed.
The colored guide lines on the display screen indicate vehicle width and approximate distances to objects
with reference to the vehicle body line.
•
Red 1.5 ft (0.5 m); Y
ellow 3 ft (1 m); Green 7 ft
(2 m) and 10 ft (3 m)
There are some areas where the system will not show objects.
•
W
hen in the front or the rear view display, an object
below the bumper or on the ground may not be
viewed
02.
•
W
hen in the bird’s-eye view, a tall object near the
seam of the camera viewing areas
03 will not
appear in the monitor.
The distance between objects viewed on the
Around View® Monitor System differs from the
actual distance.
Objects in the bird’ s-eye view will appear further than
the actual distance.

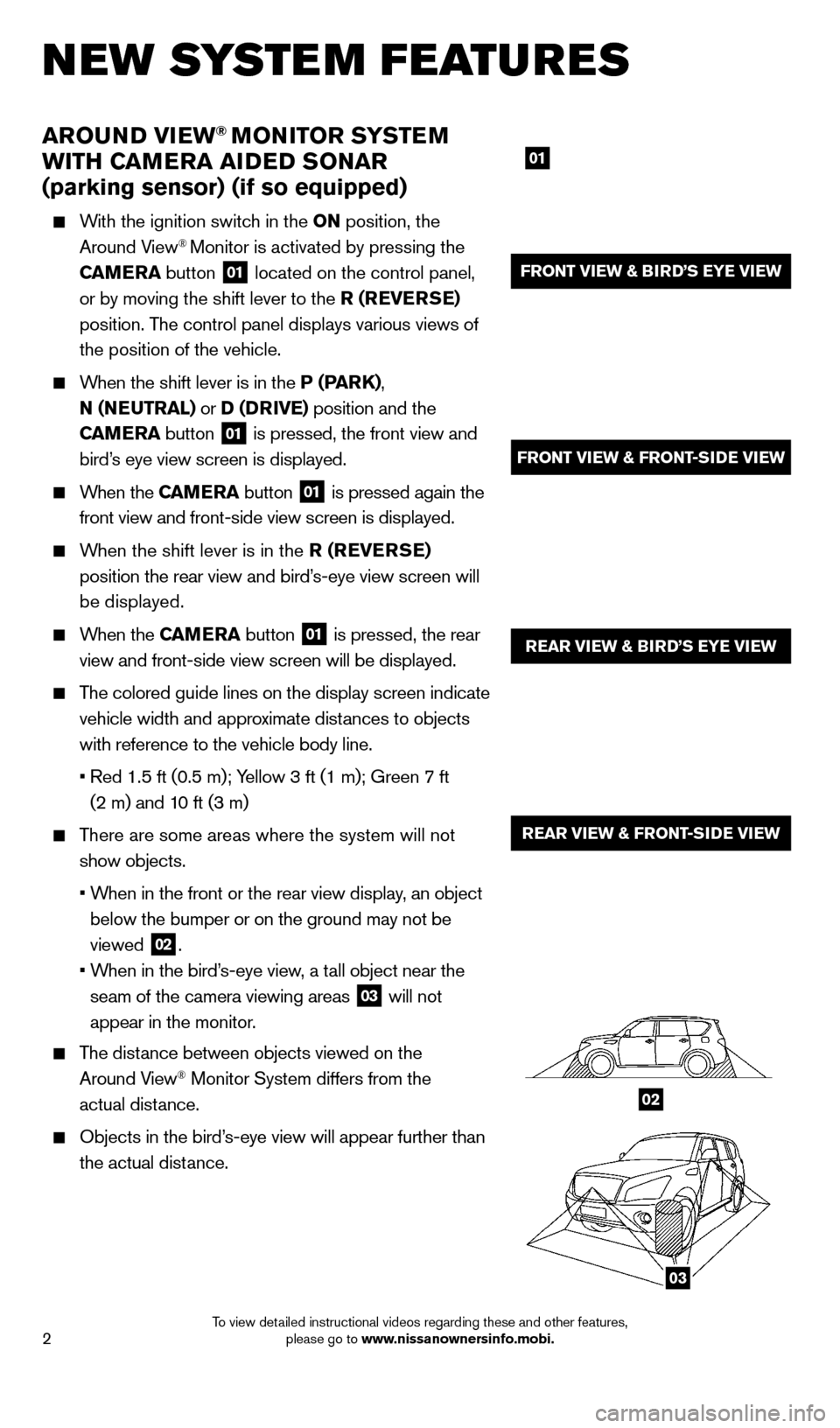

01
REAR viEW & BiR D’S EYE viEW
REAR viEW & FRoNT-SiD E viEW
FRoNT viEW & BiR D’S EYE viEW
FRoNT viEW & FRo NT-SiD E viEW
1
2
02
03
