2014 NISSAN PATHFINDER HYBRID stop start

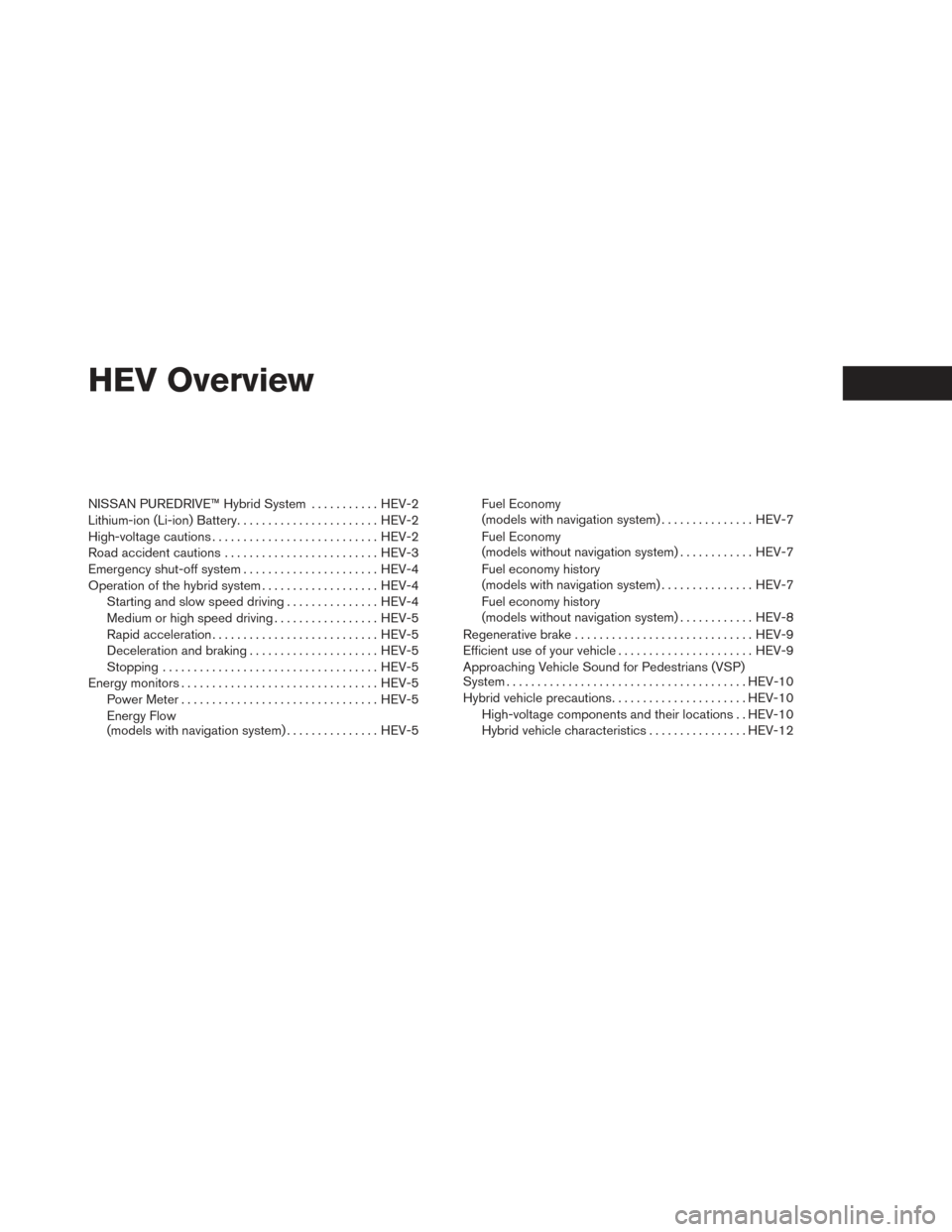

HEV Overview
NISSAN PUREDRIVE™ Hybrid System ...........HEV-2
Lithium-ion (Li-ion) Battery .......................HEV-2
High-voltage cautions ........................... HEV-2
Road accident cautions ......................... HEV-3
Emergency shut-off system ......................HEV-4
Operation of the hybrid system ...................HEV-4
Starting and slow speed driving ...............HEV-4
Medium or high speed driving .................HEV-5
Rapid acceleration ........................... HEV-5
Deceleration and braking .....................HEV-5
Stopping ................................... HEV-5
Energy monitors ................................ HEV-5
Power Meter ................................ HEV-5
Energy Flow
(models with navigation system) ...............HEV-5 Fuel Economy
(models with navigation system)
...............HEV-7
Fuel Economy
(models without navigation system) ............HEV-7
Fuel economy history
(models with navigation system) ...............HEV-7
Fuel economy history
(models without navigation system) ............HEV-8
Regenerative brake ............................. HEV-9
Efficient use of your vehicle ......................HEV-9
Approaching Vehicle Sound for Pedestrians (VSP)
System . ...................................... HEV-10
Hybrid vehicle precautions ......................HEV-10
High-voltage components and their locations . . HEV-10
Hybrid vehicle characteristics ................HEV-12

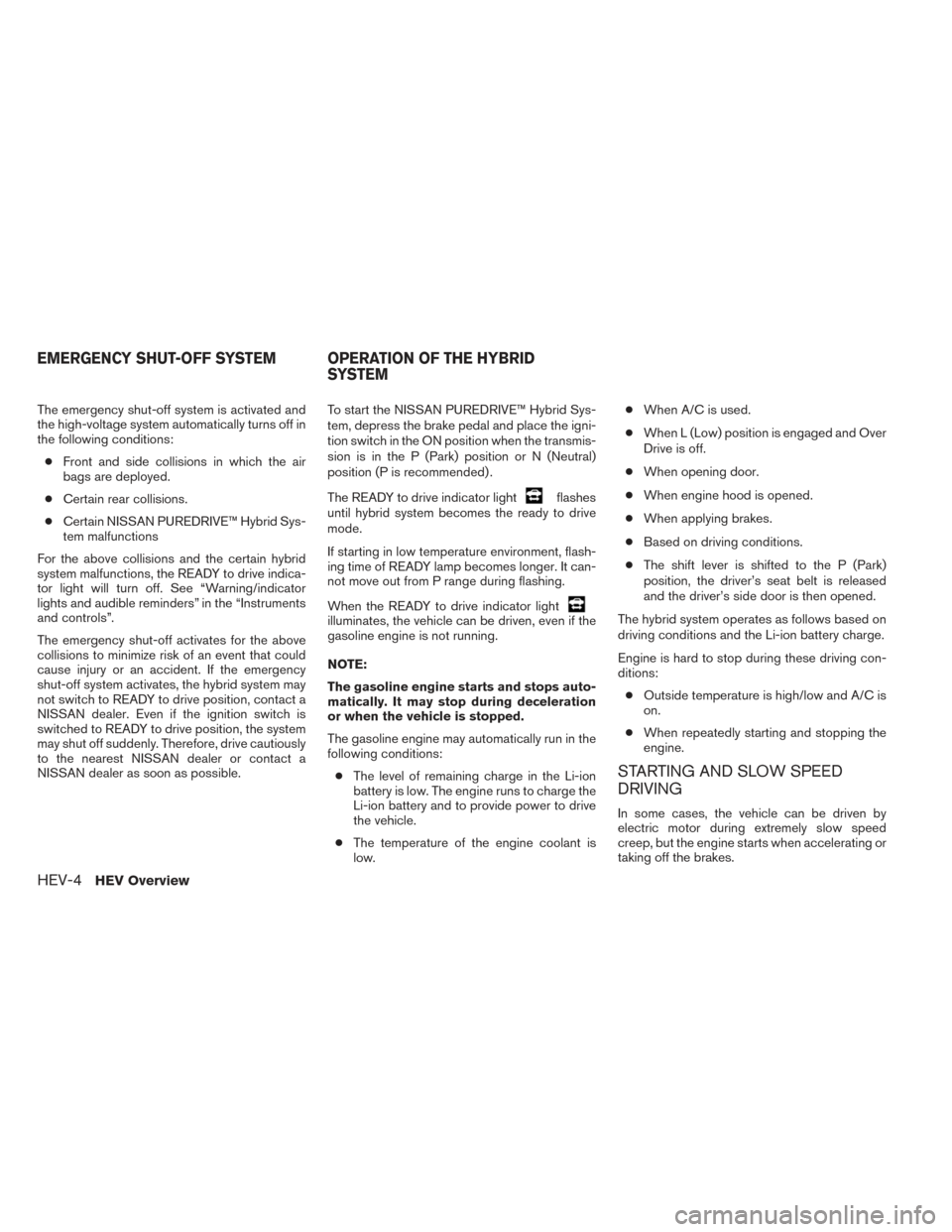

The emergency shut-off system is activated and
the high-voltage system automatically turns off in
the following conditions:● Front and side collisions in which the air
bags are deployed.
● Certain rear collisions.
● Certain NISSAN PUREDRIVE™ Hybrid Sys-
tem malfunctions
For the above collisions and the certain hybrid
system malfunctions, the READY to drive indica-
tor light will turn off. See “Warning/indicator
lights and audible reminders” in the “Instruments
and controls”.
The emergency shut-off activates for the above
collisions to minimize risk of an event that could
cause injury or an accident. If the emergency
shut-off system activates, the hybrid system may
not switch to READY to drive position, contact a
NISSAN dealer. Even if the ignition switch is
switched to READY to drive position, the system
may shut off suddenly. Therefore, drive cautiously
to the nearest NISSAN dealer or contact a
NISSAN dealer as soon as possible. To start the NISSAN PUREDRIVE™ Hybrid Sys-
tem, depress the brake pedal and place the igni-
tion switch in the ON position when the transmis-
sion is in the P (Park) position or N (Neutral)
position (P is recommended) .
The READY to drive indicator light
flashes
until hybrid system becomes the ready to drive
mode.
If starting in low temperature environment, flash-
ing time of READY lamp becomes longer. It can-
not move out from P range during flashing.
When the READY to drive indicator light
illuminates, the vehicle can be driven, even if the
gasoline engine is not running.
NOTE:
The gasoline engine starts and stops auto-
matically. It may stop during deceleration
or when the vehicle is stopped.
The gasoline engine may automatically run in the
following conditions:
● The level of remaining charge in the Li-ion
battery is low. The engine runs to charge the
Li-ion battery and to provide power to drive
the vehicle.
● The temperature of the engine coolant is
low. ●
When A/C is used.
● When L (Low) position is engaged and Over
Drive is off.
● When opening door.
● When engine hood is opened.
● When applying brakes.
● Based on driving conditions.
● The shift lever is shifted to the P (Park)
position, the driver’s seat belt is released
and the driver’s side door is then opened.
The hybrid system operates as follows based on
driving conditions and the Li-ion battery charge.
Engine is hard to stop during these driving con-
ditions: ● Outside temperature is high/low and A/C is
on.
● When repeatedly starting and stopping the
engine.
STARTING AND SLOW SPEED
DRIVING
In some cases, the vehicle can be driven by
electric motor during extremely slow speed
creep, but the engine starts when accelerating or
taking off the brakes.
EMERGENCY SHUT-OFF SYSTEM OPERATION OF THE HYBRID SYSTEM
HEV-4HEV Overview

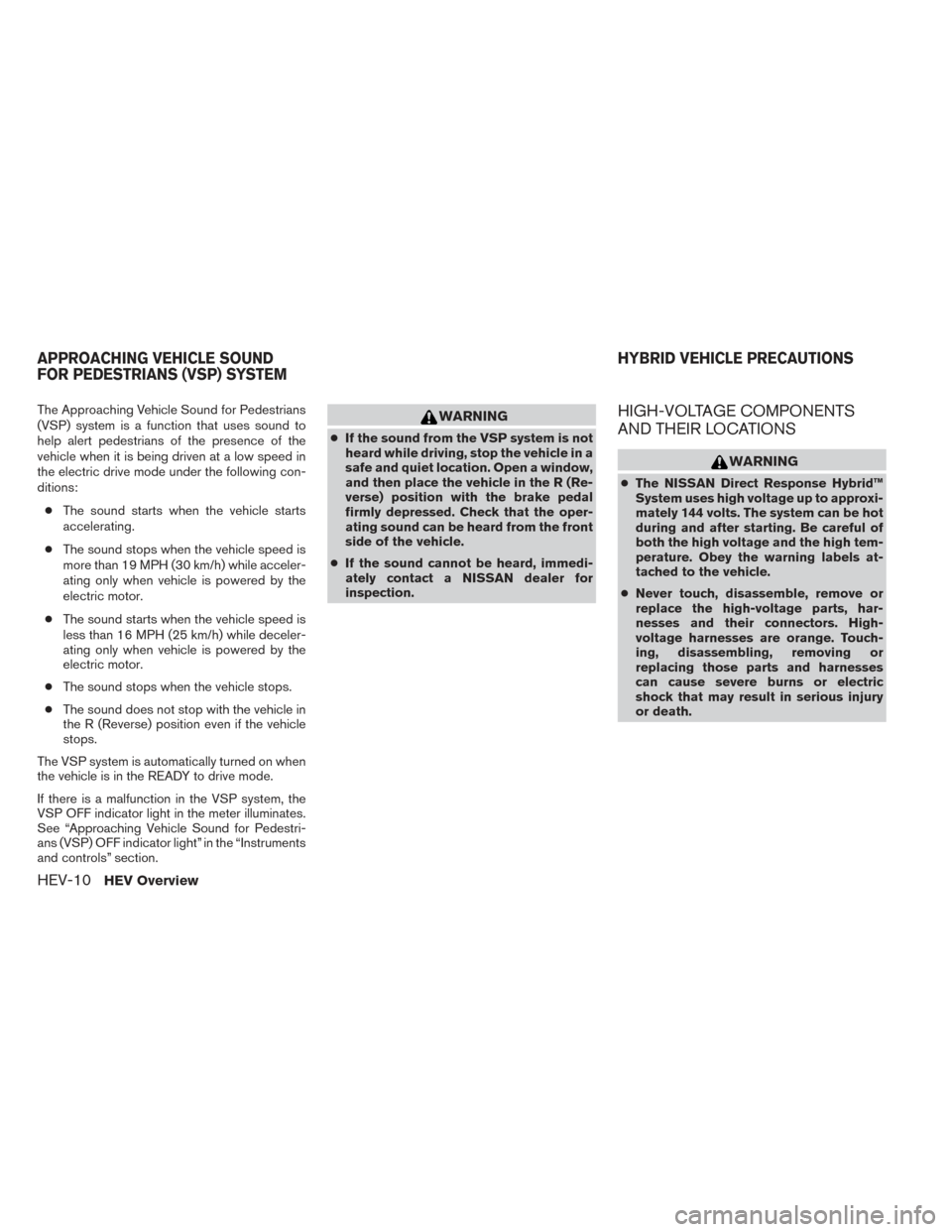

The Approaching Vehicle Sound for Pedestrians
(VSP) system is a function that uses sound to
help alert pedestrians of the presence of the
vehicle when it is being driven at a low speed in
the electric drive mode under the following con-
ditions:● The sound starts when the vehicle starts
accelerating.
● The sound stops when the vehicle speed is
more than 19 MPH (30 km/h) while acceler-
ating only when vehicle is powered by the
electric motor.
● The sound starts when the vehicle speed is
less than 16 MPH (25 km/h) while deceler-
ating only when vehicle is powered by the
electric motor.
● The sound stops when the vehicle stops.
● The sound does not stop with the vehicle in
the R (Reverse) position even if the vehicle
stops.
The VSP system is automatically turned on when
the vehicle is in the READY to drive mode.
If there is a malfunction in the VSP system, the
VSP OFF indicator light in the meter illuminates.
See “Approaching Vehicle Sound for Pedestri-
ans (VSP) OFF indicator light” in the “Instruments
and controls” section.WARNING
● If the sound from the VSP system is not
heard while driving, stop the vehicle in a
safe and quiet location. Open a window,
and then place the vehicle in the R (Re-
verse) position with the brake pedal
firmly depressed. Check that the oper-
ating sound can be heard from the front
side of the vehicle.
● If the sound cannot be heard, immedi-
ately contact a NISSAN dealer for
inspection.
HIGH-VOLTAGE COMPONENTS
AND THEIR LOCATIONS
WARNING
● The NISSAN Direct Response Hybrid™
System uses high voltage up to approxi-
mately 144 volts. The system can be hot
during and after starting. Be careful of
both the high voltage and the high tem-
perature. Obey the warning labels at-
tached to the vehicle.
● Never touch, disassemble, remove or
replace the high-voltage parts, har-
nesses and their connectors. High-
voltage harnesses are orange. Touch-
ing, disassembling, removing or
replacing those parts and harnesses
can cause severe burns or electric
shock that may result in serious injury
or death.
APPROACHING VEHICLE SOUND
FOR PEDESTRIANS (VSP) SYSTEM HYBRID VEHICLE PRECAUTIONS
HEV-10HEV Overview

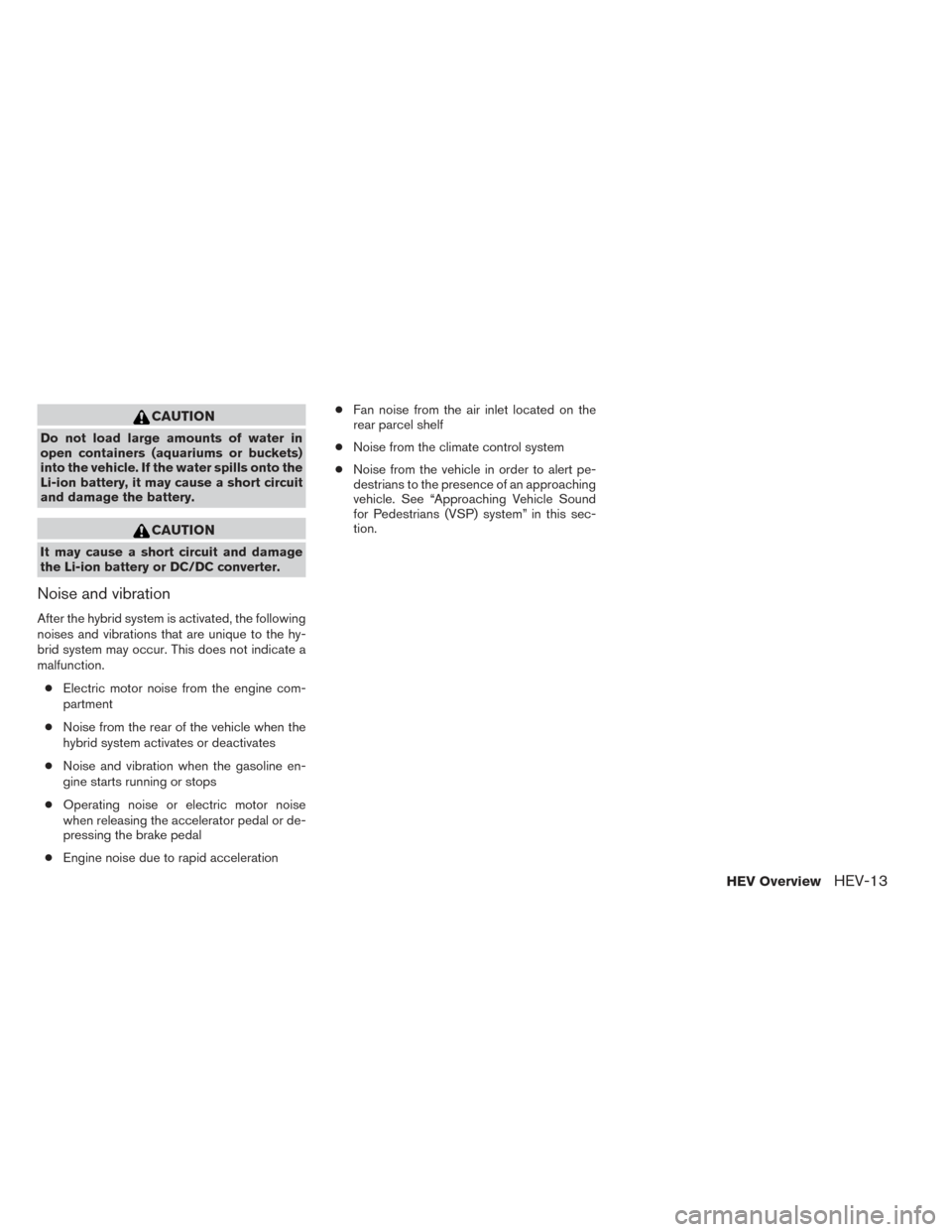

CAUTION
Do not load large amounts of water in
open containers (aquariums or buckets)
into the vehicle. If the water spills onto the
Li-ion battery, it may cause a short circuit
and damage the battery.
CAUTION
It may cause a short circuit and damage
the Li-ion battery or DC/DC converter.
Noise and vibration
After the hybrid system is activated, the following
noises and vibrations that are unique to the hy-
brid system may occur. This does not indicate a
malfunction.● Electric motor noise from the engine com-
partment
● Noise from the rear of the vehicle when the
hybrid system activates or deactivates
● Noise and vibration when the gasoline en-
gine starts running or stops
● Operating noise or electric motor noise
when releasing the accelerator pedal or de-
pressing the brake pedal
● Engine noise due to rapid acceleration ●
Fan noise from the air inlet located on the
rear parcel shelf
● Noise from the climate control system
● Noise from the vehicle in order to alert pe-
destrians to the presence of an approaching
vehicle. See “Approaching Vehicle Sound
for Pedestrians (VSP) system” in this sec-
tion.
HEV OverviewHEV-13

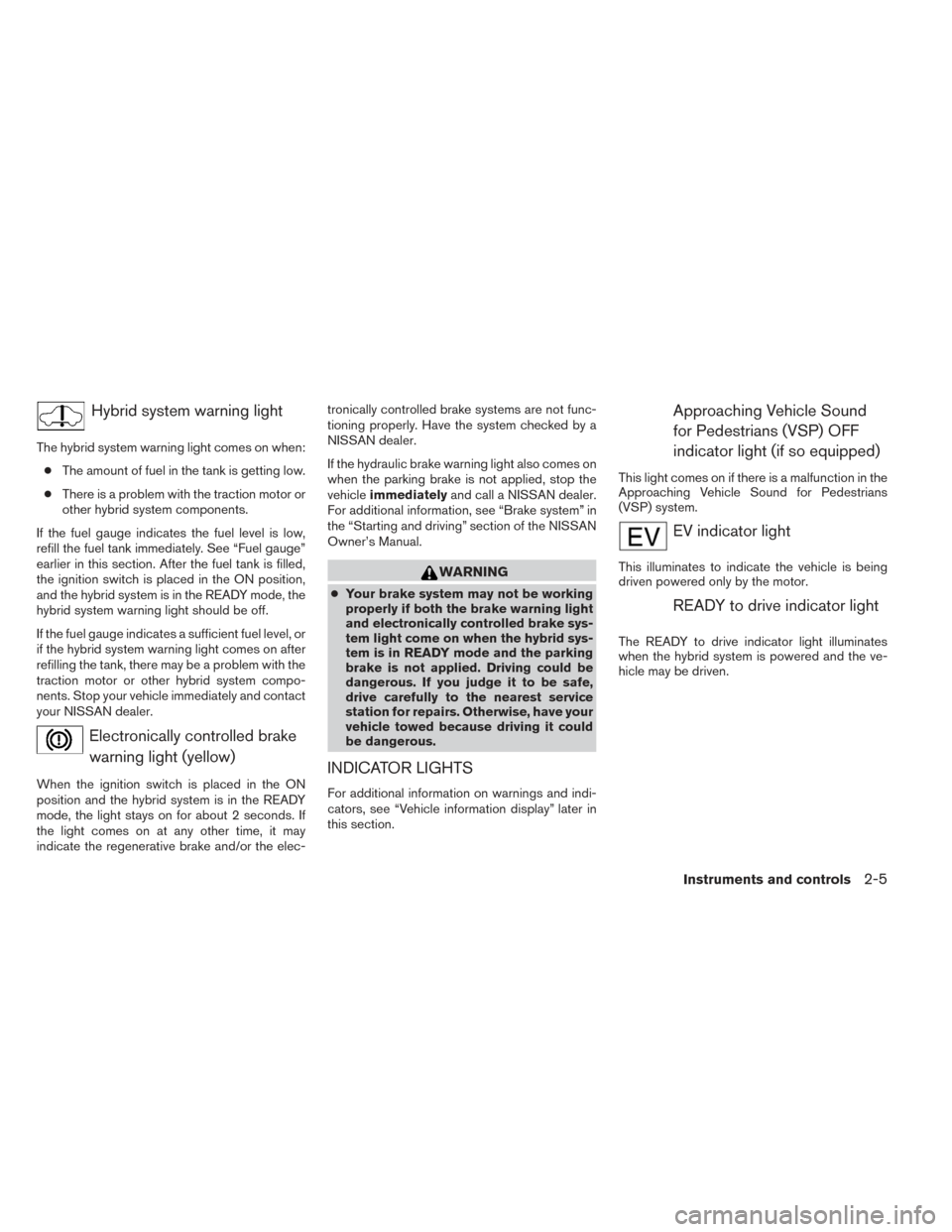

Hybrid system warning light
The hybrid system warning light comes on when:● The amount of fuel in the tank is getting low.
● There is a problem with the traction motor or
other hybrid system components.
If the fuel gauge indicates the fuel level is low,
refill the fuel tank immediately. See “Fuel gauge”
earlier in this section. After the fuel tank is filled,
the ignition switch is placed in the ON position,
and the hybrid system is in the READY mode, the
hybrid system warning light should be off.
If the fuel gauge indicates a sufficient fuel level, or
if the hybrid system warning light comes on after
refilling the tank, there may be a problem with the
traction motor or other hybrid system compo-
nents. Stop your vehicle immediately and contact
your NISSAN dealer.
Electronically controlled brake warning light (yellow)
When the ignition switch is placed in the ON
position and the hybrid system is in the READY
mode, the light stays on for about 2 seconds. If
the light comes on at any other time, it may
indicate the regenerative brake and/or the elec- tronically controlled brake systems are not func-
tioning properly. Have the system checked by a
NISSAN dealer.
If the hydraulic brake warning light also comes on
when the parking brake is not applied, stop the
vehicle
immediately and call a NISSAN dealer.
For additional information, see “Brake system” in
the “Starting and driving” section of the NISSAN
Owner’s Manual.
WARNING
● Your brake system may not be working
properly if both the brake warning light
and electronically controlled brake sys-
tem light come on when the hybrid sys-
tem is in READY mode and the parking
brake is not applied. Driving could be
dangerous. If you judge it to be safe,
drive carefully to the nearest service
station for repairs. Otherwise, have your
vehicle towed because driving it could
be dangerous.
INDICATOR LIGHTS
For additional information on warnings and indi-
cators, see “Vehicle information display” later in
this section.
Approaching Vehicle Sound
for Pedestrians (VSP) OFF
indicator light (if so equipped)
This light comes on if there is a malfunction in the
Approaching Vehicle Sound for Pedestrians
(VSP) system.
EV indicator light
This illuminates to indicate the vehicle is being
driven powered only by the motor.
READY to drive indicator light
The READY to drive indicator light illuminates
when the hybrid system is powered and the ve-
hicle may be driven.
Instruments and controls2-5

Vehicle information display warnings
and indicators
1. Hybrid System Overheated
2. Shift to Park Li-ion battery low
3. HV System Warm up Please Wait In Park
4. Shutting Down
Hybrid System Overheated
This warning appears when the temperature of
the hybrid system is extremely high. Stop the
vehicle in a safe location as soon as possible. Avoid quick starting or abrupt acceleration.
When the warning turns off, the vehicle can be
driven.
If the warning appears again soon after it turns
off, have the vehicle checked by a NISSAN
dealer.
Do not drive the vehicle with the warning
on. Doing so could cause a hybrid system
malfunction.
CAUTION
If the high temperature warning appears
when the ignition switch is in the ON po-
sition, stop the vehicle safely as soon as
possible.
If the vehicle is overheated, continuing
vehicle operation may seriously damage
the engine.
Shift to Park Li-ion battery low
This warning appears when the shift lever is in the
“N” position and level of remaining charge in the
Li-ion battery is low.
When this warning appears, place the shift lever
in the P (Park) position. This will turn off in the
following conditions.
When the shift lever has been placed in the P
(Park) position. HV System Warm Up Please Wait In Park
This warning appears when the hybrid system
has not reached full operating temperature.
When the warning turns off, the vehicle can be
driven.
Shutting Down
This warning appears when the hybrid system
has been turned off.
NJE0016
Instruments and controls2-7

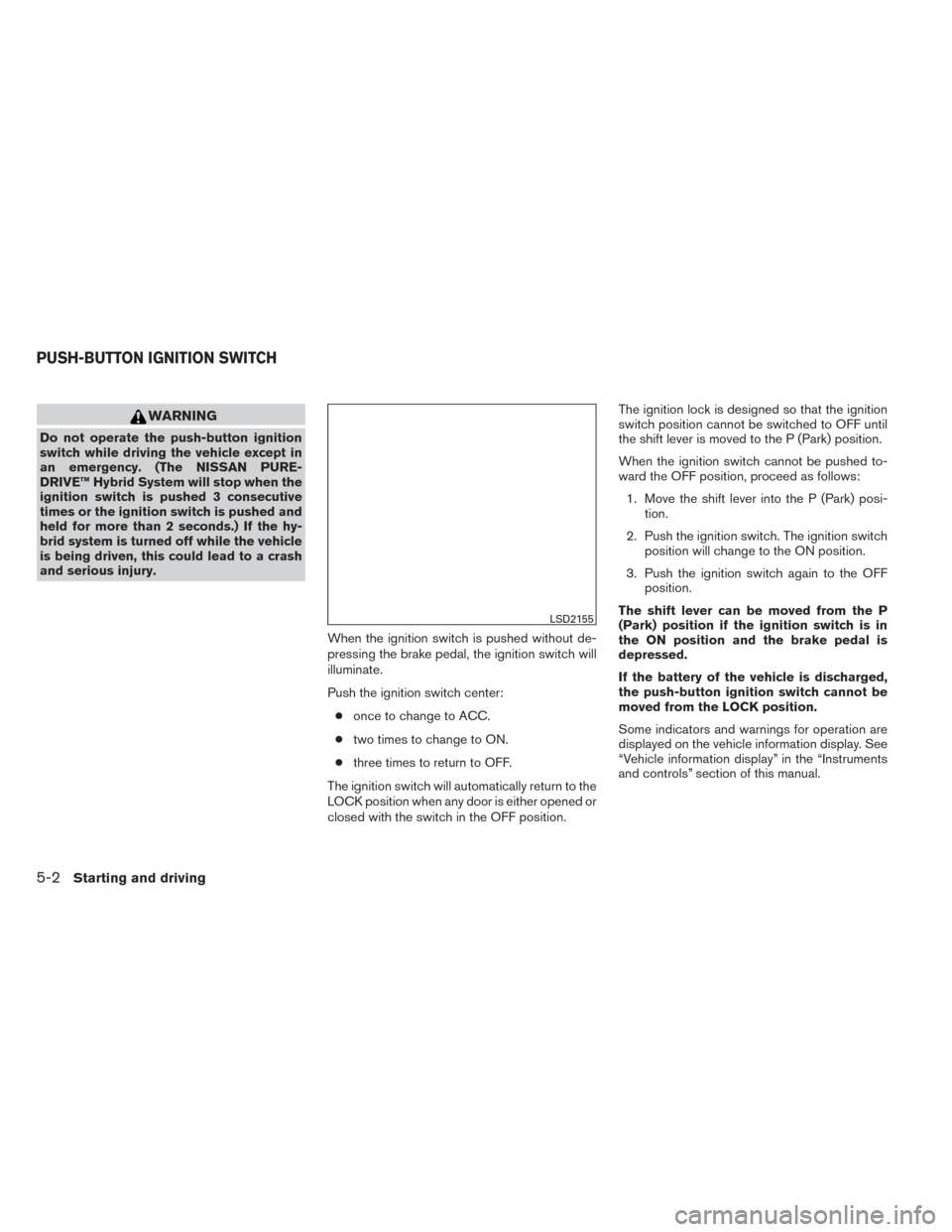

WARNING
Do not operate the push-button ignition
switch while driving the vehicle except in
an emergency. (The NISSAN PURE-
DRIVE™ Hybrid System will stop when the
ignition switch is pushed 3 consecutive
times or the ignition switch is pushed and
held for more than 2 seconds.) If the hy-
brid system is turned off while the vehicle
is being driven, this could lead to a crash
and serious injury.When the ignition switch is pushed without de-
pressing the brake pedal, the ignition switch will
illuminate.
Push the ignition switch center:● once to change to ACC.
● two times to change to ON.
● three times to return to OFF.
The ignition switch will automatically return to the
LOCK position when any door is either opened or
closed with the switch in the OFF position. The ignition lock is designed so that the ignition
switch position cannot be switched to OFF until
the shift lever is moved to the P (Park) position.
When the ignition switch cannot be pushed to-
ward the OFF position, proceed as follows:
1. Move the shift lever into the P (Park) posi- tion.
2. Push the ignition switch. The ignition switch position will change to the ON position.
3. Push the ignition switch again to the OFF position.
The shift lever can be moved from the P
(Park) position if the ignition switch is in
the ON position and the brake pedal is
depressed.
If the battery of the vehicle is discharged,
the push-button ignition switch cannot be
moved from the LOCK position.
Some indicators and warnings for operation are
displayed on the vehicle information display. See
“Vehicle information display” in the “Instruments
and controls” section of this manual.
LSD2155
PUSH-BUTTON IGNITION SWITCH
5-2Starting and driving

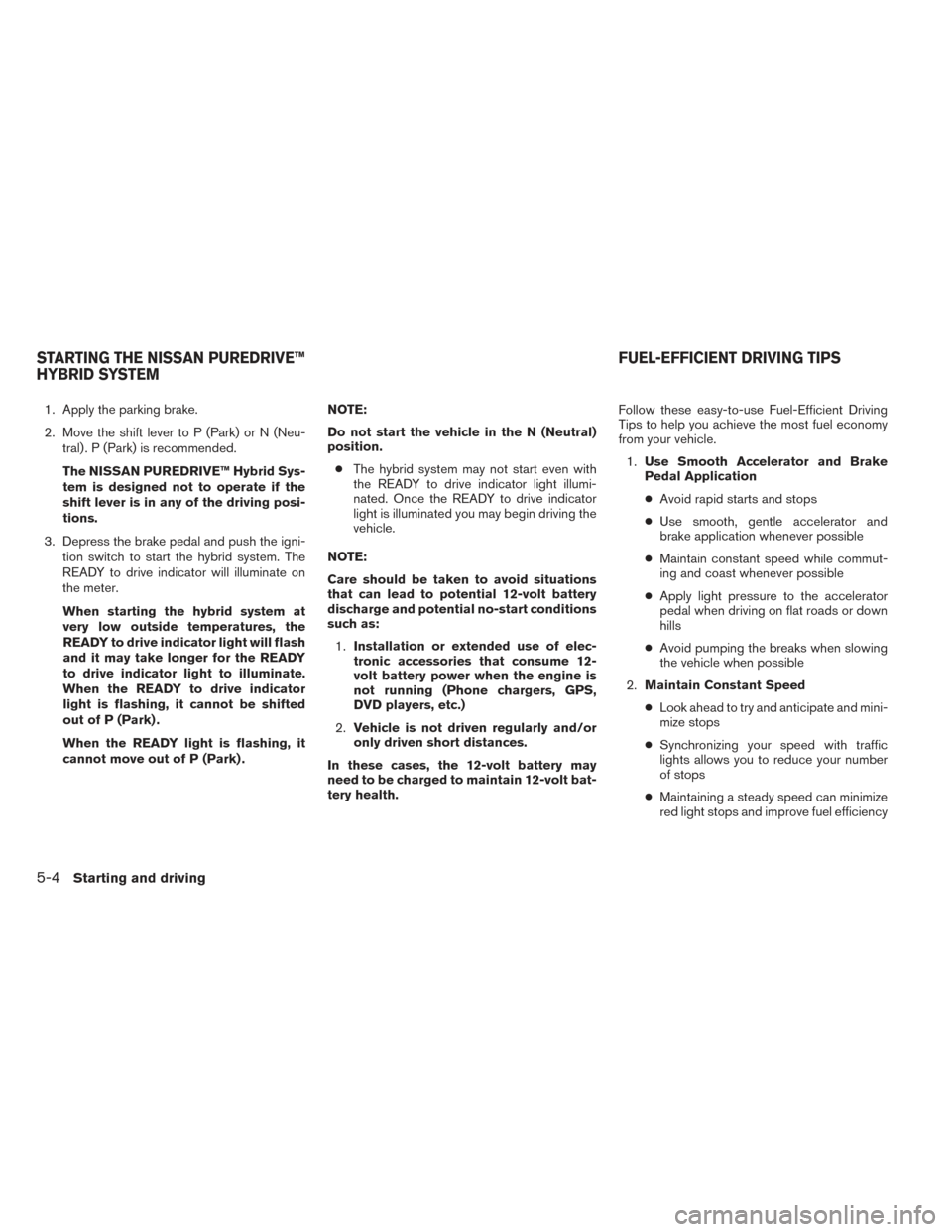

1. Apply the parking brake.
2. Move the shift lever to P (Park) or N (Neu-tral) . P (Park) is recommended.
The NISSAN PUREDRIVE™ Hybrid Sys-
tem is designed not to operate if the
shift lever is in any of the driving posi-
tions.
3. Depress the brake pedal and push the igni- tion switch to start the hybrid system. The
READY to drive indicator will illuminate on
the meter.
When starting the hybrid system at
very low outside temperatures, the
READY to drive indicator light will flash
and it may take longer for the READY
to drive indicator light to illuminate.
When the READY to drive indicator
light is flashing, it cannot be shifted
out of P (Park) .
When the READY light is flashing, it
cannot move out of P (Park) . NOTE:
Do not start the vehicle in the N (Neutral)
position.
● The hybrid system may not start even with
the READY to drive indicator light illumi-
nated. Once the READY to drive indicator
light is illuminated you may begin driving the
vehicle.
NOTE:
Care should be taken to avoid situations
that can lead to potential 12-volt battery
discharge and potential no-start conditions
such as: 1. Installation or extended use of elec-
tronic accessories that consume 12-
volt battery power when the engine is
not running (Phone chargers, GPS,
DVD players, etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the 12-volt battery may
need to be charged to maintain 12-volt bat-
tery health. Follow these easy-to-use Fuel-Efficient Driving
Tips to help you achieve the most fuel economy
from your vehicle.
1. Use Smooth Accelerator and Brake
Pedal Application
● Avoid rapid starts and stops
● Use smooth, gentle accelerator and
brake application whenever possible
● Maintain constant speed while commut-
ing and coast whenever possible
● Apply light pressure to the accelerator
pedal when driving on flat roads or down
hills
● Avoid pumping the breaks when slowing
the vehicle when possible
2. Maintain Constant Speed
● Look ahead to try and anticipate and mini-
mize stops
● Synchronizing your speed with traffic
lights allows you to reduce your number
of stops
● Maintaining a steady speed can minimize
red light stops and improve fuel efficiency
STARTING THE NISSAN PUREDRIVE™
HYBRID SYSTEM FUEL-EFFICIENT DRIVING TIPS
5-4Starting and driving
