2014 NISSAN PATHFINDER HYBRID Owners Manual

The vehicle information display is located to the
left of the speedometer. It displays the HEV en-
ergy flow. For descriptions of other items found
on the vehicle information display, refer to the
NISSAN Owner’s Manual.
MAIN MENU SELECTION
The items that display can be enabled/disabled
when the ignition switch is placed in the ON
position. To change the items that display.Use the
button to select and the ENTER
button to change a menu item:
● Trip Computer
● Energy Flow
● Fuel Economy
● 4WD (if so equipped)
● Tire Pressures (if so equipped)
● Engine Temperature
Energy flow
The energy flow can be enabled/disabled to dis-
play in the vehicle information display when the
ignition switch is placed in the ON position.
From the “Main Menu Selection” select “Energy
Flow” to display the energy flow information when
the ignition switch is placed in the ON position.
LIC2205NJE0017
VEHICLE INFORMATION DISPLAY
2-6Instruments and controls

Vehicle information display warnings
and indicators
1. Hybrid System Overheated
2. Shift to Park Li-ion battery low
3. HV System Warm up Please Wait In Park
4. Shutting Down
Hybrid System Overheated
This warning appears when the temperature of
the hybrid system is extremely high. Stop the
vehicle in a safe location as soon as possible. Avoid quick starting or abrupt acceleration.
When the warning turns off, the vehicle can be
driven.
If the warning appears again soon after it turns
off, have the vehicle checked by a NISSAN
dealer.
Do not drive the vehicle with the warning
on. Doing so could cause a hybrid system
malfunction.
CAUTION
If the high temperature warning appears
when the ignition switch is in the ON po-
sition, stop the vehicle safely as soon as
possible.
If the vehicle is overheated, continuing
vehicle operation may seriously damage
the engine.
Shift to Park Li-ion battery low
This warning appears when the shift lever is in the
“N” position and level of remaining charge in the
Li-ion battery is low.
When this warning appears, place the shift lever
in the P (Park) position. This will turn off in the
following conditions.
When the shift lever has been placed in the P
(Park) position. HV System Warm Up Please Wait In Park
This warning appears when the hybrid system
has not reached full operating temperature.
When the warning turns off, the vehicle can be
driven.
Shutting Down
This warning appears when the hybrid system
has been turned off.
NJE0016
Instruments and controls2-7

MEMO
2-8Instruments and controls

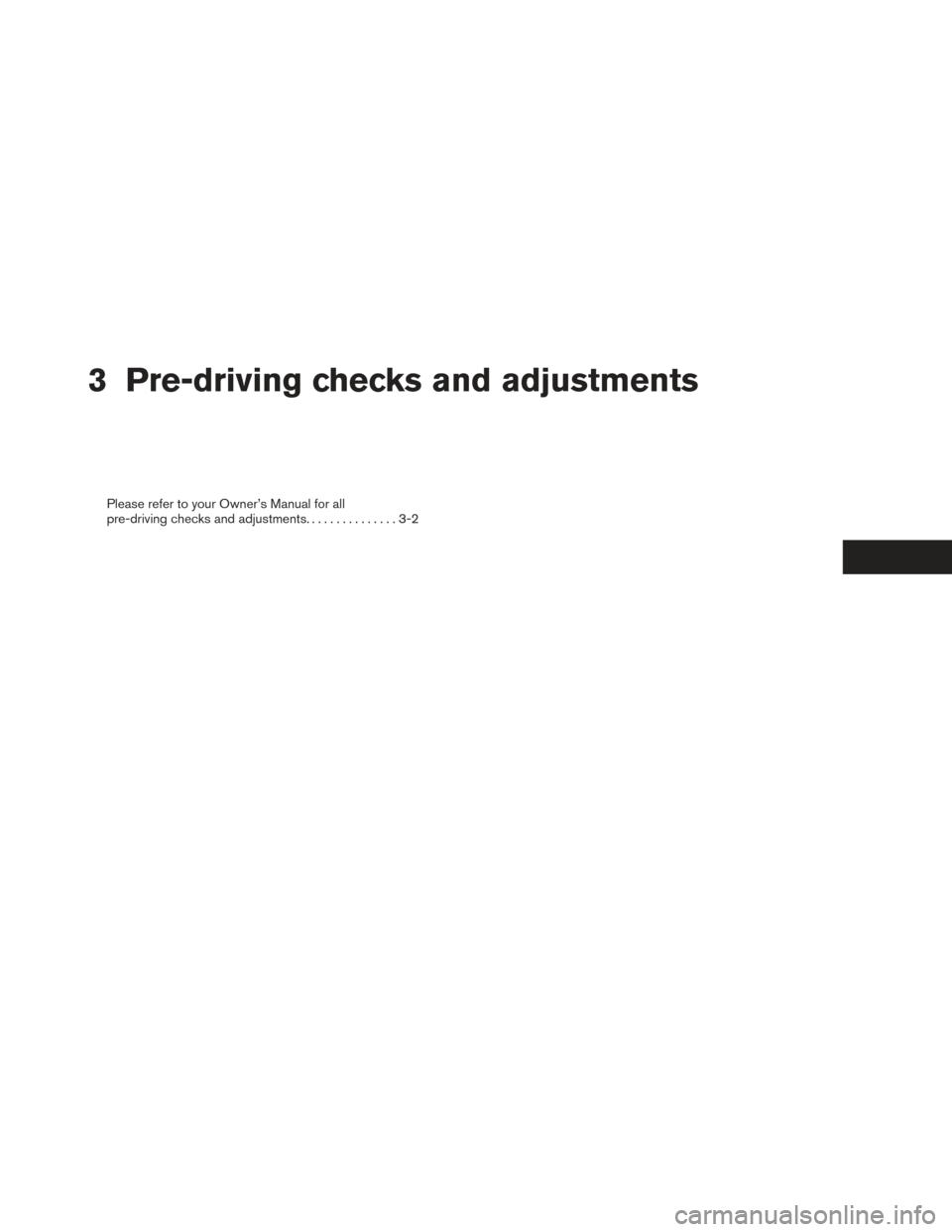

3 Pre-driving checks and adjustments
Please refer to your Owner’s Manual for all
pre-driving checks and adjustments...............3-2

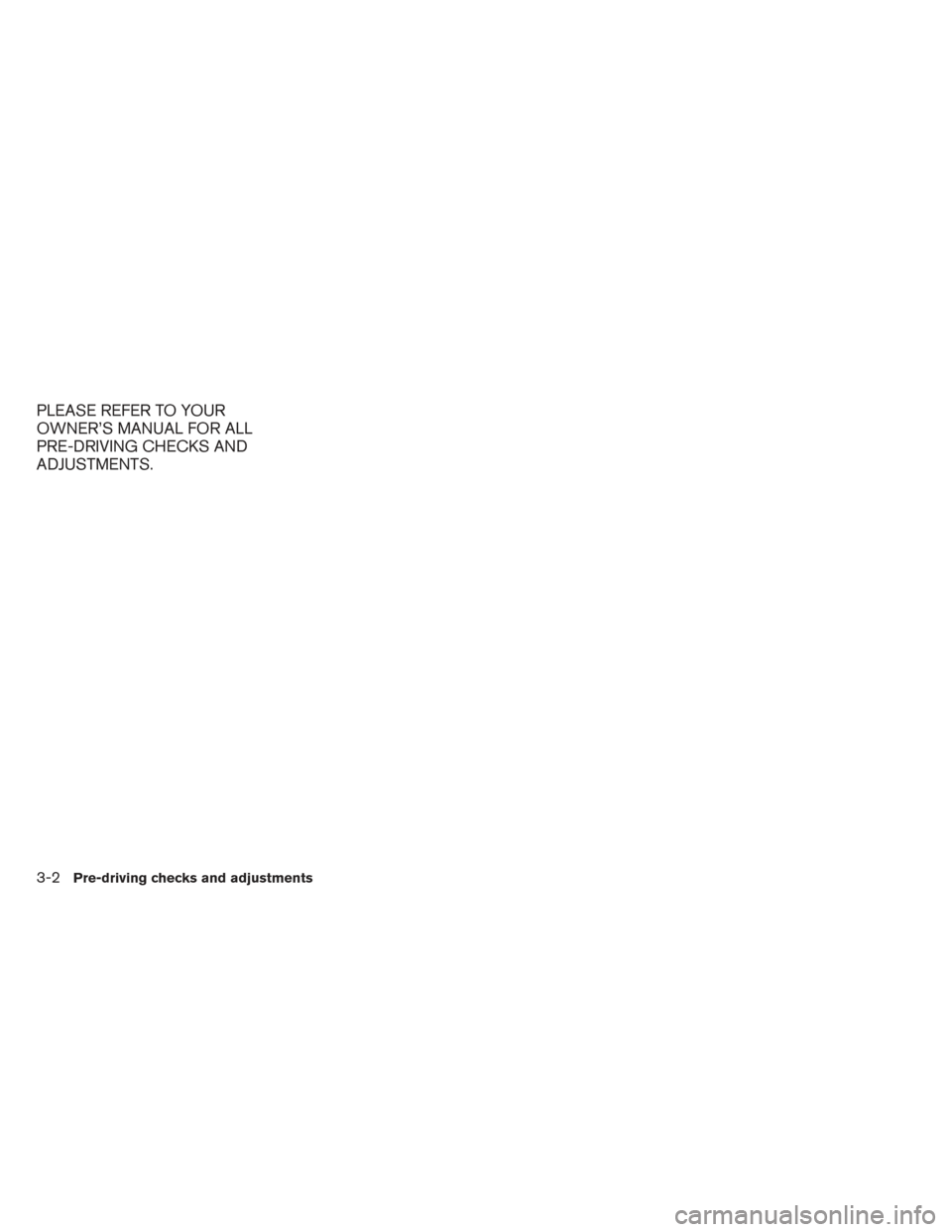

PLEASE REFER TO YOUR
OWNER’S MANUAL FOR ALL
PRE-DRIVING CHECKS AND
ADJUSTMENTS.
3-2Pre-driving checks and adjustments

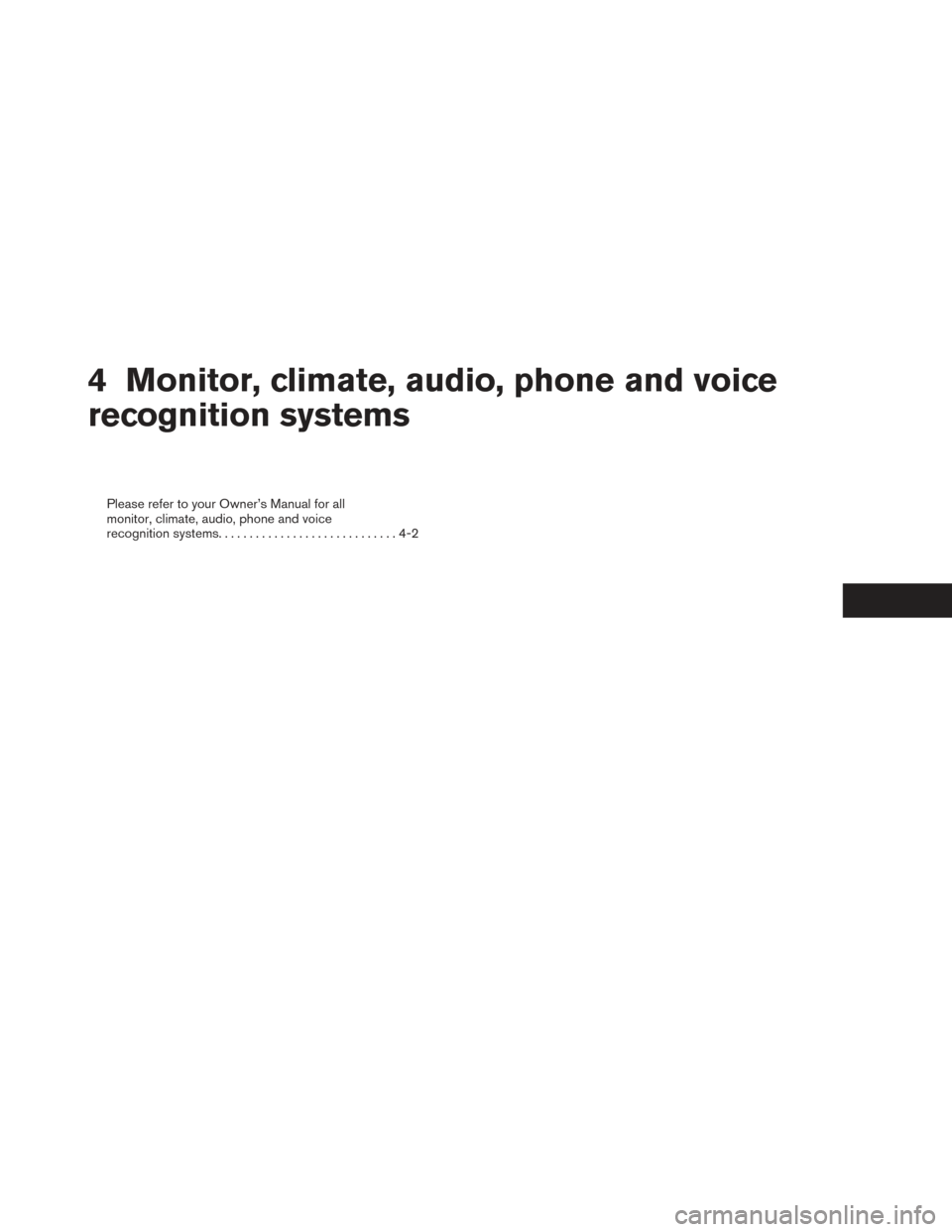

4 Monitor, climate, audio, phone and voice
recognition systems
Please refer to your Owner’s Manual for all
monitor, climate, audio, phone and voice
recognition systems.............................4-2

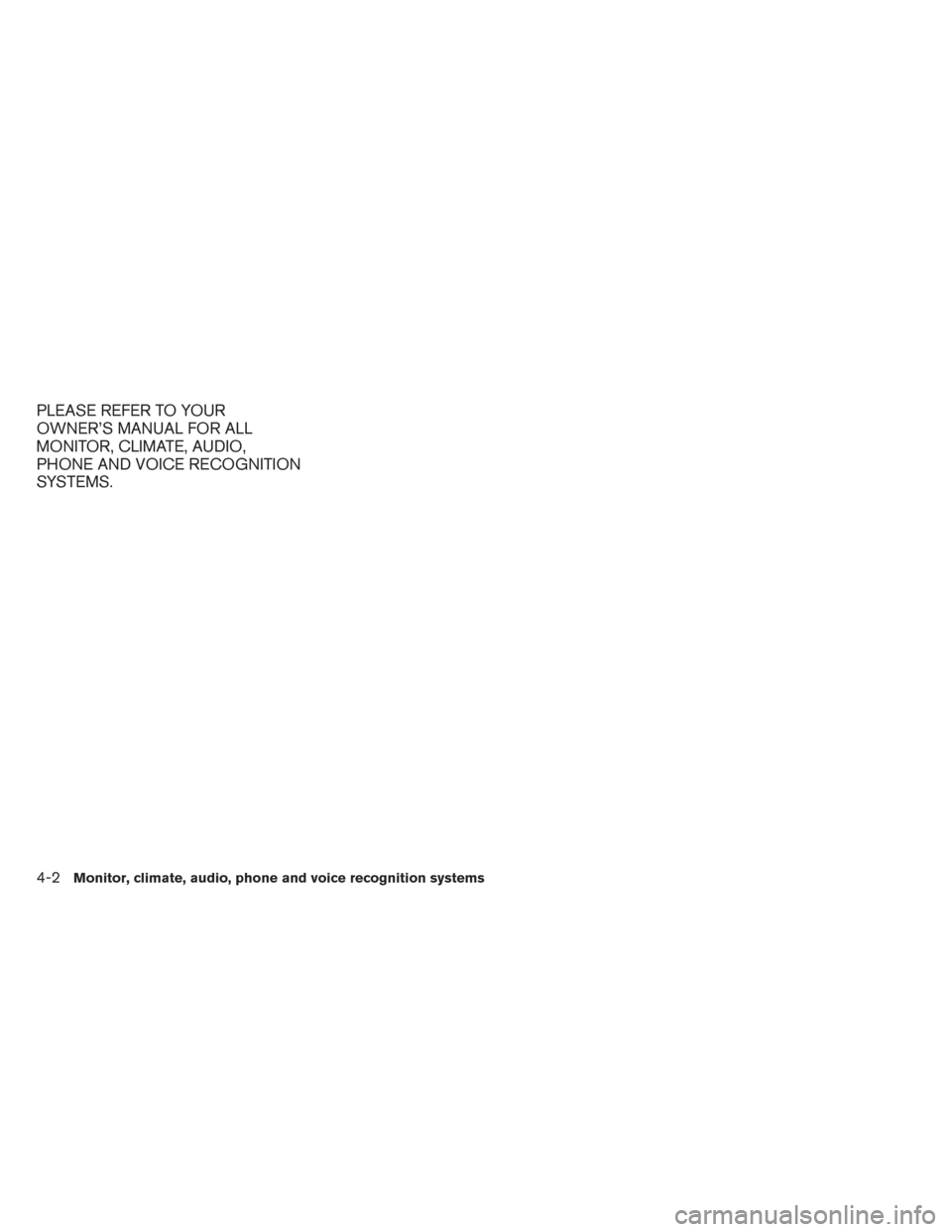

PLEASE REFER TO YOUR
OWNER’S MANUAL FOR ALL
MONITOR, CLIMATE, AUDIO,
PHONE AND VOICE RECOGNITION
SYSTEMS.
4-2Monitor, climate, audio, phone and voice recognition systems

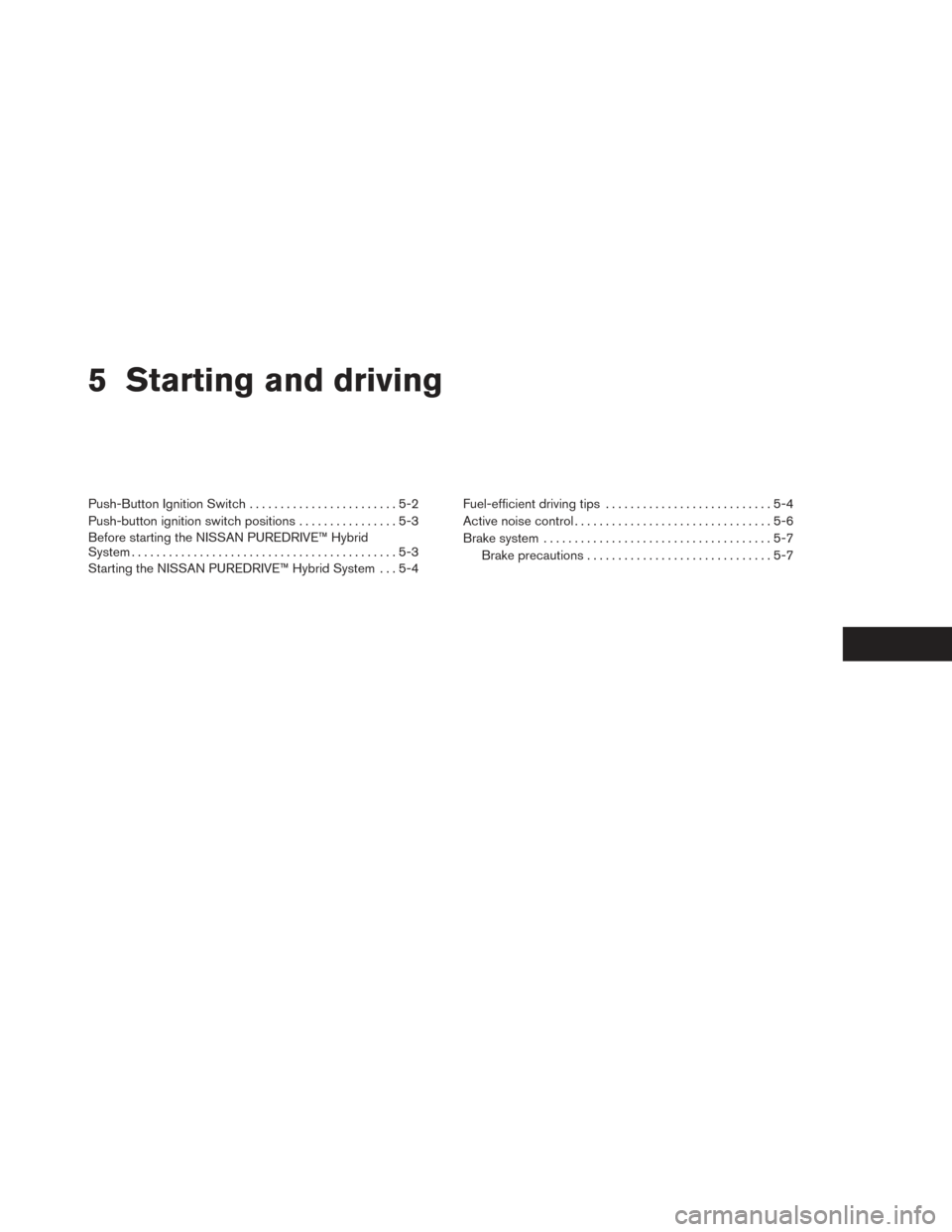

5 Starting and driving
Push-Button Ignition Switch........................5-2
Push-button ignition switch positions ................5-3
Before starting the NISSAN PUREDRIVE™ Hybrid
System ...........................................5-3
Starting the NISSAN PUREDRIVE™ Hybrid System . . . 5-4 Fuel-efficient driving tips
...........................5-4
Active noise control ................................5-6
Brake system .....................................5-7
Brake precautions ..............................5-7
