Page 33 of 45
SRS Air Bag System Components Location
Avoid cutting air bag system parts. However, the vehicle can be cut (except inflators) under the following conditions:• The front, side and curtain air bags have deployed.
• At least three (3) minutes have passed after the 12V battery negative (-) cable has beendisconnected and the high voltage system has been shut down.
= Inflators (Peel back plastic trim parts prior to cutting operation to confirm exact inflator location.)
= Sensors
AAYIA0318ZZ
FRG–33
Page 34 of 45
1. Crash zone sensor 2. Pressure sensors (passengerside door shown; driver side door similar)3. Supplemental front-impact air
bag modules
4. Front seat-mounted side-
impact supplemental air bags 5. Roof-mounted curtain side-
impact and rollover supplemental
air bag inflators6. Air bag control unit (ACU)
7. Occupant classification system
control unit 8. Occupant classification sen-
sors (weight sensors – located on
passenger seat frame)9. Seat belts with pretensioners
10. B-pillar satellite sensors (LH
shown, RH similar) 11. Satellite sensors (LH shown,
RH similar)
4
891011
53
21
67AAYIA0324ZZ
FRG–34
Page 35 of 45

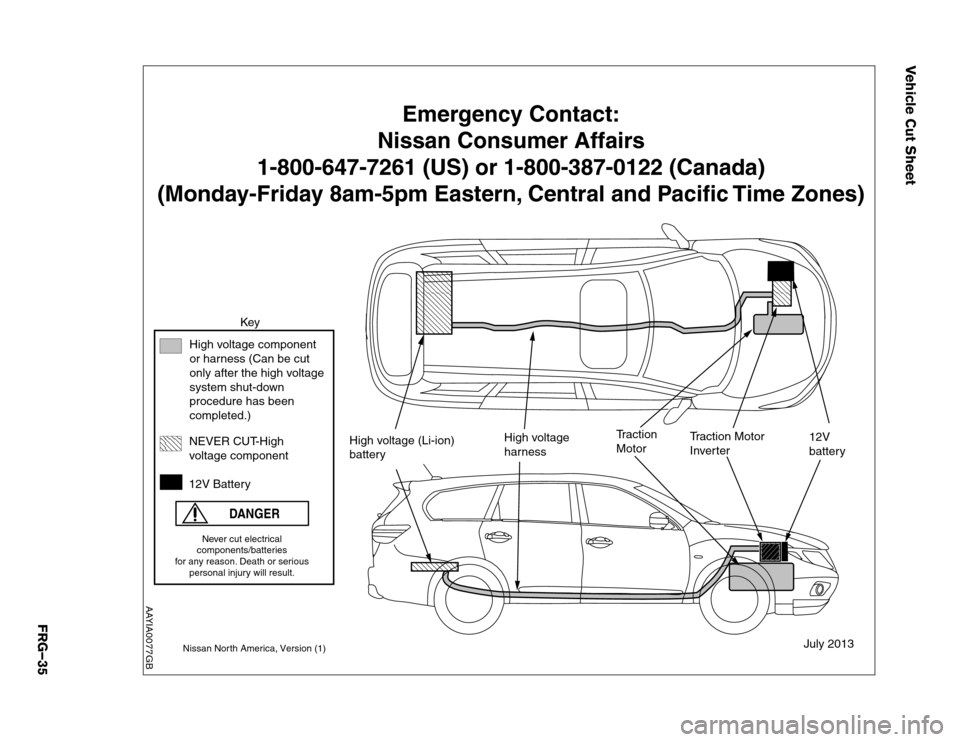

Vehicle Cut Sheet
Emergency Contact:
Nissan Consumer Affairs
1-800-647-7261 (US) or 1-800-387-0122 (Canada)
(Monday-Friday 8am-5pm Eastern, Central and Pacific Time Zones)
High voltage component
or harness (Can be cut
only after the high voltage
system shut-down procedure has been completed.)Never cut electrical
components/batteries
for any reason. Death or serious personal injury will result. Traction Motor
July 2013
Traction Motor
Inverter
High voltage
harness
High voltage (Li-ion)
battery 12V
battery
12V Battery
Key
DANGER
voltage component
Nissan North America, Version (1)
NEVER CUT-High
AAYIA0077GB
FRG–35
Page 36 of 45

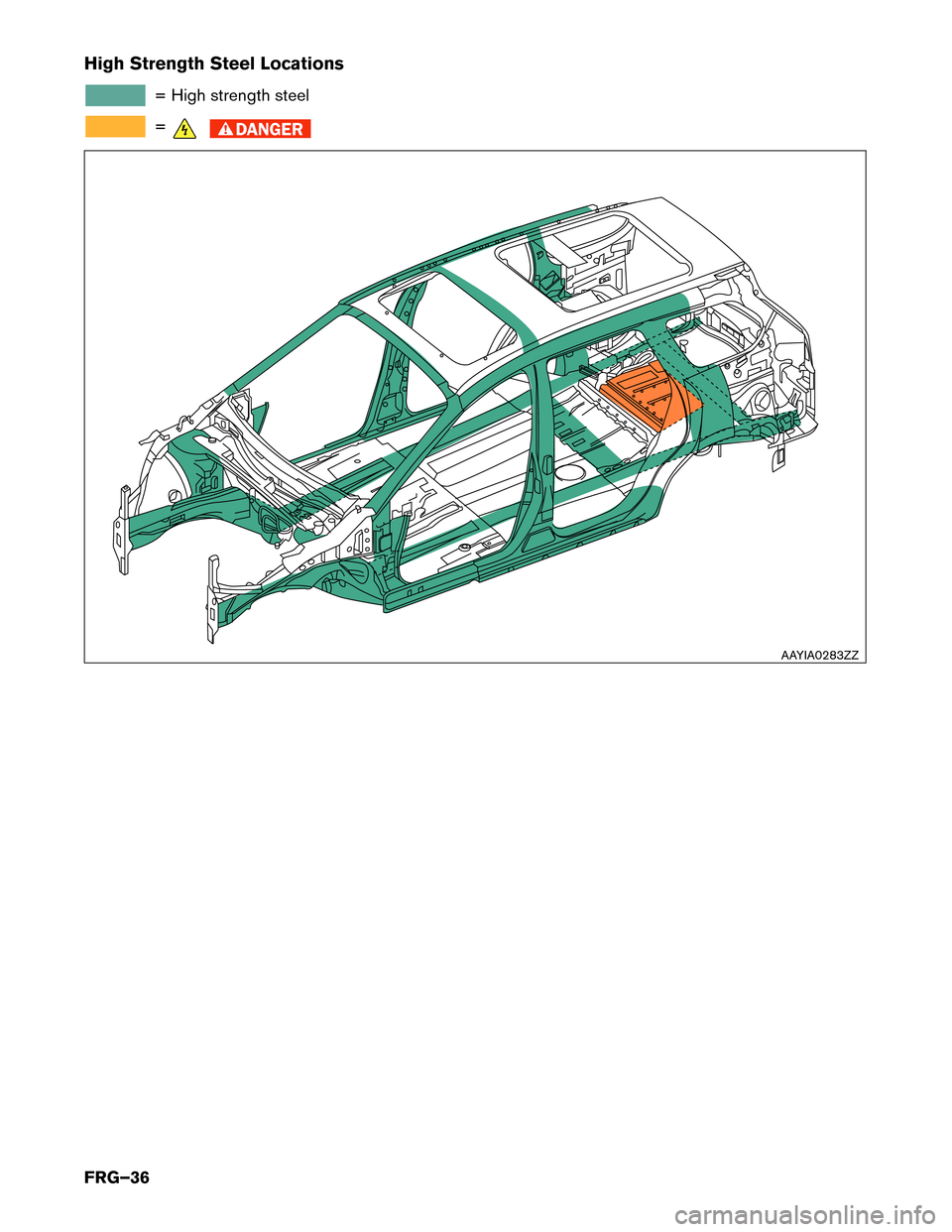

High Strength Steel Locations
= High strength steel
=
AAYIA0283ZZ
FRG–36
Page 37 of 45

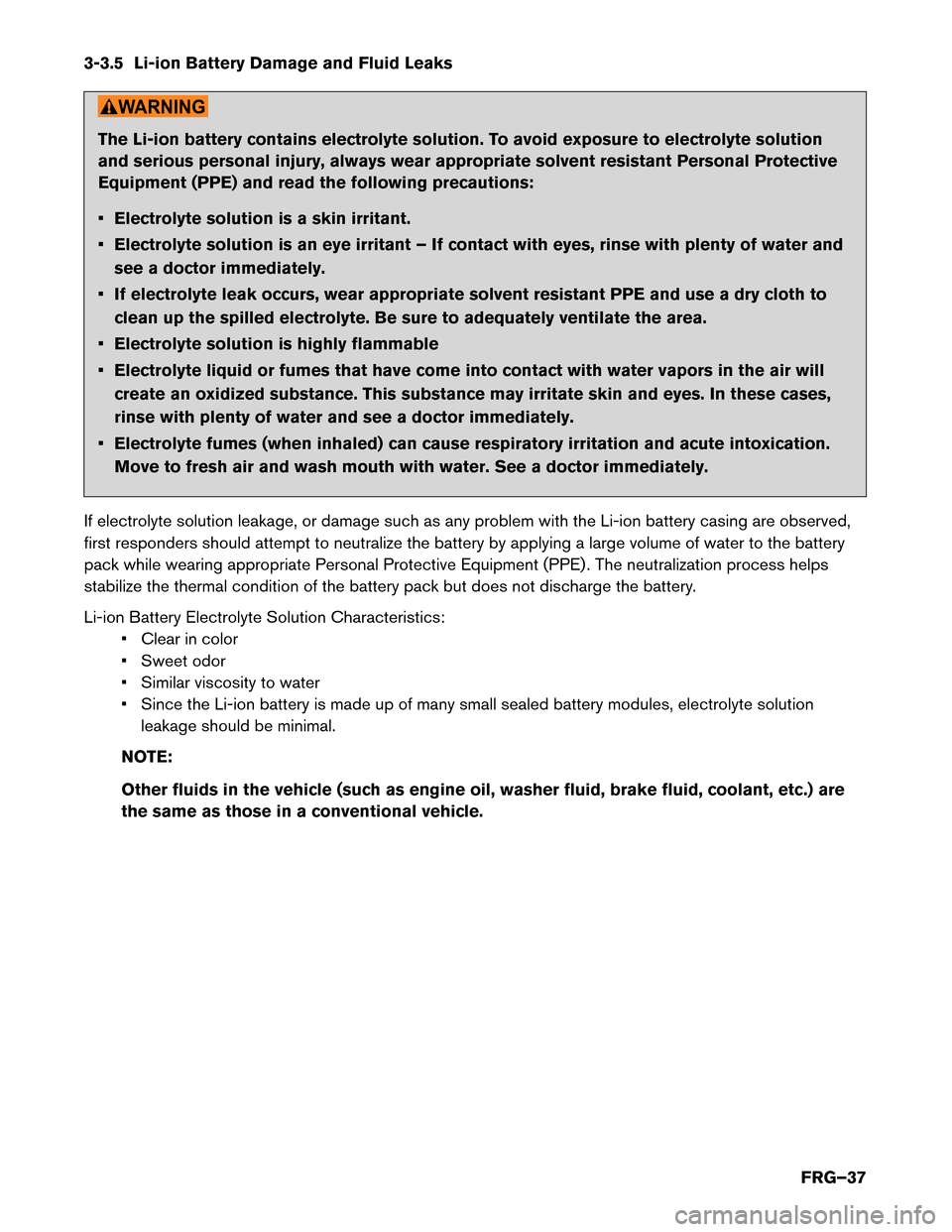

3-3.5 Li-ion Battery Damage and Fluid Leaks
The Li-ion battery contains electrolyte solution. To avoid exposure to electrolyte solution
and serious personal injury, always wear appropriate solvent resistant Personal Protective
Equipment (PPE) and read the following precautions:
• Electrolyte solution is a skin irritant.
• Electrolyte solution is an eye irritant – If contact with eyes, rinse with plenty of water andsee a doctor immediately.
• If electrolyte leak occurs, wear appropriate solvent resistant PPE and use a dry cloth to clean up the spilled electrolyte. Be sure to adequately ventilate the area.
• Electrolyte solution is highly flammable
• Electrolyte liquid or fumes that have come into contact with water vapors in the air will create an oxidized substance. This substance may irritate skin and eyes. In these cases,
rinse with plenty of water and see a doctor immediately.
• Electrolyte fumes (when inhaled) can cause respiratory irritation and acute intoxication. Move to fresh air and wash mouth with water. See a doctor immediately.
If electrolyte solution leakage, or damage such as any problem with the Li-ion battery casing are observed,
first responders should attempt to neutralize the battery by applying a large volume of water to the battery
pack while wearing appropriate Personal Protective Equipment (PPE) . The neutralization process helps
stabilize the thermal condition of the battery pack but does not discharge the battery.
Li-ion Battery Electrolyte Solution Characteristics: • Clear in color
• Sweet odor
• Similar viscosity to water
• Since the Li-ion battery is made up of many small sealed battery modules, electrolyte solution
leakage should be minimal.
NOTE:
Other fluids in the vehicle (such as engine oil, washer fluid, brake fluid, coolant, etc.) are
the same as those in a conventional vehicle.
FRG–37
Page 38 of 45

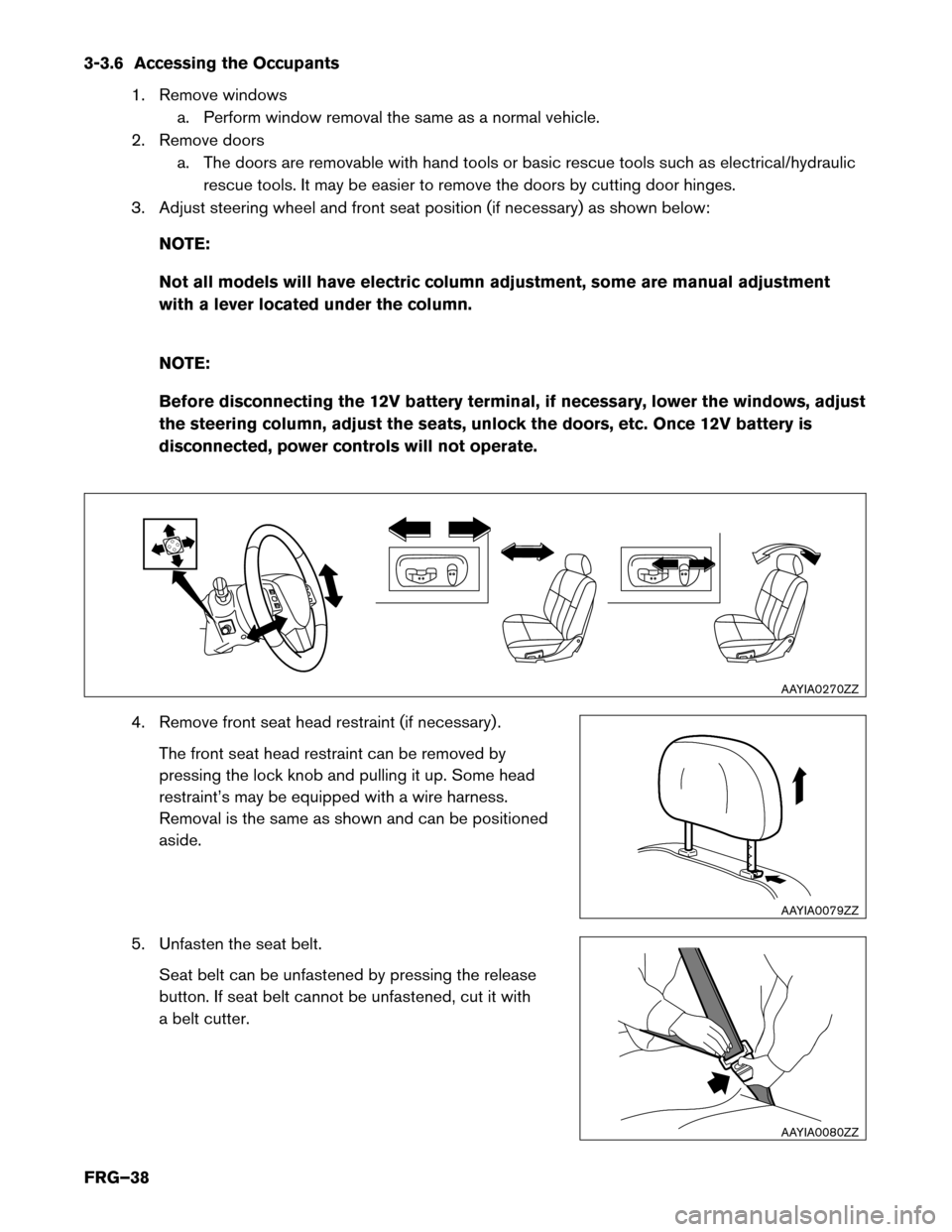

3-3.6 Accessing the Occupants1. Remove windowsa. Perform window removal the same as a normal vehicle.
2. Remove doors a. The doors are removable with hand tools or basic rescue tools such as electrical/hydraulicrescue tools. It may be easier to remove the doors by cutting door hinges.
3. Adjust steering wheel and front seat position (if necessary) as shown below:
NOTE:
Not all models will have electric column adjustment, some are manual adjustment
with a lever located under the column.
NOTE:
Before disconnecting the 12V battery terminal, if necessary, lower the windows, adjust
the steering column, adjust the seats, unlock the doors, etc. Once 12V battery is
disconnected, power controls will not operate.
4. Remove front seat head restraint (if necessary) . The front seat head restraint can be removed by
pressing the lock knob and pulling it up. Some head
restraint’s may be equipped with a wire harness.
Removal is the same as shown and can be positionedaside.
5. Unfasten the seat belt. Seat belt can be unfastened by pressing the release
button. If seat belt cannot be unfastened, cut it with
a belt cutter.
AAYIA0270ZZ
AAYIA0079ZZ
AAYIA0080ZZ
FRG–38
Page 39 of 45

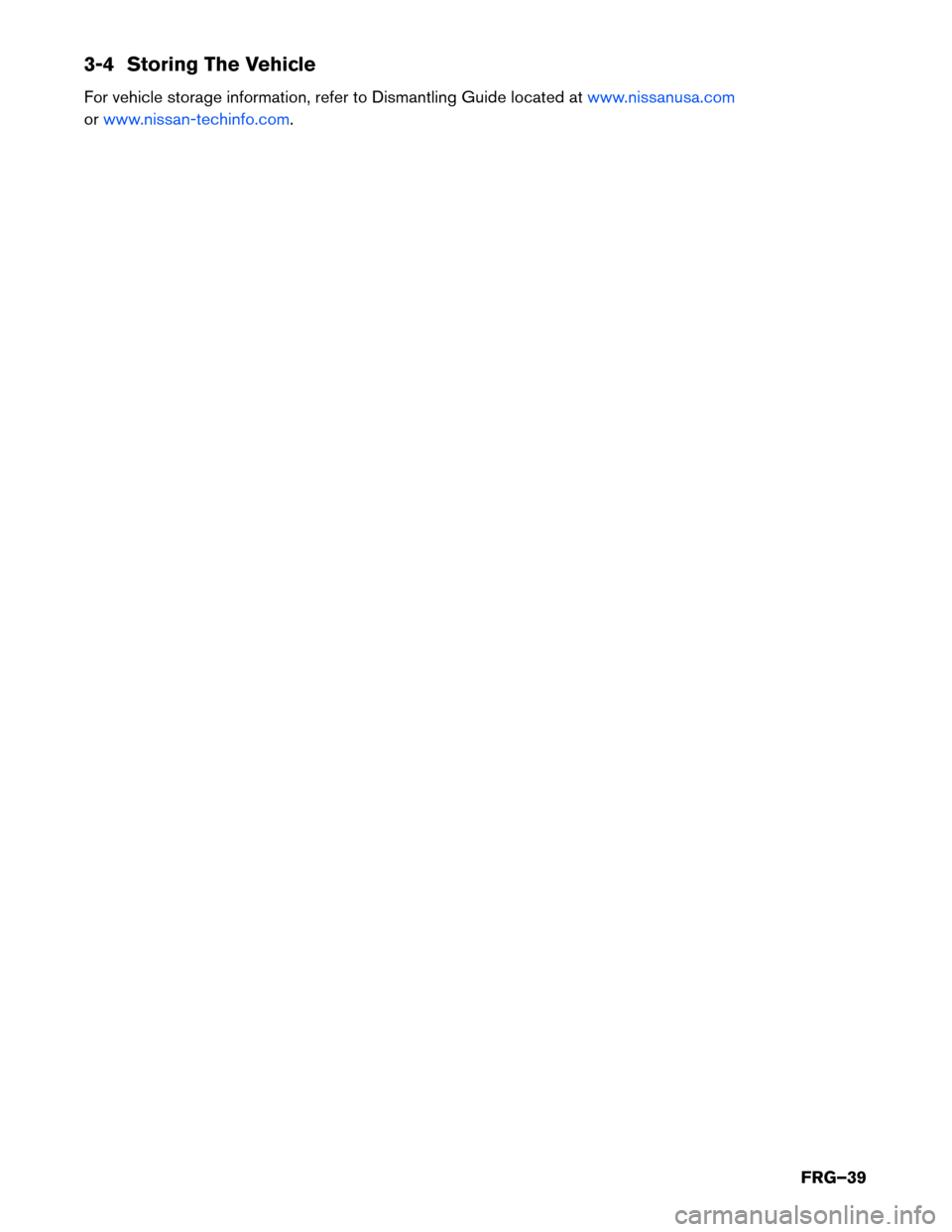

3-4 Storing The Vehicle
For vehicle storage information, refer to Dismantling Guide located at
www.nissanusa.com
orwww.nissan-techinfo.com.FRG–39
Page 40 of 45

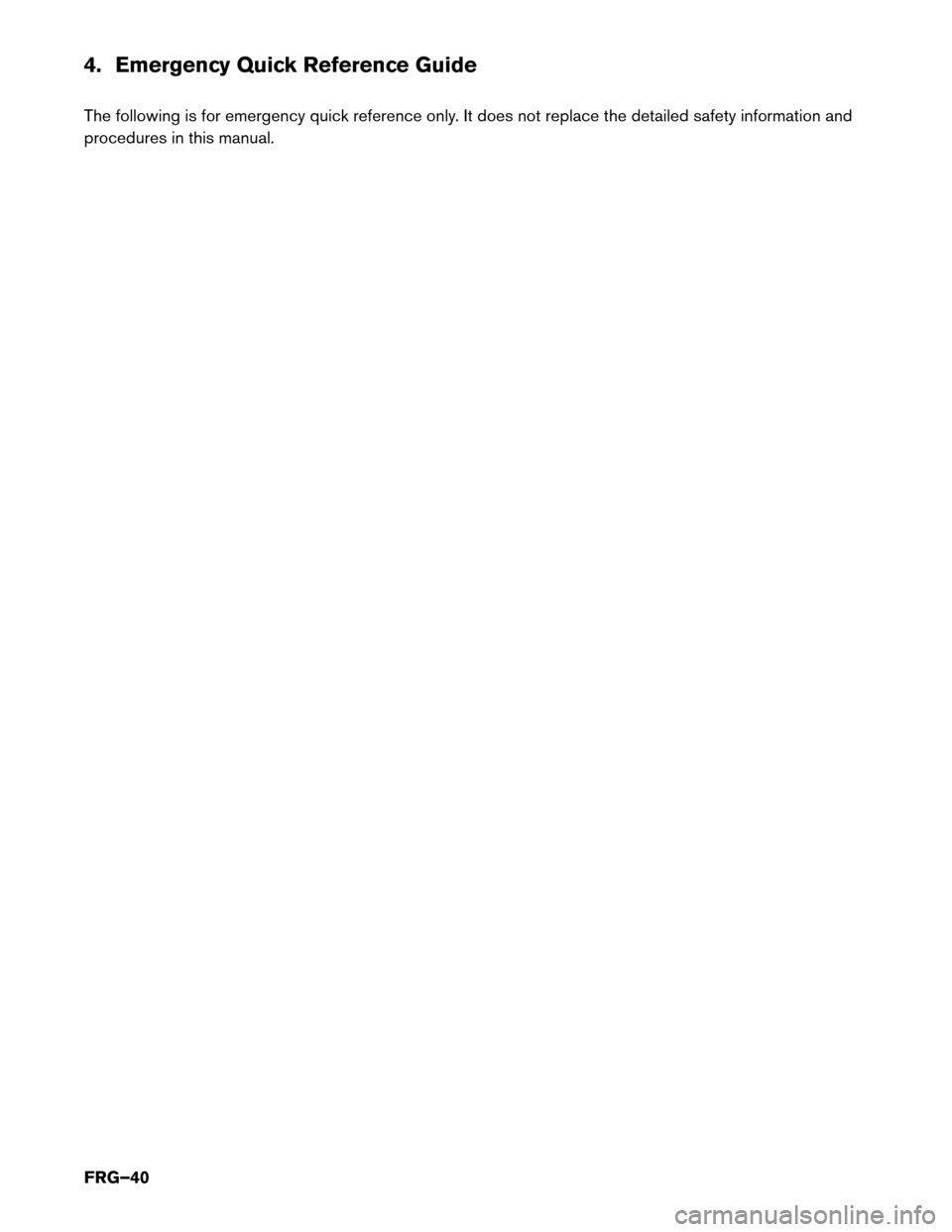

4. Emergency Quick Reference Guide
The following is for emergency quick reference only. It does not replace the detailed safety information and
procedures in this manual. FRG–40
