2
NEW SYSTEM FEATURES
HEATED STEERING WHEEL (if so equipped)
Once activated, your heated steering wheel
will automatically turn on and off to maintain a
temperature above 68°F (20°C).
When the surface temperature of the steering wheel
is above 68°F (20°C) and the control switch
01 is
turned on, the system will not heat the steering wheel. This does not indicate a malfunction.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
01
MOVING OBJECT DETECTION (MOD) (if so equipped)
If the MOD system detects moving objects while in rearview, a yellow frame
01 will be
displayed on the camera image and a chime will sound.
To temporarily disable the MOD function, follow this procedure:
1. Start with the vehicle in the P (PA R K ) position.
2. On the vehicle information display, push the
SETTING button.
3. Select DRIVER ASSISTANCE and push ENTER.
4. Select MOVING OBJECT DETECTION ( MOD)
and press ENTER.
When the following are displayed:
• Blue MOD
02 icon; the system is operative in this view.
• Gray MOD
02 icon; the system is not operative in this view.
• No MOD icon; the system is off.
For more information, refer to the “Monitor, heater, air conditioner, audio, phone and voice recognition systems
(section 4)” of your Owner’s Manual.
02
01
BLIND SPOT WARNING (BSW) SYSTEM (if so equipped)
The Blind Spot Warning (BSW) system alerts the
driver when another vehicle moves into the vehicle’s
blind spot area.
An indicator light near the driver’s outside mirror will
illuminate if the radar sensors detect a vehicle in the
detection zone.
The indicator light will first illuminate in orange and then turn green\
while
the system is on. This indicates that the Blind Spot Warning (BSW)
system is operational.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
1591421_14d_Murano_QRG_012714b.indd 21/27/14 3:11 PM
To view detailed instructional videos regarding features in this Quick Reference Guide, please go to www.nissanownersinfo.mobi.
13

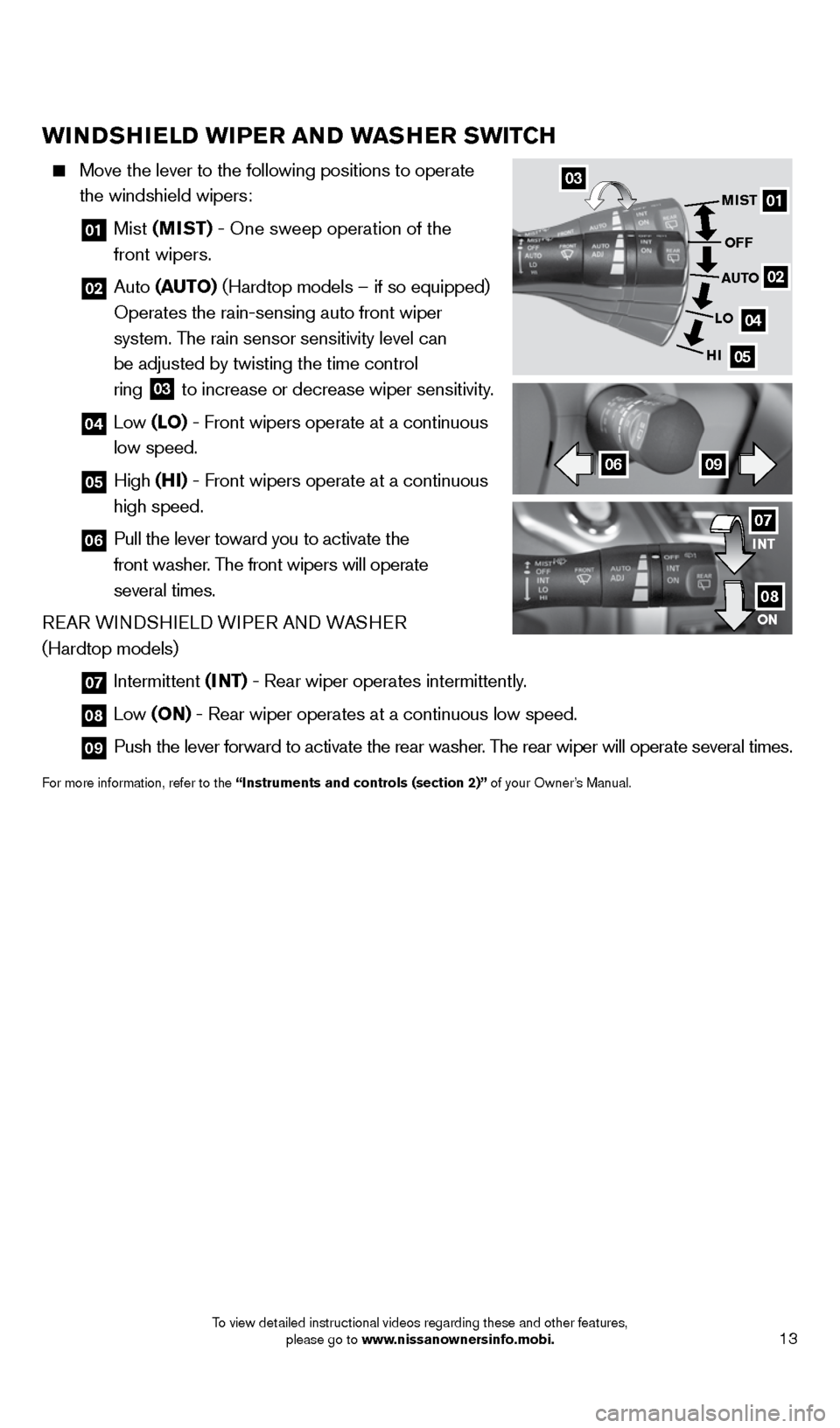

WINDSHIELD WIPER AND WASHER SWITCH
Move the lever to the following positions to operate
the windshield wipers:
01 Mist (MIST) - One sweep operation of the
front wipers.
02 Auto (AUTO) (Hardtop models – if so equipped)
Operates the rain-sensing auto front wiper
system. The rain sensor sensitivity level can
be adjusted by twisting the time control
ring
03 to increase or decrease wiper sensitivity.
04 Low (LO) - Front wipers operate at a continuous
low speed.
05 High (HI) - Front wipers operate at a continuous
high speed.
06 Pull the lever toward you to activate the
front washer. The front wipers will operate
several times.
REAR WINDSHIELD WIPER AND WASHER
(Hardtop models)
07 Intermittent (INT) - Rear wiper operates intermittently.
08 Low (ON) - Rear wiper operates at a continuous low speed.
09 Push the lever forward to activate the rear washer. The rear wiper will operate several times.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
01
02
04
05
MIST
OFF
AUTO
LO
HI
0609
03
INT
ON07
08
1591421_14d_Murano_QRG_012714b.indd 131/27/14 3:11 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
