2014 NISSAN MAXIMA display

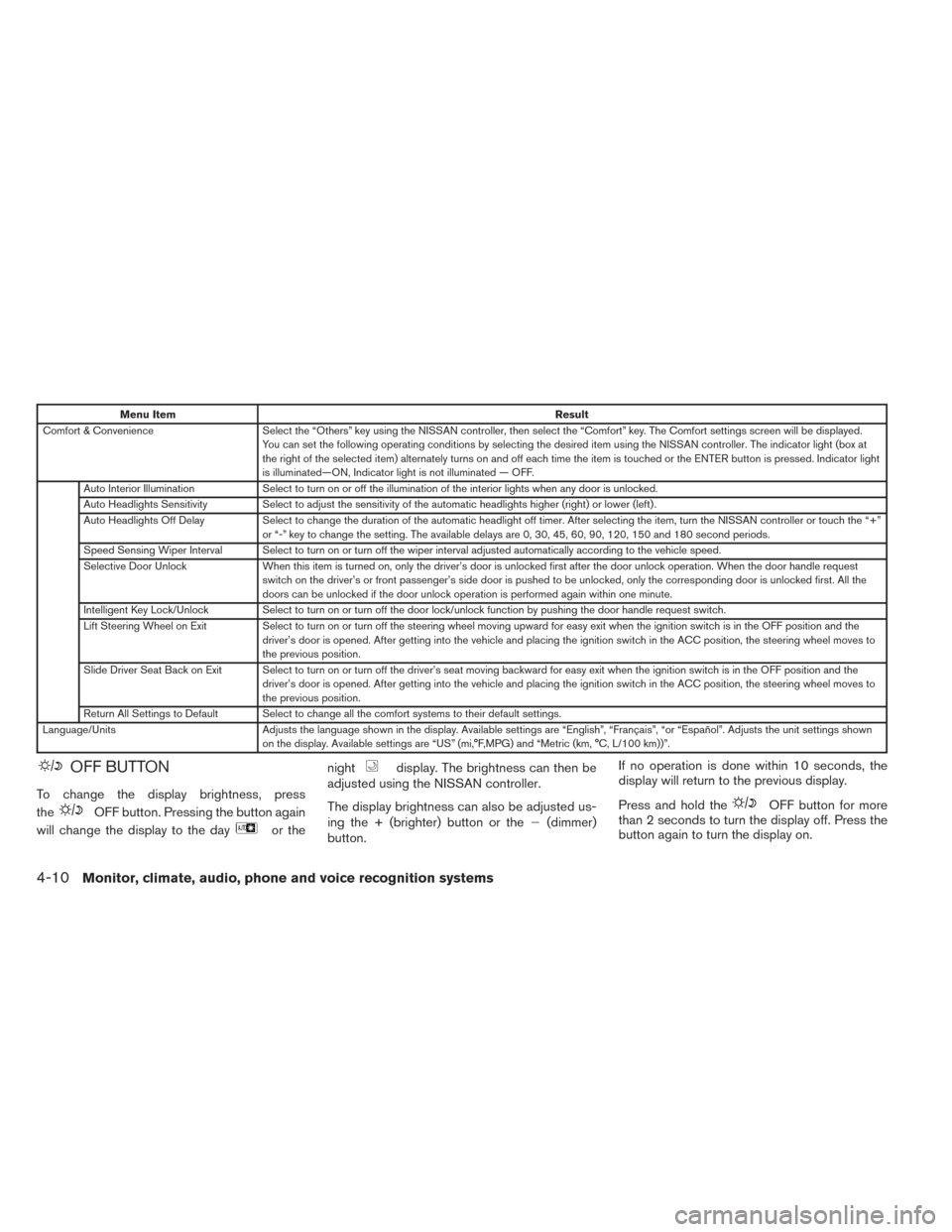

Menu ItemResult
Comfort & Convenience Select the “Others” key using the NISSAN controller, then select the “Comfort” key. The Comfort settings screen will be displayed.
You can set the following operating conditions by selecting the desired item using the NISSAN controller. The indicator light (box at
the right of the selected item) alternately turns on and off each time the item is touched or the ENTER button is pressed. Indicator light
is illuminated—ON, Indicator light is not illuminated — OFF.
Auto Interior Illumination Select to turn on or off the illumination of the interior lights when any door is unlocked.
Auto Headlights Sensitivity Select to adjust the sensitivity of the automatic headlights higher (right) or lower (left) .
Auto Headlights Off Delay Select to change the duration of the automatic headlight off timer. After selecting the item, turn the NISSAN controller or touch the “+”
or “-” key to change the setting. The available delays are 0, 30, 45, 60, 90, 120, 150 and 180 second periods.
Speed Sensing Wiper Interval Select to turn on or turn off the wiper interval adjusted automatically according to the vehicle speed.
Selective Door Unlock When this item is turned on, only the driver’s door is unlocked first after the door unlock operation. When the door handle reques t
switch on the driver’s or front passenger’s side door is pushed to be unlocked, only the corresponding door is unlocked first. All the
doors can be unlocked if the door unlock operation is performed again within one minute.
Intelligent Key Lock/Unlock Select to turn on or turn off the door lock/unlock function by pushing the door handle request switch.
Lift Steering Wheel on Exit Select to turn on or turn off the steering wheel moving upward for easy exit when the ignition switch is in the OFF position and the
driver’s door is opened. After getting into the vehicle and placing the ignition switch in the ACC position, the steering wheel moves to
the previous position.
Slide Driver Seat Back on Exit Select to turn on or turn off the driver’s seat moving backward for easy exit when the ignition switch is in the OFF position and the driver’s door is opened. After getting into the vehicle and placing the ignition switch in the ACC position, the steering wheel moves to
the previous position.
Return All Settings to Default Select to change all the comfort systems to their default settings.
Language/Units Adjusts the language shown in the display. Available settings are “English”, “Français”, “or “Español”. Adjusts the unit settings shown
on the display. Available settings are “US” (mi,°F,MPG) and “Metric (km, °C, L/100 km))”.
OFF BUTTON
To change the display brightness, press
the
OFF button. Pressing the button again
will change the display to the day
or the night
display. The brightness can then be
adjusted using the NISSAN controller.
The display brightness can also be adjusted us-
ing the + (brighter) button or the (dimmer)
button. If no operation is done within 10 seconds, the
display will return to the previous display.
Press and hold the
OFF button for more
than 2 seconds to turn the display off. Press the
button again to turn the display on.
4-10Monitor, climate, audio, phone and voice recognition systems

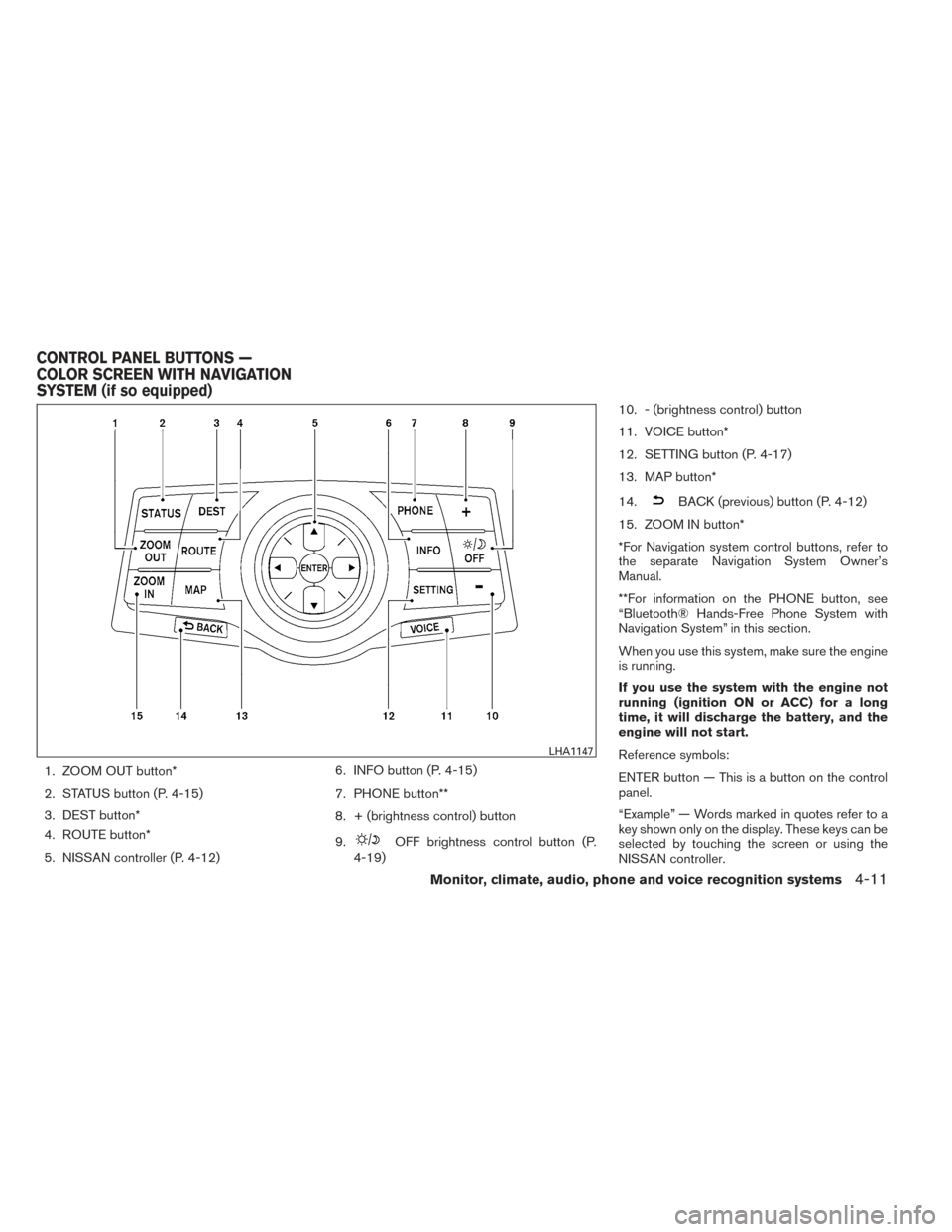

1. ZOOM OUT button*
2. STATUS button (P. 4-15)
3. DEST button*
4. ROUTE button*
5. NISSAN controller (P. 4-12)6. INFO button (P. 4-15)
7. PHONE button**
8. + (brightness control) button
9.
OFF brightness control button (P.
4-19) 10. - (brightness control) button
11. VOICE button*
12. SETTING button (P. 4-17)
13. MAP button*
14.
BACK (previous) button (P. 4-12)
15. ZOOM IN button*
*For Navigation system control buttons, refer to
the separate Navigation System Owner’s
Manual.
**For information on the PHONE button, see
“Bluetooth® Hands-Free Phone System with
Navigation System” in this section.
When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
ENTER button — This is a button on the control
panel.
“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can be
selected by touching the screen or using the
NISSAN controller.
LHA1147
CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)
Monitor, climate, audio, phone and voice recognition systems4-11

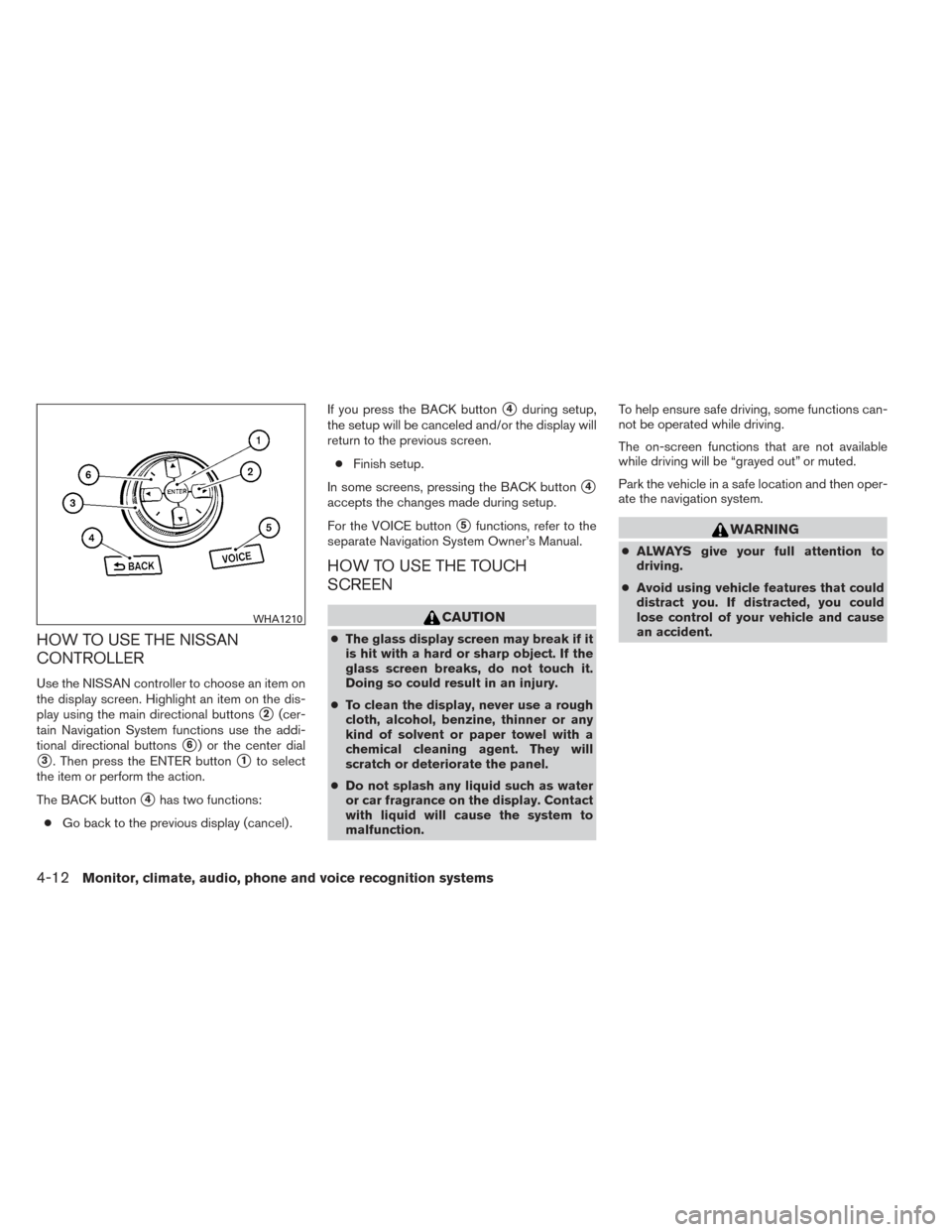

HOW TO USE THE NISSAN
CONTROLLER
Use the NISSAN controller to choose an item on
the display screen. Highlight an item on the dis-
play using the main directional buttons
2(cer-
tain Navigation System functions use the addi-
tional directional buttons
6) or the center dial
3. Then press the ENTER button1to select
the item or perform the action.
The BACK button
4has two functions:
● Go back to the previous display (cancel) . If you press the BACK button
4during setup,
the setup will be canceled and/or the display will
return to the previous screen.
● Finish setup.
In some screens, pressing the BACK button
4
accepts the changes made during setup.
For the VOICE button
5functions, refer to the
separate Navigation System Owner’s Manual.
HOW TO USE THE TOUCH
SCREEN
CAUTION
● The glass display screen may break if it
is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
● To clean the display, never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
● Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction. To help ensure safe driving, some functions can-
not be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then oper-
ate the navigation system.
WARNING
●
ALWAYS give your full attention to
driving.
● Avoid using vehicle features that could
distract you. If distracted, you could
lose control of your vehicle and cause
an accident.
WHA1210
4-12Monitor, climate, audio, phone and voice recognition systems

Touch screen maintenance
If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or de-
tergent. Dampen the cloth first, and then wipe the
screen.
HOW TO SELECT MENUS ON THE
SCREEN
Vehicle functions are viewed on the center dis-
play screen in menus. Whenever a menu selec-
tion is made or menu item is highlighted, different
areas on the screen provide you with important
information. See the following for details.1. Header: Shows the path used to get to the current
screen (for example, press the SETTING
button >Others> then select the “Audio”
key) . 2. Menu Selections:
Shows the options to choose within that
menu screen (for example, Bass, etc.) .
3. Up/Down Movement Indicator: Shows that the NISSAN controller may be
used to move up or down on the screen and
select more options.
4. Screen Count: Shows the number of menu selections avail-
able for the current menu, even if they are on
multiple pages (for example, 1/9) .
5. Footer/Information Line: Provides more information (if available)
about the menu selection currently high-
lighted (for example, Adjust bass) .
LHA2178
4-14Monitor, climate, audio, phone and voice recognition systems

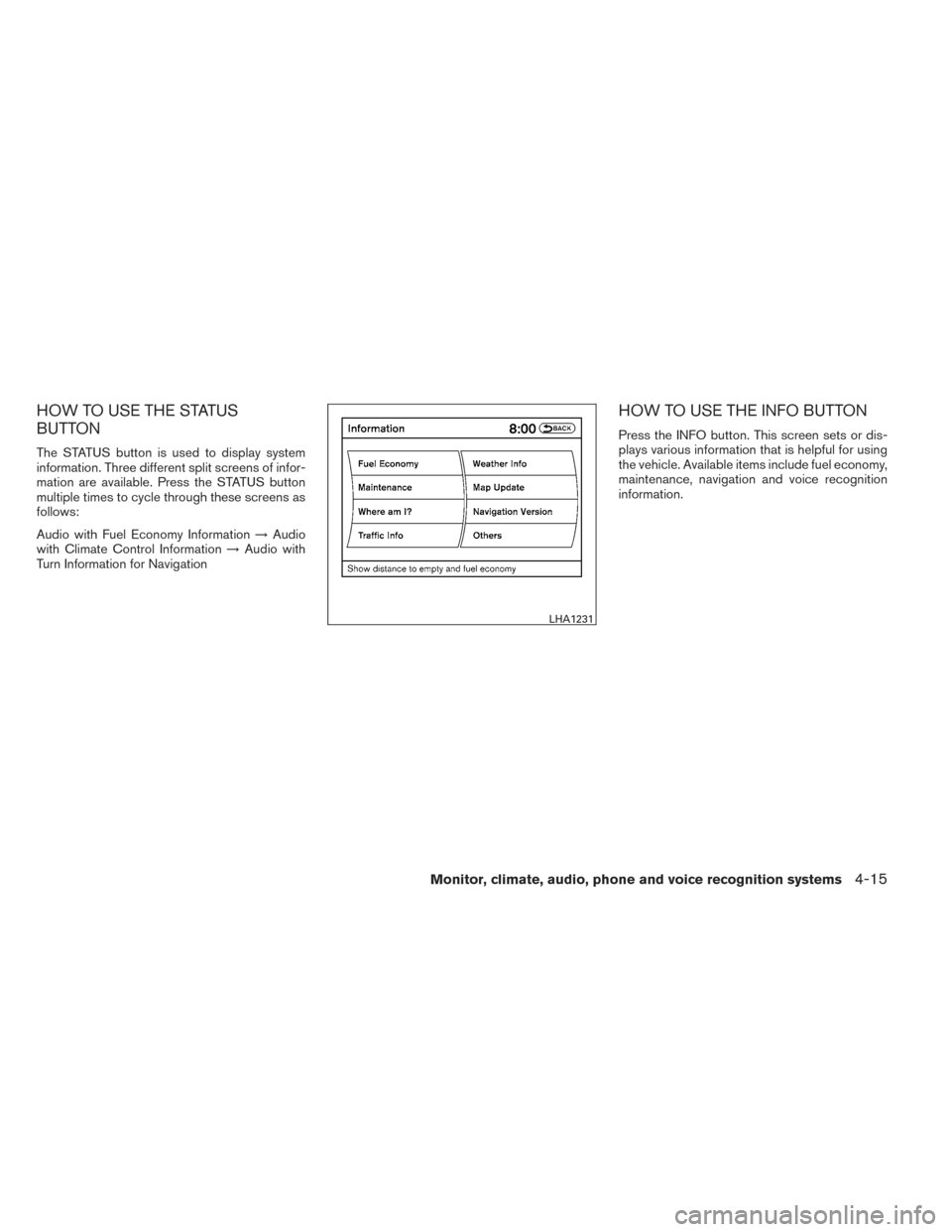

HOW TO USE THE STATUS
BUTTON
The STATUS button is used to display system
information. Three different split screens of infor-
mation are available. Press the STATUS button
multiple times to cycle through these screens as
follows:
Audio with Fuel Economy Information→Audio
with Climate Control Information →Audio with
Turn Information for Navigation
HOW TO USE THE INFO BUTTON
Press the INFO button. This screen sets or dis-
plays various information that is helpful for using
the vehicle. Available items include fuel economy,
maintenance, navigation and voice recognition
information.
LHA1231
Monitor, climate, audio, phone and voice recognition systems4-15

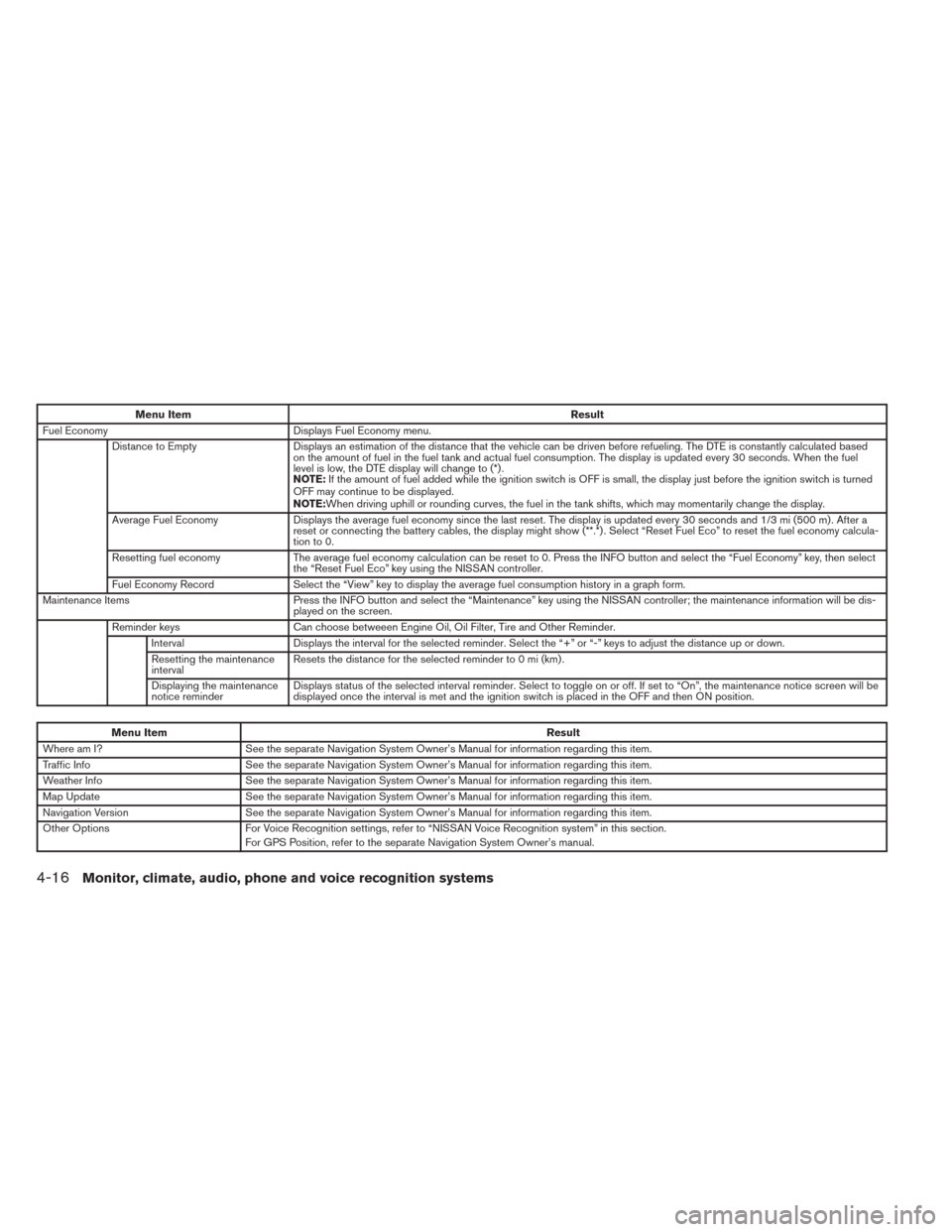

Menu ItemResult
Fuel Economy Displays Fuel Economy menu.
Distance to Empty Displays an estimation of the distance that the vehicle can be driven before refueling. The DTE is constantly calculated based
on the amount of fuel in the fuel tank and actual fuel consumption. The display is updated every 30 seconds. When the fuel
level is low, the DTE display will change to (*) .
NOTE: If the amount of fuel added while the ignition switch is OFF is small, the display just before the ignition switch is turned
OFF may continue to be displayed.
NOTE:When driving uphill or rounding curves, the fuel in the tank shifts, which may momentarily change the display.
Average Fuel Economy Displays the average fuel economy since the last reset. The display is updated every 30 seconds and 1/3 mi (500 m) . After a
reset or connecting the battery cables, the display might show (**.*) . Select “Reset Fuel Eco” to reset the fuel economy calcula-
tionto0.
Resetting fuel economy The average fuel economy calculation can be reset to 0. Press the INFO button and select the “Fuel Economy” key, then select
the “Reset Fuel Eco” key using the NISSAN controller.
Fuel Economy Record Select the “View” key to display the average fuel consumption history in a graph form.
Maintenance Items Press the INFO button and select the “Maintenance” key using the NISSAN controller; the maintenance information will be dis-
played on the screen.
Reminder keys Can choose betweeen Engine Oil, Oil Filter, Tire and Other Reminder.
Interval Displays the interval for the selected reminder. Select the “+” or “-” keys to adjust the distance up or down.
Resetting the maintenance
interval Resets the distance for the selected reminder to 0 mi (km) .
Displaying the maintenance
notice reminder Displays status of the selected interval reminder. Select to toggle on or off. If set to “On”, the maintenance notice screen will be
displayed once the interval is met and the ignition switch is placed in the OFF and then ON position.
Menu Item
Result
Where am I? See the separate Navigation System Owner’s Manual for information regarding this item.
Traffic Info See the separate Navigation System Owner’s Manual for information regarding this item.
Weather Info See the separate Navigation System Owner’s Manual for information regarding this item.
Map Update See the separate Navigation System Owner’s Manual for information regarding this item.
Navigation Version See the separate Navigation System Owner’s Manual for information regarding this item.
Other Options For Voice Recognition settings, refer to “NISSAN Voice Recognition system” in this section.
For GPS Position, refer to the separate Navigation System Owner’s manual.
4-16Monitor, climate, audio, phone and voice recognition systems

HOW TO USE THE SETTING
BUTTON
Press the SETTING button. This screen displays
and adjusts various settings and functions that
are available for your vehicle. When the amber
indicator next to an item is illuminated, the feature
is enabled.
Menu ItemResult
Display Adjusts the settings for the display screen
Brightness/Contrast Adjusts the brightness or contrast of the map background.
Display off Toggles the display screen on and off. The amber indicator is illuminated when the display is set to “On”. When the display is set to “Off” and a
control panel, audio or heater and air conditioner button is pressed, the display will resume until that operation is finished. To turn the display bac k
on, press and hold the
OFF button for approximately 2 seconds or return to the display setting screen and adjust the setting.
Background Color Adjusts the display screen between day and night mode.
Color Theme Changes the color of the background, arrows and bars on the screen.
Clock Adjusts the clock settings.
On-screen Clock Toggles on or off the clock in the upper right corner of the display.
Clock Format Toggles between a 12-hour and 24-hour clock.
Offset (hour) , Offset (min) Manually adjusts the hours and minutes of the clock.
Daylight Savings Time Toggles on or off the daylight savings time.
Time Zone Adjusts the time zone. Choose a time zone form the available list.
LHA1236
Monitor, climate, audio, phone and voice recognition systems4-17

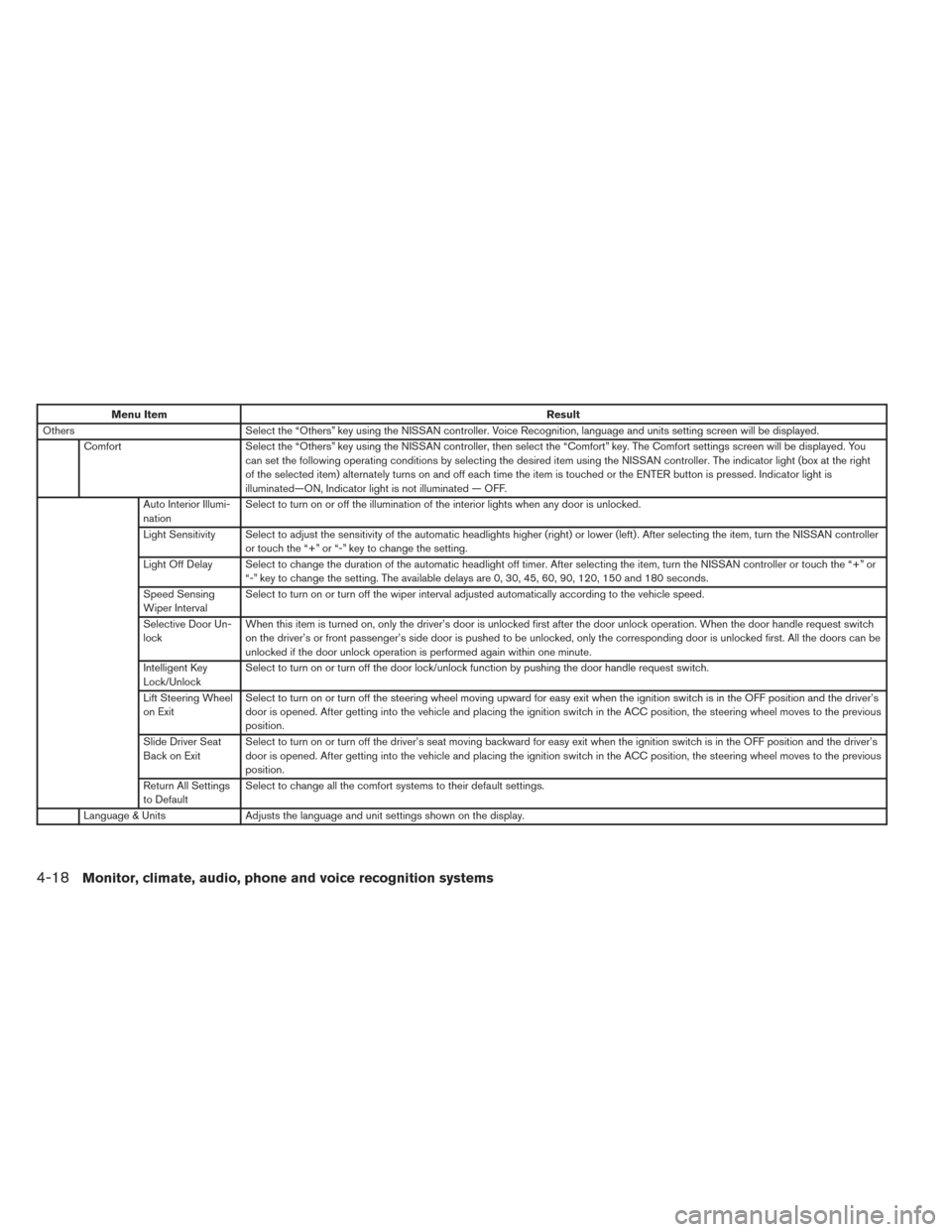

Menu ItemResult
Others Select the “Others” key using the NISSAN controller. Voice Recognition, language and units setting screen will be displayed.
Comfort Select the “Others” key using the NISSAN controller, then select the “Comfort” key. The Comfort settings screen will be displayed. You
can set the following operating conditions by selecting the desired item using the NISSAN controller. The indicator light (box at the right
of the selected item) alternately turns on and off each time the item is touched or the ENTER button is pressed. Indicator light is
illuminated—ON, Indicator light is not illuminated — OFF.
Auto Interior Illumi-
nation Select to turn on or off the illumination of the interior lights when any door is unlocked.
Light Sensitivity Select to adjust the sensitivity of the automatic headlights higher (right) or lower (left) . After selecting the item, turn the NISSAN controller or touch the “+” or “-” key to change the setting.
Light Off Delay Select to change the duration of the automatic headlight off timer. After selecting the item, turn the NISSAN controller or touch the “+ ”or
“-” key to change the setting. The available delays are 0, 30, 45, 60, 90, 120, 150 and 180 seconds.
Speed Sensing
Wiper Interval Select to turn on or turn off the wiper interval adjusted automatically according to the vehicle speed.
Selective Door Un-
lock When this item is turned on, only the driver’s door is unlocked first after the door unlock operation. When the door handle request switch
on the driver’s or front passenger’s side door is pushed to be unlocked, only the corresponding door is unlocked first. All the doors can be
unlocked if the door unlock operation is performed again within one minute.
Intelligent Key
Lock/Unlock Select to turn on or turn off the door lock/unlock function by pushing the door handle request switch.
Lift Steering Wheel
on Exit Select to turn on or turn off the steering wheel moving upward for easy exit when the ignition switch is in the OFF position and the driver’s
door is opened. After getting into the vehicle and placing the ignition switch in the ACC position, the steering wheel moves to the previous
position.
Slide Driver Seat
Back on Exit Select to turn on or turn off the driver’s seat moving backward for easy exit when the ignition switch is in the OFF position and the driver’s
door is opened. After getting into the vehicle and placing the ignition switch in the ACC position, the steering wheel moves to the previous
position.
Return All Settings
to Default Select to change all the comfort systems to their default settings.
Language & Units Adjusts the language and unit settings shown on the display.
4-18Monitor, climate, audio, phone and voice recognition systems
