2014 NISSAN LEAF USB

Black plate (152,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

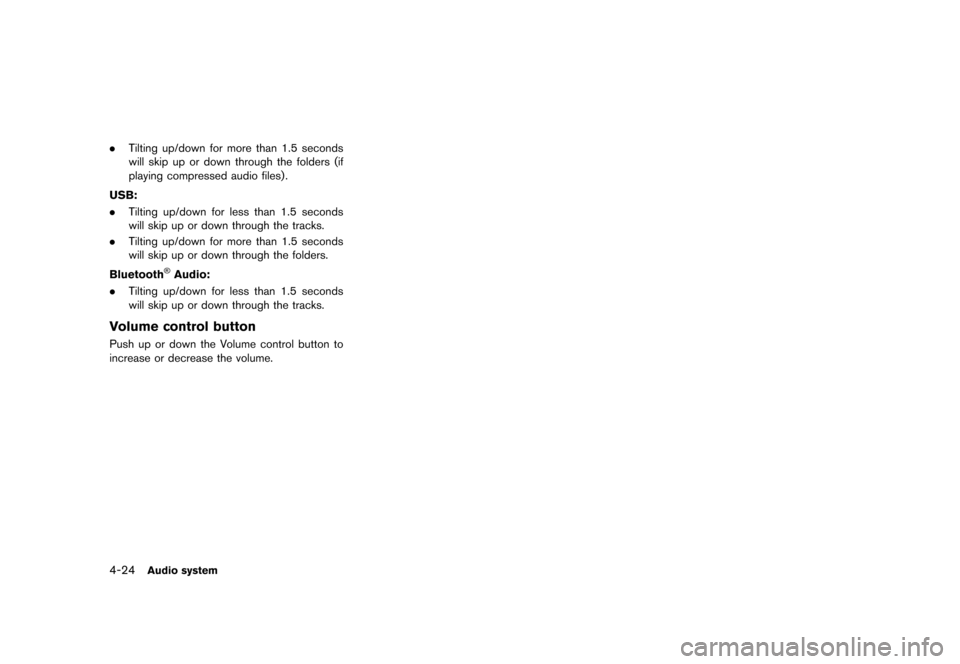

4-24Audio system
.Tilting up/down for more than 1.5 seconds
will skip up or down through the folders (if
playing compressed audio files) .
USB:
. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks.
. Tilting up/down for more than 1.5 seconds
will skip up or down through the folders.
Bluetooth
®Audio:
. Tilting up/down for less than 1.5 seconds
will skip up or down through the tracks.
Volume control buttonGUID-2498D977-21C2-45E8-9206-E5806F9A475BPush up or down the Volume control button to
increase or decrease the volume.
Condition: NAM/

Black plate (229,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
10 Troubleshooting guide/General systeminformation
Troubleshooting guide ...
........................................................... 10-2
Customer assistance ...
....................................................... 10-2
System unit ...
........................................................................\
. 10-2
Unique EV functions ...
........................................................ 10-4
Navigation ...
........................................................................\
... 10-9
CARWINGS
TM...
............................................................... 10-16
Audio system ...
.................................................................. 10-17
Bluetooth
®Hands-Free Phone System ...
................... 10-23
Voice recognition ...
........................................................... 10-26
Monitor system ...
.............................................................. 10-27 General system information
...
.............................................. 10-29
Current vehicle location ...
............................................. 10-29
Route calculation ...
......................................................... 10-32
Route guidance ...
............................................................ 10-34
Notes on Nav Traffic information ...
............................. 10-38
Map data ...
........................................................................\
10-38
How to handle display ...
................................................ 10-42
How to handle the SD card ...
..................................... 10-43
How to handle CD and USB memory ...
................... 10-43
Condition: NAM/

Black plate (247,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
iPod®playerGUID-4D70A092-9EC2-4F72-A4BF-D040AE970C29
SymptomPossible cause Possible solution
The system does not recognize an iPod®. A connector cable is not correctly connected, or the
iPod®does not correctly operate. Connect the connector cable again. If the system does
not recognize the iPod®after performing this procedure
above, reset the iPod®.
The iPod®that is to be connected is not compatible
with the system. Check the iPod®model and firmware versions available
for the system.
A USB extension cable is not correctly connected. Do not use a USB extension cable.
The cable is rapidly connected to or disconnected from
the USB connector. Slowly connect or disconnect the USB cable.
An iPod
®cannot be operated. The iPod®is connected to the in-vehicle audio system
while headsets, etc. are connected to the iPod®. Remove all equipment from the iPod
®after discon-
necting the iPod®from the system, and then connect it
to the system again.
The iPod
®is not operating normally. Disconnect the iPod®from the in-vehicle audio system,
and then connect it to the system again.
The system plays back an album/track that includes a
particular album art. Disconnect the iPod
®from the in-vehicle audio system,
and then reset the iPod®. Disable the album art, and
then connect the iPod®to the system.
An iPod®does not respond. There are too many tracks in a category. Decrease the number of tracks in a category (less than
3,000 tracks).
The shuffle function is turned on. Turn off the shuffle function if many tracks are stored on
the iPod
®.
Music cannot be played back. A connector is not connected to the iPod®. Firmly connect the connector until it clicks.
Playback cuts out. The sound cuts due to vibration resulting from unstable location of the iPod
®.Place the iPod
®on a stable location where it does not
roll over.
Distorted sound occurs. The EQ (equalizer) function of the iPod
®is turned on. Turn off the EQ (equalizer) function.
Battery charge of an iPod®takes longer. Battery charge of the iPod®may take longer while an
iPod®is playing back. If the iPod
®is requires charging, it is recommended to
stop play back.
Battery charge of an iPod
®is unavailable. The cable that is connected to the iPod®may
deteriorate (cable disconnection, etc.). Check the cable currently in use.
Troubleshooting guide/General system information10-19
Condition: NAM/

Black plate (248,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
10-20Troubleshooting guide/General system information
SymptomPossible cause Possible solution
Functions cannot be operated using an iPod®that is
connected to the in-vehicle audio system. -The operation of an iPod®must be performed using the
in-vehicle audio system after the iPod®is connected to
the system.
Sound skips. Surrounding circumstances (noise, etc.) may cause sound skip.This does not indicate a malfunction.
A USB extension cable is not correctly connected. Do not use a USB extension cable.
Condition: NAM/

Black plate (249,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
USB memoryGUID-9B58E82E-0419-4E45-A82E-F6C87CFB97F2
SymptomPossible cause Possible solution
The system does not recognize a USB device. A USB extension cable is used. Do not use a USB extension cable.
A USB HUB is used. Do not use a USB HUB.
A USB device is rapidly connected to or disconnected
from the USB connector. Slowly connect or disconnect the USB device.
Troubleshooting guide/General system information10-21
Condition: NAM/

Black plate (271,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
INFO:
The screen may become distorted by strong
magnetic fields.
Maintenance of displayGUID-72D69B6D-01E1-4BC7-9C57-190D3F5CCDD6
CAUTION
. To clean the display, never use a
rough cloth, alcohol, benzine, thin-
ner and any kind of solvent or paper
towel with a chemical cleaning
agent. They will scratch or deterio-
rate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause
the system to malfunction.
To clean the display screen, use a dry, soft cloth.
If additional cleaning is necessary, use a small
amount of neutral detergent with a soft cloth.
Never spray the screen with water or detergent.
Dampen the cloth first, then wipe the screen.
HOW TO HANDLE THE SD CARDGUID-FDEBCDA1-7B04-49F0-B952-C1291DD04F39When handling the SD card, please be careful
and adhere to the following instructions:
. Always follow the instructions described in
this manual and in the handbook attached to
the SD card when using an SD card in this
device.
. Do not handle an SD card with wet hands.
Doing so may cause electric shock or a
malfunction.
. Do not allow hands or metal objects to
contact the terminal area of SD cards.
. Do not place SD cards on the instrument
panel, on any place with direct sunlight or in
moist circumstances. Doing so may damage
or deform the SD card.
. Do not use any conventional cleaner,
benzine, thinner or antistatic spray.
. Do not use SD cards in any place where
static electricity or electric noise adversely
affects SD cards. This may cause data
corruption or data loss.
. SD card optimization must not be per-
formed.
. Always place the SD card in its storage case
when not in use. .
If an SD card is disposed of when it is not
used, it is recommended not only to delete
the stored data but also to physically break
the card.
HOW TO HANDLE CD AND USB
MEMORY
GUID-DC92BB0A-0EC3-4B1C-8EA5-76A93B7EF87B
CDGUID-5DD991C3-D2C9-478E-AB06-0259A92D890E.Handle a CD by its edges. Never touch the
surface of the disc. Do not bend the disc.
. Always place the discs in the storage case
when they are not being used.
. To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.
. A new disc may be rough on the inner and
outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil.
USB memoryGUID-269D1C80-A38F-4452-A06A-757B3A385144.Never touch the terminal portion of the USB
memory.
. Do not place heavy objects on the USB
memory.
Troubleshooting guide/General system information10-43
Condition: NAM/

Black plate (272,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]

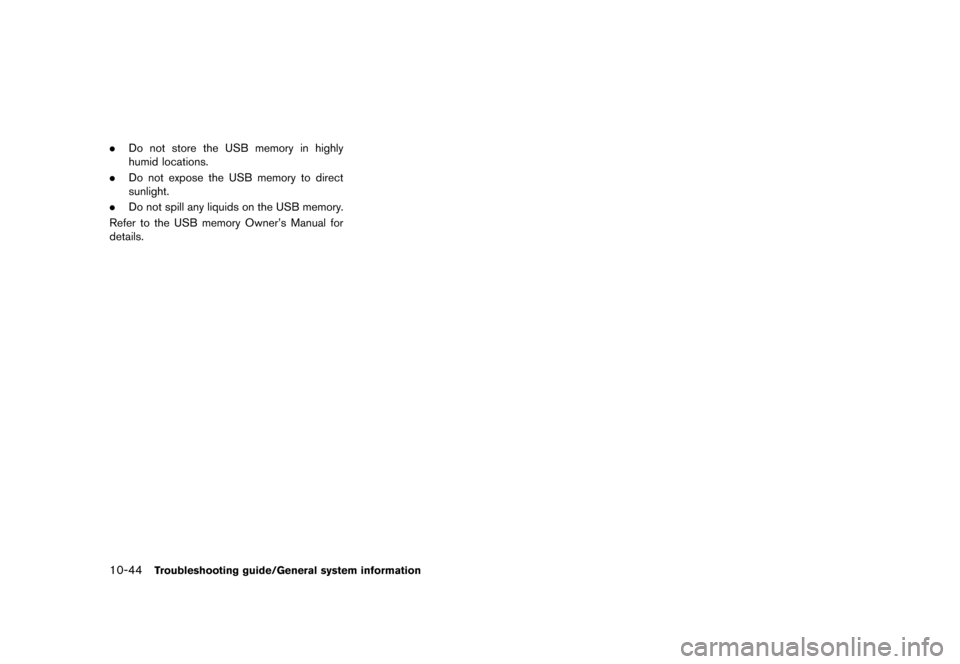

10-44Troubleshooting guide/General system information
.Do not store the USB memory in highly
humid locations.
. Do not expose the USB memory to direct
sunlight.
. Do not spill any liquids on the USB memory.
Refer to the USB memory Owner’s Manual for
details.
Condition: NAM/

Black plate (275,1)
[ Edit: 2013/ 10/ 7 Model: Navi-EV ]
11 Index
A
About route guidance...
................................................ 3-41
Adjusting volume and others ...
...................................... 1-7
Audio operation precautions ...
...................................... 4-2
Auxiliary input jack ...
....................................................... 4-22
B
Basic operation ...
.............................................................. 1-7
Battery and power information ...
................................ 2-16
Bluetooth
®Hands-Free Phone System ...
.................. 7-2
Bluetooth®streaming audio ...
..................................... 4-10
Bluetooth®streaming audio operation ...
.................. 4-19
C
Camera settings ...
................................................. 9-6, 9-14
Canceling/reactivating route ...
.................................... 3-47
Car phone or CB radio ...
............................................. 7-10
CARWINGS
TMoverview ...
............................................. 5-4
CARWINGSTMsettings ...
............................................. 5-12
CD·AUX screen ...
........................................................... 1-10
Changing map view ...
...................................................... 3-8
Changing region ...
.......................................................... 3-18
Changing scale of map ...
............................................... 3-7
Character (letters and numbers) input screen ...
...... 1-7
Charge recommendation guidance ...
........................ 2-16
Charging station information ...
...................................... IT-2
Clock settings ...
.............................................................. 1-16
Comfort & convenience settings ...
............................... 6-4
Compact Disc (CD) player ...
......................................... 4-3
Compact Disc (CD) player operation ...
.................... 4-13
Compressed Audio Files (MP3/WMA) ...
................... 4-7
Confirming route ...
.......................................................... 3-52
Connecting cellular phone ...
........................................ 1-13 Connecting procedure
...
................................................. 7-4
Control button and microphone ...
................................ 7-3
Control buttons and functions ...
................................... 1-2
Control panel ...
.................................................................. 1-2
Current vehicle location ...
.......................................... 10-29
Customer assistance ...
.................................................. 10-2
D
Data communication settings ...
................................... 5-20
Deleting phone information ...
......................................... 7-9
Deleting stored item ...
................................................... 3-68
Destination screen ...
...................................................... 3-17
Display adjustment ...
...................................................... 1-14
Display urgent traffic information ...
.............................. 6-8
Displaying CARWINGS
TMinformation screen ...
...... 5-7
Displaying charging station icons on map ...
............. 2-5
Displaying command list ...
............................................. 8-6
Displaying current vehicle location ...
........................... 3-5
Displaying estimated driving range ...
........................... 2-3
Displaying unit ID information ...
.................................. 5-18
Downloading phonebook memory ...
............................ 7-8
Driving range ...
.................................................................. IT-2
During a call ...
................................................................... 7-6
E
Editing address book ...
................................................. 3-62
Editing route ...
................................................................. 3-48
Energy information display ...
................................. IT-3, 2-8
Error message on communication ...
.......................... 5-19
F
Features of LEAF Navigation ...
..................................... IT-2
Finding address ...
........................................................... 3-20
Finding charging station ...
............................................ 3-25
Finding nearby Points of Interest ...
............................ 3-29
Finding points of interest ...
.......................................... 3-21
FM·AM radio screen ...
................................................... 1-10
FM-AM-SAT radio operation ...
.................................... 4-11
Functions disabled while driving ...
............................... 1-6
G
Giving voice commands ...
.............................................. 8-2
Guidance screen settings ...
......................................... 3-43
H
How to handle CD and USB memory ...
................ 10-43
How to handle display ...
............................................ 10-42
How to handle the Map SD card ...
........................ 10-38
How to handle the SD card ...
.................................. 10-43
How to park with predictive course lines ...
............... 9-4
How to read displayed lines ...
...................................... 9-2
How to set Climate Ctrl. Timer ...
............................... 2-12
How to set Climate Ctrl. Timer and remote
climate control temperature ...
...................................... 2-14
How to view information screen ...
................................ 5-8
I
Info on route ...
................................................................... 6-7
Information feed setting ...
............................................. 5-15
Information screen ...
........................................................ 6-2
Condition: NAM/
