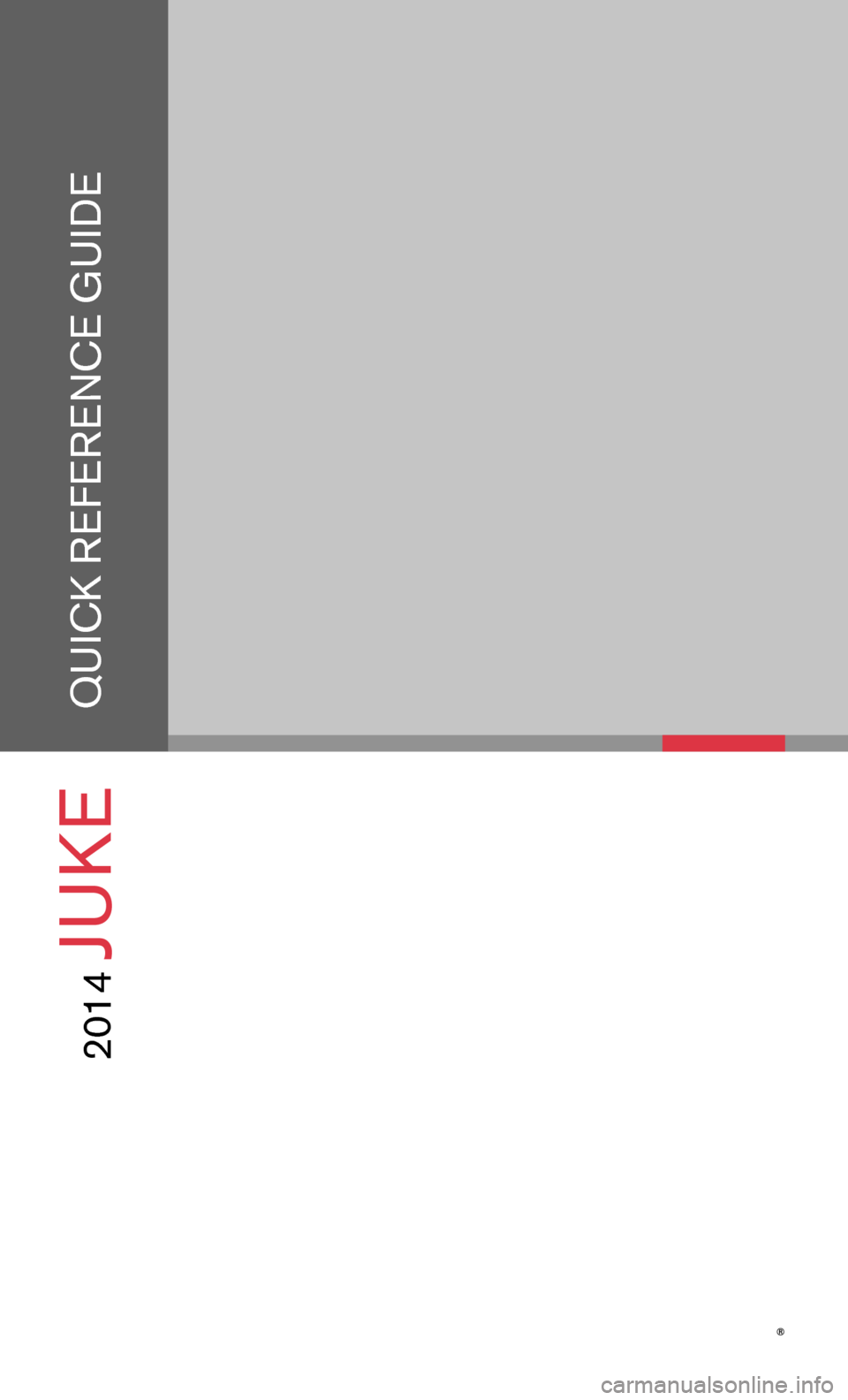

2014 NISSAN JUKE set clock

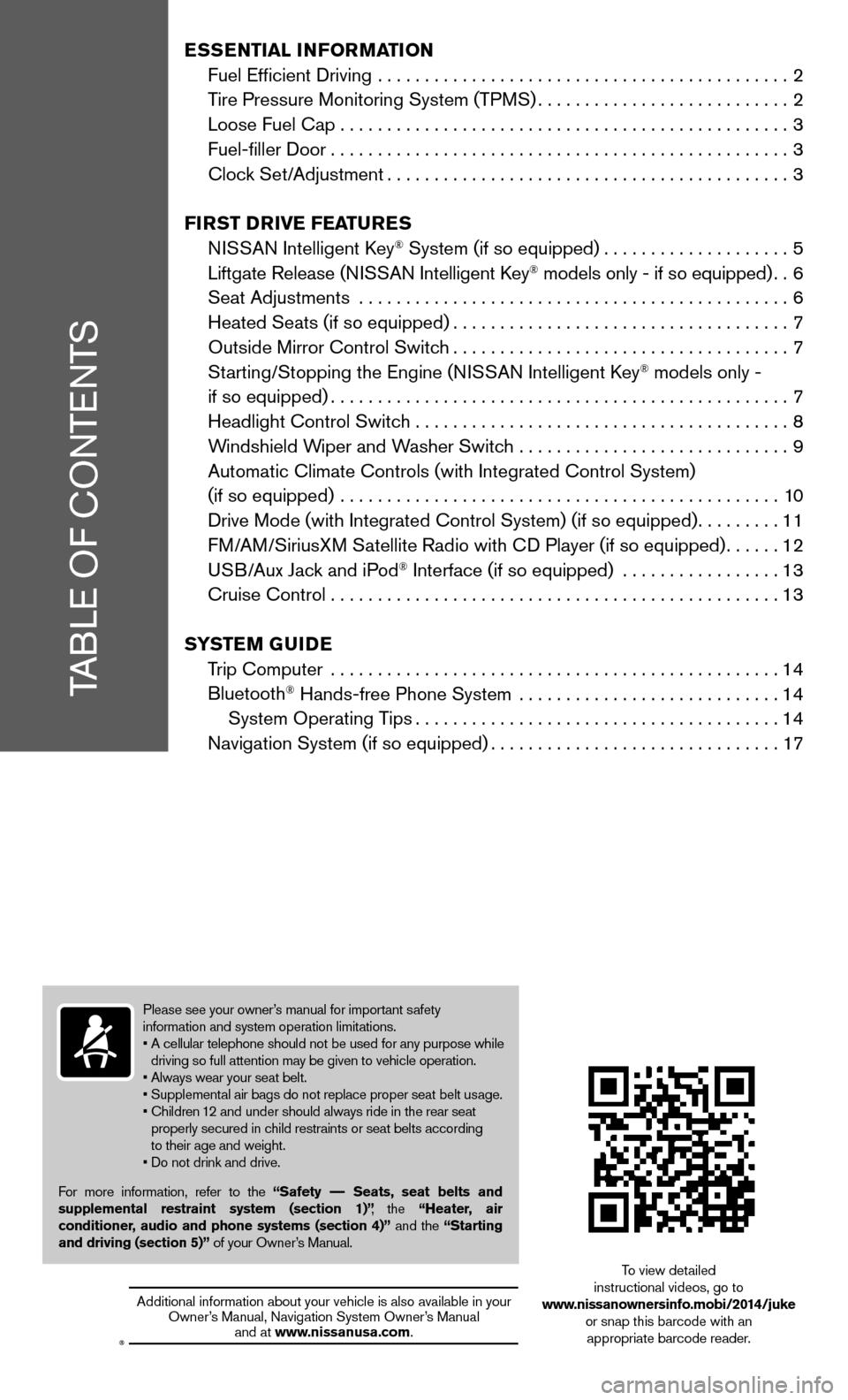

TABLE OF CONTENTS
ESSENTIAL INFORMATION
Fuel Effi cient Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . 2
Tire Pressure Monitoring System (TPMS) . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Loose Fuel Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . 3
Fuel-fi ller Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . 3
Clock Set/Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . 3
FIRST DRIVE FEATURES
NISSAN Intelligent Key
® System (if so equipped) . . . . . . . . . . . . . . . . . . . . 5

Liftgate Release (NISSAN Intelligent Key® models only - if so equipped) . . 6
Seat Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . 6
Heated Seats (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
7
Outside Mirror Control Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
7
Starting/Stopping the Engine (NISSAN Intelligent Key
® models only -
if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . 7
Headlight Control Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 8
Windshield Wiper and Washer Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Automatic Climate Controls (with Integrated Control System)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . 10
Drive Mode (with Integrated Control System) (if so equipped). . . . . . . . . 11
FM/AM/SiriusXM Satellite Radio with CD Player (if so equipped). . . . . . 12
USB/Aux Jack and iPod
® Interface (if so equipped) . . . . . . . . . . . . . . . . . 13
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 13
SYSTEM GUIDE
Trip Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 14
Bluetooth
® Hands-free Phone System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
System Operating Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 14
Navigation System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Please see your owner’s manual for important safety
information and system operation limitations.
• A cellular telephone should not be used for any purpose while driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat properly secured in child restraints or seat belts according
to their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)” , the “Heater, air
conditioner, audio and phone systems (section 4)” and the “Starting
and driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in your Owner’s Manual, Navigation System Owner’s Manual and at www.nissanusa.com.
To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2014/juke or snap this barcode with an appropriate barcode reader.

3To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
LOOSE FUEL CAP
A LOOSE FUEL CAP warning message will appear
in the vehicle information display

01 when the fuel-
fi ller cap is not tightened correctly.

To tighten, turn the cap clockwise until a single click
is heard.

The indicator will disappear when the vehicle detects the fuel-fi ller cap is properly tightened and
the reset button

02 is pressed for more than 1 second.
If the cap is not properly tightened, the Malfunction Indicator Light
may illuminate.For more information, refer to the “Instruments and controls (section 2)”
and the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
01
02
FUEL-FILLER DOOR
To open the fuel-fi ller door, pull the release 01
located on the lower instrument panel to the left of
the steering wheel.

The fuel-fi ller door is located on the passenger’s
side of the vehicle.
For more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
01
CLOCK SET/ADJUSTMENT
WITHIN THE AUDIO SYSTEM
1. Push and hold the CLOCK button

01 until the clock display starts
to fl ash.
2. To adjust the hours, press the
SEEK/TRACK button

02.
3. To adjust the minutes, press the
TUNE/FF·REW button

03.
4. To exit the clock set mode, press the CLOCK
button
01 again. The display will return to the regular clock display after 5 seconds.
0302
01

4To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
CLOCK SET/ADJUSTMENT
WITHIN THE NAVIGATION SYSTEM

To adjust the time and the
appearance of the clock on
the display:
1. Press the SETUP button

01.
2. Select the “System” key.
3. Select the “Clock” key.

The following settings can
be adjusted:
• Time Format: The clock can be set to 12 hours
or 24 hours.
• Use GPS Clock: When this setting is activated,
the clock is set and continually updated via the
GPS used by the Navigation System.
• Set Clock Manually: When this setting is
activated, the clock can be set manually. Touch the
“+” or “−” key to adjust the hours and minutes up or down\
.
• Daylight Savings Time: When this setting is activated, daylight savings time is on.
Touch the “Daylight Savings Time” key to toggle the setting on or off.
• Time Zone: Choose the applicable time zone from the list.
For more information, refer to the “Instruments and controls (section 2)” and the “Heater, air conditioner, audio and
phone systems (section 4)” of your Owner’s Manual.
01
