2014 NISSAN JUKE child lock

3-4Pre-driving checks and adjustments
SPA2033

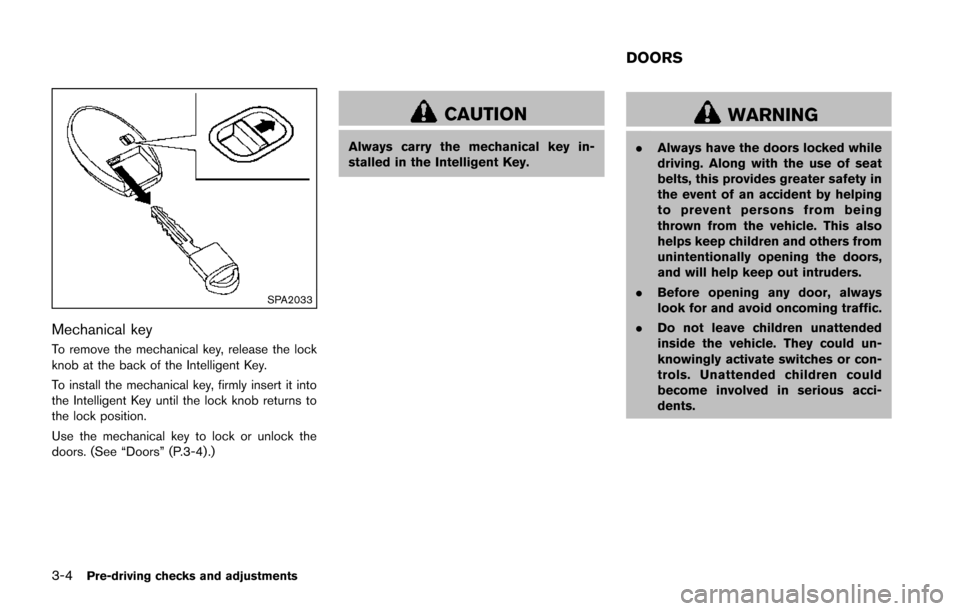

Mechanical key
To remove the mechanical key, release the lock
knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.
Use the mechanical key to lock or unlock the
doors. (See “Doors” (P.3-4).)
CAUTION
Always carry the mechanical key in-
stalled in the Intelligent Key.
WARNING
.Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping
to prevent persons from being
thrown from the vehicle. This also
helps keep children and others from
unintentionally opening the doors,
and will help keep out intruders.
. Before opening any door, always
look for and avoid oncoming traffic.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
DOORS

3-6Pre-driving checks and adjustments

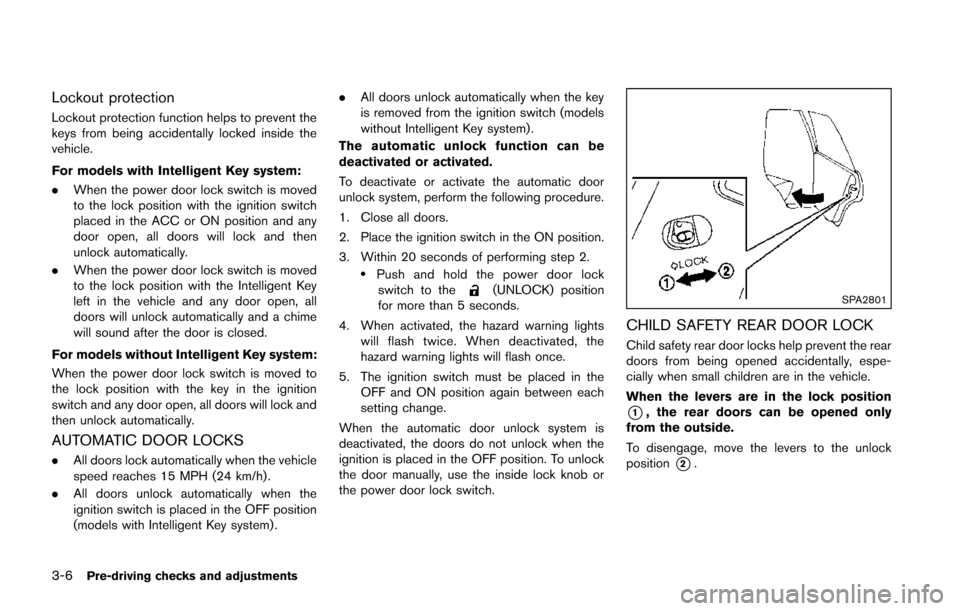

Lockout protection
Lockout protection function helps to prevent the
keys from being accidentally locked inside the
vehicle.
For models with Intelligent Key system:
.When the power door lock switch is moved
to the lock position with the ignition switch
placed in the ACC or ON position and any
door open, all doors will lock and then
unlock automatically.
. When the power door lock switch is moved
to the lock position with the Intelligent Key
left in the vehicle and any door open, all
doors will unlock automatically and a chime
will sound after the door is closed.
For models without Intelligent Key system:
When the power door lock switch is moved to
the lock position with the key in the ignition
switch and any door open, all doors will lock and
then unlock automatically.
AUTOMATIC DOOR LOCKS
. All doors lock automatically when the vehicle
speed reaches 15 MPH (24 km/h) .
. All doors unlock automatically when the
ignition switch is placed in the OFF position
(models with Intelligent Key system) . .
All doors unlock automatically when the key
is removed from the ignition switch (models
without Intelligent Key system) .
The automatic unlock function can be
deactivated or activated.
To deactivate or activate the automatic door
unlock system, perform the following procedure.
1. Close all doors.
2. Place the ignition switch in the ON position.
3. Within 20 seconds of performing step 2.
.Push and hold the power door lock switch to the(UNLOCK) position
for more than 5 seconds.
4. When activated, the hazard warning lights will flash twice. When deactivated, the
hazard warning lights will flash once.
5. The ignition switch must be placed in the OFF and ON position again between each
setting change.
When the automatic door unlock system is
deactivated, the doors do not unlock when the
ignition is placed in the OFF position. To unlock
the door manually, use the inside lock knob or
the power door lock switch.SPA2801
CHILD SAFETY REAR DOOR LOCK
Child safety rear door locks help prevent the rear
doors from being opened accidentally, espe-
cially when small children are in the vehicle.
When the levers are in the lock position
*1, the rear doors can be opened only
from the outside.
To disengage, move the levers to the unlock
position
*2.

3-20Pre-driving checks and adjustments

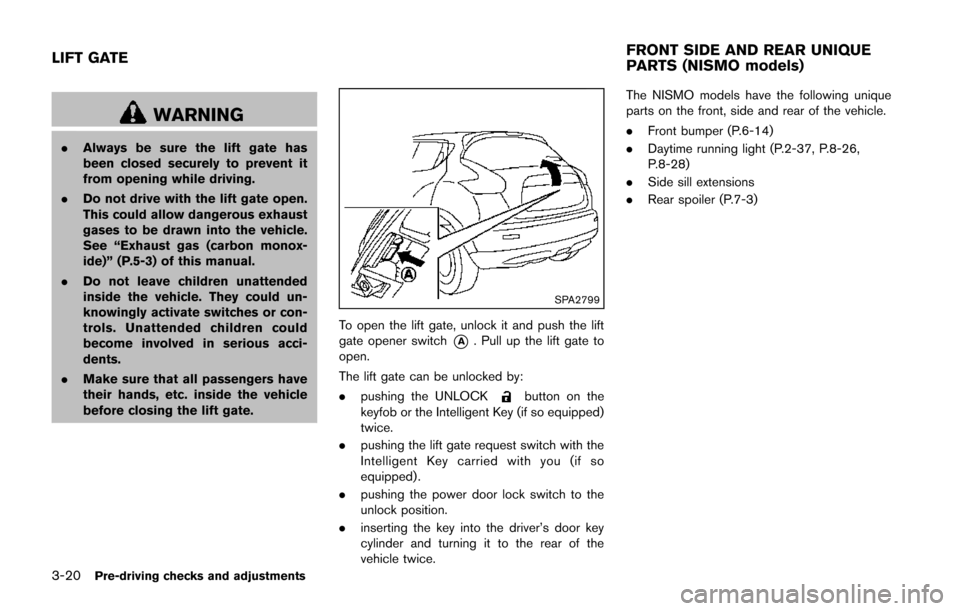

WARNING
.Always be sure the lift gate has
been closed securely to prevent it
from opening while driving.
. Do not drive with the lift gate open.
This could allow dangerous exhaust
gases to be drawn into the vehicle.
See “Exhaust gas (carbon monox-
ide)” (P.5-3) of this manual.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
. Make sure that all passengers have
their hands, etc. inside the vehicle
before closing the lift gate.
SPA2799
To open the lift gate, unlock it and push the lift
gate opener switch
*A. Pull up the lift gate to
open.
The lift gate can be unlocked by:
. pushing the UNLOCK
button on the
keyfob or the Intelligent Key (if so equipped)
twice.
. pushing the lift gate request switch with the
Intelligent Key carried with you (if so
equipped) .
. pushing the power door lock switch to the
unlock position.
. inserting the key into the driver’s door key
cylinder and turning it to the rear of the
vehicle twice. The NISMO models have the following unique
parts on the front, side and rear of the vehicle.
.
Front bumper (P.6-14)
. Daytime running light (P.2-37, P.8-26,
P.8-28)
. Side sill extensions
. Rear spoiler (P.7-3)
LIFT GATE FRONT SIDE AND REAR UNIQUE
PARTS (NISMO models)

8-10Maintenance and do-it-yourself
Engine oil and filter1. Oil filler cap
2. Oil drain plug
3. Oil filter
1. Place a large drain pan under the drain plug.
2. Remove the oil filler cap.
3. Remove the drain plug with a wrench andcompletely drain the oil.
CAUTION
Be careful not to burn yourself, as the
engine oil is hot.
.Waste oil must be disposed ofproperly.
.Check your local regulations.
(Perform steps 4 to 7 only when the engine
oil filter change is needed.)
4. Loosen the oil filter with an oil filter wrench. Remove the oil filter by turning it by hand.
5. Wipe the engine oil filter mounting surface with a clean rag.
CAUTION
Be sure to remove any old gasket
material remaining on the mounting
surface of the engine. Failure to do so
could lead to engine damage.
6. Coat the gasket on the new filter with clean engine oil.
7. Screw in the oil filter clockwise until a slight resistance is felt, then tighten additionally
more than 2/3 turn.
Oil filter tightening torque:11 to 15 ft-lb
(14.7 to 20.5 N·m)
8. Clean and re-install the drain plug with a new washer. Securely tighten the drain plug
with a wrench.
Drain plug tightening torque:22 to 29 ft-lb
(29 to 39 N·m)
Do not use excessive force.
9. Refill the engine with the recommended oil through the oil filler opening, and install the
oil filler cap securely.
See “Capacities and recommended fuel/ lubricants” (P.9-2) for drain and refill capa-
city. The drain and refill capacity depends on
the oil temperature and drain time. Use
these specifications for reference only. Al-
ways use the dipstick to determine the
proper amount of oil in the engine.
10. Start the engine and check for leakage around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than 10 minutes. Check the oil level with the dipstick.
Add engine oil if necessary.
After the operation
1. Lower the vehicle carefully to the ground.
2. Dispose of waste oil and filter properly.
WARNING
.Prolonged and repeated contact
with used engine oil may cause skin
cancer.
. Try to avoid direct skin contact with
used oil. If skin contact is made,
wash thoroughly with soap or hand
cleaner as soon as possible.
. Keep used engine oil out of reach of
children.

8-22Maintenance and do-it-yourself
SDI2705

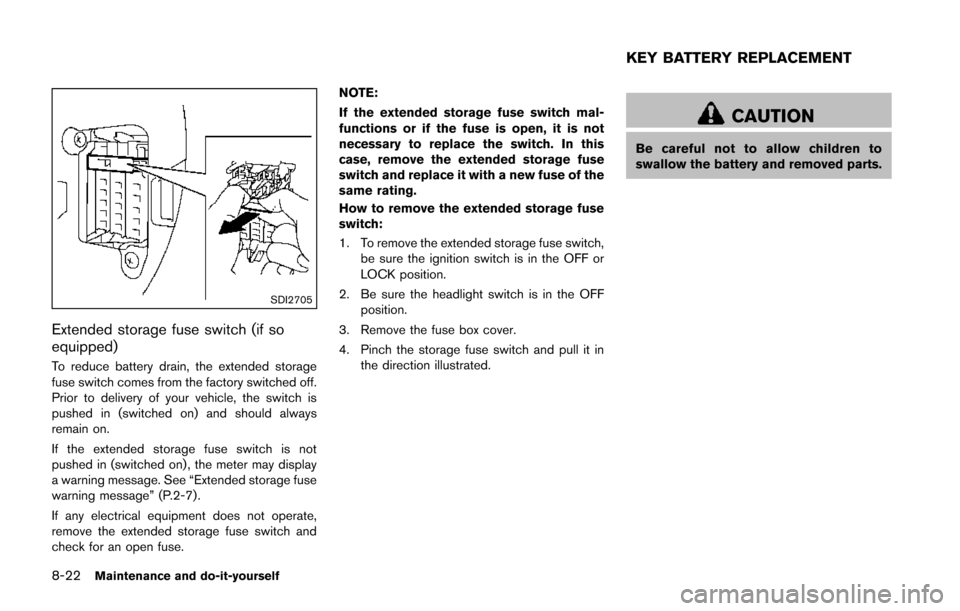

Extended storage fuse switch (if so
equipped)
To reduce battery drain, the extended storage
fuse switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.
If the extended storage fuse switch is not
pushed in (switched on) , the meter may display
a warning message. See “Extended storage fuse
warning message” (P.2-7).
If any electrical equipment does not operate,
remove the extended storage fuse switch and
check for an open fuse.NOTE:
If the extended storage fuse switch mal-
functions or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of the
same rating.
How to remove the extended storage fuse
switch:
1. To remove the extended storage fuse switch, be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the storage fuse switch and pull it in the direction illustrated.
CAUTION
Be careful not to allow children to
swallow the battery and removed parts.
KEY BATTERY REPLACEMENT

10 Index
A
ABS (Anti-lock Braking System) ............................ 5-40
Adjusting the screen .................................................. 4-19
Advanced air bag system ......................................... 1-44
Air bag systemAdvanced air bag system .................................. 1-44
Front passenger air bag and status light....... 1-46
Front-seat mounted side-impact
supplemental air bag system ............................ 1-49
Roof-mounted curtain side-impact
supplemental air bag system ............................ 1-49
Air bag warning labels............................................... 1-52
Air bag warning light...................................... 1-52, 2-17
Air cleaner housing filter ........................................... 8-16
Air conditioner Air conditioner operation.................................... 4-20
Air conditioner service ........................................ 4-27
Air conditioner specification label.................... 9-12
Air conditioning system refrigerant and
lubricant recommendations....................... 4-27, 9-7
In-cabin microfilter ............................................... 4-27
Air conditioner operation........................................... 4-23
Alarm, How to stop alarm (see vehicle
security system)........................................................... 2-30
Alcohol, drugs and driving.......................................... 5-8
All-wheel drive (AWD)............................................... 5-33
Antenna.......................................................................... 4-70
Anti-lock Braking System (ABS) ............................ 5-40
Anti-lock braking system (ABS) warning light..... 2-13
Appearance care Exterior appearance care ...................................... 7-2
Interior appearance care ....................................... 7-5
Application download................................................. 4-71
Audible reminders....................................................... 2-19
Audio operation precautions.................................... 4-28 Audio setup .................................................................... 4-6
Audio system................................................................ 4-28
Steering wheel audio controls.......................... 4-69
Audio system voice commands............................... 4-96
Autolight system.......................................................... 2-36
Automatic Air conditioner....................................................... 4-24
Door locks................................................................. 3-6
AUX (Auxiliary) input....................................... 4-47, 4-52
Average fuel consumption ........................................ 2-11
Avoiding collision and rollover ................................... 5-7
B
Back door (See lift gate) .......................................... 3-20
Battery............................................................................ 8-13 Battery replacement, Intelligent Key................ 8-24
Battery replacement, Keyfob............................. 8-23
Battery saver system........................................... 2-37
Variable voltage control system........................ 8-14
Before starting the engine........................................ 5-15
Bluetooth
®Hands-Free Phone System
(Type B)......................................................................... 4-85
Bluetooth
®Hands-Free Phone System
(Type A) ......................................................................... 4-72
Bluetooth
®hands-free phone system
voice commands ......................................................... 4-94
Bluetooth
®settings..................................................... 4-90
Bluetooth®streaming audio ..................................... 4-67
Booster seats............................................................... 1-34
Brake Anti-lock Braking System (ABS) ..................... 5-40
Brake and clutch fluid......................................... 8-11
Brake system......................................................... 5-39
Parking brake operation ..................................... 5-29
Warning light......................................................... 2-13 Break-in schedule ....................................................... 5-31
Brightness control
Display ON/OFF button ........................................ 4-6
Instrument panel................................................... 2-38
Bulb check/instrument panel ................................... 2-13
Bulb replacement........................................................ 8-26
C
Cabin air filter............................................................... 4-27
Capacities and recommended fuel/lubricants ....... 9-2
Car phone or CB radio ............................................. 4-71
Cargo cover.................................................................. 2-44
Cargo floor box............................................................ 2-43
Catalytic converter, Three way catalyst................... 5-4
CD/USB memory care and cleaning ..................... 4-68
Check tire pressure warning...................................... 2-7
Child restraints............................................................. 1-18 Booster seats........................................................ 1-34
LATCH system...................................................... 1-20
Precautions on child restraints......................... 1-18
Child safety................................................................... 1-16
Child safety rear door lock ......................................... 3-6
Chimes, Audible reminders ...................................... 2-19
Circuit breaker, Fusible link...................................... 8-20
Cleaning exterior and interior............................ 7-2, 7-5
Clock.............................................................................. 2-41
Clock (models with navigation system)................... 4-8
Clutch fluid.................................................................... 8-11
Coat hook ..................................................................... 2-44
Cockpit ............................................................................ 2-3
Cold weather driving.................................................. 5-43
Compact Disc (CD) player (See
audio system)....................................... 4-44, 4-50, 4-60
Connect phone............................................................ 4-71
Connecting procedure............................................... 4-87

Fuel-filler cap......................................................... 3-21
Fuel-filler door....................................................... 3-21
Gauge ........................................................................ 2-9
Fuel Efficient Driving Tips ......................................... 5-32
Fuses.............................................................................. 8-19
Fusible links.................................................................. 8-20
G
Gas cap......................................................................... 3-21
Gauge .............................................................................. 2-5 Engine coolant temperature gauge .................... 2-8
Fuel gauge................................................................ 2-9
Odometer.................................................................. 2-6
Speedometer............................................................ 2-6
Tachometer ............................................................... 2-8
Trip computer........................................................ 2-10
General maintenance ................................................... 8-2
Giving voice commands............................................ 4-93
Glove box...................................................................... 2-44
H
Hands-Free Phone System, Bluetooth®
(Type A) ......................................................................... 4-72
Hazard warning flasher switch................................... 6-2
Head restraints/headrests........................................... 1-5
Headlights Bulb replacement................................................. 8-27
Headlight switch................................................... 2-35
Heated seats................................................................ 2-40
Heater Engine block heater............................................. 5-44
Heater and air conditioner operation.............. 4-20
Help voice commands ............................................... 4-96
Hood release................................................................ 3-19
Horn................................................................................ 2-39 How to say numbers.................................................. 4-94
How to use brightness control button................... 4-15
How to use the APPS·i button................................ 4-12
How to use the back button........................... 4-6, 4-11
How to use the CAMERA button........................... 4-15
How to use the ON·OFF button/Volume
control knob.................................................................. 4-15
How to use the SETUP button ................................. 4-6
I
IC Regulatory information ......................................... 4-86
Ignition switch (with Intelligent Key system) ............................. 5-12
(without Intelligent Key system) ....................... 5-10
Key positions......................................................... 5-12
Immobilizer system...................................................... 2-31
In-cabin microfilter ...................................................... 4-27
Indicator lights.............................................................. 2-17
Information voice commands ................................... 4-96
Initialization.................................................................... 4-93
Inside mirror.................................................................. 3-25
Inspection/maintenance (I/M) test .......................... 9-20
Instrument brightness control .................................. 2-38
Instrument panel............................................................ 2-4
Integrated control system ............................. 2-21, 5-25
Intelligent Key system ................................................ 3-10 Intelligent Key system warning light................ 2-14
Key operating range ............................................ 3-12
Key operation ........................................................ 3-13
P position selecting warning light.................... 2-16
Remote keyless operation.................................. 3-16
Interior light replacement........................................... 8-28
Interior lights................................................................. 2-49
iPod
®connecting........................................................ 4-45
iPod®player operation................................... 4-54, 4-63
ISOFIX child restraint................................................. 1-20
J
Jump starting.................................................................. 6-8
K
Keyless entry (See remote keyless entry system) .................... 3-7
With Intelligent Key system (See Intelligent
Key system) ........................................................... 3-16
Keys.................................................................................. 3-2 For Intelligent Key system.................................. 3-10
L
LabelsAir bag warning labels........................................ 1-52
Air conditioner specification label.................... 9-12
Emission control information label................... 9-11
Engine serial number........................................... 9-10
F.M.V.S.S./C.M.V.S.S. certification label ........ 9-11
Tire and Loading information label ....... 8-31, 9-11
Vehicle identification number (VIN) ................. 9-10
LATCH system............................................................. 1-20
License plate, Installing front license plate .......... 9-13
Lift gate.......................................................................... 3-20
Light Air bag warning light........................................... 1-52
Bulb replacement................................................. 8-26
Fog light switch.................................................... 2-39
Headlight switch................................................... 2-35
Headlights bulb replacement............................ 8-27
Indicator lights....................................................... 2-17
Interior lights.......................................................... 2-49
Map lights .............................................................. 2-50
Replacement.......................................................... 8-26
10-3

10-4
Warning/indicator lights and
audible reminders................................................. 2-13
Lights, Exterior and interior light replacement ..... 8-28
Loading information (See vehicle
loading information) .................................................... 9-14
Lock Automatic door locks ............................................. 3-6
Door locks................................................................. 3-4
Lift gate lock.......................................................... 3-20
Power door lock...................................................... 3-4
Loose fuel cap warning.................................... 2-7, 3-23
Low fuel warning light................................................ 2-15
Low tire pressure warning light............................... 2-15
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) .... 5-4
M
Maintenance Battery..................................................................... 8-13
General maintenance ............................................. 8-2
Inside the vehicle .................................................... 8-3
Maintenance precautions...................................... 8-5
Maintenance requirements.................................... 8-2
Outside the vehicle................................................. 8-2
Seat belt maintenance........................................ 1-15
Making a call ................................................................ 4-87
Malfunction indicator light (MIL).............................. 2-18
Manual air conditioner................................................ 4-21
Manual front seat adjustment..................................... 1-3
Map lights ..................................................................... 2-50
Mechanical key (Intelligent Key system) ................. 3-4
Meter Trip computer........................................................ 2-10
Meters and gauges....................................................... 2-5 Instrument brightness control ........................... 2-38 Mirror
Inside mirror........................................................... 3-25
Outside mirrors..................................................... 3-25
Vanity mirror........................................................... 3-27
Monitor, RearView monitor ....................................... 4-15
Moonroof....................................................................... 2-48
My APPS voice commands...................................... 4-96
N
Navigation setup............................................................ 4-7
Navigation system voice commands...................... 4-95
New vehicle break-in.................................................. 5-31
NISSAN Vehicle Immobilizer System..................... 2-31
NISSAN voice recognition system ......................... 4-92
NissanConnect
TMApp
smartphone integration.............................................. 4-71
O
Odometer........................................................................ 2-6
Off-road recovery.......................................................... 5-7
Oil Capacities and
recommended fuel/lubricants............................... 9-2
Changing engine oil and filter.............................. 8-9
Checking engine oil level...................................... 8-8
Engine oil................................................................... 8-8
Engine oil viscosity.................................................. 9-7
One Shot Call.............................................................. 4-87
Operating tips.............................................................. 4-93
Outside air temperature display.............................. 2-10
Outside mirrors............................................................ 3-25
Overheat, If your vehicle overheats ........................ 6-10
Owner’s Manual/Service Manual
order information ......................................................... 9-21
P
Pandora®audio ........................................................... 4-66
Panic alarm.......................................................... 3-8, 3-17
Parking Brake break-in....................................................... 5-39
Parking brake operation ..................................... 5-29
Parking on hills ..................................................... 5-37
Phone Bluetooth
®Hands-Free Phone System
(Type A) .................................................................. 4-72
Car phone or CB radio ...................................... 4-71
Phone settings............................................................. 4-92
Power Electric power steering system ........................ 5-38
Moonroof................................................................ 2-48
Power door lock...................................................... 3-4
Power outlet .......................................................... 2-42
Power windows .................................................... 2-45
Precautions Audio operation .................................................... 4-28
Braking precautions............................................. 5-39
Child restraints...................................................... 1-18
Cruise control........................................................ 5-30
Driving safety............................................................ 5-8
Maintenance ............................................................. 8-5
Seat belt usage .................................................... 1-10
Supplemental restraint system.......................... 1-38
When starting and driving .................................... 5-3
Push starting ................................................................ 6-10
Push-button ignition switch.......................... 5-12, 5-13
R
Radio.............................................................................. 4-28 Car phone or CB radio ...................................... 4-71
Radio operation .................................................... 4-42
