2014 NISSAN 370Z ROADSTER Owners Manual

0-8Illustrated table of contents

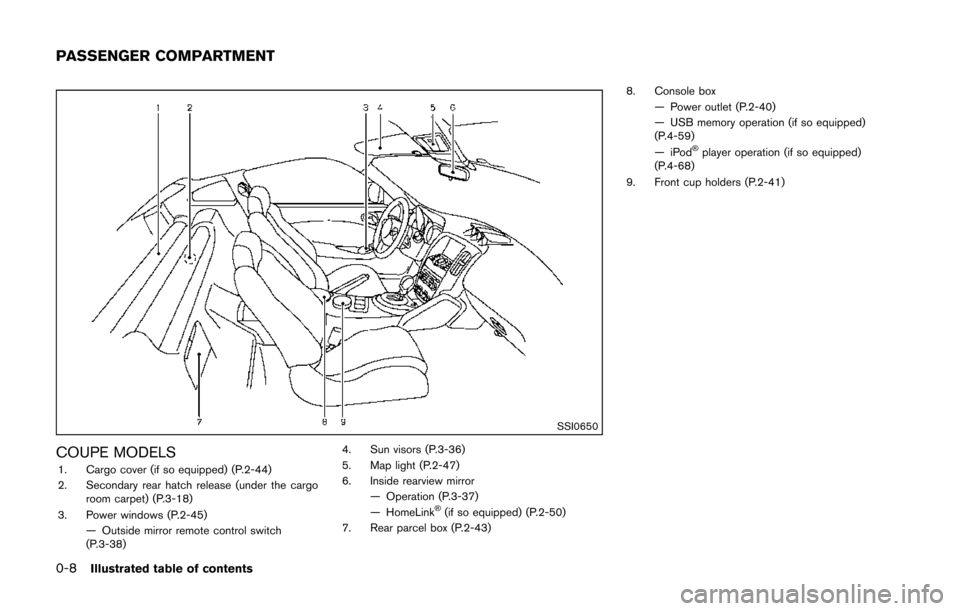

SSI0650
COUPE MODELS1. Cargo cover (if so equipped) (P.2-44)
2. Secondary rear hatch release (under the cargoroom carpet) (P.3-18)
3. Power windows (P.2-45) — Outside mirror remote control switch
(P.3-38) 4. Sun visors (P.3-36)
5. Map light (P.2-47)
6. Inside rearview mirror
— Operation (P.3-37)
— HomeLink
®(if so equipped) (P.2-50)
7. Rear parcel box (P.2-43) 8. Console box
— Power outlet (P.2-40)
— USB memory operation (if so equipped)
(P.4-59)
—iPod
®player operation (if so equipped)
(P.4-68)
9. Front cup holders (P.2-41)
PASSENGER COMPARTMENT

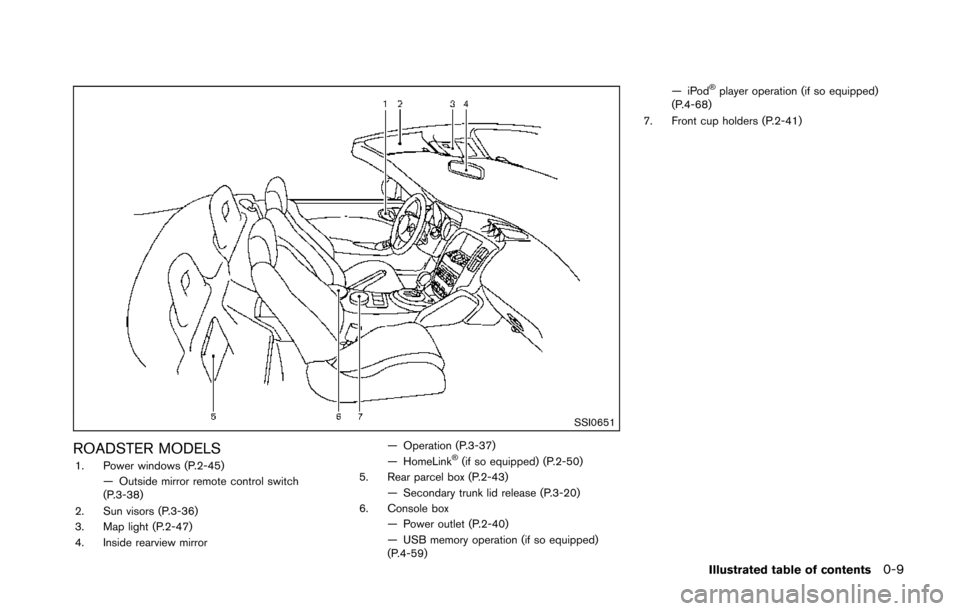

SSI0651
ROADSTER MODELS1. Power windows (P.2-45)— Outside mirror remote control switch
(P.3-38)
2. Sun visors (P.3-36)
3. Map light (P.2-47)
4. Inside rearview mirror — Operation (P.3-37)
— HomeLink®(if so equipped) (P.2-50)
5. Rear parcel box (P.2-43) — Secondary trunk lid release (P.3-20)
6. Console box
— Power outlet (P.2-40)
— USB memory operation (if so equipped)
(P.4-59) —iPod
®player operation (if so equipped)
(P.4-68)
7. Front cup holders (P.2-41)
Illustrated table of contents0-9

0-10Illustrated table of contents
SSI0652
1. Vehicle Dynamic Control (VDC) OFF switch(P.5-29)
2. Headlight, fog light and turn signal switch (P.2-33)
3. Meters and Gauges (combimeter) (P.2-5)
4. Triple meter (P.2-8)
5. Windshield wiper and washer switch (P.2-31) 6. Hood release handle (P.3-16)
7. Intelligent Key port (P.5-10)
8. Paddle shifter (if so equipped) (P.5-14)
9. Steering-wheel-mounted controls (left side)
— Menu control switch or tuning switch
(P.4-73)
— BACK switch (P.4-73) — Phone switch (if so equipped) (P.4-76,
P.4-86)
— Volume control switches (P.4-73)
— Source select switch (P.4-73)
10. Tilt steering lever (P.3-36)
11. Steering wheel — Horn (P.2-37)
— Driver supplemental air bag (P.1-28)
12. Steering-wheel-mounted controls (right side) — Cruise control switches (P.5-21)
13. Shift lever — Automatic Transmission (AT) (P.5-12)
— Manual Transmission (MT) (P.5-16)
14. Parking brake (P.5-20)
COCKPIT

SSI0653
1. Ventilator (P.4-23)
2. Center display and multi-function control panel(if so equipped) (P.4-3) or Instrument pocket (if
so equipped) (P.2-41)
— Navigation system* (if so equipped)
— Vehicle information and setting buttons (if so
equipped) (P.4-7) — Bluetooth®Hands-Free Phone System (if so
equipped) (P.4-76, P.4-86)
3. Front passenger air bag status light (P.1-33)
4. Front passenger supplemental air bag (P.1-28)
5. Fuse box cover (P.8-22)
6. Push-button ignition switch (P.5-8)
7. Hazard warning flasher switch (P.6-2) 8. Seat heater switch (if so equipped) (P.2-37) or
Climate controlled seat switch (if so equipped)
(P.2-38)
9. Soft top operating switch (for Roadster models) (P.3-21)
10. SynchroRev Match mode (S-MODE) switch (if so equipped) (P.5-17)
11. Heater and air conditioner (P.4-24) — Rear window defroster switch (P.2-32)
12. Audio system (P.4-31)
13. Power outlet (P.2-40)
14. Glove box (P.2-42)
*: Refer to the separate Navigation System
Owner’s Manual.
Illustrated table of contents0-11
INSTRUMENT PANEL

0-12Illustrated table of contents

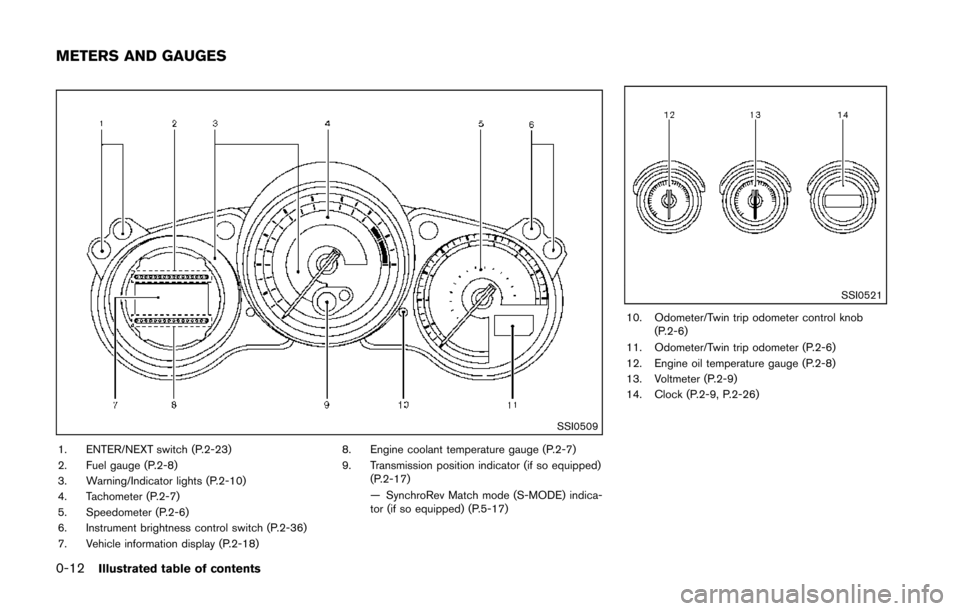

SSI0509
1. ENTER/NEXT switch (P.2-23)
2. Fuel gauge (P.2-8)
3. Warning/Indicator lights (P.2-10)
4. Tachometer (P.2-7)
5. Speedometer (P.2-6)
6. Instrument brightness control switch (P.2-36)
7. Vehicle information display (P.2-18)8. Engine coolant temperature gauge (P.2-7)
9. Transmission position indicator (if so equipped)
(P.2-17)
— SynchroRev Match mode (S-MODE) indica-
tor (if so equipped) (P.5-17)
SSI0521
10. Odometer/Twin trip odometer control knob(P.2-6)
11. Odometer/Twin trip odometer (P.2-6)
12. Engine oil temperature gauge (P.2-8)
13. Voltmeter (P.2-9)
14. Clock (P.2-9, P.2-26)
METERS AND GAUGES

JVM0086X
VQ37VHR ENGINE MODEL1. Fuse/fusible link holder (P.8-22)
2. Battery (P.8-15)
3. Radiator filler cap (P.8-8)
4. Engine oil dipstick (P.8-10)
5. Engine oil filler cap (P.8-10)
6. Brake fluid reservoir (P.8-13)7. Clutch fluid reservoir (Manual Transmission
models) (P.8-13)
8. Power steering fluid reservoir (P.8-12)
9. Window washer fluid reservoir (P.8-14)
10. Air cleaner (P.8-19)
11. Drive belt location (P.8-18)
12. Engine coolant reservoir (P.8-8)
Illustrated table of contents0-13
ENGINE COMPARTMENT

0-14Illustrated table of contents
Warninglight Name
Page
Anti-lock Braking System
(ABS) warning light 2-11
Automatic Transmission (AT)
check warning light2-11
Brake warning light
2-11
Charge warning light 2-12
Engine oil pressure warning
light 2-12
Intelligent Key system warning
light2-12
Low tire pressure warning light 2-13
Master warning light
2-14
Seat belt warning light 2-14
Supplemental air bag warning
light 2-14
Vehicle Dynamic Control (VDC)
warning light2-15Indicator
light Name
Page
Cruise indicator light 2-15
Exterior light indicator2-15
Front passenger air bag status
light 2-15
High beam indicator light 2-15
Malfunction Indicator Light
(MIL)2-15
Rear fog light indicator light* 2-16
Security indicator light
2-16
Soft top indicator light (Road-
ster models) 2-16
SynchroRev Match mode (S-
MODE) indicator*2-17
Transmission position indicator
light*2-17
Turn signal/hazard indicator
lights
2-17
Vehicle Dynamic Control (VDC)
off indicator light2-17
*: if so equipped
WARNING AND INDICATOR LIGHTS

1 Safety — Seats, seat belts and supplementalrestraint system
Seats ........................................................................\
.................... 1-2
Front seats ........................................................................\
.... 1-2
Head restraints .................................................................... 1-5
Seat belts ........................................................................\
............ 1-9 Precautions on seat belt usage ....................................... 1-9
Pregnant women .............................................................. 1-11
Injured persons ................................................................. 1-11
Three-point type seat belt .............................................. 1-11
Seat belt extenders .......................................................... 1-14
Seat belt maintenance .................................................... 1-14
Child safety ........................................................................\
...... 1-15 Infants ........................................................................\
.......... 1-15
Small children (for Coupe models) ............................. 1-15
Larger children .................................................................. 1-16
For Roadster models ....................................................... 1-17
Child restraints ........................................................................\
1-18
Precautions on child restraints ..................................... 1-18 Top tether strap child restraint (for
Coupe models) ............................................................... 1-19
Forward-facing child restraint installation using the
seat belts (for Coupe models) ................................... 1-20
Installing top tether strap (for Coupe models) ....... 1-24
Booster seats .................................................................. 1-24
Supplemental restraint system ........................................... 1-28 Precautions on supplemental restraint system ....... 1-28
NISSAN Advanced Air Bag System
(front seats) ..................................................................... 1-33
Front seat-mounted side-impact and roof/
door-mounted curtain side-impact supplemental air
bag systems .................................................................... 1-38
Seat belts with pretensioners (front seats) ............. 1-39
Supplemental air bag warning labels ....................... 1-40
Supplemental air bag warning light .......................... 1-40
Repair and replacement procedure .......................... 1-41
