Instruments and controls (Driver’s area) 1-1
1
Overview
N00100202531

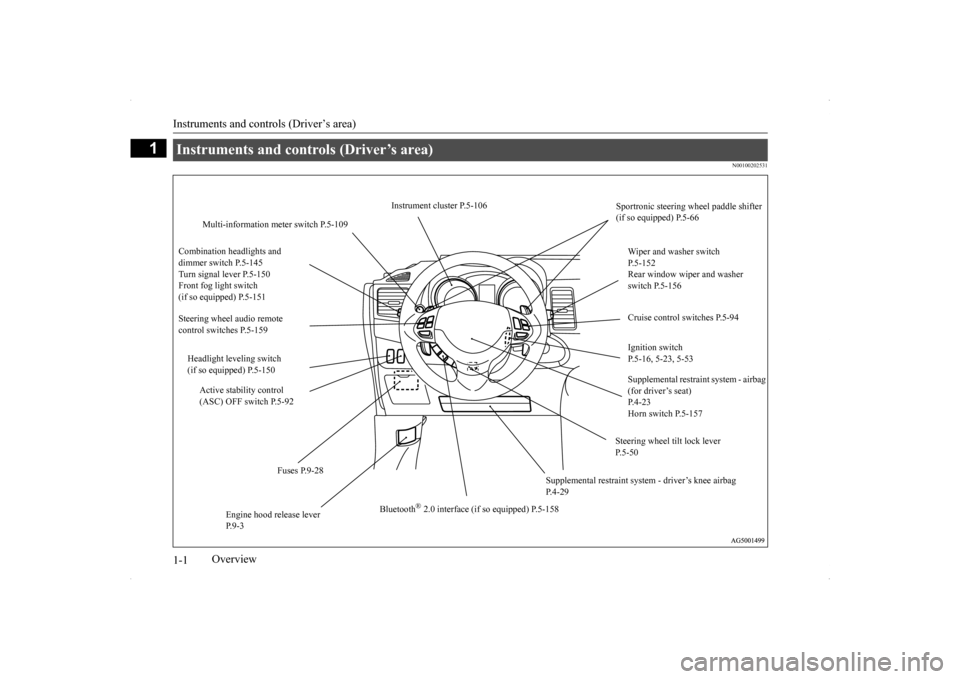

Instruments and controls (Driver’s area)
Instrument cluster P.5-106
Sportronic steering wheel paddle shifter (if so equipped) P.5-66
Multi-information meter switch P.5-109
Combination headlights and dimmer switch P.5-145 Turn signal lever P.5-150Front fog light switch (if so equipped) P.5-151
Wiper and washer switch P.5-152 Rear window wiper and washer switch P.5-156 Cruise control switches P.5-94
Steering wheel audio remote control switches P.5-159
Ignition switch P.5-16, 5-23, 5-53
Headlight leveling switch (if so equipped) P.5-150
Supplemental restraint system - airbag (for driver’s seat) P.4-23Horn switch P.5-157
Active stability control (ASC) OFF switch P.5-92
Steering wheel tilt lock lever P.5-50
Fuses P.9-28
Supplemental restraint system - driver’s knee airbag P.4-29
Bluetooth
® 2.0 interface (if so equipped) P.5-158
Engine hood release lever P.9-3
BK0200700US.bo
ok 1 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

If this problem occurs... 2-4 Quick index
2
Cannot shift the selector lever (CVT) or the gearshift lever (Twin Clutch SST) from the “P” (PARK) position. (for vehicles equipped with CVT or Twin Clutch SST)
Shift the selector lever (CVT) or the gearshift lever (Twin Clutch SST) while pressing the brake pedal. Check that the ignition key or ignition switch is in the “ON” position.
P.5-62, 5-70
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position. 2. Turn on the blower.
P.7-19, 7-24
The engine does not start. The lights do not come on. The lights are dim.The horn does not honk. The horn sound is weak.
Have the battery checked. Recharge or replace as needed.
P.8-2, 9-14
Problem
Do this
Ref. Page
BK0200700US.bo
ok 4 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

5
Features and controlsBreak-in recommendation
s ...............................................................5-3
Keys .....................................................
.............................................5-3
Electronic immobilizer (Anti-theft starting system) .........................5-4 Keyless entry system (if so equipped) ..............................................5-7Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped)................................
..................................................... 5-11
Door locks........................
...............................................................5-36
Power door locks .............
...............................................................5-38
“Child safety locks” for
rear door...................................................5-39
Rear hatch ........................
...............................................................5-40
Inside rear hatch rel
ease................................
..................................5-41
Theft-alarm system ..........
...............................................................5-41
Power windows................
...............................................................5-44
Sunroof (if so equipped
) .........................................
........................5-46
Parking brake ...................
...............................................................5-49
Steering wheel tilt lock lever ..........................................................5-50Inside day/night rearview
mirror ....................................................5-50
Outside rearview mirr
ors ................................................................5-52
Ignition switch .................
...............................................................5-53
Steering wheel lock..........
...............................................................5-55
Starting and stopping the e
ngine ....................................................5-55
Turbocharger operation (if so equipped) ........................................5-59Manual transaxle (if so equipped) ..................................................5-59Continuously variable transmissi
on (CVT) (if so equipped)..........5-61
Twin Clutch SST (Sportronic Shif
t Transmission) (if so equipped)
...................................................................
..................................5-70
All-wheel drive system (if
so equipped).........................................5-82
Cautions on handling of all-wheel drive vehicles ..........................5-82
ACD (Active center differential system) (if so equipped) ............. 5-83 Limited-slip differential (i
f so equipped) ....................................... 5-85
Service brake ..................
.................................................
............... 5-85
Hill start assist (for vehicles equipped with Twin Clutch SST) ..... 5-86Brake assist system
................................................
......................... 5-87
Anti-lock braking syst
em ......................................
......................... 5-88
Power steering system
...........................................
......................... 5-90
Active stability control
(ASC) .....................
................................... 5-91
Cruise control .................
.................................................
............... 5-94
Tire pressure monitoring
system .................................................. 5-100
Rear-view camera (if so
equipped)..............
................................. 5-104
Instrument cluster .
.................................................
....................... 5-106
Multi-information disp
lay .....................................
....................... 5-108
Indicator light, warning light, and information screen display list
.................................................................
................................. 5-129
Indicators ..................................
.................................................... 5-141
Warning lights.................
.................................................
............. 5-142
Information screen disp
lay ....................................
....................... 5-143
Combination headlights and dimmer switch ................................ 5-145Headlight leveling switch (if
so equipped)................................... 5-150
Turn signal lever ...
.................................................
....................... 5-150
Hazard warning flasher
switch ..................................................... 5-151
Front fog light switch (if so
equipped) ......................................... 5-151
Wiper and washer swit
ch ......................................
....................... 5-152
Electric rear window def
ogger switch .......................................... 5-157
Horn switch ..............................
.................................................... 5-157
Link System (if so equi
pped) ....................................................... 5-158
Bluetooth
® 2.0 interface (if so
equipped)..................................... 5-158
BK0200700US.bo
ok 1 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

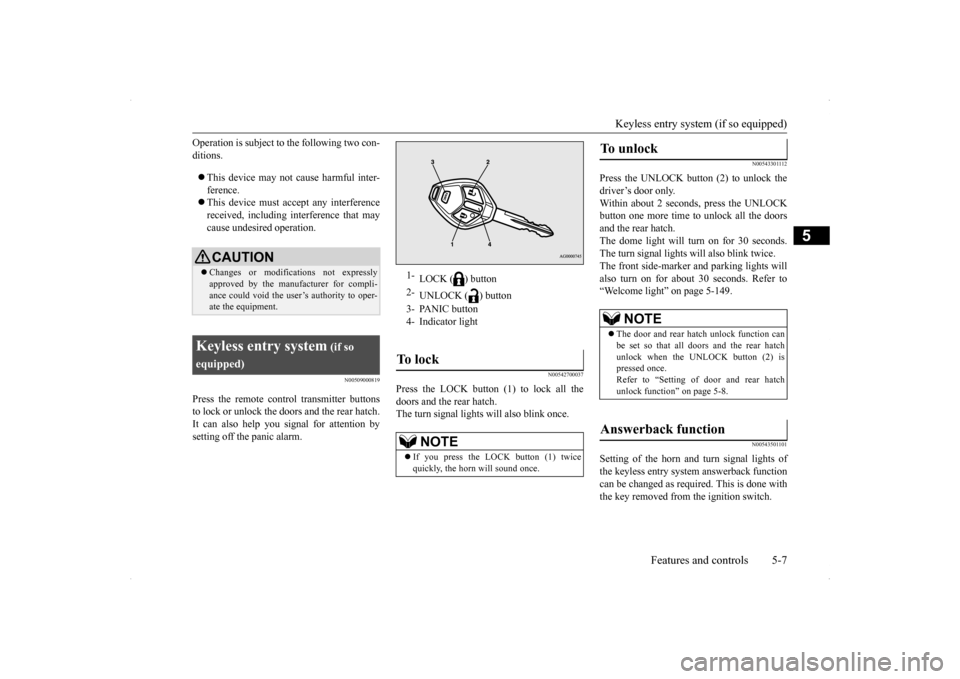

Keyless entry system (if so equipped)
Features and controls 5-7
5
Operation is subject to the following two con- ditions.  This device may not cause harmful inter- ference.  This device must accept any interference received, including interference that may cause undesired operation.
N00509000819
Press the remote control transmitter buttonsto lock or unlock the doors and the rear hatch. It can also help you signal for attention bysetting off the panic alarm.
N00542700037
Press the LOCK button (1) to lock all thedoors and the rear hatch.The turn signal lights will also blink once.
N00543301112
Press the UNLOCK button (2) to unlock thedriver’s door only.Within about 2 seconds, press the UNLOCK button one more time to unlock all the doors and the rear hatch.The dome light will turn on for 30 seconds. The turn signal lights will also blink twice. The front side-marker and parking lights willalso turn on for about 30 seconds. Refer to“Welcome light” on page 5-149.
N00543501101
Setting of the horn and turn signal lights of the keyless entry system answerback function can be changed as requi
red. This is done with
the key removed from the ignition switch.
CAUTION Changes or modifications not expressly approved by the manufacturer for compli- ance could void the user’s authority to oper- ate the equipment.
Keyless entry system
(if so
equipped)
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button 4- Indicator lightTo l o c k

NOTE
 If you press the LOCK button (1) twice quickly, the horn will sound once.
To u n l o c k

NOTE
 The door and rear hatch unlock function can be set so that all doors and the rear hatch unlock when the UNLOCK button (2) is pressed once. Refer to “Setting of door and rear hatch unlock function” on page 5-8.
Answerback function

BK0200700US.bo
ok 7 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Keyless entry system (if so equipped) 5-8 Features and controls
5
The horn answerback function can be set to the following three conditions.Each time the horn answerback function is set, a chime will sound to tell you the condi- tion of the answerback function. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com-bination headlights and dimmer switch to the “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the UNLOCK button in step 3.
The turn signal lights answerback function can be set to the following seven conditions. Each time the turn signal lights answerback function is set, a chime will sound to tell youthe condition of the answerback function. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com-bination headlights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and press the LOCK button (1) during this time. 4. Release in sequence the UNLOCK andLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
N00543601144
The door and rear hatch unlock function canbe set to the following two conditions. Each time the door and rear hatch unlockfunction is set, a chime will sound to tell you the condition of the door and rear hatch unlock function. 1. Remove the key from the ignition switch. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch tothe “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec- onds and press the UNLOCK button (2)during this time.
NOTE
 The answerback function does not operate when the key is in the ignition switch or any doors or rear hatch is opened.
Horn deactivation/reactivation

Number of chimes
Condition
One chime The horn will not sound. Two chimes The horn will sound. Four chimes
The horn will sound if the LOCK button (1) is pressed twice quickly.
Changing the setting of the turn signal lights answerback function

Number of chimes
Condition
To l o c k
To unlock
One chime One flash Two flashesTwo chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flashSix chimes Two flashes No flashSeven chimes No flash No flash
Setting of door and rear hatch unlock function

Number of chimes
Condition
One chime
All doors and rear hatch unlock
Two chimes Driver’s door unlock only
BK0200700US.bo
ok 8 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Keyless entry system (if so equipped)
Features and controls 5-9
5
4. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
N00543700021
If you are near your vehicle and feel threat-ened, you may activate the alarm to call atten- tion as follows: 1. Press the PANIC button (3) for more than 1 second.2. The headlights will blink on and off and the horn will sound intermittently for about 3 minutes.3. To turn off the alarm, press any button on the remote control transmitter.
N00543800035
Only remote control transmitters pro- grammed with the vehicle’s electronics canlock or unlock all doors and the rear hatch. If you lose the remote control transmitter, you can order a remote control transmitter from your authorized Mitsubishi Motors dealer byreferring to the key number.
To prevent vehicle theft, the ID codes for all the remote control transmitters except the one for the lost key must be programmed again. Take your vehicle and all the remainingremote control transmitters to your authorized Mitsubishi Motors dealer to have your ID codes programmed again.
N00543900036
To add a remote control transmitter, you mustalready have one registered remote controltransmitter. Registering the ID code can be done by your- self or by your authorized Mitsubishi Motorsdealer. For you to register the ID code your- self, follow the “Customer remote control transmitter programming” procedure below.If you choose to have your authorized Mit- subishi Motors dealer
register the ID code,
take your vehicle and all remaining keys toyour authorized Mitsubishi Motors dealer.
N00544001145
You can program new remote control trans-mitters to the system if you have one valid (already registered) remote control transmit- ter by doing the following: 1. Have available all (current and new) remote control transmitters you wish toregister. 2. With a valid (already registered) remote control transmitter, press the UNLOCKbutton (2) for 4 to 10 seconds. Then press and hold the LOCK button (1). 3. Within 10 seconds of pressing the LOCKbutton, release the LOCK and UNLOCK buttons in sequence. At this time, ID codes for all remote con-trol transmitters except for the transmitter used in steps 2 and 3 are erased and the answerback function (door or rear hatch islocked and unlocked) informs you that the registration mode has been activated. 4. Within 60 seconds after step 3, completethe following ID code registration opera- tion using the next remote control trans- mitter you wish to register within 4seconds. i. Press both the LOCK and UNLOCK buttons for 2 seconds.
Using the panic alarm

Replacement remote control transmitters

Additional remote control transmitters

NOTE
 You are provided with two remote control transmitters, but you may register up to eight remote control transmitters.
Customer remote control trans- mitter programming

BK0200700US.bo
ok 9 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

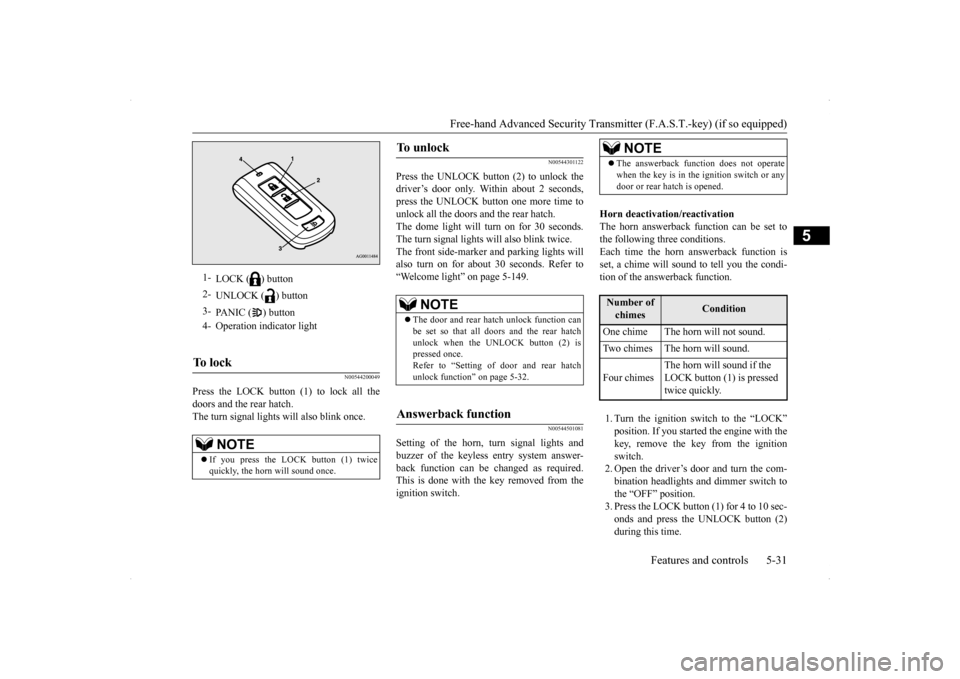

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-31
5
N00544200049
Press the LOCK button (1) to lock all the doors and the rear hatch.The turn signal lights will also blink once.
N00544301122
Press the UNLOCK button (2) to unlock thedriver’s door only. Within about 2 seconds,press the UNLOCK button one more time to unlock all the doors and the rear hatch. The dome light will turn on for 30 seconds.The turn signal lights will also blink twice. The front side-marker and parking lights will also turn on for about 30 seconds. Refer to“Welcome light” on page 5-149.
N00544501081
Setting of the horn, turn signal lights andbuzzer of the keyless entry system answer- back function can be changed as required. This is done with the key removed from theignition switch.
Horn deactivation/reactivation The horn answerback function can be set tothe following three conditions. Each time the horn answerback function is set, a chime will sound to tell you the condi-tion of the answerback function. 1. Turn the ignition switch to the “LOCK” position. If you started the engine with thekey, remove the key from the ignition switch. 2. Open the driver’s door and turn the com-bination headlights and dimmer switch to the “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2) during this time.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3-
PANIC ( ) button
4- Operation indicator lightTo l o c k

NOTE
 If you press the LOCK button (1) twice quickly, the horn will sound once.
To u n l o c k

NOTE
 The door and rear hatch unlock function can be set so that all doors and the rear hatch unlock when the UNLOCK button (2) ispressed once. Refer to “Setting of door and rear hatch unlock function” on page 5-32.
Answerback function

NOTE
 The answerback function does not operate when the key is in the ignition switch or any door or rear hatch is opened.Number of chimes
Condition
One chime The horn will not sound. Two chimes The horn will sound. Four chimes
The horn will sound if the LOCK button (1) is pressed twice quickly.
BK0200700US.bo
ok 31 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-32 Features and controls
5
4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the UNLOCK button in step 3.
Changing the setting of the turn signal lights answerback functionThe turn signal lights answerback function can be set to the following seven conditions. Each time the turn signal lights answerbackfunction is set, a chime will sound to tell you the condition of the answerback function. 1. Turn the ignition switch to the “LOCK” position. If you started the engine with the key, remove the key from the ignition switch.2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and press the LOCK button (1) during this time. 4. Release in sequence the UNLOCK andLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
The buzzer answerback function can be turned ON or OFF as required.
N00544601125
The door and rear hatch unlock function canbe set to the following two conditions. Each time the door and rear hatch unlock function is set, a chime will sound to tell youthe condition of the door and rear hatch unlock function.
1. Turn the ignition switch to the “LOCK” position. If you started the engine with the key, remove the key from the ignition switch.2. Open the driver’s door and turn the com- bination headlights and dimmer switch to the “OFF” position.3. Press the LOCK button (1) for 4 to 10 sec- onds and press the UNLOCK button (2) during this time.4. Release in sequence the LOCK andUNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.
N00544700028
If you are near your vehicle and feel threat-ened, you can activate the alarm to call atten- tion as follows: 1. Press the PANIC button (3) for more than 1 second. 2. The headlights will blink on and off and the horn will sound intermittently forabout 3 minutes. 3. To turn off the alarm, press any button on the remote control transmitter.
Number of chimes
Condition
To l o c k
To u n l o c k
One chime One flash Two flashesTwo chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flashSix chimes Two flashes No flashSeven chimes No flash No flash
Buzzer deactivation/reactivationSetting of door and rear hatch unlock function

Number of chimes
Condition
One chime
All doors and rear hatch unlock
Two chimes Driver’s door unlock only
Using the panic alarm

BK0200700US.bo
ok 32 ページ ２０１３年２月１５日　金曜日　午後１２時１７分
