2014 MITSUBISHI LANCER Owners Manual

11
SpecificationsVehicle labeling ...............
............................................................... 11-2
Vehicle dimensions ..........
............................................................... 11-4
Vehicle weights ................
............................................................... 11-4
Engine specifications
..............................................
........................ 11-5
Battery........................................
..................................................... 11-5
Tires and wheels ..............
............................................................... 11-5
Refill capacities ...............
............................................................... 11-6

Vehicle labeling 11-2 Specifications
11
N01147400696
Keep a record of the chassis number and vehicle identification number. Such informa-tion will assist the police if your vehicle is stolen.
The vehicle emission control information label is affixed on the inside panel of the engine hood. The vehicle identification number is stamped on the plate riveted to the left front corner of the vehicle body. It is visible from outside ofthe vehicle through the windshield. The air conditioning label is affixed on the inside panel of the engine compartment.
The vehicle information code plate is located on the front passenger door sill. The chassis number is stamped on the floor under the front passenger
seat. It is visible by
pulling back the carpet flap as shown in the illustration. The engine serial number is stamped on the cylinder block as shown in the illustration.
Vehicle labeling Except for vehicles with turbochargerVehicles with turbocharger
1 - Vehicle emission control information label 2 - Vehicle identification num- ber plate 3 - Air conditioning label
4 - Vehicle information code plate Chassis number Engine serial number

Vehicle labeling
Specifications 11-3
11
N01148100528

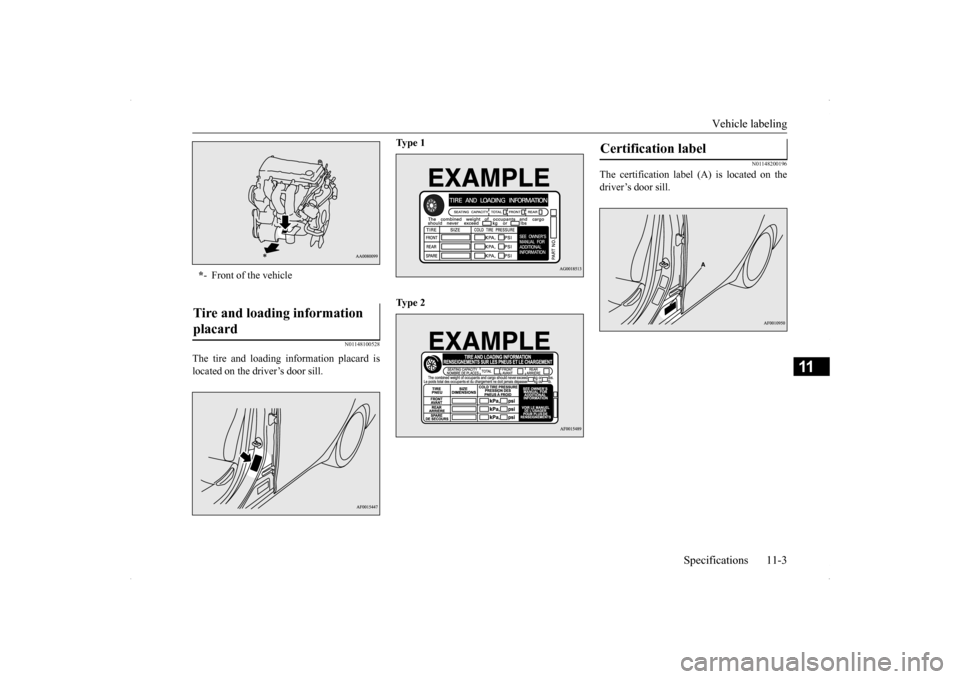

The tire and loading information placard is located on the driver’s door sill.
Ty p e 1 Ty p e 2
N01148200196
The certification label (A) is located on the driver’s door sill.
* - Front of the vehicleTire and loading information placard
Certification label

Vehicle dimensions 11-4 Specifications
11
N01147500482 N01147600890
GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit sp
ecified for the front or rear axle
Vehicle dimensions
Item
Vehicles with 16 inch tire
Vehicles with 18 inch tire
Overall length 180.0 in (4,570 mm) Overall width 69.4 in (1,760 mm) Overall height 58.3 in (1,480 mm) 58.7 in (1,490 mm)Wheel base 103.7 in (2,635 mm) Vehicle weights
Item
2.0 liter
2.4 liter
Front-wheel drive vehi-
cles
All-wheel drive vehicles
Front-wheel drive vehi-
cles
All-wheel drive
vehicles
Gross vehicle weight rating (GVWR) 3,969 lb (1,800 kg
) 4,388 lb (1,990 kg) 4,079 lb (
1,850 kg) 4,190 lb (1,900 kg)
Gross axle weight rating (GAWR)
Front 2,227 lb (1,010 kg) 2,381 lb (1,080 kg)
2,227 lb (1,010 kg) 2,227 lb (1,010 kg)
Rear 2,007 lb (910 kg) 2,161 lb (980
kg) 2,007 lb (910 kg) 2,117 lb (960 kg)
Vehicle capacity weight 827 lb (375 kg)Maximum roof load 110 lb (50 kg)Seating capacity 5 persons
NOTE
Roof load is important because it affects the vehicle capacity
weight. Refer to “Loading cargo on the roof” on page 6-11.

Engine specifications Specifications 11-5
11
Seating capacity: the number of maximum occupants
N01147700439
N01147800182
Battery is a 12 volt type.
N01147900691
Engine specifications
Item
2.0 liter
2.4 liter
Except for vehicles with tur-
bocharger
Vehicles with turbocharger
Engine model 4B11 4B12Engine displacement 121.9 CID (1,998 cm³) 144.0 CID (2,360 cm³)No. of cylinders and cylinder arrange- ment
4 in-line
Bore 3.39 in (86.0 mm) 3.46 in (88.0 mm)Stroke 3.39 in (86.0 mm) 3.82 in (97.0 mm)Compression ratio 10.0 9.0 10.5Thermostat valve opening temperature 189 °F (87 °C) 180 °F (82 °C) 189 °F (87 °C)Spark plugs
NGK DIFR6C11 DILKR7B6 DIFR5C11
Spark plug gap
.040 to .043 in (1.0 to 1.1 mm)
.020 to .023 in (0.5 to 0.6 mm)
.040 to .043 in (1.0 to 1.1 mm)
Firing order 1-3-4-2Battery
75D23L
Tires and wheels Tire
Size
P205/60R16
91H
215/45R18
89W,
P215/45R18
89V
Wheel
Size
16 x 6 1/2J, 16 x 6 1/2JJ
18 x 7J, 18 x
7JJ
PCD
4.5 in (114.3 mm)
Off- set
1.81 in (46 mm)

Refill capacities 11-6 Specifications
11
PCD: Pitch Circle Diameter (installation holes)
N01148001016
NOTE
 Contact an authorized Mitsubishi Motors dealer for details on the combination used on your vehicle.
 These tires satisfy vehicle loading conditions described in this owner’s manual.NOTE
Refill capacities
Item
Capacity
Lubricants
Fuel (approxi- mate)
Front-wheel drive vehicles 15.5 gal (59.0 L)
Refer to “Fuel selection” on page 3-2.
All-wheel drive vehicles 14.5 gal (55.0 L)
Engine oil
2.0 liter
Except for vehi- cles with turbo- charger
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark (“starbust” symbol) on the container.If these oils are not available, an API classification SN or higher can be used.
Oil filter .32 qt (0.3 L)
Vehicles with turbocharger
Oil pan 5.1 qt (4.8 L)Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering As required Mitsubishi Motors Genuine Power Steering Fluid Manual transaxle 2.6 qt (2.5 L)
Mitsubishi Motors Genuine NEW MULTI GEAR OIL API classification GL-3 SAE 75W-80
Continuously variable transmission (CVT) 7.5
qt (7.1 L) Mitsubishi Motors Genuine CVTF-J4
Twin Clutch SST
8.0 qt (7.6 L) {includes .53 qt (0.5 L) in oil cooler}
Mitsubishi Motors Genuine SSTF-I

Refill capacities
Specifications 11-7
11
ACD: Active center differential system LSD: Limited slip differentialTransfer oil
Except for vehicles with ACD .50 qt (0.47 L)
Mitsubishi Motors Genuine Super Hypoid Gear Oil API classification GL-5 SAE 80
Vehicles with ACD .85 qt (0.8 L) Mitsubishi Motors Genuine LSD gear oil
AWC control fluid
.95 qt (0.9 L) {Includes hydrau-
lic piping}
DIAMOND ATF SP III
Rear differential oil
Except for vehicles with ACD .42 qt (0.4 L)
Mitsubishi Motors Genuine Super Hypoid Gear Oil API classification GL-5 SAE 80
Vehicles with ACD .58 qt (0.55 L) Mits
ubishi Motors Genuine LSD gear oil
Brake/Clutch (if so equipped) As required C
onforming to Brake fluid DOT3 or DOT4
Hood lock release mechanism and safety catch As
required Multipurpose type grease NLGI Grade 2
Engine coolant {Includes .63 qt (0.65 L) in reserve tank}
Manual trans- axle
7.4 qt (7.0 L)
Mitsubishi Motors Genuine Super Long Life Coolant Premium or an equivalent
*
CVT 7.4 qt (7.0 L)Twin Clutch SST
7.9 qt (7.5 L)
Washer fluid 4.3 qt (4.0 L) — Refrigerant (air conditioning)
Refer to the “Air conditioning label”
on page 11-2.
HFC-134a
* : similar high quality ethylene glycol base
d non-silicate, non-amine, non-nitrate a
nd non-borate coolant with long life hybrid o
rganic acid tech-
nology
