2014 MERCEDES-BENZ SL-CLASS ROADSTER Owners Manual

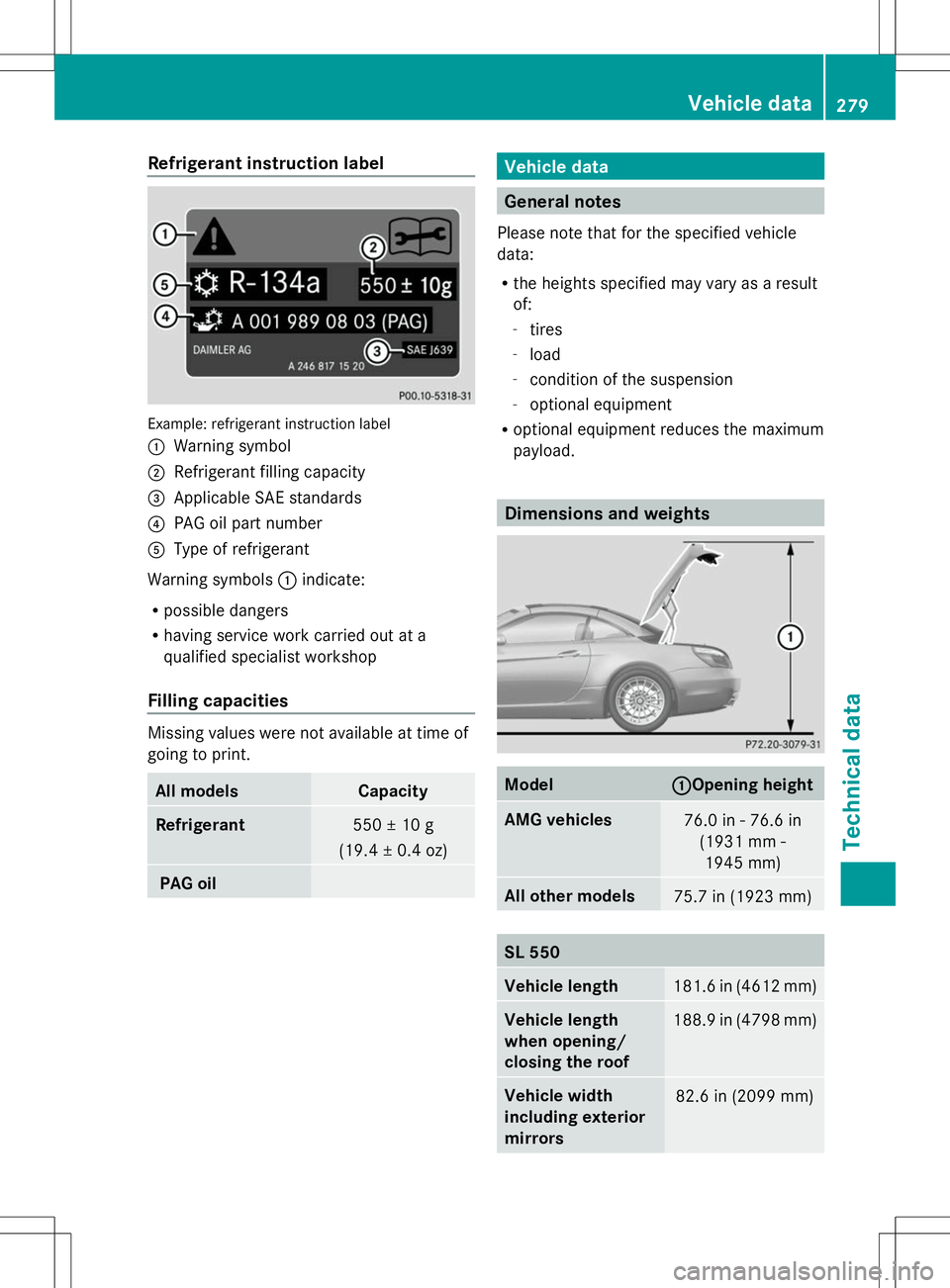

Refrigerant instruction label
Example: refrigerant instruction label
:
Warning symbol
; Refrigerant filling capacity
= Applicable SAE standards
? PAG oil part number
A Type of refrigerant
Warning symbols :indicate:
R possible dangers
R having service work carried out at a
qualified specialist workshop
Filling capacities Missing values were not available at time of
going to print. All models Capacity
Refrigerant
550 ± 10 g
(19.4 ± 0.4 oz) PAG oil Vehicle data
General notes
Please note that for the specified vehicle
data:
R the heights specified may vary as a result
of:
-tires
- load
- condition of the suspension
- optional equipment
R optional equipment reduces the maximum
payload. Dimensions and weights
Model : :Opening height
AMG vehicles
76.0 in - 76.6 in
(1931 mm -1945 mm) All other models
75.7 in (1923 mm)
SL 550
Vehicle length
181.6 in (4612 mm)
Vehicle length
when opening/
closing the roof
188.9 in (4798 mm)
Vehicle width
including exterior
mirrors
82.6 in (2099 mm) Vehicle data
279Technical data Z

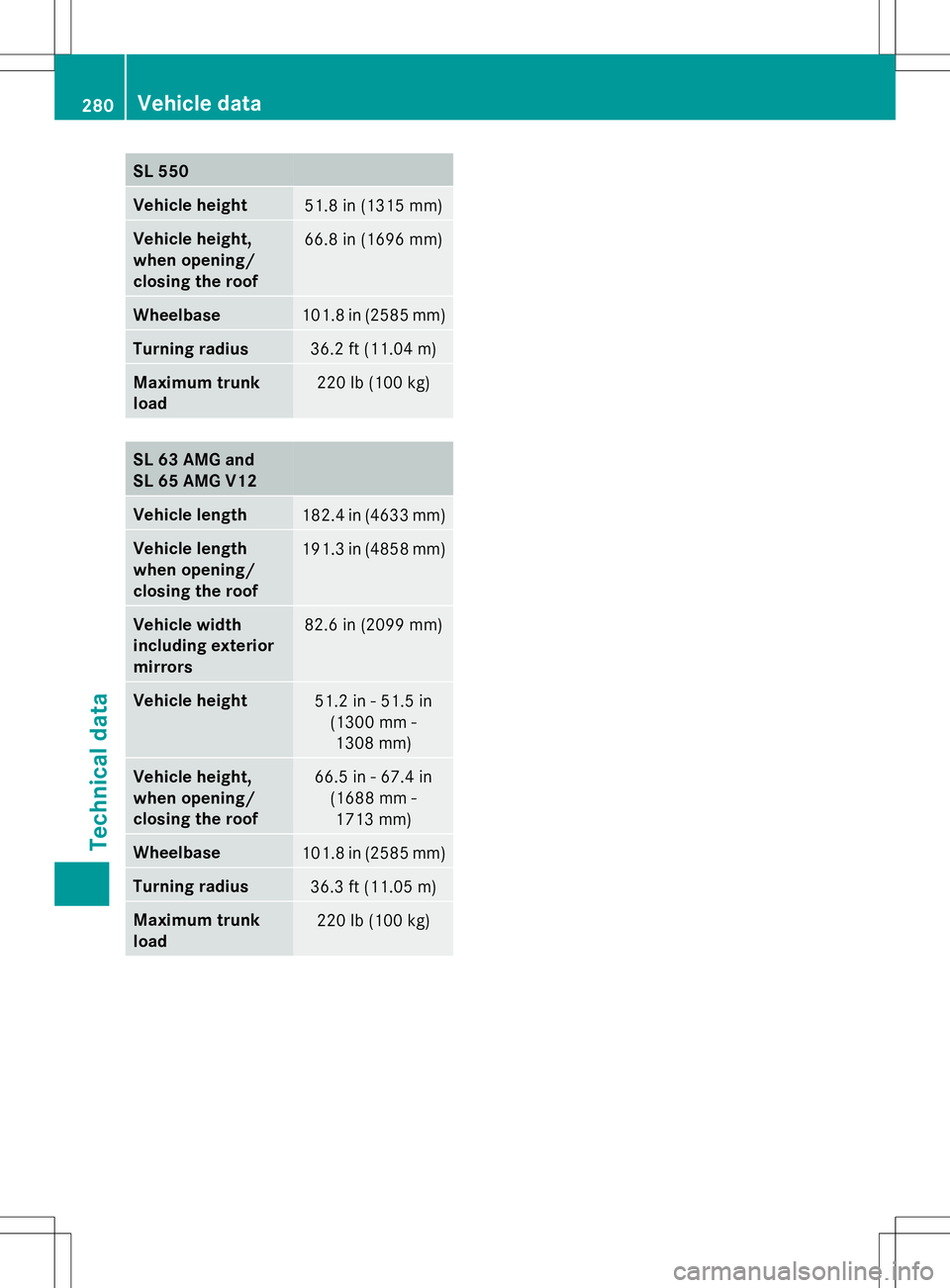

SL 550
Vehicle height
51.8 in (1315 mm)
Vehicle height,
when opening/
closing the roof
66.8 in (1696 mm)
Wheelbase
101.8 in (2585 mm)
Turning radius
36.2 ft (11.04 m)
Maximum trunk
load
220 lb (100 kg)
SL 63 AMG and
SL 65 AMG V12
Vehicle length
182.4 in (4633 mm)
Vehicle length
when opening/
closing the roof
191.3 in (4858 mm)
Vehicle width
including exterior
mirrors
82.6 in (2099 mm)
Vehicle height
51.2 in - 51.5 in
(1300 mm -1308 mm) Vehicle height,
when opening/
closing the roof
66.5 in - 67.4 in
(1688 mm -1713 mm) Wheelbase
101.8 in (2585 mm)
Turning radius
36.3 ft (11.05 m)
Maximum trunk
load
220 lb (100 kg)280
Vehicle dataTechnical data
