2014 MERCEDES-BENZ E400 HYBRID Owners Manual

Jump-starting
i For information about jump-starting, see
the vehicle Operator's Manual.
If jump-starting was used to start your
vehicle, electric drive mode may not be
available for approximately 30 minutes. Towing
Towing the vehicle with the rear axle
raised
Towing the vehicle with the rear axle raised
should only be carried out by professional
recovery companies.
When towing the vehicle with the rear axle
raised, observe the safety notes and
information in the vehicle Operator's Manual. Towing
avehicle with both axles on
the ground
Hybrid vehicles may no tbe towed away with
both axles on the ground.
Have the vehicle towed away by a
professional recovery company. The vehicle
may only be loaded up and transported or
towed away with the rear axle raised.
Only when towing the vehicle away from an
area of danger may it be towed with both
axles on the ground. In this case, the towing
distance must not be greater than 150 ft
(50 m) and must not exceed a towing speed
of 6 mph (10 km/h). Transporting the vehicle
Transportation of the vehicle only be carried
out by professional recovery companies.
When transporting the vehicle, observe the
important safety notes and information in the
vehicle Operator's Manual. Towing
39Breakdown assistance Z

40

Useful information
..............................42
Wheel and tire combinations .............43 41Wheels and tires

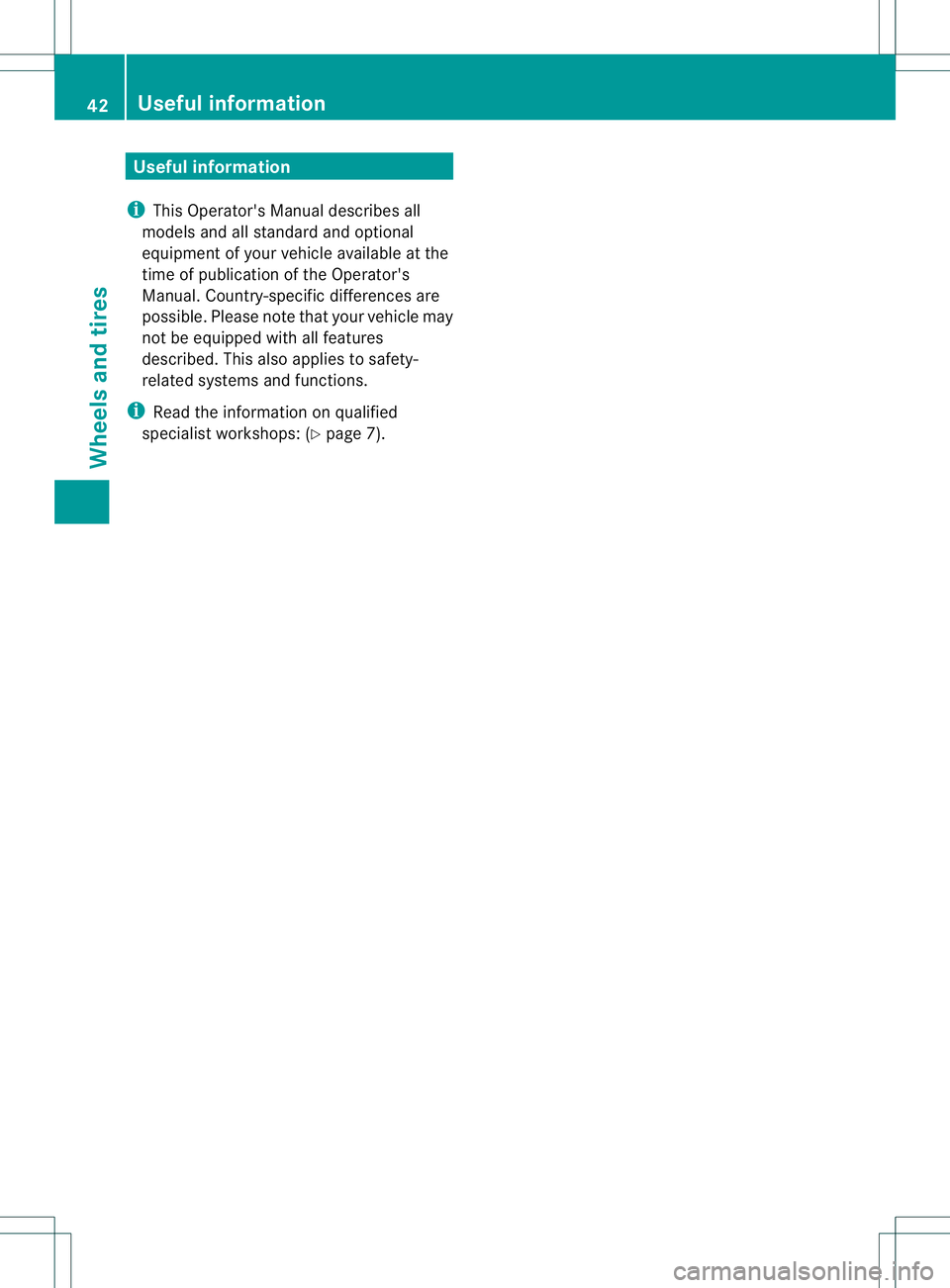

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: (Y page 7).42
Useful informationWheels and tires

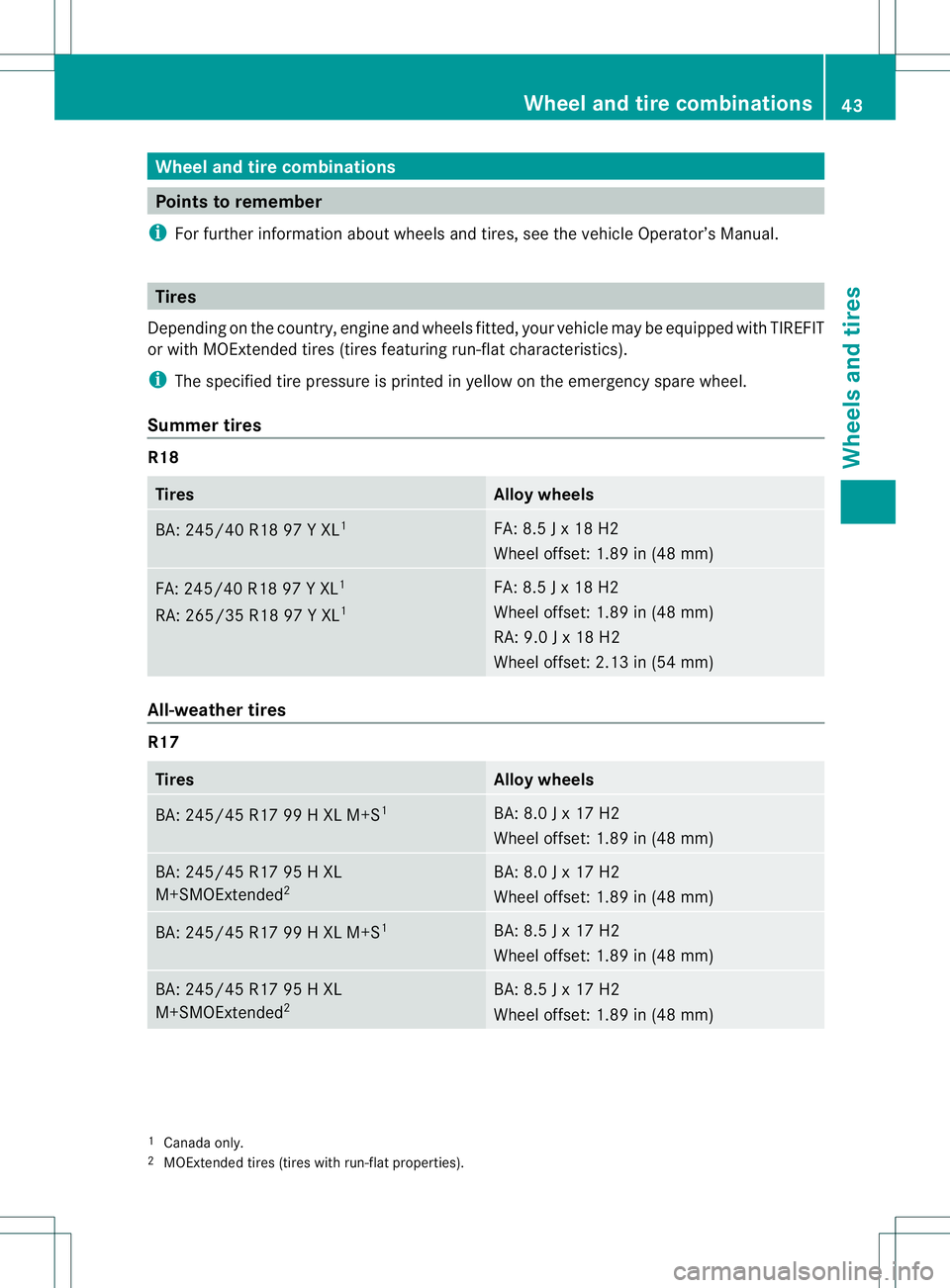

Wheel and tire combinations
Points to remember
i For further information about wheels and tires, see the vehicle Operator’s Manual. Tires
Depending on the country, engine and wheels fitted, you rvehicle may be equipped with TIREFIT
or with MOExtended tires (tires featuring run-flat characteristics).
i The specified tire pressure is printed in yellow on the emergency spare wheel.
Summer tires R18
Tires Alloy wheels
BA: 245/40 R18 97 Y XL
1 FA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
FA: 245/40 R18 97 Y XL
1
RA: 265/35 R18 97 Y XL 1 FA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
RA: 9.0 J x 18 H2
Wheel offset: 2.13 in (54 mm)
All-weather tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S
1 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 H XL
M+SMOExtended
2 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 H XL M+S
1 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 H XL
M+SMOExtended
2 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
1
Canada only.
2 MOExtended tires (tires with run-flat properties). Wheel and tire combinations
43Wheels and tires

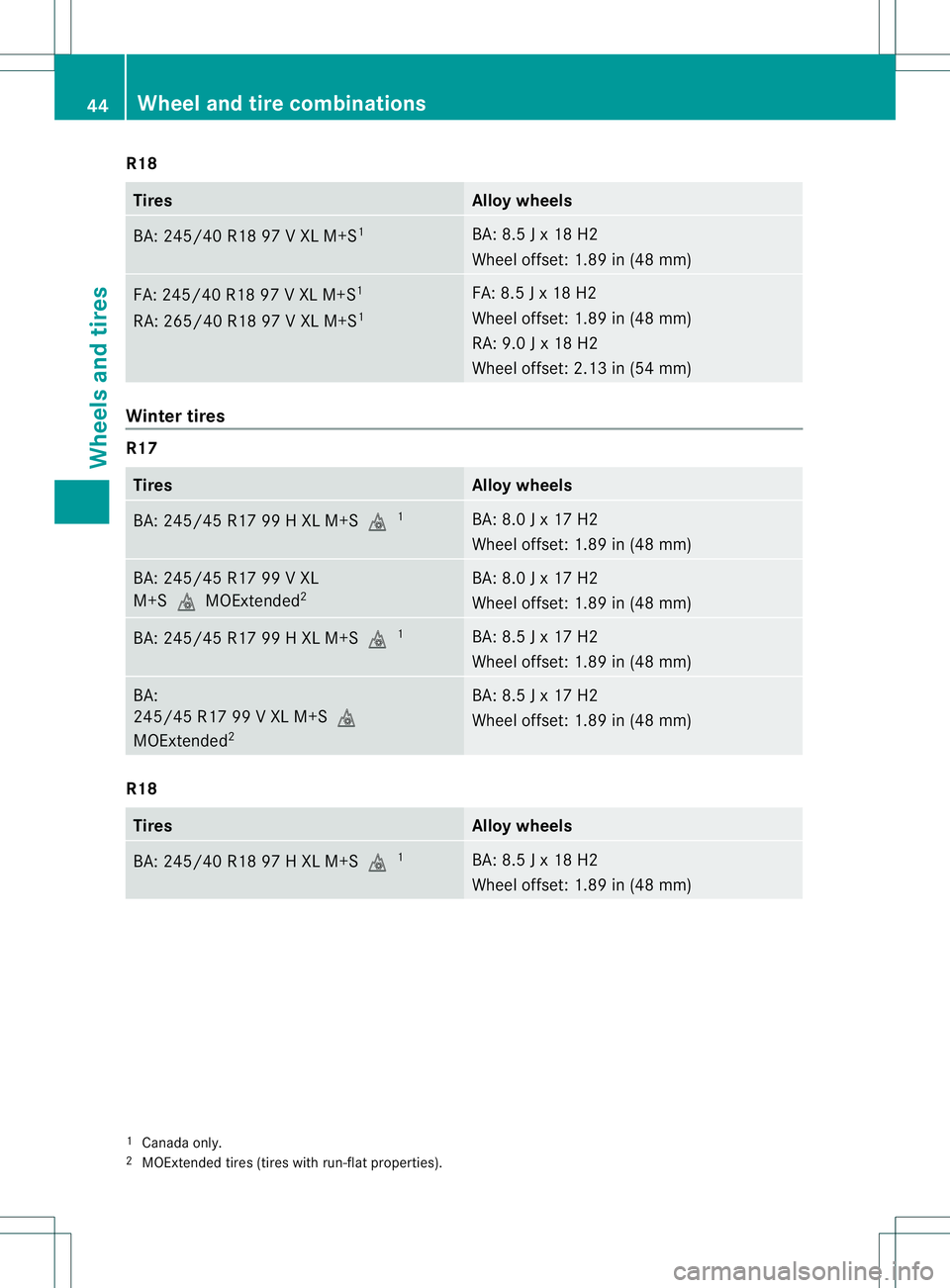

R18
Tires Allo
ywheels BA: 245/40 R18 97 V XL M+S
1 BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm) FA: 245/40 R18 97 V XL M+S
1
RA: 265/40 R18 97 V XL M+S 1 FA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
RA: 9.0 J x 18 H2
Wheel offset: 2.13 in (54 mm) Winter tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S
i1 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 99 V XL
M+SiMOExtended
2 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 99 H XL M+S
i1 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA:
245/45 R17 99 V XL M+S
i
MOExtended 2 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm) R18
Tires Alloy wheels
BA: 245/40 R18 97 H XL M+S
i1 BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm) 1
Canada only.
2 MOExtended tires (tires with run-fla tproperties). 44
Wheel and tire combinationsWheels and tires

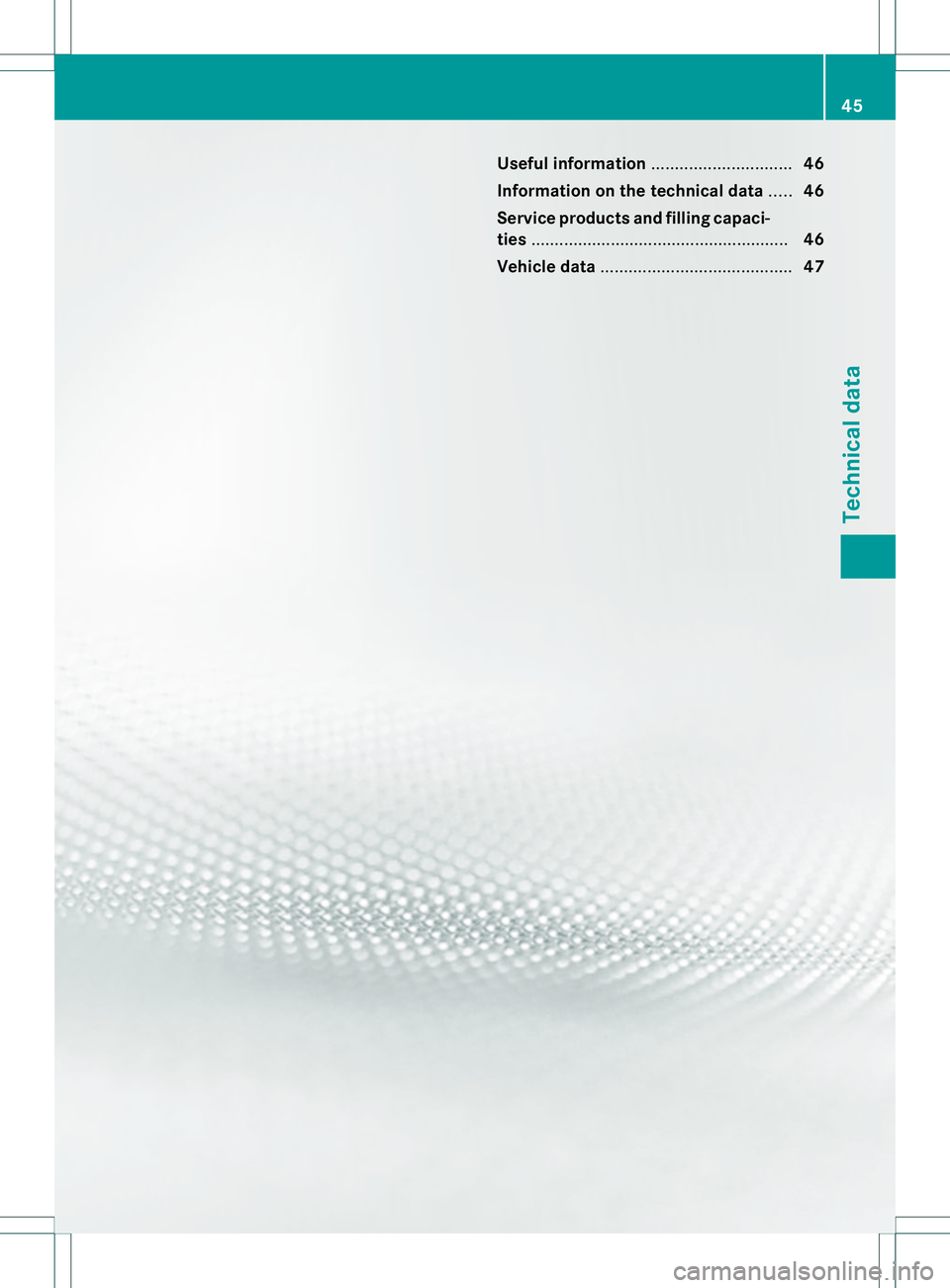

Useful information
..............................46
Information on the technical data .....46
Service products and filling capaci-
ties ....................................................... 46
Vehicle data ......................................... 47 45Technical data

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: (Y page 7).Information on the technical data
i The data stated here specifically refers to
a vehicle with standard equipment .Consult
an authorized Mercedes-Benz Center for
the data for all vehicle variants and trim
levels. Service products and filling
capacities Engine oil
Points to remember Only engine oils approved by Mercedes-Benz
may be used in Mercedes-Benz engines (for
further information see the vehicle
Operator's Manual).
Model Engine
model MB
Approval
E 400 HYBRID
276 229.5
Filling capacities
The following values refer to an oil change
including the oil filter.
Engine with oil filter
Capacity
6.9 US qt (6.5 l) Climate control system refrigerant
Important safety notes !
Only the refrigerant R-134a and the PAG
oil approved by Mercedes-Benz may be
used. The approved PAG oil may not be
mixed with any other PAG oil that is not
approved for R-134a refrigerant.
Otherwise, the climate control system may
be damaged.
Service work, such as topping-up refrigerant
or replacing components, may only be carried
out by a qualified specialist workshop. All
applicable regulations must be adhered to,
SAE standard J639 included.
Always have work on the climate control
system carried out at a qualified specialist
workshop.
Refrigerant instruction label Example: refrigerant instruction label
:
Warning symbol
; Refrigerant filling capacity
= Applicable SAE standards
? PAG oil part number
A Type of refrigerant
Warning symbols :indicate:
R possible dangers
R that it is necessary to have maintenance
work carried out at a qualified specialist
workshop 46
