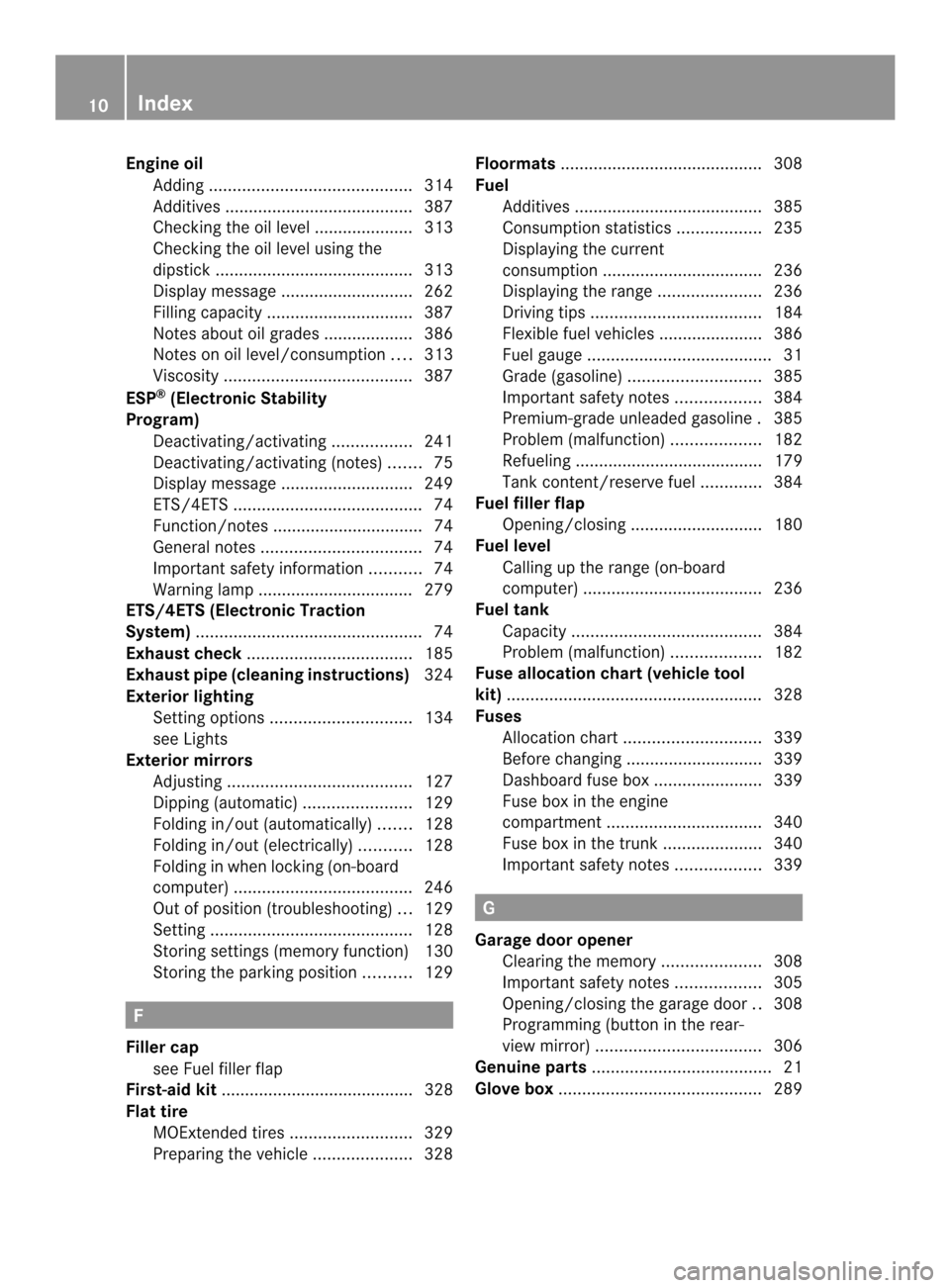

2014 MERCEDES-BENZ E-Class COUPE allocation chart

Engine oil
Adding ........................................... 314
Additives ........................................ 387
Checking the oil level ..................... 313
Checking the oil level using the
dipstick .......................................... 313
Display message ............................ 262
Filling capacity ............................... 387
Notes about oil grades ................... 386
Notes on oil level/consumption ....313
Viscosity ........................................ 387
ESP ®
(Electronic Stability
Program) Deactivating/activating .................241
Deactivating/activating (notes) .......75
Display message ............................ 249
ETS/4ETS ........................................ 74
Function/notes ................................ 74
General notes .................................. 74
Important safety information ...........74
Warning lamp ................................. 279
ETS/4ETS (Electronic Traction
System) ................................................ 74
Exhaus tcheck ................................... 185
Exhaus tpipe (cleaning instructions) 324
Exterior lighting Settin goption s.............................. 134
see Lights
Exterior mirrors
Adjusting ....................................... 127
Dipping (automatic) .......................129
Folding in/ou t(automatically) .......128
Folding in/ou t(electrically) ...........128
Folding in whe nlocking (on-board
computer) ...................................... 246
Out of position (troubleshooting) ...129
Setting ........................................... 128
Storing settings (memory function) 130
Storing the parking position ..........129 F
Fille rcap
see Fuel filler flap
First-aid kit ......................................... 328
Flat tire MOExtended tires ..........................329
Preparing the vehicle .....................328Floormats
........................................... 308
Fuel Additives ........................................ 385
Consumption statistics ..................235
Displaying the current
consumption .................................. 236
Displaying the range ......................236
Driving tips .................................... 184
Flexible fuel vehicles ......................386
Fuel gauge ....................................... 31
Grade (gasoline) ............................ 385
Important safety notes ..................384
Premium-grade unleaded gasoline .385
Problem (malfunction) ...................182
Refueling ........................................ 179
Tank content/reserve fuel .............384
Fuel filler flap
Opening/closing ............................ 180
Fuel level
Calling up the range (on-board
computer) ...................................... 236
Fuel tank
Capacity ........................................ 384
Problem (malfunction) ...................182
Fuse allocation chart (vehicle tool
kit) ...................................................... 328
Fuses Allocation chart ............................. 339
Before changing ............................. 339
Dashboard fuse box .......................339
Fuse box in the engine
compartment ................................. 340
Fuse box in the trunk .....................340
Important safety notes ..................339 G
Garage door opener Clearing the memory .....................308
Important safety notes ..................305
Opening/closing the garage door ..308
Programming (button in the rear-
view mirror) ................................... 306
Genuine parts ...................................... 21
Glove box ........................................... 28910
Index

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: (Y page 25).Where will I find...?
First-aid kit
Example: Coupe, first-aid kit
X
Open the trun klid.
X Release tensioning strap 0002.
X Remove first-aid kit 0003.
i Check the expiration date on the first-aid
kit at least once a year. Replace the
contents if necessary, and replace missing
items. Vehicle tool kit
General notes The vehicle tool kit can be found in the
stowage well under the trunk floor. Vehicles with
a"Minispare" emergency
spare wheel "Minispare" emergency spare wheel (example)
0002
"Minispare" emergency spare wheel
0003 Vehicle tool kit tray
0023 Stowage well
X Open the trunk lid.
X Lift the trunk floor upwards (Y page 292).
The vehicle tool kit contains:
R Cabriolet: straps for emergency release of
the soft top
R folding wheel chock
R fuse allocation chart
R jack
R alignment bolt
R one pairofg loves
R lug wrench
R towing eye Flat tire
Preparing the vehicle
Your vehicle may be equipped with:
R MOExtended tires (tires with run-flat
properties) (Y page 329)
Vehicle preparation is not necessary on
vehicles with MOExtended tires.
R an emergency spare wheel(Y page 377)
Information on changing/mounting a wheel
(Y page 367). 328
Flat tireBreakdown assistance

You can find information on "Jump-starting"
under (Y page 334). Fuses
Important safety notes
G
WARNING
If you manipulate or bridge a faulty fuse or if
you replace it with a fuse with a higher
amperage, the electric cables could be
overloaded. This could result in a fire. There
is a risk of an accident and injury.
Always replace faulty fuses with the specified
new fuses having the correc tamperage.
! Only use fuses that have been approved
for Mercedes-Benz vehicles and which
have the correct fuse rating for the system
concerned. Otherwise, components or
systems could be damaged.
The fuses in yourv ehicle serve to close down
faulty circuits. If afuse blows, all the
components on the circuit and their functions
stop operating.
Blown fuses must be replace dwith fuses of
the same rating, which you can recognize by
the color and value. The fuse ratings are listed
in the fuse allocation chart.
If a newly inserted fuse also blows, have the
cause traced and rectified at a qualified
specialist workshop, e.g. an authorized
Mercedes-Ben zCenter. Before changing a fuse
Observe the important safety notes
(Y page 339)
X Secure the vehicle against rolling away
(Y page 182).
X Switch off all electrical consumers. X
Turn the SmartKey to position 0in the
ignition lock and remove it (Y page 165).
or
X On vehicles with KEYLESS-GO, make sure
the ignition is switched off (Y page 165).
All indicator lamps in the instrument cluster
must be off.
The fuses are located in various fuse boxes:
R Fuse box on the driver's side of the
dashboard
R Fuse box in the engine compartment on the
left-hand side of the vehicle, when viewed
in the direction of travel
R Fuse box in the trun konthe right-hand side
of the vehicle, when viewed in the direction
of travel
The fuse allocation chart is located in the
vehicle tool kit in the stowage compartment
under the trunk floor (Y page 328). Dashboard fuse box
Observe the important safety notes
(Y page 339)
! Do not use a pointed object such as a
screwdriver to open the cover in the
dashboard. You could damage the
dashboard or the cover.
! Make sure that no moisture can enter the
fuse box when the cover is open.
! When closing the cover, make sure that it
is lying correctly on the fuse box. Moisture
seeping in or dirt could otherwise impair
the operation of the fuses. Fuses
339Breakdown assistance Z
